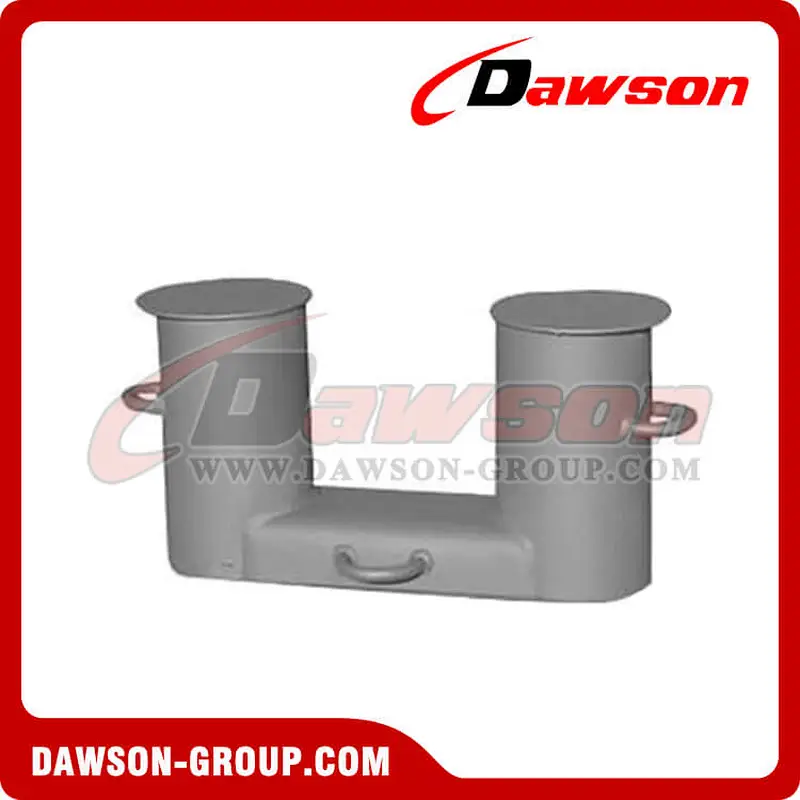

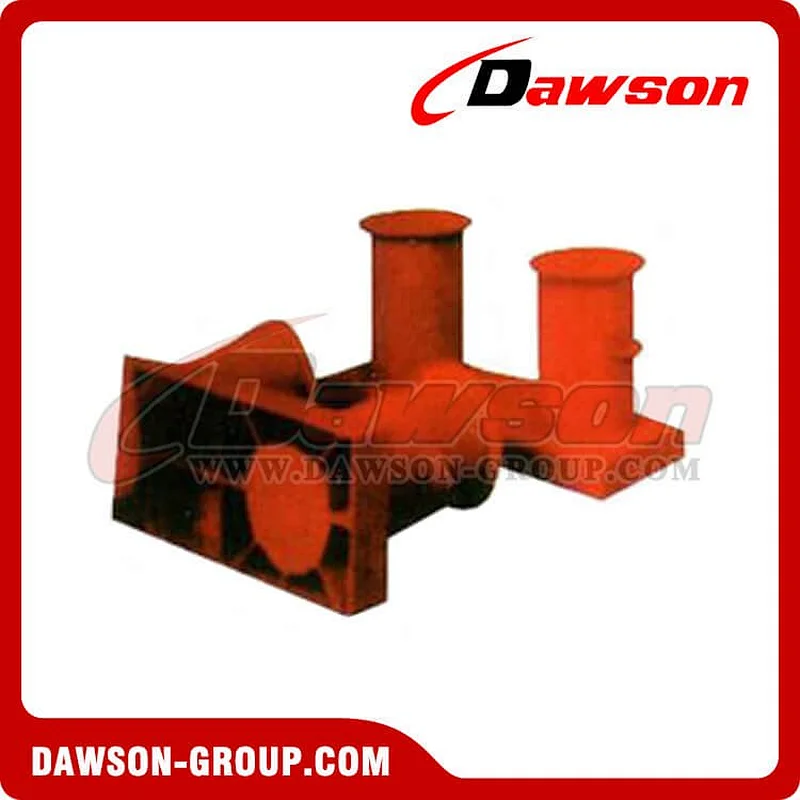

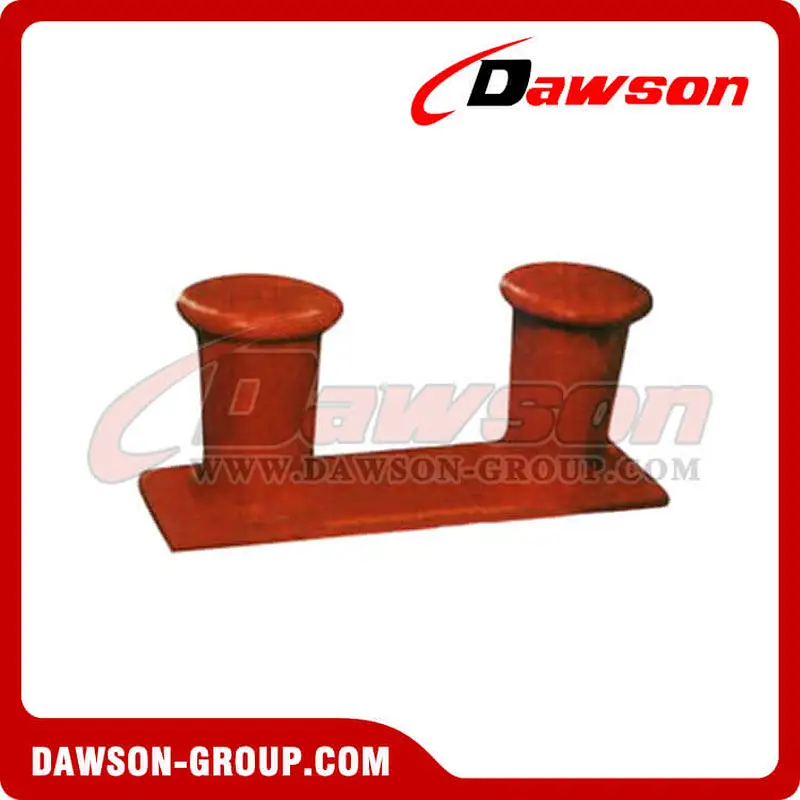

Ship bollard
Ship bollard, installed on the dock, is an important mooring equipment that is used for ship berthing or other security operations. Ship bollard is divided into cast steel bollard and cast iron bollard according to production material. The bollard capacity is from 10 tonnes to 200 tonnes. The nominal specifications are 50 KN to 2000KN.

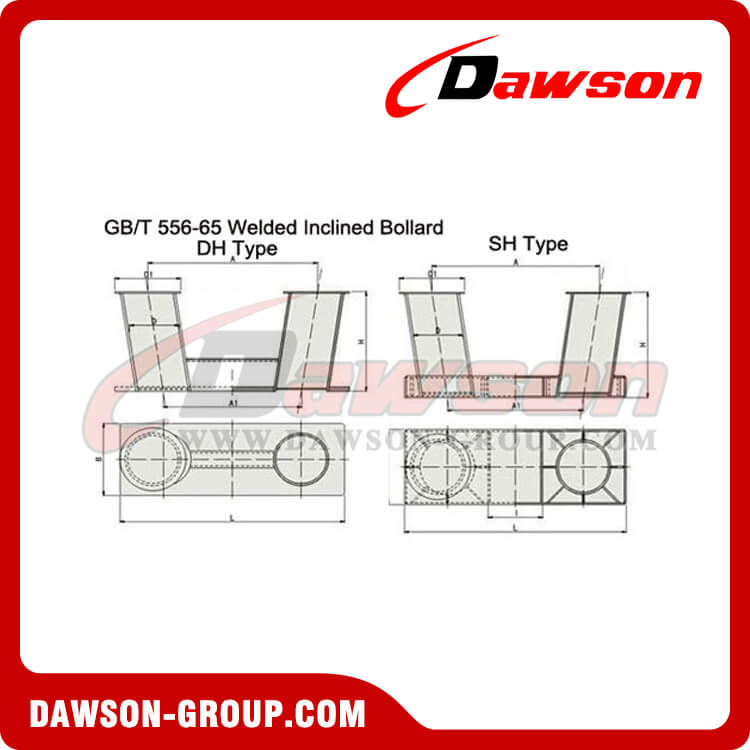

Considering different conditions of berthing capacity and dock structure, mooring bollards have a large variety of types: single cross bollard, double cross bollard, welded inclined bollard, single bitt bollard, double bitt bollard, horn type bollard, T-head bollard, J type bollard, Kidney type bollard and so on.
All the marine bollards are of high quality and stable performance. They comply with the industrial standard and get approval of ISO9001 and CCS. If you have special requirements about the bollards, we can do as you require. For more information, please feel free to contact us.

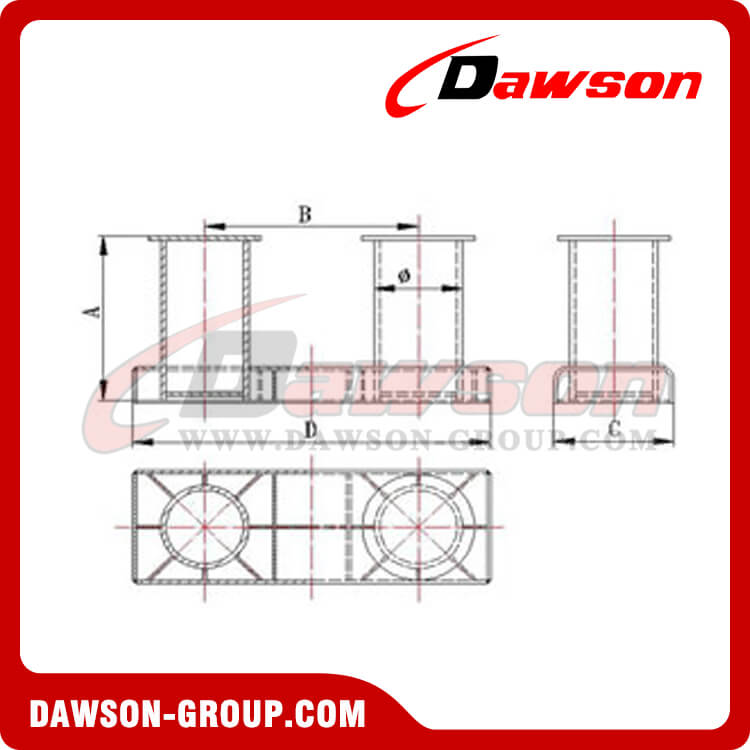

| Nominal Dia. | Weight (kg) | Size(mm) | ||||
| A | B | C | D | Φ | ||
| 100 | 18.9 | 196 | 250 | 165 | 445 | 114.3 |
| 125 | 29.4 | 246 | 315 | 195 | 540 | 139.8 |
| 160 | 44.7 | 316 | 400 | 225 | 670 | 165.2 |
| 200 | 79.5 | 378 | 500 | 290 | 860 | 216.3 |
| 250 | 139 | 470 | 630 | 360 | 1065 | 267.4 |
| 315 | 261 | 597 | 800 | 430 | 1300 | 318.5 |
| 355 | 361 | 663 | 890 | 480 | 1475 | 355.6 |
| 400 | 502 | 749 | 1000 | 550 | 1630 | 406.4 |
| 450 | 685 | 841 | 1130 | 620 | 1840 | 457.2 |
| 500 | 911 | 928 | 1250 | 690 | 2040 | 508.0 |
| 560 | 1208 | 1025 | 1380 | 750 | 2240 | 558.8 |
| 630 | 1601 | 1152 | 1570 | 820 | 2510 | 609.6 |
| 710 | 2252 | 1294 | 1750 | 960 | 2840 | 711.2 |
| 800 | 3071 | 1480 | 2000 | 1100 | 3240 | 812.8 |

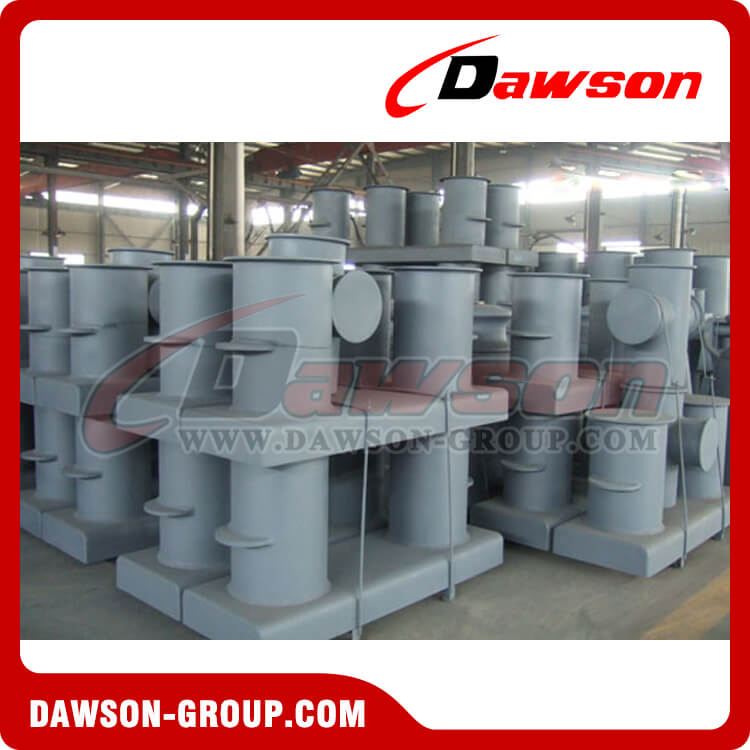

Factory & Package Show:
