Swivel Fairlead
Swivel fairlead, installed on the deck of ships, is one kind of fairlead device which is used for ship mooring. In the central body of the fairlead there is opening for mooring ropes or anchor chains. At the beginning and end of the fairlead,there are same size front panel and back panel. The shape of opening is approximately elliptical. The surface of opening is smooth to avoid the abrasion of mooring ropes or anchor chains. In order to increase the stiffness and strength, fairlead set respectively horizontal, vertical, diagonal ribs. With the compact structure and reasonal opening, swivel fairlead is applicable to not only ordinary ship towing or mooring, but also to ships sailing in the canal waterway.
Specification:
Model Type:360 Degree Swivel Fairlead
Max. Rope Diameter: 20mm~76mm
Breaking Strength:32~200MT
Rotation Angle: Sheave90°warp, Swivel Head±90°
Material: Cast Steel
Certificate:CCS,ABS,BV,LR,NK,RINA

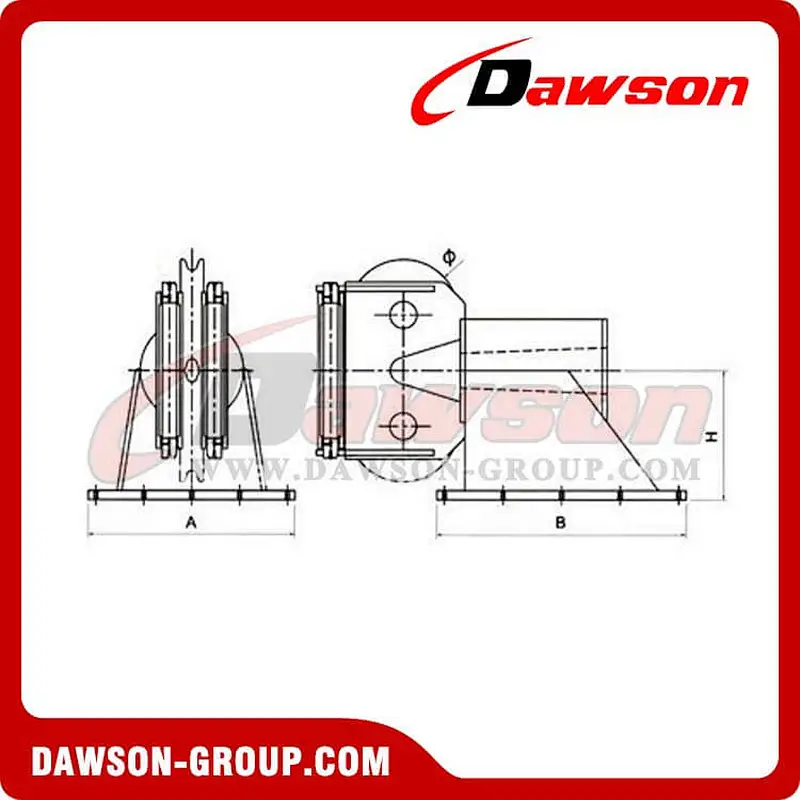

| Type | Max Wire Dia | A | B | H | Φ |
| SLPM20 | 20 | 400 | 425 | 350 | 250 |
| SLPM25 | 25 | 400 | 425 | 360 | 250 |
| SLPM32 | 32 | 600 | 600 | 376 | 320 |
| SLPM38 | 38 | 760 | 760 | 489 | 400 |
| SLPM44 | 44 | 880 | 880 | 580 | 500 |
| SLPM52 | 52 | 1120 | 1250 | 700 | 600 |
| SLPM60 | 60 | 1120 | 1350 | 720 | 620 |
| SLPM68 | 68 | 1210 | 1450 | 780 | 680 |
| SLPM76 | 76 | 1250 | 1500 | 870 | 780 |
