4 Rollers Fairlead
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Features of 4 Rollers Fairlead
1. Fairleads with 4 horizontal rollers;
2. Adopt ship production standard CB*3062-79 type BB;
3. Cast steel rollers, carbon steel pin and aluminum bronze bushings;
4. Universal roller fairlead that guide mooring ropes from different directions;
5. Steel wire diameters 19.5mm to 68mm, nylon rope diameters 36mm to 100mm;
6. No cracks or other defects on surface;
7. Lubricated for lubricants filled between roller and pin;
8. Rust resistance for anti-rust painting;
9. Approved by quality inspection center(CCS,ABS certificates);
10. Customized fairlead according to special requirements.

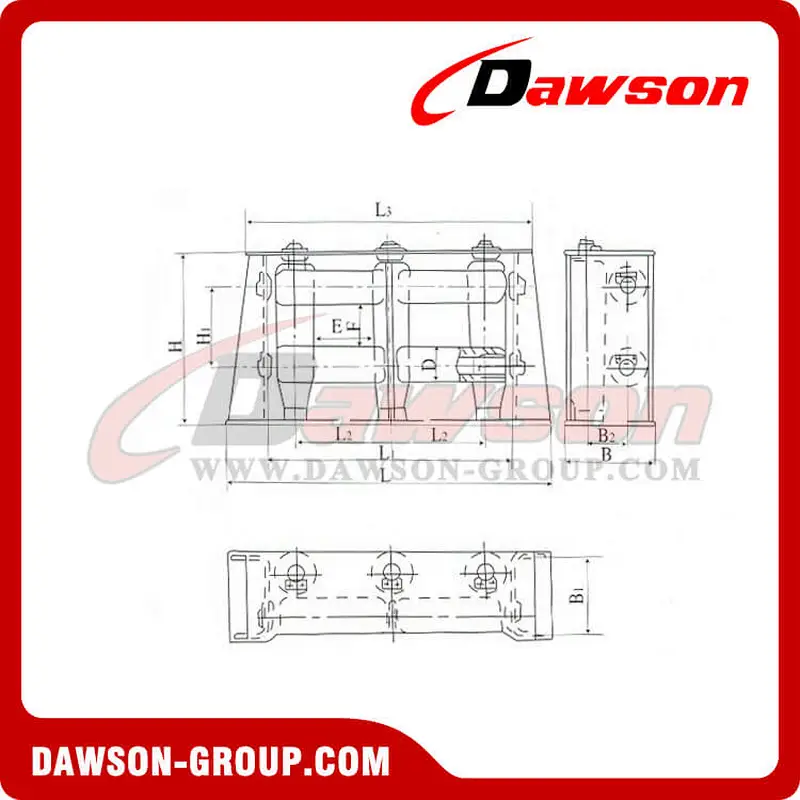

| Wire Rope Diameter(mm) | Nylon Rope Diameter(mm) | E(mm) | F(mm) | D(mm) | d(mm) | L(mm) | L1(mm) | L2(mm) | L3(mm) | B(mm) | B1(mm) | B2(mm) | H(mm) | H1(mm) | Weight(kg) |
| 19.5 | 36 | 200 | 150 | 100 | 40-0.5 | 644 | 416 | 300 | 544 | 238 | 194 | 108 | 508 | 250 | 155 |
| 22.5 | 40 | 200 | 150 | 120 | 50-0.5 | 728 | 456 | 320 | 608 | 280 | 232 | 128 | 552 | 270 | 239 |
| 26.0 | 45 | 200 | 180 | 130 | 55-0.5 | 776 | 480 | 330 | 646 | 304 | 250 | 138 | 606 | 310 | 306 |
| 32.0 | 70 | 220 | 180 | 150 | 65-0.5 | 880 | 540 | 370 | 730 | 346 | 288 | 158 | 670 | 330 | 450 |
| 34.5 | 80 | 220 | 200 | 160 | 70-0.5 | 940 | 580 | 400 | 780 | 370 | 308 | 168 | 710 | 360 | 576 |
| 37.5 | 85 | 240 | 200 | 180 | 80-0.5 | 1030 | 620 | 420 | 850 | 417 | 345 | 190 | 770 | 380 | 756 |
| 43.0 | 95 | 260 | 210 | 200 | 90-0.5 | 1136 | 686 | 460 | 936 | 459 | 385 | 210 | 820 | 410 | 987 |
| 52.0 | 100 | 260 | 220 | 230 | 100-0.5 | 1256 | 746 | 490 | 1026 | 521 | 445 | 240 | 910 | 450 | 1370 |
| 60.5 | - | 300 | 240 | 260 | 120-0.5 | 1430 | 850 | 560 | 1170 | 590 | 500 | 270 | 1000 | 500 | 2008 |
| 68.0 | - | 320 | 320 | 320 | 150-0.5 | 1690 | 990 | 640 | 1370 | 714 | 620 | 330 | 1130 | 570 | 3352 |

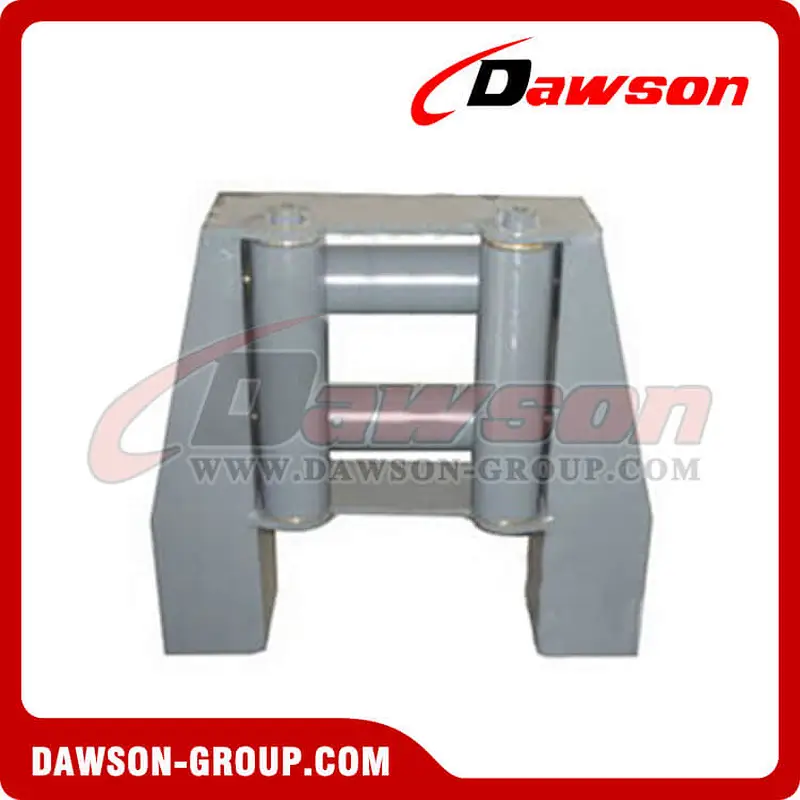

Product Show:

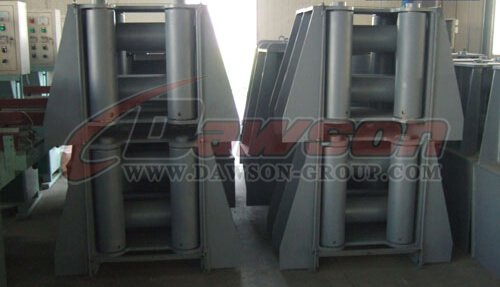

Factory & Package Show:
