7 Rollers Fairlead
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Features of 7 Rollers Fairlead
1. Fairlead with 7 horizontal rollers;
2. Universal roller fairlead that guide ropes from different direction;
3. Adopt marine ship production standard CB*3062-79;
4. Cast steel rollers with aluminum bronze bushings;
5. Steel wire diameter(19.5mm to 68mm), nylon rope diameter(36mm to 100mm);
6. No cracks or other defects on surface;
7. Lubricated for lubricants filled between roller and pin;
8. Rust resistance for anti-rust painting;
9. Approved by quality inspection center(CCS,ABS certificates);
10. Customized fairlead according to special requirements.

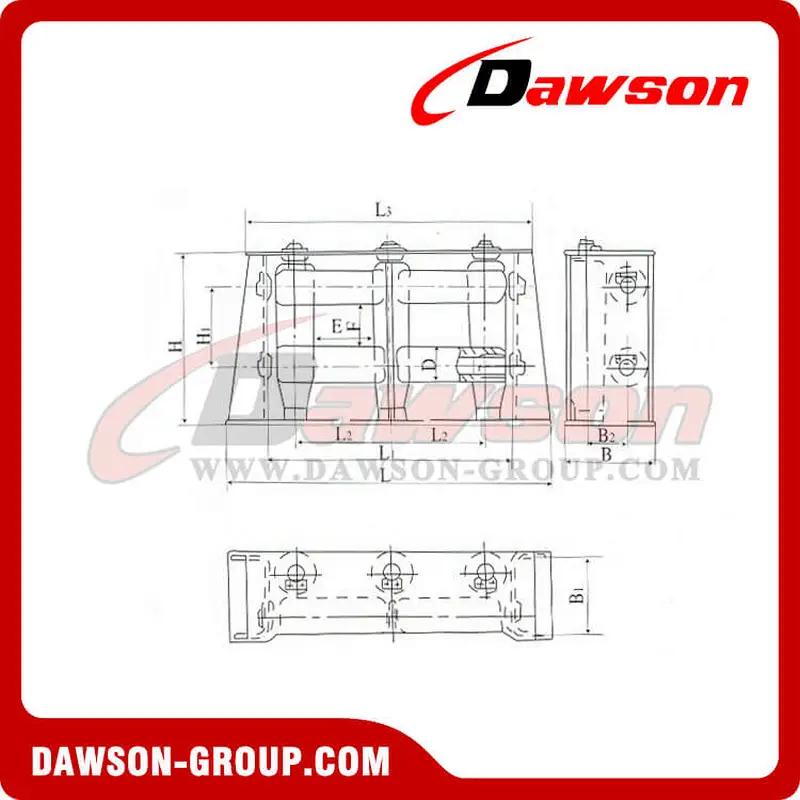

| Wire Rope Diameter(mm) | Nylon Rope Diameter(mm) | E(mm) | F(mm) | D(mm) | d(mm) | L(mm) | L1(mm) | L2(mm) | L3(mm) | B(mm) | B1(mm) | B2(mm) | H(mm) | H1(mm) | Weight(kg) |
| 19.5 | 36 | 200 | 150 | 100 | 40-0.5 | 944 | 716 | 300 | 844 | 324 | 194 | 108 | 508 | 250 | 302 |
| 22.5 | 40 | 200 | 150 | 120 | 50-0.5 | 1048 | 776 | 320 | 928 | 384 | 232 | 128 | 552 | 270 | 464 |
| 26.0 | 45 | 200 | 180 | 130 | 55-0.5 | 1106 | 810 | 330 | 976 | 415 | 250 | 138 | 606 | 310 | 596 |
| 32.0 | 70 | 220 | 180 | 150 | 65-0.5 | 1250 | 910 | 370 | 1100 | 475 | 288 | 158 | 670 | 330 | 883 |
| 34.5 | 80 | 220 | 200 | 160 | 70-0.5 | 1340 | 980 | 400 | 1180 | 507 | 308 | 168 | 710 | 360 | 1048 |
| 37.5 | 85 | 240 | 200 | 180 | 80-0.5 | 1450 | 1040 | 420 | 1270 | 571 | 345 | 190 | 770 | 380 | 1229 |
| 43.0 | 95 | 260 | 210 | 200 | 90-0.5 | 1596 | 1146 | 460 | 1396 | 632 | 385 | 210 | 820 | 410 | 1911 |
| 52.0 | 100 | 260 | 220 | 230 | 100-0.5 | 1746 | 1236 | 490 | 1516 | 723 | 445 | 240 | 910 | 450 | 2675 |
| 60.5 | - | 300 | 240 | 260 | 120-0.5 | 1990 | 1410 | 560 | 1730 | 815 | 500 | 270 | 1000 | 500 | 3887 |
| 68.0 | - | 320 | 320 | 320 | 150-0.5 | 2330 | 1630 | 640 | 2010 | 997 | 620 | 330 | 1130 | 570 | 6432 |

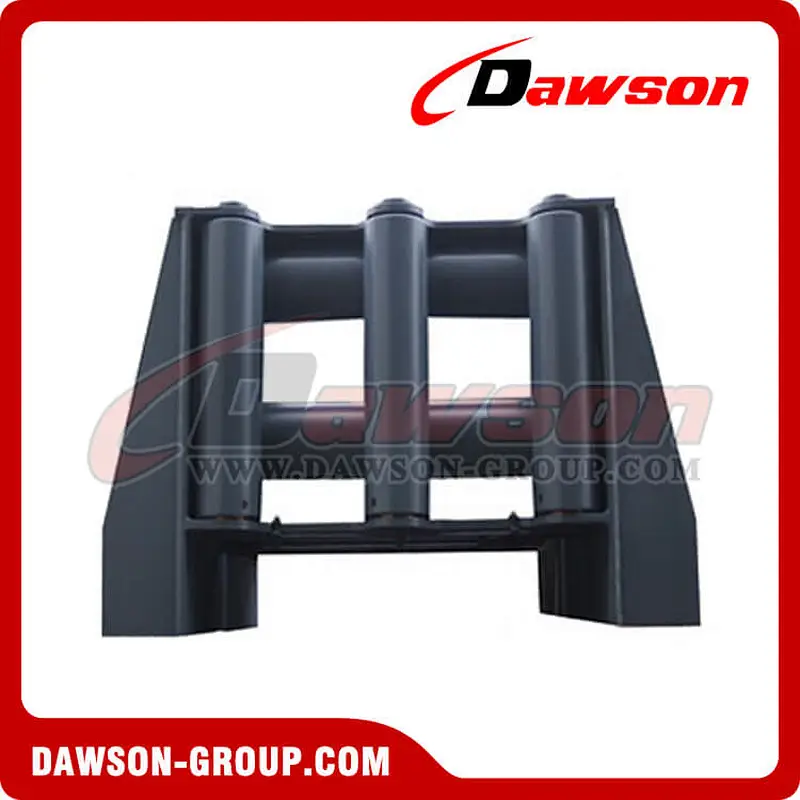

Product Show:

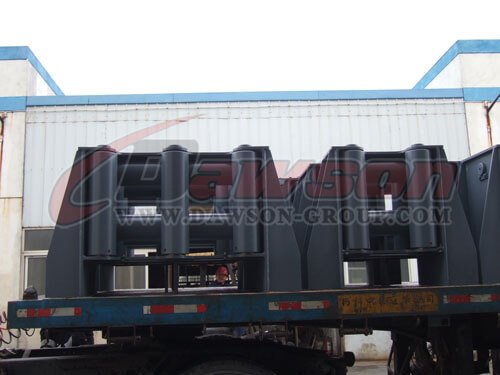

Factory & Package Show:
