9 Rollers Fairlead
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
9 Rollers Fairlead
Features of 9 Rollers Fairlead
1. Universal Fairlead with 9 horizontal rollers;
2. Used to guide mooring ropes from different directions;
3. Cast steel material;
4. Nominal pulling load 20KN to 320KN;
5. Excellent wear and corrosion resistance;
6. Durable and long lifetime;
7. Pass quality test of quality inspection center;
8. Produce customized fairlead;
| Type | Nominal Pull(KN) | Wire Φ | Rope Φ | A | B | D | E | H | L | X×Y |
| FA-9-12 | 20 | 12 | 22 | 914 | 626 | 364 | 82.5 | 260 | 490 | 180×100 |
| FA-9-16 | 30 | 16 | 28 | 1130 | 786 | 454 | 101.6 | 330 | 610 | 230×120 |
| FA-9-20 | 50 | 20 | 36 | 1270 | 900 | 524 | 127 | 410 | 715 | 250×140 |
| FA-9-24 | 80 | 24 | 48 | 1420 | 1000 | 580 | 139.7 | 460 | 800 | 280×150 |
| FA-9-32 | 120 | 32 | 60 | 1680 | 1150 | 680 | 177.8 | 570 | 915 | 300×160 |
| FA-9-36 | 160 | 36 | 72 | 1820 | 1250 | 732 | 194 | 630 | 1005 | 320×170 |
| FA-9-40 | 200 | 40 | 78 | 1940 | 1440 | 856 | 244.5 | 780 | 1145 | 340×180 |
| FA-9-48 | 320 | 48 | 96 | 2400 | 1720 | 1026 | 299 | 960 | 1355 | 400×250 |

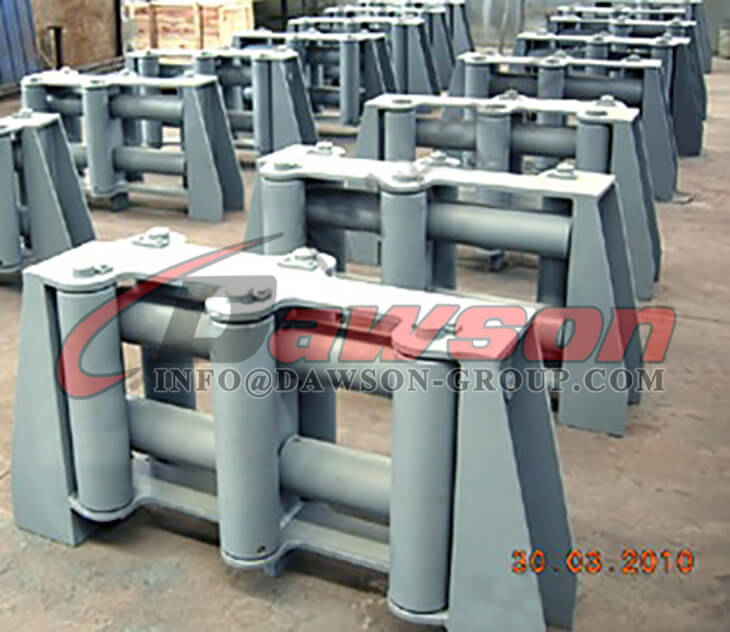

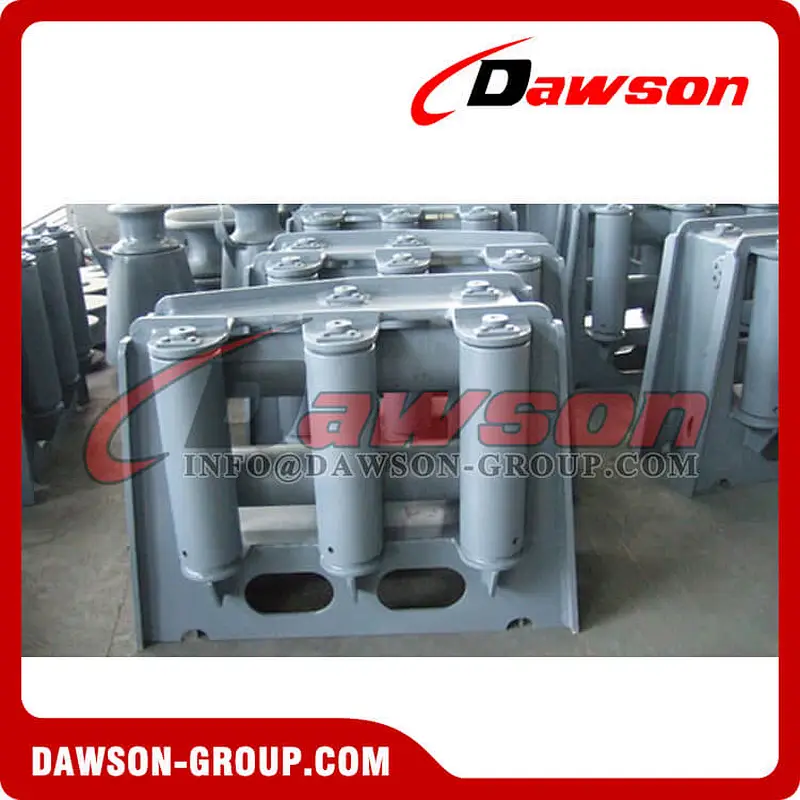

Product Show:
Factory & Package Show:
