AC-14 HHP Stockless Anchor / High Holding Power Anchor

AC-14 HHP Stockless Anchor / High Holding Power Anchor

Model NO.: DA-AC-14 HHPSA

Quantity:

Product Description

AC-14 HHP Anchor / High Holding Power Anchor
Boat Anchor for Marine
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

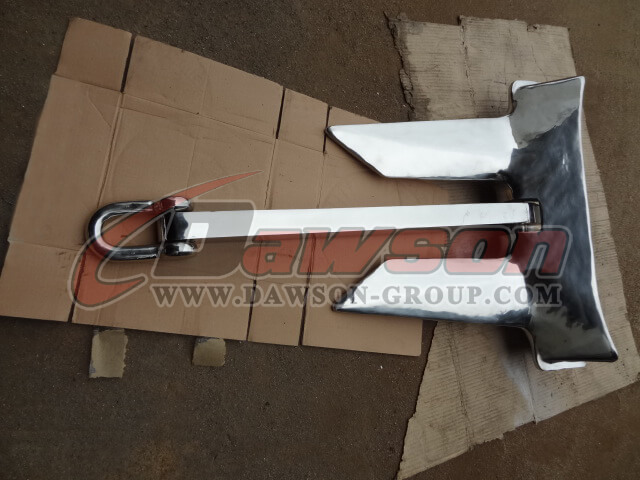

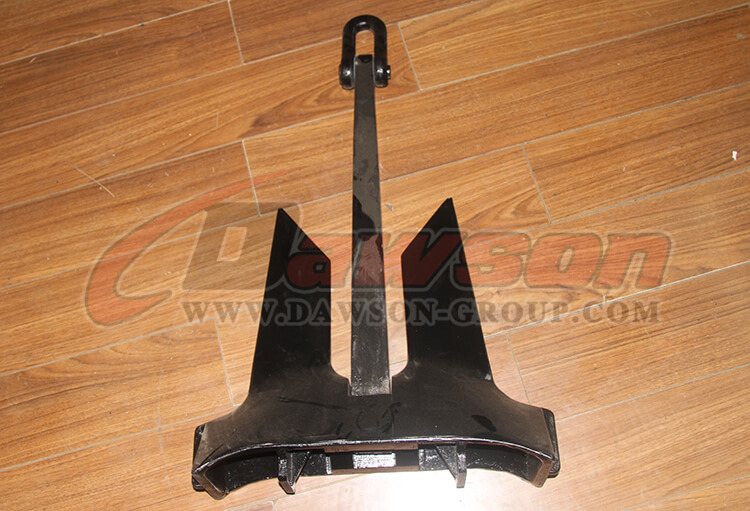

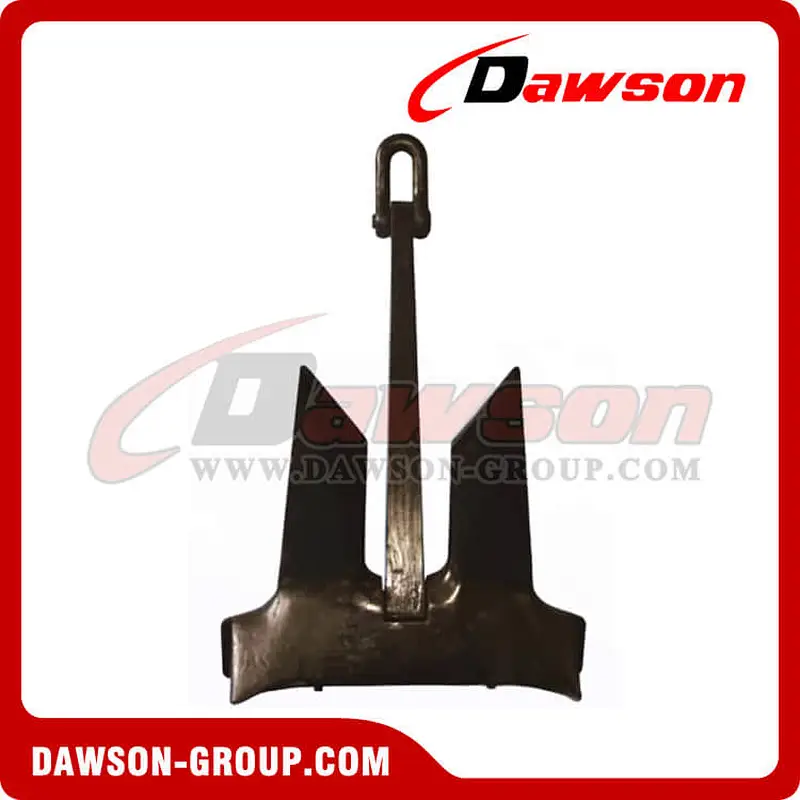

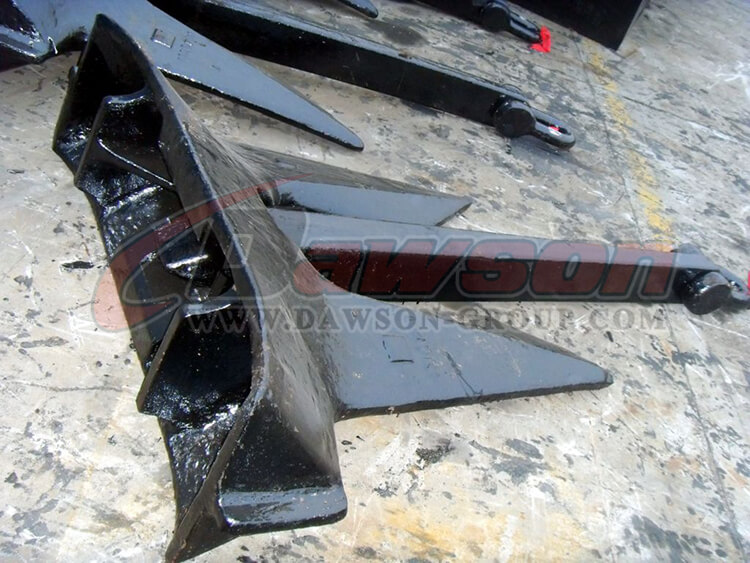

AC-14 Type HHP Stockless Anchors:

This is a high holding power type stockless anchor that can be relied upon in a variety of sea bottom conditions. It has a higher efficiency (weight/ holding power) than its predecessor, the stockless anchor, allowing the user to decrease the weight needed.

CERTIFICATES:CCS,ZC,LR,ABS,DNV,NK,GL,BV

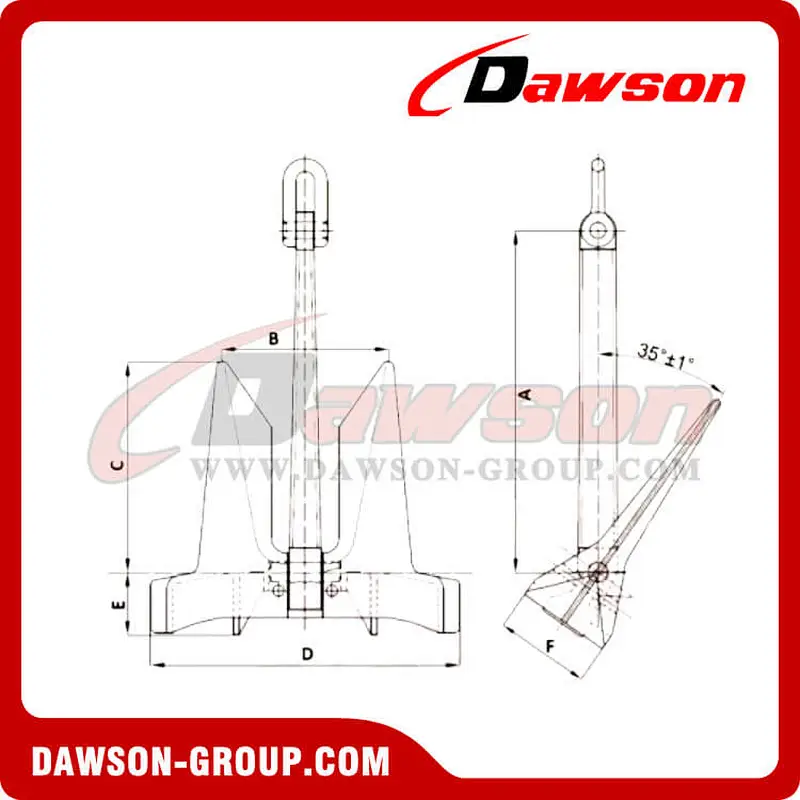

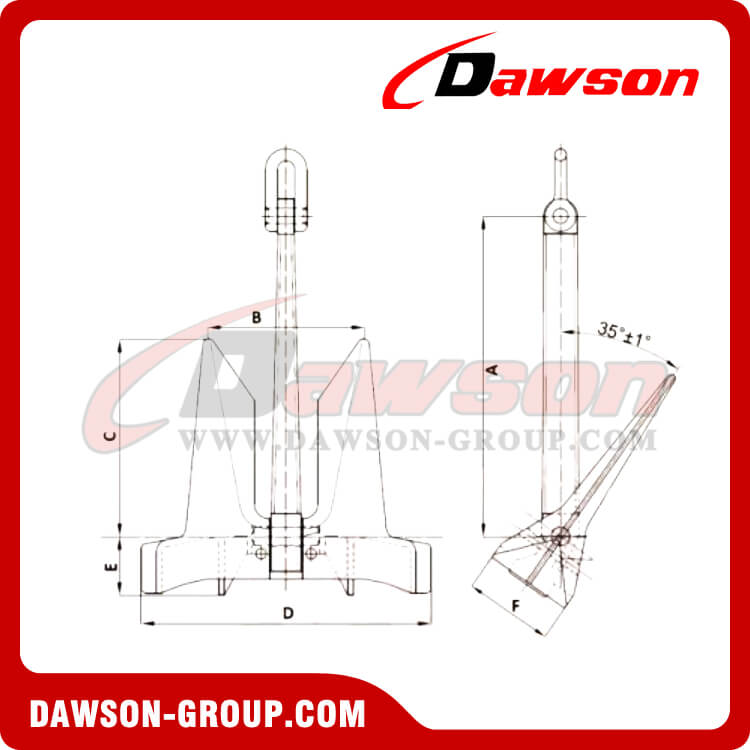

Nominal Weight(kg)	Size(mm)
Nominal Weight(kg)	A	B	C	D	E	F
56	612	298	376	555	109	170
100	745	364	458	675	130	200
180	909	442	558	822	162	252
300	1075	524	660	975	194	298
428	1213	590	745	1098	216	336
675	1410	690	868	1278	250	390
750	1450	700	878	1315	256	396
910	1560	760	957	1410	273	430
970	1593	775	978	1445	284	440
1080	1650	805	1014	1495	294	455
1305	1760	858	1082	1595	313	485
1440	1818	885	1118	1645	324	505
1710	1925	940	1184	1745	343	532
1845	1975	965	1215	1785	347	546
2100	2065	1005	1268	1865	354	570
2475	2175	1062	1340	1970	385	602
2835	2265	1105	1393	2055	399	625
3550	2455	1198	1508	2225	438	680
3940	2540	1240	1562	2300	453	705
4500	2655	1295	1632	2405	473	735
4840	2720	1330	1670	2465	490	755
5610	2858	1396	1758	2590	509	790
6000	2922	1426	1796	2646	515	810
6900	3062	1496	1884	2775	545	848
7800	3190	1558	1962	2890	569	884
8300	3256	1590	2002	2950	574	902
9300	3382	1652	2080	3064	603	936
9900	3452	1686	2124	3128	616	956
10575	3523	1720	2166	3192	628	976
11100	3589	1720	2166	3192	628	976
11700	3650	1782	2245	3308	648	1010
12300	3683	1794	2260	3330	655	1018
12900	3772	1842	2320	3418	670	1044
13500	3830	1870	2355	3470	682	1060
14100	3885	1896	2389	3520	689	1076
14700	3940	1924	2423	3570	700	1090
15400	4002	1954	2461	3626	710	1108
16100	4062	1982	2498	3680	721	1125
16900	4128	2016	2538	3740	721	1144
17800	4200	2050	2583	3806	725	1162
18800	4277	2088	2630	3875	729	1185
20000	4350	2101	2694	3945	729	1185
25000	5046	2437	3125	4577	846	1375
30000	5162	2558	3218	4730	898	1440
35000	5434	2693	3388	4979	945	1516
40000	5678	2814	3540	5203	988	1584
45000	5905	2926	3681	5411	1027	1647
50000	6117	3031	3813	5605	1064	1706
55000	6313	3128	3936	5785	1098	1761
60000	6504	3223	4055	5960	1131	1814
65000	6680	3310	4164	6121	1162	1863
70000	6845	3392	4267	6272	1191	1909
75000	7005	3471	4367	6419	1219	1954
80000	7155	3545	4460	6556	1245	1996
85000	7304	3620	4553	6693	1271	2038
90000	7444	3688	4640	6821	1295	2076
95000	7578	3755	4724	6944	1318	2114
100000	7707	3819	4804	7062	1341	2150
