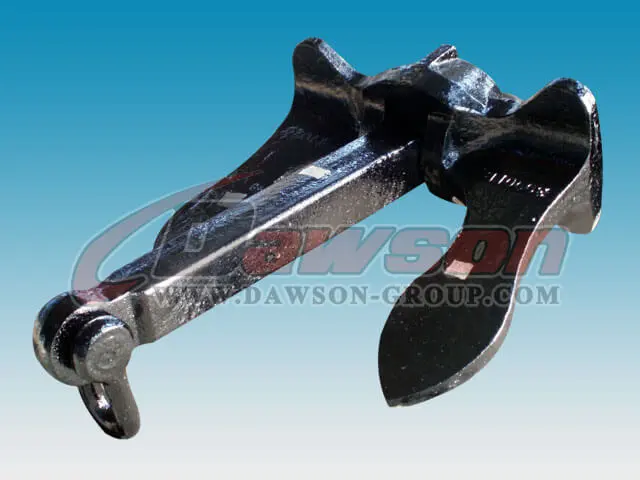

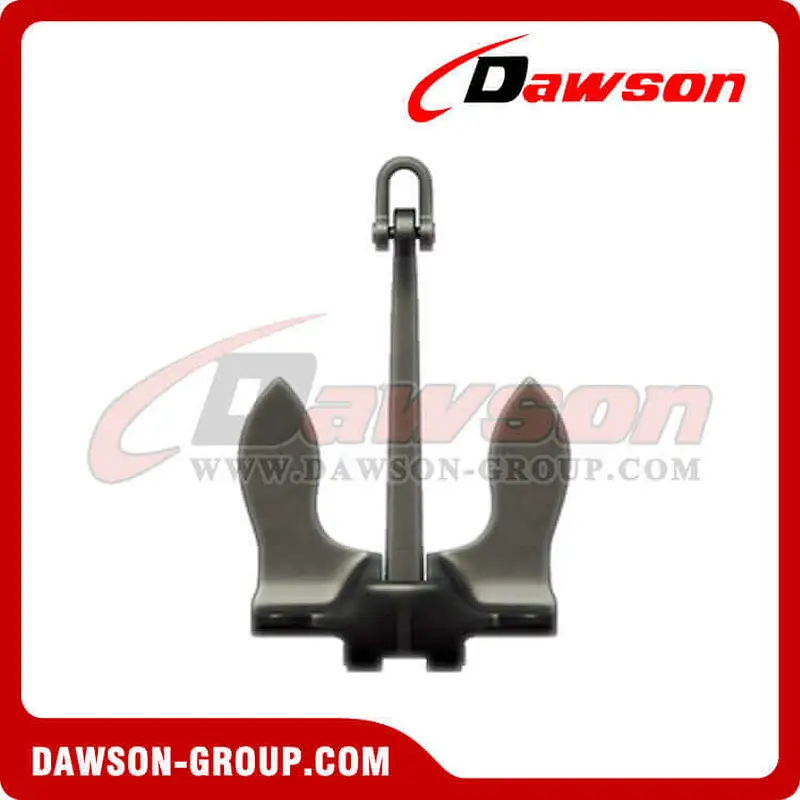

Baldt Stockless Anchor

Model NO.: DS-BSA

Quantity:

Product Description

Baldt Stockless Anchor, Marine Boat Anchor

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Nominal Weight:200-50000kg

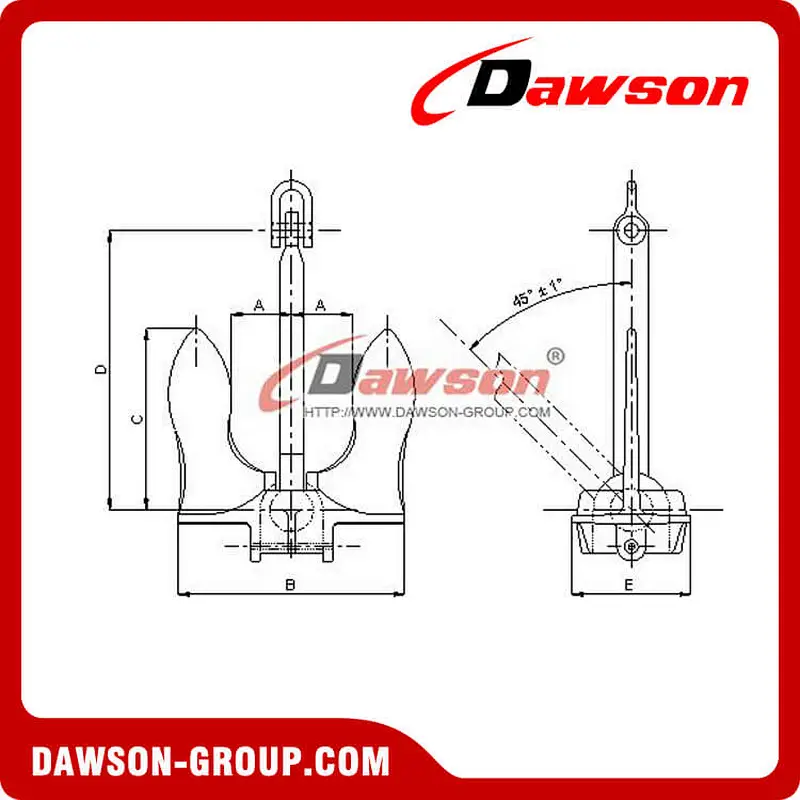

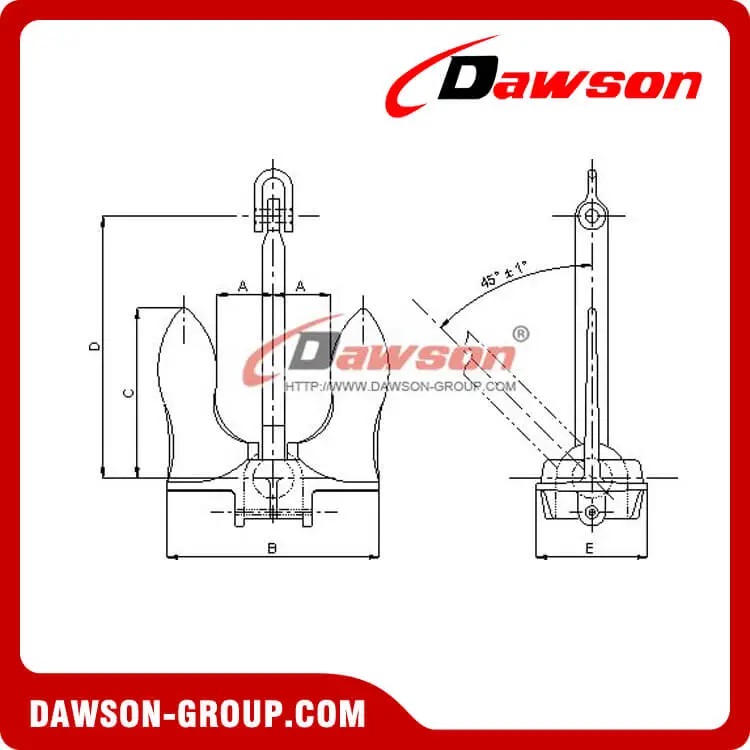

Nominal Weight (lbs)	Dimensions (mm)
Nominal Weight (lbs)	A	B	C	D	E	F	G	H	J
200	686	457	241	384	130	95	25	94	102
300	813	591	297	438	170	95	25	94	114
400	813	654	330	483	178	95	25	94	114
500	889	673	356	508	178	117	32	115	140
700	965	749	397	597	206	117	32	115	146
775	965	813	429	629	219	117	32	115	146
900	1,067	813	432	610	229	144	38	137	165
1,000	1,067	854	457	638	248	144	38	137	165
1,260	1,168	924	476	721	251	200	51	184	171
1,430	1,245	991	508	733	273	200	51	184	178
1,540	1,245	1,016	521	775	279	200	51	184	178
1,600	1,245	1,016	521	775	279	200	51	184	178
1,750	1,321	1,054	533	845	289	200	51	184	184
1,875	1,321	1,092	559	883	305	200	51	184	184
1,950	1,321	1,092	559	883	305	200	51	184	184
2,100	1,473	1,137	584	848	308	200	51	184	191
2,500	1,473	1,137	591	848	308	200	51	184	191
2,800	1,473	1,219	635	911	330	200	51	184	191
3,000	1,626	1,194	648	914	324	238	64	232	222
3,500	1,626	1,340	699	953	362	238	64	232	222
4,000	1,794	1,353	699	997	368	238	64	232	241
4,500	1,794	1,441	737	1,067	381	238	64	232	241
5,000	1,930	1,461	762	1,067	397	257	76	279	260
6,000	1,930	1,613	845	1,194	438	257	76	279	260
6,300	1,930	1,613	845	1,194	438	257	76	279	260
6,500	2,083	1,613	838	1,210	438	257	76	279	273
6,750	2,083	1,651	857	1,238	448	257	76	279	273
7,000	2,083	1,692	883	1,264	457	257	76	279	273
7,600	2,083	1,715	883	1,264	467	257	76	279	273
8,100	2,375	1,683	870	1,241	464	257	89	311	292
8,600	2,375	1,740	908	1,283	470	314	89	311	292
9,000	2,438	1,784	924	1,314	486	314	89	311	292
10,000	2,438	1,918	991	1,473	533	483	102	375	305
11,000	2,438	1,918	991	1,473	533	483	102	375	305
12,000	2,438	1,947	1,016	1,473	527	483	102	375	305
13,000	2,489	1,949	1,016	1,473	527	483	102	375	305
14,000	2,616	2,045	1,118	1,524	565	483	102	375	330
15,000	2,616	2,184	1,168	1,651	610	483	102	375	330
16,000	2,743	2,184	1,168	1,651	610	483	102	375	330
18,000	2,845	2,242	1,226	1,667	629	559	114	425	330
18,900	2,845	2,242	1,226	1,667	629	559	114	425	330
20,000	2,845	2,438	1,270	1,829	660	559	114	425	356
25,000	3,048	2,616	1,365	1,969	711	559	114	425	381
30,000	3,251	2,794	1,454	2,096	759	610	127	476	406
35,000	3,429	2,946	1,524	2,210	800	635	127	483	432
