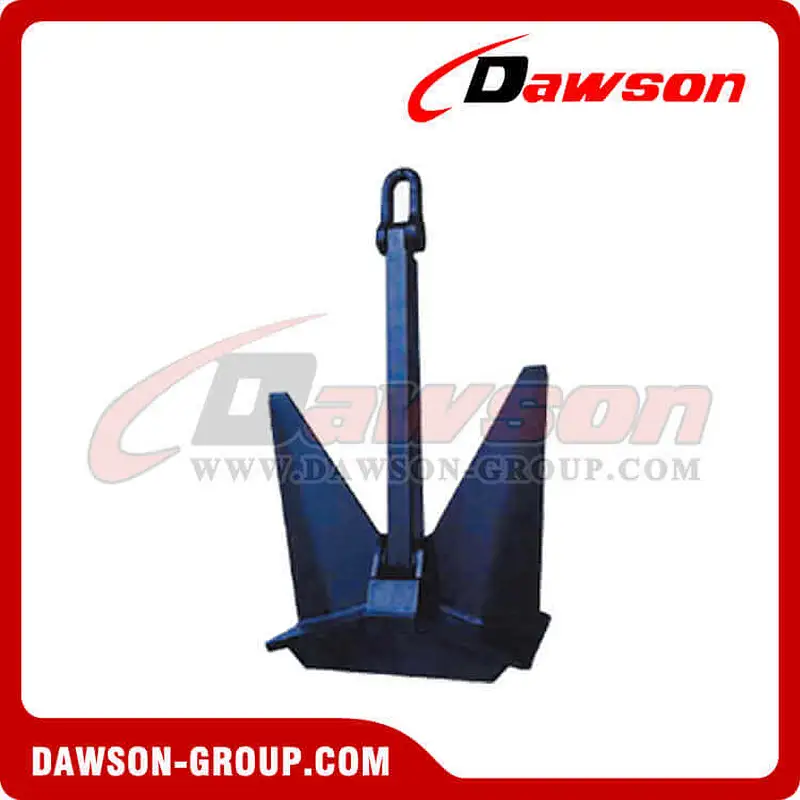

DS-SB Type HHP Balanced Anchor / High Holding Power Pool Special Balanced Anchor
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Nominal Weight:60-28875kg

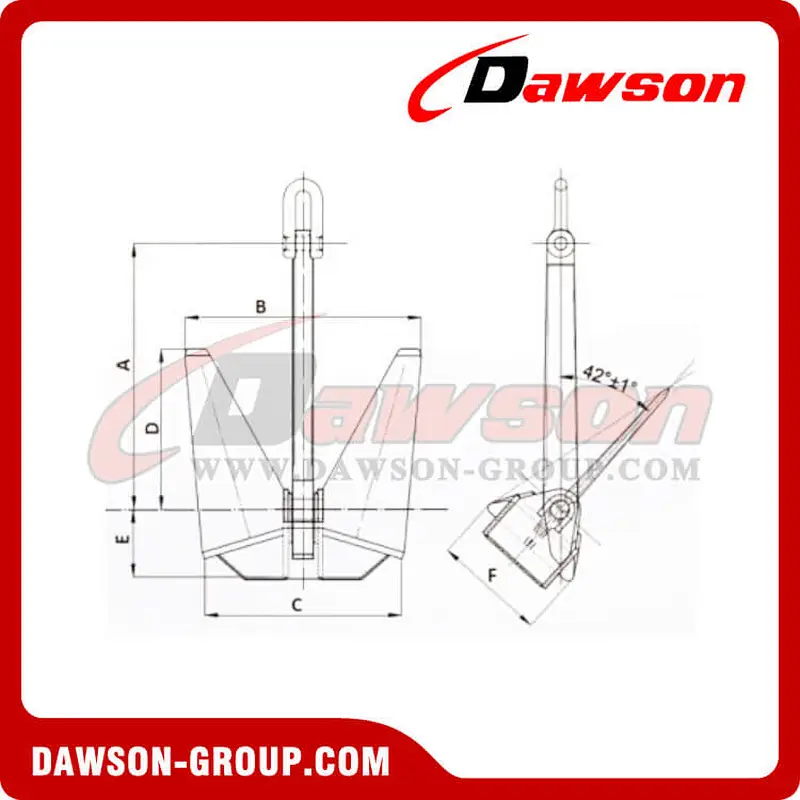

| Nominal Weight(kg) | Size(mm) | |||||
| A | B | C | D | E | F | |
| 60 | 590 | 555 | 470 | 364 | 157 | 270 |
| 80 | 664 | 605 | 515 | 410 | 176 | 295 |
| 100 | 712 | 655 | 555 | 440 | 190 | 320 |
| 160 | 835 | 765 | 650 | 516 | 223 | 370 |
| 200 | 885 | 825 | 700 | 546 | 236 | 400 |
| 280 | 1008 | 925 | 780 | 622 | 269 | 450 |
| 360 | 1096 | 1005 | 855 | 677 | 292 | 490 |
| 480 | 1186 | 1105 | 940 | 728 | 314 | 535 |
| 600 | 1300 | 1190 | 1010 | 802 | 347 | 580 |
| 765 | 1410 | 1290 | 1096 | 870 | 375 | 610 |
| 1000 | 1526 | 1395 | 1185 | 942 | 404 | 660 |
| 1080 | 1580 | 1446 | 1230 | 975 | 421 | 685 |
| 1195 | 1636 | 1485 | 1270 | 1010 | 436 | 708 |
| 1305 | 1680 | 1541 | 1308 | 1037 | 448 | 730 |
| 1440 | 1738 | 1592 | 1352 | 1073 | 464 | 754 |
| 1575 | 1769 | 1640 | 1386 | 1092 | 472 | 777 |
| 1710 | 1840 | 1686 | 1455 | 1137 | 491 | 798 |
| 1845 | 1890 | 1729 | 1469 | 1168 | 504 | 819 |
| 1980 | 1935 | 1770 | 1504 | 1195 | 516 | 836 |
| 2140 | 1986 | 1816 | 1543 | 1226 | 530 | 860 |
| 2295 | 2030 | 1860 | 1580 | 1254 | 540 | 880 |
| 2655 | 2140 | 1954 | 1684 | 1322 | 566 | 926 |
| 2835 | 2188 | 1996 | 1700 | 1351 | 580 | 945 |
| 3000 | 2238 | 2042 | 1736 | 1382 | 592 | 968 |
| 3240 | 2287 | 2086 | 1773 | 1412 | 605 | 988 |
| 3940 | 2442 | 2226 | 1892 | 1508 | 646 | 1055 |
| 4500 | 2553 | 2328 | 1976 | 1576 | 675 | 1103 |
| 5175 | 2675 | 2439 | 2072 | 1651 | 708 | 1155 |
| 5515 | 2730 | 2491 | 2116 | 1686 | 722 | 1180 |
| 5850 | 2786 | 2541 | 2159 | 1720 | 737 | 1204 |
| 6225 | 2838 | 2594 | 2204 | 1750 | 756 | 1229 |
| 6525 | 2880 | 2635 | 2239 | 1780 | 769 | 1248 |
| 6975 | 2948 | 2695 | 2290 | 1820 | 786 | 1276 |
| 7425 | 3010 | 2760 | 2338 | 1858 | 802 | 1303 |
| 7875 | 3069 | 2805 | 2384 | 1895 | 818 | 1329 |
| 8775 | 3180 | 2908 | 2471 | 1964 | 848 | 1376 |
| 8225 | 3235 | 2968 | 2512 | 1997 | 862 | 1401 |
| 8675 | 3286 | 3004 | 2553 | 2029 | 876 | 1423 |
| 10125 | 3337 | 3060 | 2592 | 2060 | 890 | 1445 |
| 10575 | 3386 | 3095 | 2630 | 2090 | 902 | 1468 |
| 12075 | 3538 | 3236 | 2748 | 2184 | 943 | 1533 |
| 12675 | 3596 | 3288 | 2794 | 2220 | 958 | 1556 |
| 13350 | 3658 | 3346 | 2842 | 2258 | 975 | 1585 |
| 14100 | 3726 | 3406 | 2894 | 2300 | 993 | 1614 |
| 15000 | 3804 | 3476 | 2954 | 2348 | 1014 | 1646 |
| 17250 | 3985 | 3643 | 3095 | 2460 | 1062 | 1726 |
| 20825 | 4240 | 3887 | 3285 | 2618 | 1130 | 1832 |
| 24750 | 4495 | 4109 | 3491 | 2775 | 1198 | 1947 |
| 28875 | 4717 | 4324 | 3675 | 2912 | 1258 | 2049 |
