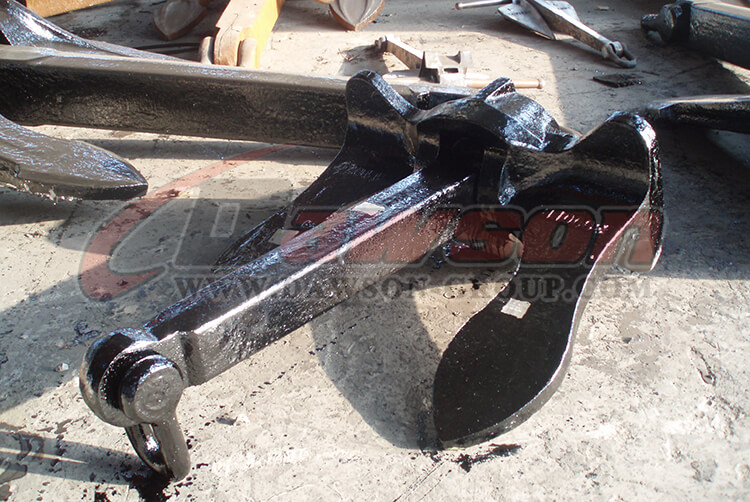

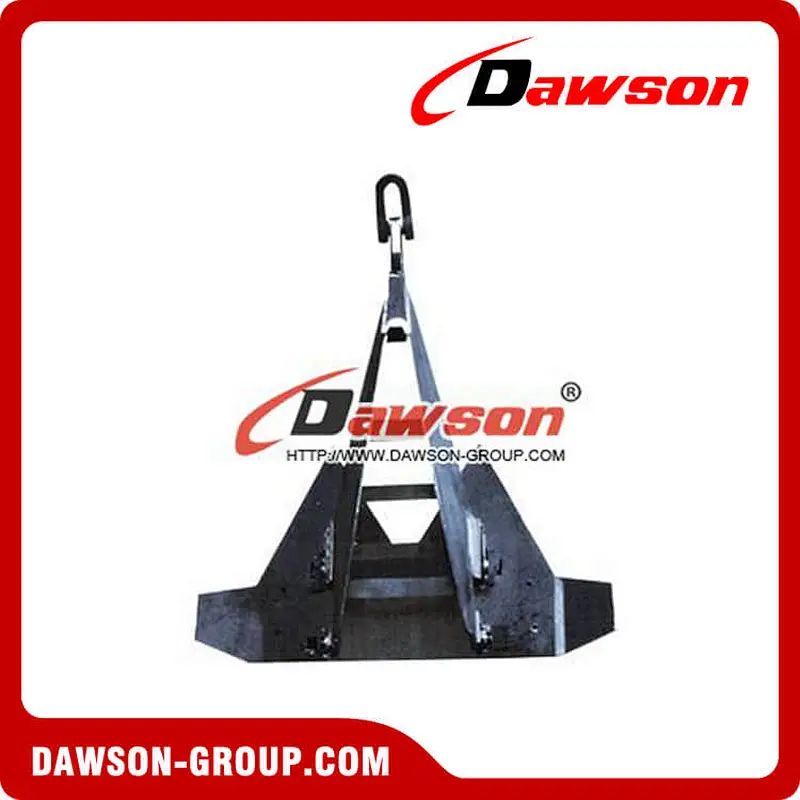

HHP Anchors, High Holding Power Anchor for Marine
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Nominal Weight:1000-30000kg

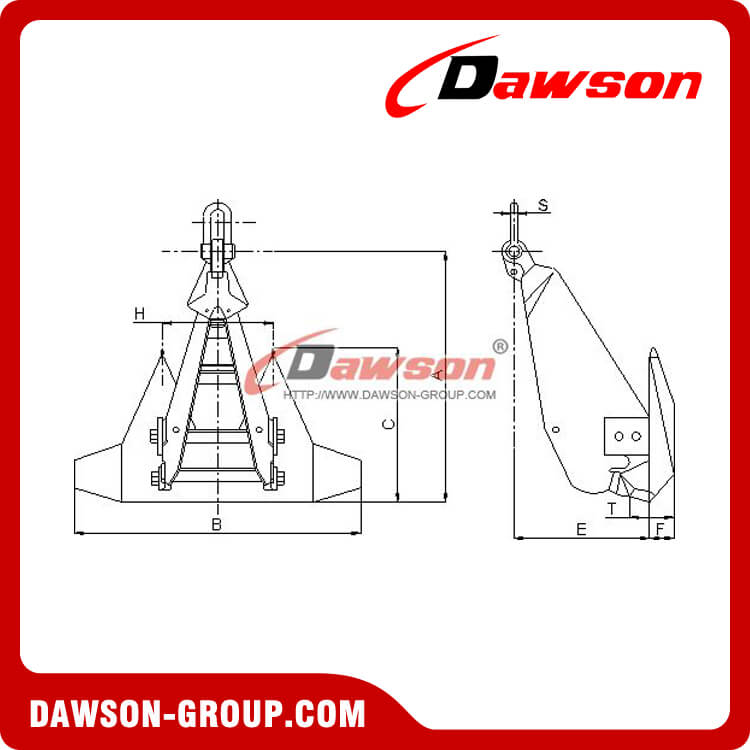

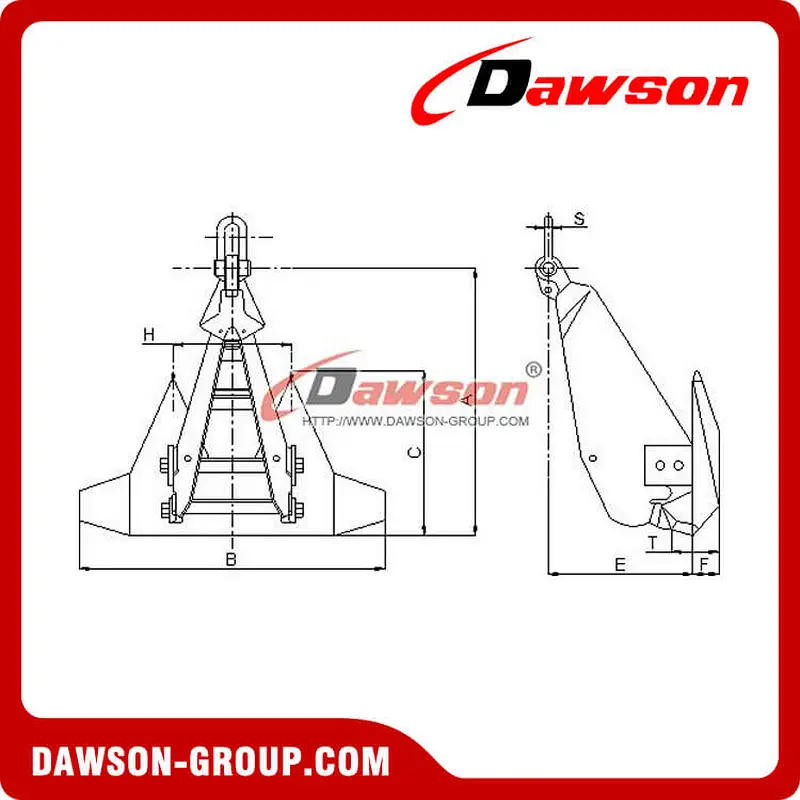

| Nominal Weight (kg) | Dimensions (mm) | |||||||
| A | B | C | E | F | H | T | S | |
| 1,000 | 2,580 | 2,780 | 1,582 | 1,314 | 236 | 1,074 | 430 | Φ62 |
| 1,500 | 2,954 | 3,184 | 1,812 | 1,505 | 271 | 1,230 | 493 | Φ80 |
| 3,000 | 3,721 | 4,011 | 2,283 | 1,896 | 342 | 1,550 | 622 | Φ90 |
| 5,000 | 4,412 | 4,756 | 2,707 | 2,248 | 406 | 1,837 | 738 | Φ110 |
| 7,000 | 4,910 | 5,290 | 3,011 | 2,500 | 453 | 2,045 | 825 | Φ117 |
| 8,000 | 5,161 | 5,563 | 3,166 | 2,629 | 474 | 2,149 | 862 | Φ130 |
| 10,000 | 5,559 | 5,992 | 3,410 | 2,832 | 511 | 2,315 | 929 | Φ140 |
| 12,000 | 5,908 | 6,368 | 3,624 | 3,010 | 543 | 2,460 | 988 | Φ150 |
| 15,000 | 6,364 | 6,860 | 3,904 | 3,242 | 585 | 2,650 | 1,064 | Φ170 |
| 18,000 | 6,763 | 7,290 | 4,149 | 3,446 | 622 | 2,816 | 1,131 | Φ180 |
| 20,000 | 7,004 | 7,550 | 4,297 | 3,569 | 644 | 2,917 | 1,171 | Φ190 |
| 22,000 | 7,230 | 7,794 | 4,436 | 3,684 | 665 | 3,011 | 1,209 | Φ200 |
| 25,000 | 7,545 | 8,133 | 4,629 | 3,844 | 694 | 3,142 | 1,262 | Φ200 |
Other related products:

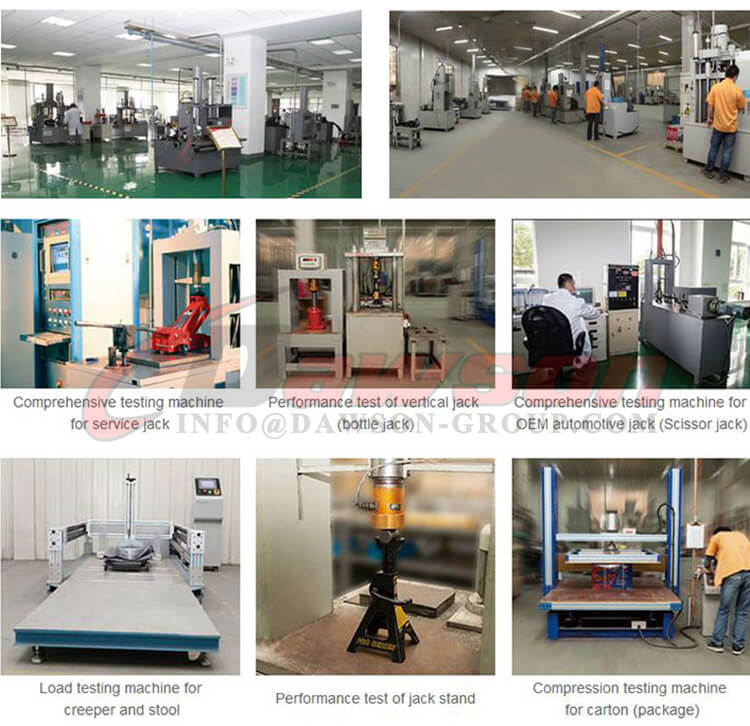

Factory & Package Show:
