High Holding Power Anchor, HHP Anchor
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

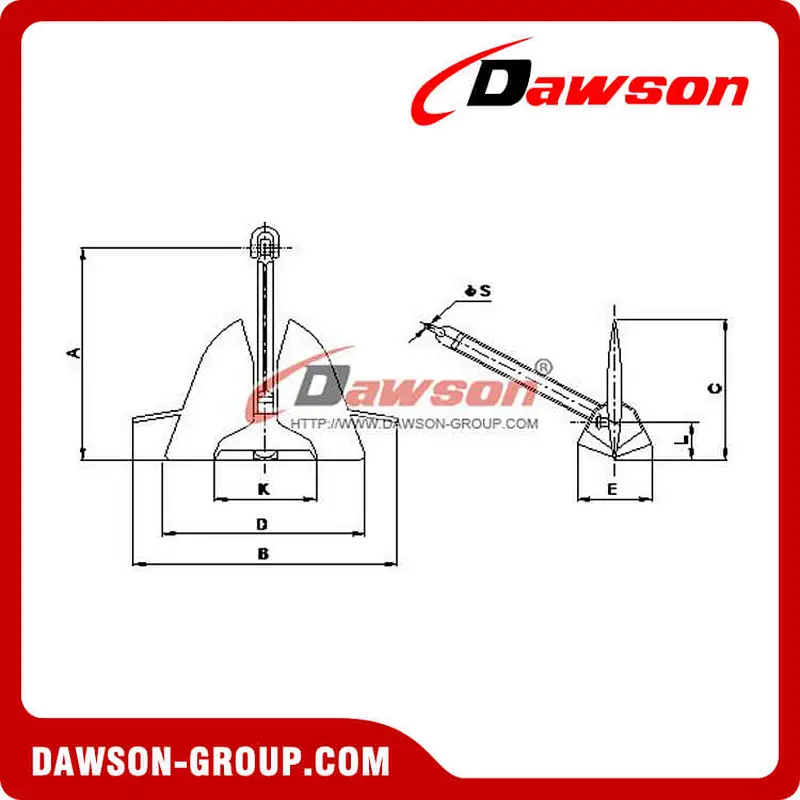

| Nominal Weight (kg) | Dimensions (mm) | |||||||
| A | B | C | D | E | K | L | ΦS | |
| 1,000 | 2,341 | 2,645 | 1,559 | 2,023 | 737 | 1,010 | 412 | 60 |
| 1,500 | 2,680 | 3,038 | 1,785 | 2,316 | 843 | 1,156 | 471 | 65 |
| 3,000 | 3,376 | 3,828 | 2,249 | 2,918 | 1,063 | 1,456 | 594 | 80 |
| 5,000 | 4,003 | 4,538 | 2,667 | 3,460 | 1,260 | 1,727 | 704 | 80 |
| 7,000 | 4,478 | 5,077 | 2,983 | 3,871 | 1,409 | 1,932 | 788 | 90 |
| 9,000 | 4,869 | 5,521 | 3,244 | 4,209 | 1,533 | 2,100 | 857 | 100 |
| 12,000 | 5,366 | 5,892 | 3,458 | 4,490 | 1,728 | 2,255 | 914 | 130 |
| 15,000 | 5,780 | 6,347 | 3,725 | 4,837 | 1,861 | 2,430 | 984 | 150 |
| 20,000 | 6,362 | 6,986 | 4,100 | 5,324 | 2,048 | 2,674 | 1,083 | 160 |
| 30,000 | 7,283 | 7,997 | 4,694 | 6,094 | 2,345 | 3,061 | 1,240 | 180 |
Other related products:

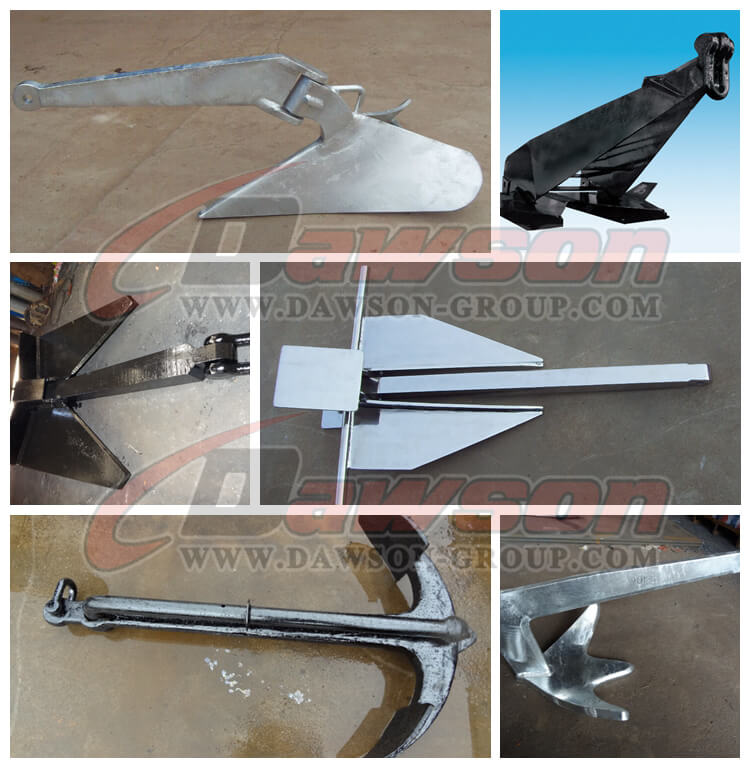

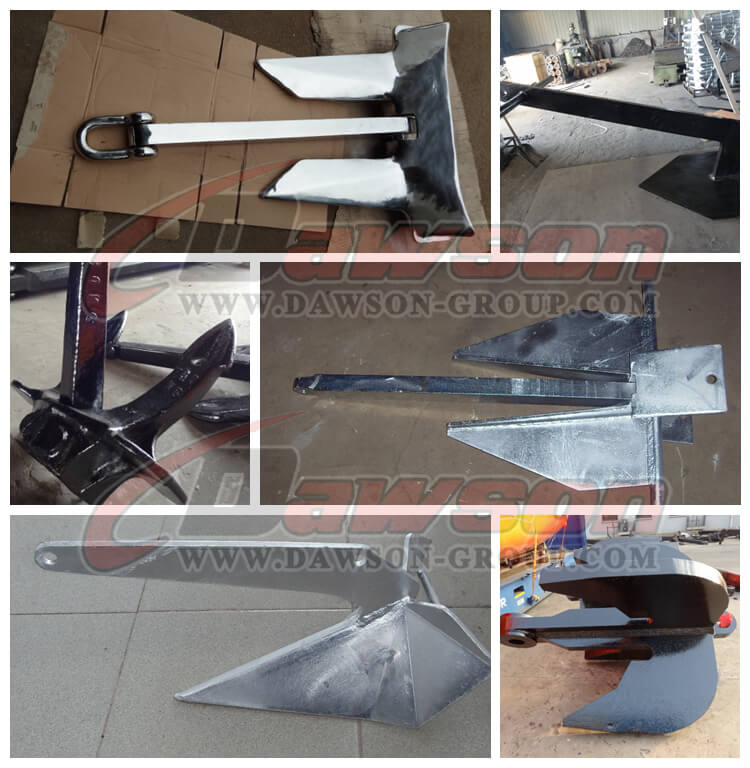

Factory & Package Show:
