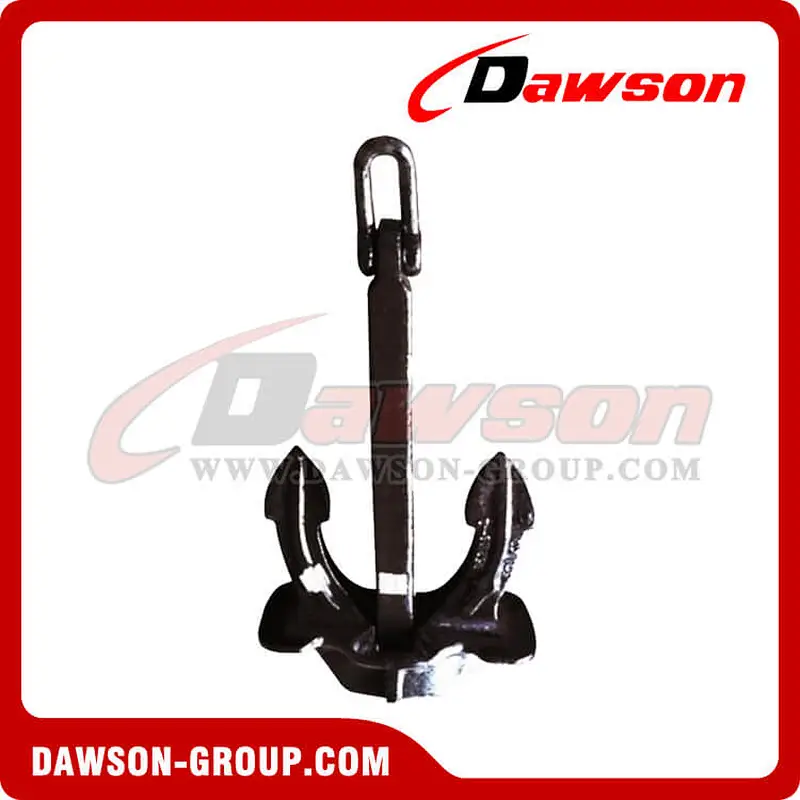

Japan Stockless Anchor

Model NO.: DS-JSA

Quantity:

Product Description

Japan Stockless Anchor

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Nominal Weight:100-46000kg

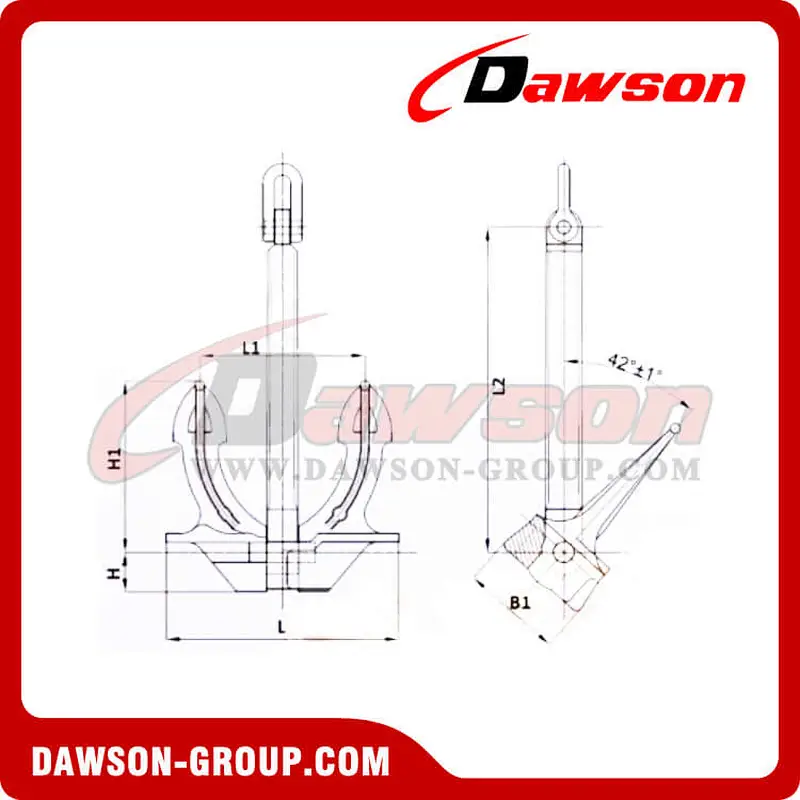

Nominal Weight (kg)	Size (mm)
Nominal Weight (kg)	L	L1	L2	H	H1	B1
100	540	378	750	91	395	230
125	580	405	810	97	425	248
150	612	432	855	104	452	264
180	650	459	910	111	480	280
240	720	510	1,010	122	530	310
280	760	534	1,060	130	560	325
300	770	540	1,080	131	570	331
320	790	560	1,100	132	580	338
360	820	580	1,150	139	610	358
420	860	610	1,200	146	640	370
480	900	640	1,260	153	670	387
520	920	652	1,295	158	680	400
570	950	670	1,330	162	700	408
660	1,000	710	1,440	170	740	430
780	1,060	750	1,480	180	780	456
850	1,090	770	1,530	185	800	468
900	1,110	780	1,550	189	820	477
1,020	1,160	820	1,620	197	860	500
1,140	1,200	850	1,680	204	890	520
1,290	1,250	880	1,750	212	920	540
1,440	1,300	920	1,820	221	960	560
1,590	1,340	950	1,880	228	990	580
1,740	1,380	980	1,930	235	1,020	600
1,920	1,430	1,010	2,000	243	1,060	620
2,100	1,470	1,040	2,060	250	1,090	640
2,280	1,510	1,070	2,110	257	1,120	650
2,460	1,550	1,100	2,170	264	1,150	670
2,640	1,590	1,120	2,230	270	1,180	690
2,850	1,630	1,150	2,280	277	1,210	700
3,060	1,670	1,180	2,340	284	1,240	720
3,300	1,710	1,210	2,390	291	1,270	740
3,540	1,750	1,240	2,450	298	1,290	750
3,780	1,790	1,260	2,510	304	1,320	770
4,050	1,830	1,290	2,560	311	1,350	790
4,320	1,870	1,320	2,620	318	1,380	800
4,590	1,910	1,350	2,670	325	1,410	820
4,890	1,950	1,380	2,730	332	1,440	840
5,250	2,000	1,410	2,800	340	1,480	860
5,610	2,040	1,440	2,860	347	1,510	880
6,000	2,090	1,480	2,930	355	1,540	900
6,450	2,140	1,510	3,000	364	1,580	920
6,900	2,190	1,550	3,070	372	1,620	940
7,350	2,240	1,580	3,140	380	1,650	960
7,800	2,280	1,610	3,190	388	1,680	980
8,300	2,330	1,650	3,260	396	1,720	1,000
8,700	2,370	1,670	3,320	403	1,750	1,020
9,300	2,420	1,710	3,390	411	1,790	1,040
9,900	2,470	1,740	3,460	420	1,820	1,060
10,500	2,520	1,780	3,530	428	1,860	1,080
11,100	2,570	1,820	3,600	437	1,900	1,100
11,700	2,610	1,840	3,650	444	1,930	1,120
12,300	2,650	1,870	3,710	450	1,960	1,140
12,900	2,690	1,900	3,770	457	1,990	1,160
13,500	2,740	1,940	3,840	466	2,020	1,180
14,100	2,780	1,960	3,890	473	2,050	1,200
14,700	2,820	1,990	3,950	479	2,080	1,210
15,400	2,860	2,020	4,000	486	2,110	1,230
16,100	2,900	2,050	4,060	493	2,140	1,250
16,900	2,950	2,080	4,130	500	2,180	1,270
17,800	3,000	2,120	4,200	510	2,210	1,290
18,800	3,060	2,160	4,280	520	2,260	1,320
20,000	3,120	2,200	4,370	530	2,300	1,340
21,500	3,200	2,260	4,480	540	2,360	1,380
23,000	3,270	2,310	4,580	560	2,410	1,410
24,500	3,340	2,360	4,680	570	2,460	1,440
26,000	3,410	2,410	4,770	580	2,520	1,470
27,500	3,470	2,450	4,860	590	2,560	1,490
29,000	3,530	2,490	4,840	600	2,610	1,520
31,000	3,610	2,550	5,050	610	2,660	1,550
33,000	3,690	2,610	5,170	630	2,720	1,590
35,500	3,780	2,670	5,290	640	2,790	1,630
38,500	3,880	2,740	5,430	660	2,860	1,670
42,000	4,000	2,820	5,600	680	2,950	1,720
46,000	4,120	2,910	5,770	700	3,040	1,770
