Light Weight Anchors

Model NO.: DS-LWA

Quantity:

Product Description

Light Weight Anchors, Marine Boat Anchor

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Light Weight Anchors

Please note that dimensions and weights are nominal and small variations are reserved.

With the “hook” head forcing the flukes to dig in quickly, and the large fluke design providing tremendous holding power; this anchor offers terrific holding power in both sand and mud bottoms.

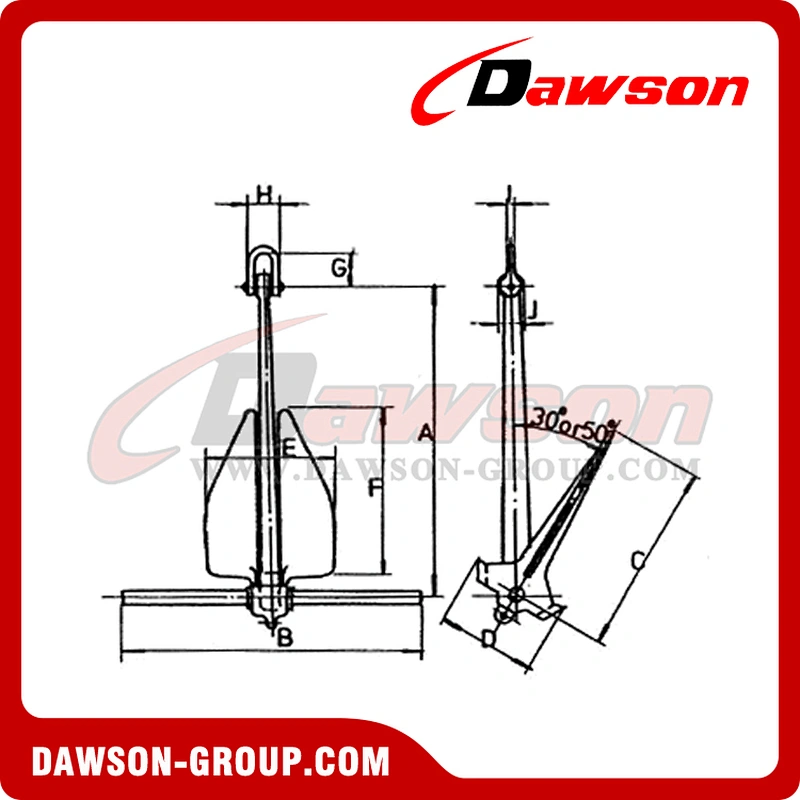

Anchor Weight		Dimensions mm
Lbs	Kg	A	B	C	D	E	G	H	I	J
500	227	1285	1218	787	438	505	206	135	34	104
750	340	1471	1394	901	502	578	235	154	38	119
1000	454	1619	1535	992	552	636	259	169	42	131
1500	680	1853	1757	1135	632	728	296	194	48	150
2000	907	2040	1933	1250	696	802	326	208	53	166
2500	1134	2197	2083	1346	750	864	352	230	57	178
3000	3160	2335	2213	1432	797	918	374	244	61	190
3500	1588	2458	2330	1506	839	966	393	257	64	199
4000	1815	2570	2436	1573	877	1010	411	269	67	208
4500	2041	2673	2533	1637	912	1053	427	280	70	217
5000	2268	2768	2623	1696	945	1088	443	290	72	224
6000	2722	2941	2788	1802	1003	1156	471	308	77	238
7000	3175	3097	2935	1809	1057	1217	495	324	81	251
8000	3629	3238	3069	1983	1104	1273	518	338	85	262
9000	4082	3368	3192	2063	1194	1324	539	352	88	273
10000	4536	3488	3306	2173	1190	1371	558	365	91	284
12000	5443	3707	3513	2270	1265	1457	593	388	97	300
13000	5897	3807	3608	2332	1300	1496	609	398	99	309
13228	6000	3829	3629	2346	1306	1505	613	401	100	311
14000	6350	3902	3698	2390	1331	1534	624	408	102	317
15000	6804	3993	3784	2446	1362	1569	639	418	104	324
16000	7258	4080	3867	2500	1392	1604	653	427	106	331
18000	8165	4243	4022	2600	1448	1668	679	444	111	344
20000	9072	4394	4166	2692	1498	1727	703	460	115	357
22000	9980	4537	4300	2780	1548	1783	726	475	118	368
25000	11340	4733	4487	2900	1615	1860	757	495	124	385
30000	13608	5030	4768	3082	1716	1977	805	256	131	408
35000	15876	5295	5020	3244	1806	2081	847	554	138	430
40000	18144	5536	5248	3392	1887	2276	886	579	145	450
45000	20412	5759	5459	3528	1965	2264	921	603	150	467
50000	22680	5964	5653	3654	2035	2344	954	624	156	484
60000	27216	6338	6007	3883	2162	2491	1014	663	165	514
70000	31752	6673	6324	4088	2176	2624	1068	698	174	541
80000	36288	6976	6612	4273	2380	2742	1116	730	182	566
90000	40824	7255	6788	4445	2475	2852	1161	759	189	589
100000	45360	7515	7122	4604	2564	2954	1202	786	196	610
