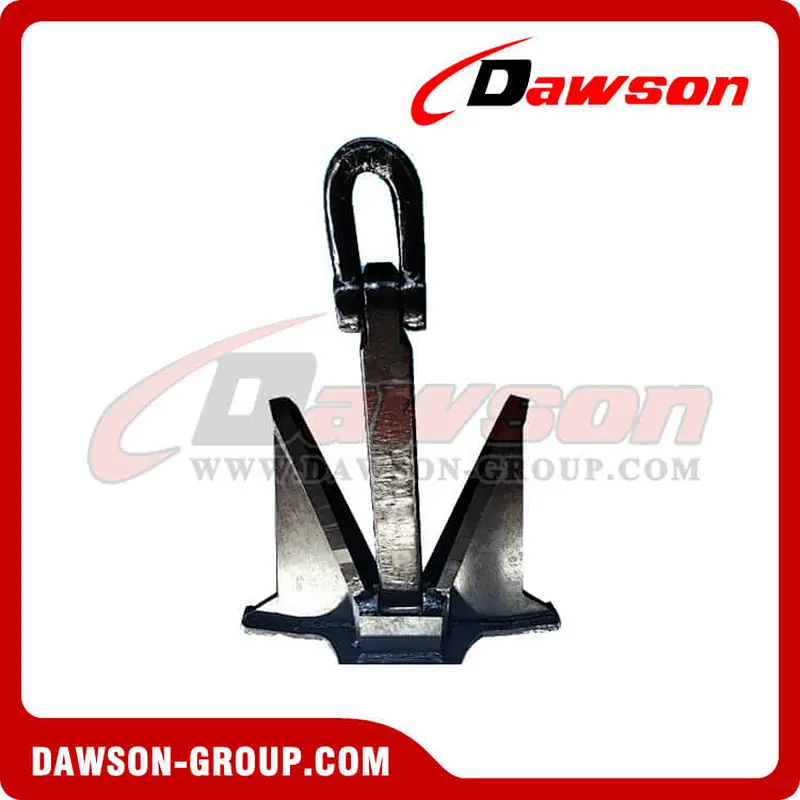

MK6 Bruce HHP Anchor / Bruce High Holding Power Anchor
- Dawson China

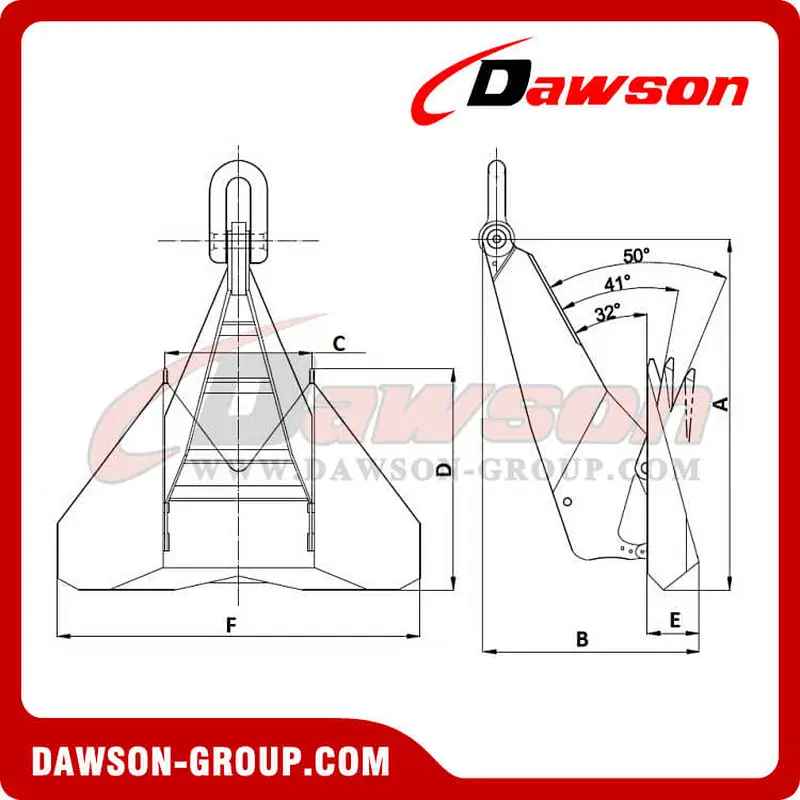

| Nominal Weight(kg) | Size(mm) | |||||
| A | B | C | D | E | F | |
| 500 | 1827 | 1280 | 500 | 1303 | 606 | 2188 |
| 1500 | 2648 | 1854 | 723 | 1888 | 878 | 3172 |
| 3000 | 3409 | 2388 | 931 | 2431 | 1131 | 4085 |
| 4500 | 3800 | 2751 | 1047 | 2733 | 1298 | 4605 |
| 5000 | 4029 | 2822 | 1100 | 2873 | 1336 | 4828 |
| 6500 | 4326 | 3131 | 1192 | 3110 | 1475 | 5242 |
| 9000 | 4846 | 3394 | 1324 | 3456 | 1607 | 5806 |
| 10000 | 5287 | 3563 | 1390 | 3628 | 1687 | 6095 |
| 12000 | 5437 | 3808 | 1486 | 3878 | 1803 | 6514 |
| 15000 | 5728 | 4012 | 1566 | 4085 | 1900 | 6864 |
| 18000 | 6129 | 4292 | 1674 | 4371 | 2032 | 7343 |
| 20000 | 6319 | 4426 | 1726 | 4507 | 2096 | 7571 |
| 30000 | 7225 | 5060 | 1974 | 5153 | 2396 | 8656 |
Delivery: To avoid any damage of the containers and floor boards caused by anchors due to the long distance delivery and cause your any inconvenience and loss . In shipping yard, we will arrange for reinforcing and binding the anchors specially using some ratchet tie downs, steel wire ropes, wire rope clips, turnbuckles and put some blocks under the anchors.
Our MK6 Bruce HHP Anchor has been approved by LR, ABS , DNV, GL, KR, NK etc. and has most advantage in price around the world.

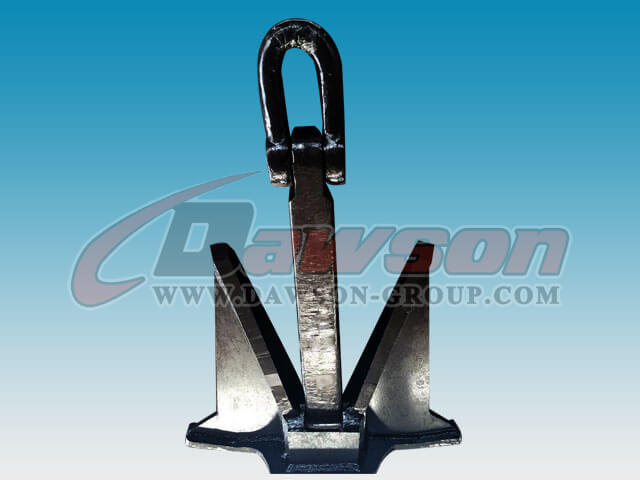

Products Show:

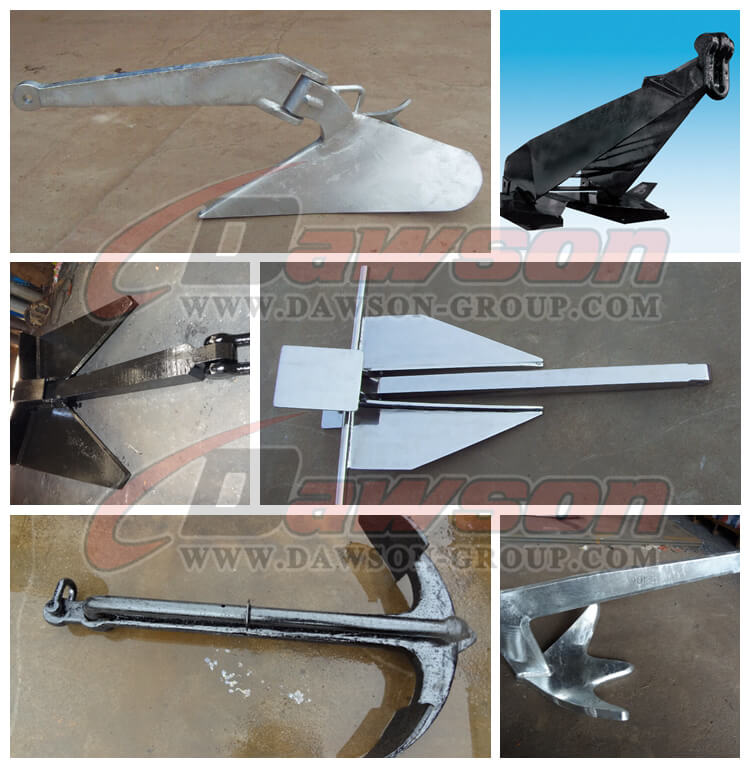

Other related products:

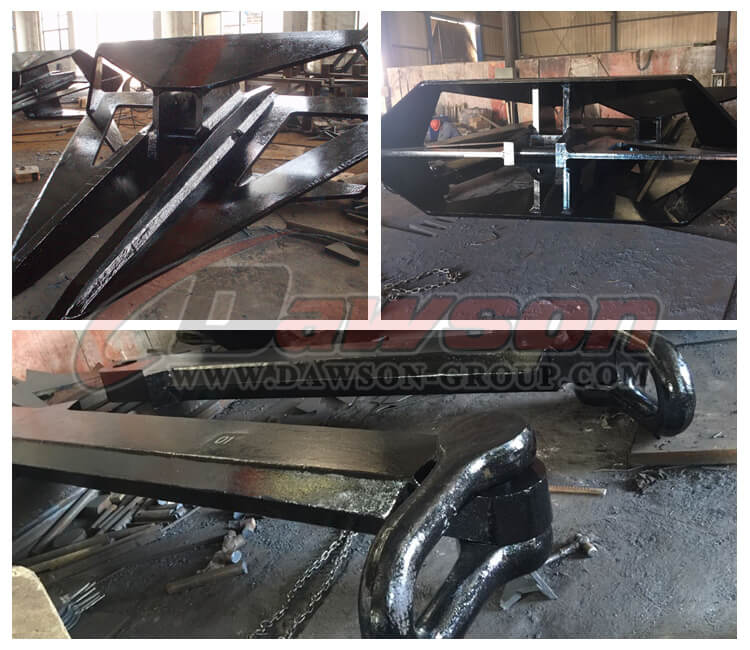

Factory & Package Show:
