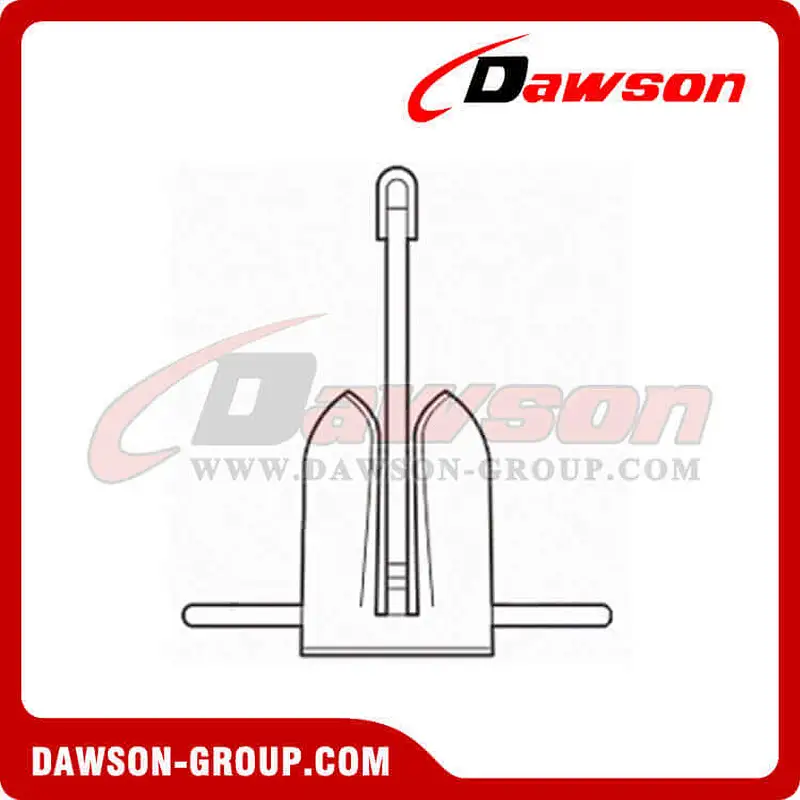

Marine Ship Offdrill Anchor / High Holding Power Matrosov Anchor
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

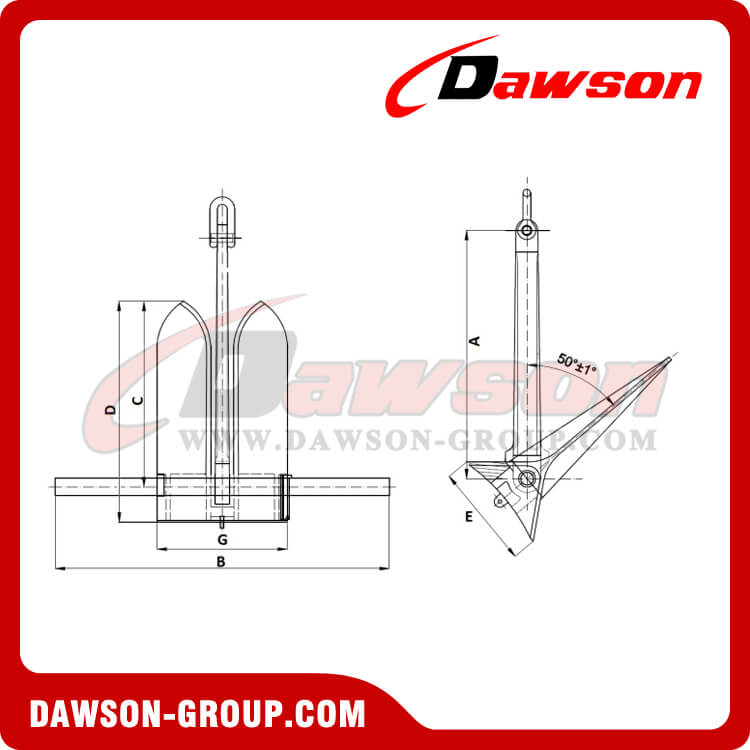

| Nominal Weight (kg) | Size (mm) | |||||
| A | B | C | D | E | G | |
| 227 | 1205 | 1330 | 725 | 865 | 395 | 495 |
| 454 | 1520 | 1675 | 915 | 1090 | 500 | 625 |
| 680 | 1770 | 2120 | 1050 | 1250 | 575 | 740 |
| 908 | 1950 | 2340 | 1160 | 1380 | 630 | 815 |
| 1136 | 2100 | 2520 | 1250 | 1485 | 680 | 875 |
| 1360 | 2230 | 2655 | 1330 | 1580 | 725 | 930 |
| 1590 | 2350 | 2820 | 1400 | 1665 | 765 | 980 |
| 1815 | 2500 | 2945 | 1460 | 1740 | 800 | 1020 |
| 2045 | 2555 | 3065 | 1520 | 1805 | 830 | 1065 |
| 2270 | 2645 | 3175 | 1575 | 1870 | 860 | 1100 |
| 2725 | 2815 | 3375 | 1675 | 1990 | 910 | 1170 |
| 3180 | 2950 | 3540 | 1755 | 2090 | 940 | 1230 |
| 3630 | 3095 | 3890 | 1840 | 2190 | 1012 | 1290 |
| 4540 | 3336 | 4000 | 1985 | 2360 | 1070 | 1390 |
| 5445 | 3540 | 4250 | 2110 | 2505 | 1140 | 1475 |
| 6350 | 3730 | 4500 | 2220 | 2640 | 1228 | 1555 |
| 6810 | 3900 | 4750 | 2220 | 2640 | 1228 | 1555 |
| 7260 | 3900 | 4750 | 2320 | 2760 | 1280 | 1625 |
| 9080 | 4200 | 4900 | 2500 | 2975 | 1385 | 1750 |
| 11350 | 4500 | 5165 | 2680 | 3205 | 1530 | 1875 |
| 13620 | 4810 | 5335 | 2860 | 3405 | 1545 | 2000 |
| 15000 | 4900 | 5390 | 2955 | 3515 | 1585 | 2070 |
| 18160 | 5120 | 5635 | 3090 | 3675 | 1692 | 2165 |
| 20430 | 5330 | 5865 | 3215 | 3850 | 1760 | 2250 |
| 22700 | 5600 | 6150 | 3360 | 4025 | 1900 | 2365 |
| 27240 | 5950 | 6535 | 3570 | 4250 | 1955 | 2515 |
| 31780 | 6260 | 6875 | 3755 | 4470 | 2055 | 2645 |
You are welcomed to check offdrill anchor pricelist and import low price and customized offdrill anchor in stock from us, which is one of the leading offdrill anchor manufacturers and suppliers in China.
Other related products:

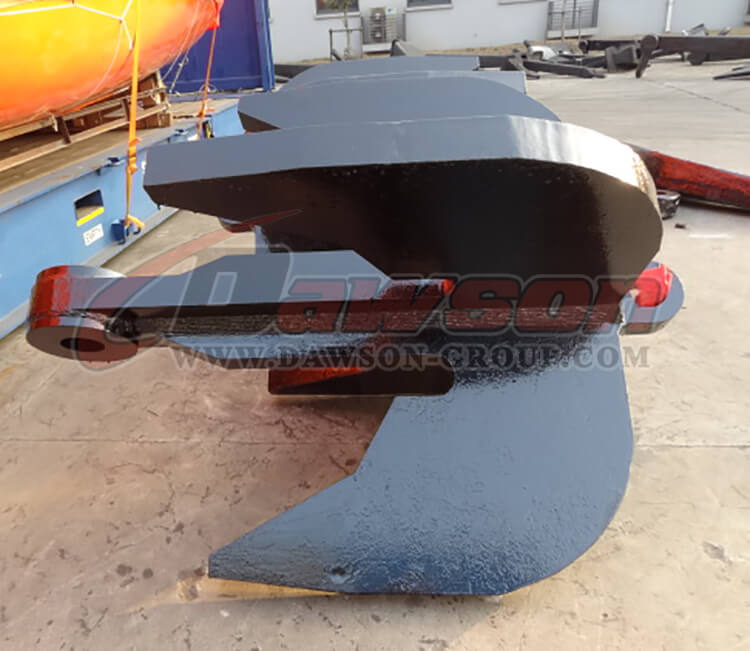

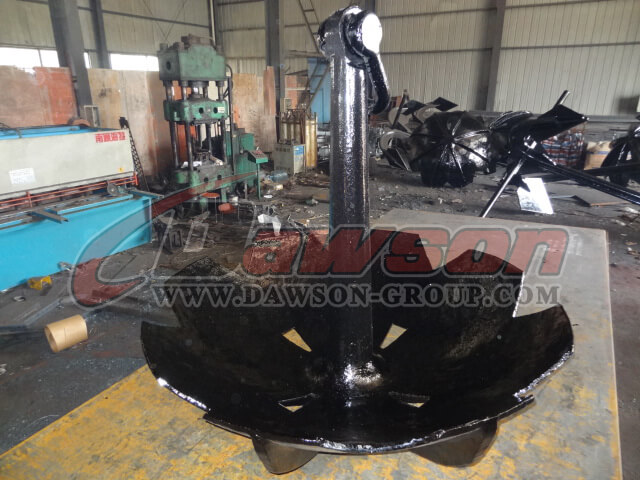

Factory & Package Show:
