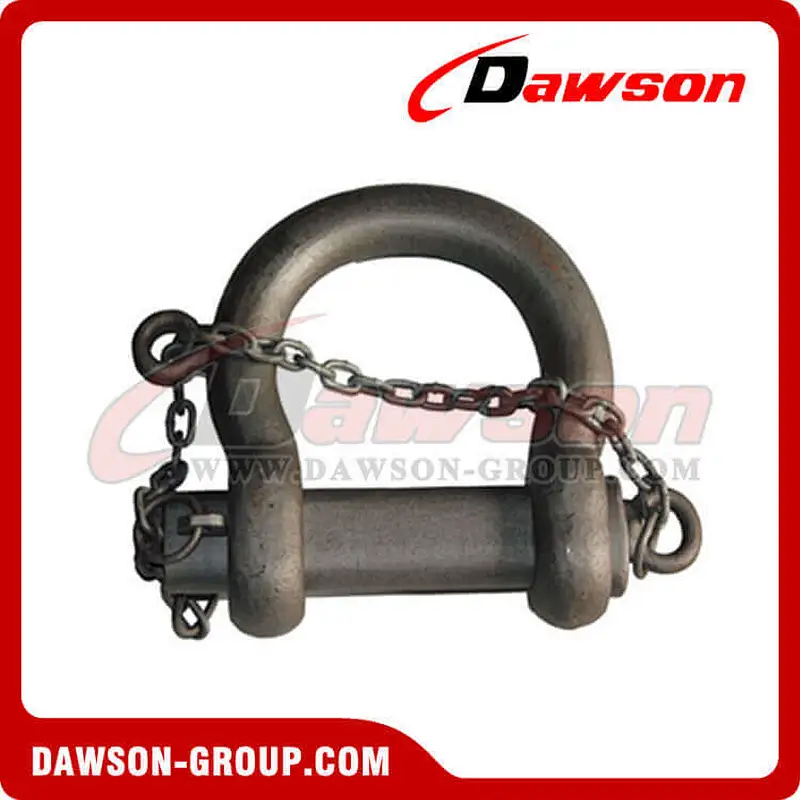

Mooring Buoy Shackle Type B for Marine & Ship Anchor Chain
- Dawson Group Ltd. - China Manufacturer Supplier, Factory

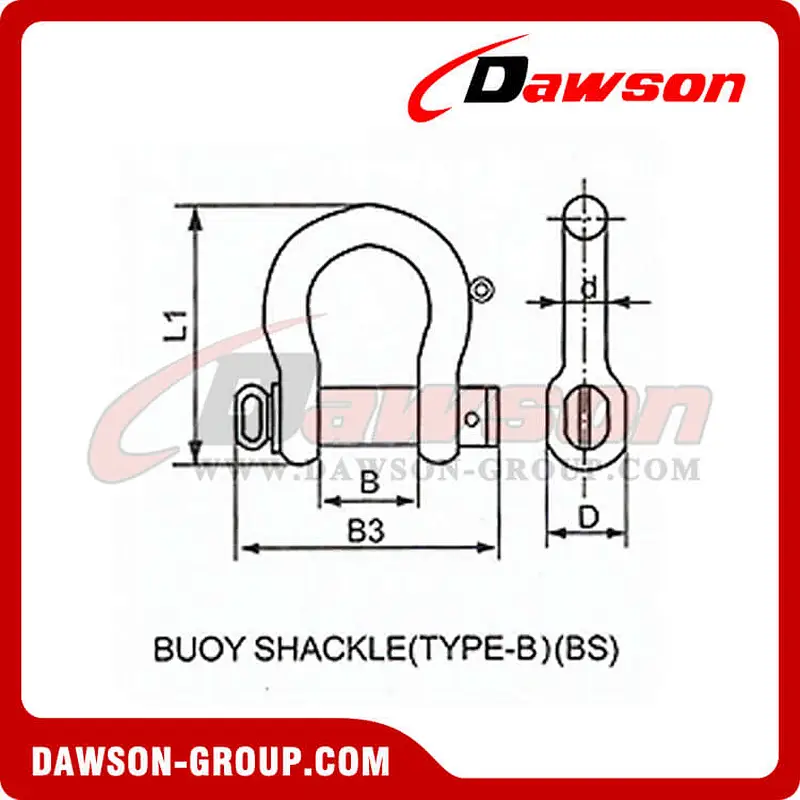

| (NORMINAL) CHAIN DIAMETER (mm) | d | L | L1 | B | B2 | D | TESTING LOAD/KN(tf) | WEIGHT(kg) | ||
| M2 | M3 | TYPE-A | TYPE-B | |||||||
| 38 | 56 | 395 | 375 | 150 | 372 | 113 | 580.6(59.2) | 812.0(82.8) | 27.8 | 26.0 |
| 40 | 58 | 406 | 384 | 375 | 118 | 640.4(65.3) | 896.3(91.4) | 31.2 | 29.9 | |
| 42 | 59 | 416 | 394 | 379 | 125 | 703.1(71.7) | 980.7(100) | 35.2 | 34.0 | |
| 44 | 62 | 427 | 404 | 396 | 130 | 768.8(78.4) | 1079(110) | 40.6 | 39.3 | |
| 46 | 64 | 438 | 410 | 401 | 136 | 836.5(58.3) | 1167(119) | 45.9 | 44.5 | |
| 48 | 67 | 458 | 429 | 160 | 421 | 141 | 908.1(92.6) | 1275(130) | 52.4 | 50.6 |
| 50 | 70 | 470 | 440 | 430 | 148 | 980.7(100) | 1371(140) | 59.4 | 56.9 | |
| 52 | 73 | 490 | 460 | 170 | 450 | 153 | 1059(108) | 1480(151) | 66.9 | 64.2 |
| 54 | 76 | 504 | 472 | 457 | 161 | 1138(116) | 1589(162) | 74.3 | 71.5 | |
| 56 | 78 | 524 | 491 | 180 | 477 | 165 | 1216(124) | 1706(174) | 83.0 | 80.0 |
| 58 | 81 | 538 | 503 | 492 | 172 | 1294(132) | 1814(185) | 92.5 | 89.3 | |
| 60 | 84 | 549 | 513 | 500 | 177 | 1383(141) | 1942(198) | 102 | 98.7 | |
| 62 | 87 | 561 | 525 | 508 | 184 | 1471(150) | 2059(210) | 113 | 109 | |
| 64 | 90 | 594 | 556 | 200 | 537 | 189 | 1559(159) | 2187(223) | 123 | 119 |
| 66 | 92 | 606 | 566 | 545 | 195 | 1657(169) | 2314(236) | 136 | 131 | |
| 68 | 95 | 617 | 576 | 552 | 200 | 1746(178) | 2452(250) | 148 | 143 | |
| 70 | 98 | 628 | 586 | 570 | 207 | 1844(188) | 2579(263) | 161 | 154 | |
| 73 | 103 | 645 | 601 | 582 | 215 | 1991(203) | 2795(285) | 182 | 175 | |
| 76 | 106 | 663 | 615 | 594 | 223 | 2148(219) | 3011(307) | 205 | 197 | |
| 78 | 109 | 675 | 625 | 606 | 230 | 2256(230) | 3150(322) | 222 | 213 | |
| 81 | 112 | 697 | 641 | 624 | 242 | 2412(246) | 3383(345) | 250 | 239 | |
| 84 | 115 | 716 | 655 | 639 | 251 | 2579(263) | 3609(368) | 279 | 268 | |
| 87 | 118 | 735 | 670 | 648 | 259 | 2722(280) | 3854(393) | 311 | 298 | |
| 90 | 122 | 753 | 684 | 660 | 267 | 2922(298) | 4089(417) | 345 | 332 | |
Other related products:

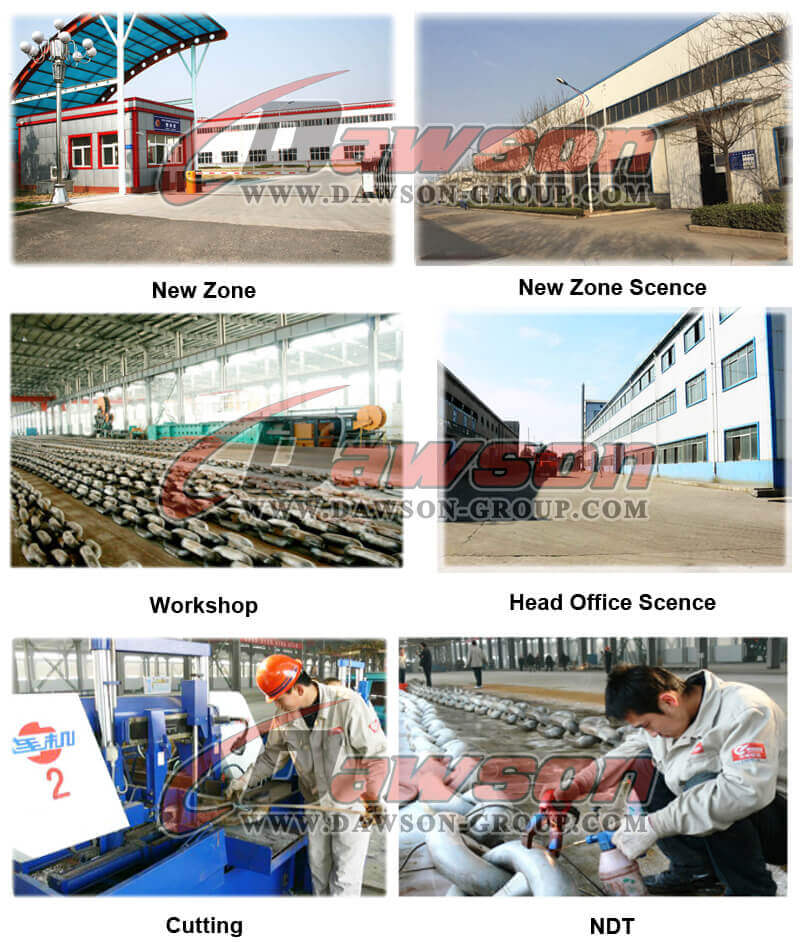

Factory & Test Show:

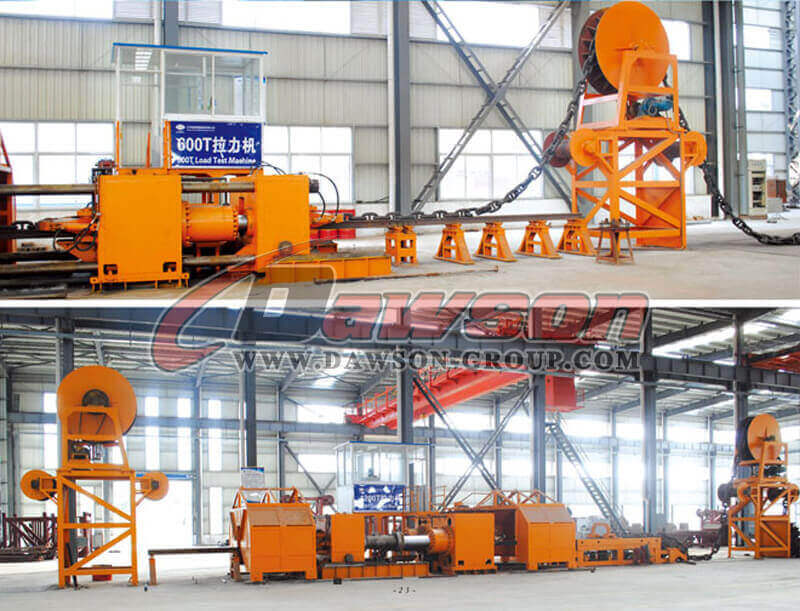

Load Test Machine:
