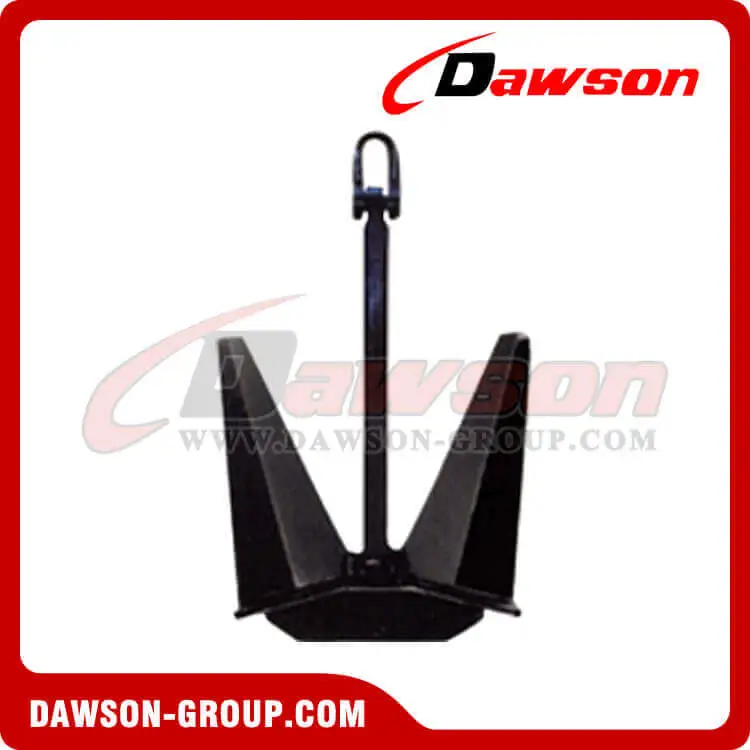

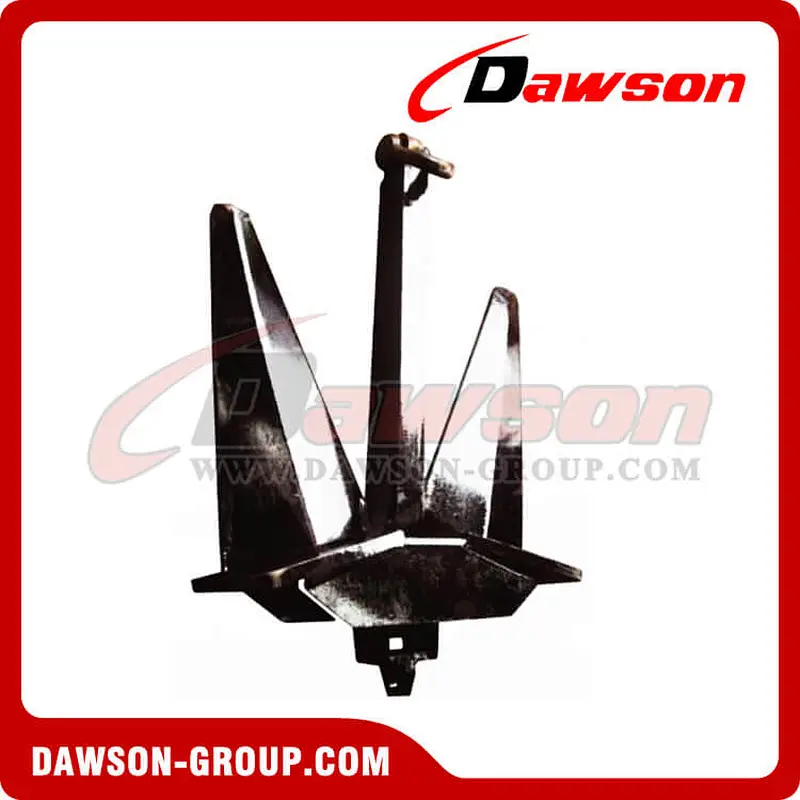

Pool HHP Anchor Type N / High Holding Power Pool Anchors
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

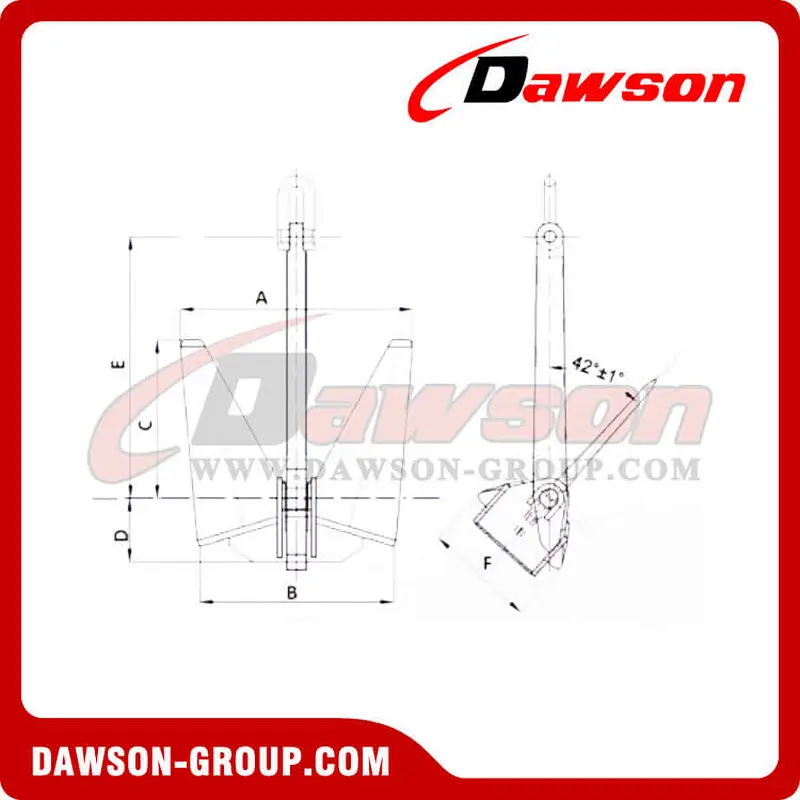

| Nominal Weight(kg) | Size(mm) | |||||
| A | B | C | D | E | F | |
| 12 | 323 | 275 | 250 | 65 | 383 | 155 |
| 20 | 386 | 325 | 300 | 75 | 458 | 185 |
| 25 | 409 | 350 | 316 | 80 | 485 | 200 |
| 40 | 479 | 410 | 370 | 95 | 567 | 235 |
| 50 | 517 | 440 | 400 | 100 | 613 | 255 |
| 60 | 550 | 470 | 425 | 110 | 652 | 270 |
| 80 | 608 | 515 | 470 | 120 | 720 | 295 |
| 100 | 653 | 555 | 505 | 130 | 775 | 320 |
| 120 | 699 | 585 | 540 | 135 | 825 | 340 |
| 135 | 723 | 614 | 562 | 139 | 858 | 342 |
| 160 | 764 | 650 | 590 | 150 | 905 | 370 |
| 180 | 795 | 675 | 615 | 155 | 940 | 385 |
| 200 | 825 | 700 | 640 | 160 | 978 | 400 |
| 225 | 858 | 729 | 666 | 165 | 1016 | 406 |
| 240 | 880 | 745 | 680 | 175 | 1040 | 425 |
| 280 | 925 | 780 | 715 | 180 | 1092 | 450 |
| 320 | 964 | 820 | 745 | 190 | 1140 | 470 |
| 360 | 1005 | 855 | 780 | 195 | 1190 | 490 |
| 400 | 1040 | 885 | 805 | 205 | 1230 | 505 |
| 440 | 1074 | 910 | 830 | 210 | 1270 | 520 |
| 180 | 1105 | 940 | 855 | 215 | 1305 | 535 |
| 520 | 1133 | 960 | 875 | 220 | 1340 | 550 |
| 560 | 1165 | 985 | 900 | 230 | 1375 | 565 |
| 600 | 1191 | 1010 | 920 | 235 | 1410 | 580 |
| 640 | 1217 | 1035 | 940 | 240 | 1440 | 590 |
| 675 | 1237 | 1051 | 960 | 245 | 1464 | 585 |
| 720 | 1262 | 1075 | 975 | 250 | 1495 | 615 |
| 800 | 1310 | 1115 | 1015 | 255 | 1550 | 635 |
| 855 | 1338 | 1137 | 1039 | 257 | 1585 | 633 |
| 900 | 1365 | 1160 | 1055 | 270 | 1615 | 665 |
| 970 | 1396 | 1186 | 1084 | 272 | 1654 | 660 |
| 1000 | 1410 | 1200 | 1090 | 275 | 1670 | 670 |
| 1080 | 1447 | 1229 | 1123 | 278 | 1713 | 684 |
| 1250 | 1521 | 1290 | 1175 | 300 | 1800 | 740 |
| 1305 | 1541 | 1309 | 1196 | 296 | 1824 | 729 |
| 1500 | 1615 | 1370 | 1250 | 315 | 1910 | 785 |
| 1575 | 1641 | 1394 | 1274 | 315 | 1943 | 776 |
| 1750 | 1705 | 1445 | 1320 | 335 | 2015 | 830 |
| 1845 | 1729 | 1469 | 1343 | 340 | 2049 | 818 |
| 2000 | 1780 | 1510 | 1375 | 350 | 2105 | 865 |
| 2140 | 1817 | 1544 | 1411 | 349 | 2152 | 860 |
| 2250 | 1850 | 1570 | 1430 | 360 | 2185 | 900 |
| 2500 | 1920 | 1630 | 1480 | 375 | 2265 | 930 |
| 2655 | 1954 | 1664 | 1516 | 372 | 2312 | 925 |
| 2835 | 1996 | 1700 | 1550 | 380 | 2364 | 945 |
| 3040 | 2042 | 1735 | 1585 | 390 | 2418 | 969 |
| 3240 | 2086 | 1773 | 1620 | 398 | 2471 | 988 |
| 3445 | 2129 | 1809 | 1653 | 406 | 2522 | 1009 |
| 3670 | 2174 | 1847 | 1689 | 415 | 2576 | 1030 |
| 3940 | 2226 | 1892 | 1730 | 425 | 2640 | 1055 |
| 4210 | 2276 | 1934 | 1768 | 434 | 2698 | 1078 |
| 4500 | 2328 | 1978 | 1808 | 444 | 2758 | 1103 |
| 4840 | 2385 | 2026 | 1852 | 455 | 2825 | 1130 |
| 5175 | 2439 | 2072 | 1894 | 465 | 2889 | 1155 |
| 5515 | 2491 | 2116 | 1934 | 475 | 2950 | 1180 |
| 5850 | 2541 | 2159 | 1973 | 485 | 3009 | 1204 |
| 6225 | 2594 | 2204 | 2014 | 495 | 3072 | 1229 |
| 6525 | 2635 | 2239 | 2046 | 503 | 3121 | 1248 |
| 6975 | 2695 | 2290 | 2091 | 514 | 3191 | 1276 |
| 7425 | 2751 | 2337 | 2136 | 525 | 3258 | 1303 |
| 7875 | 2805 | 2384 | 2178 | 535 | 3323 | 1329 |
| 8325 | 2858 | 2428 | 2219 | 545 | 3385 | 1354 |
| 8775 | 2908 | 2471 | 2258 | 555 | 3445 | 1378 |
| 9225 | 2958 | 2512 | 2296 | 564 | 3502 | 1401 |
| 9675 | 3004 | 2553 | 2333 | 573 | 3558 | 1423 |
| 10125 | 3050 | 2592 | 2369 | 582 | 3613 | 1445 |
| 10575 | 3095 | 2630 | 2403 | 590 | 3666 | 1466 |
Products Show:
Other related products:

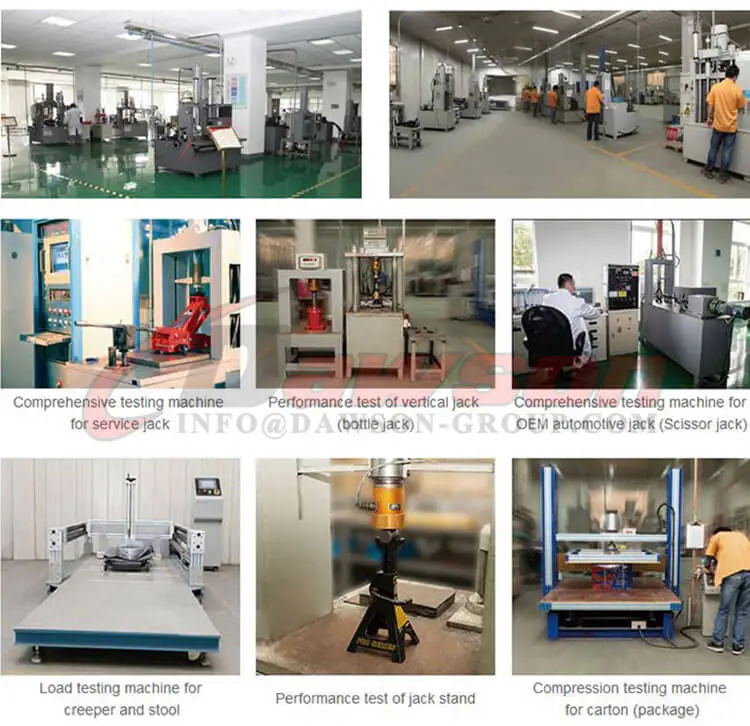

Factory & Package Show:
