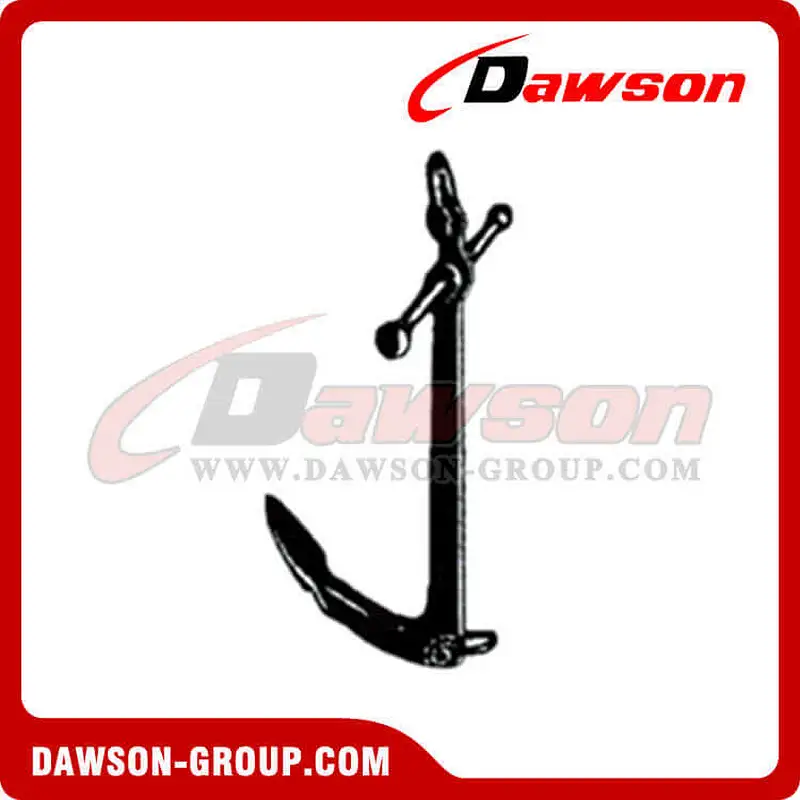

Single Fluke Anchor, Marine Boat Anchor
- Dawson China

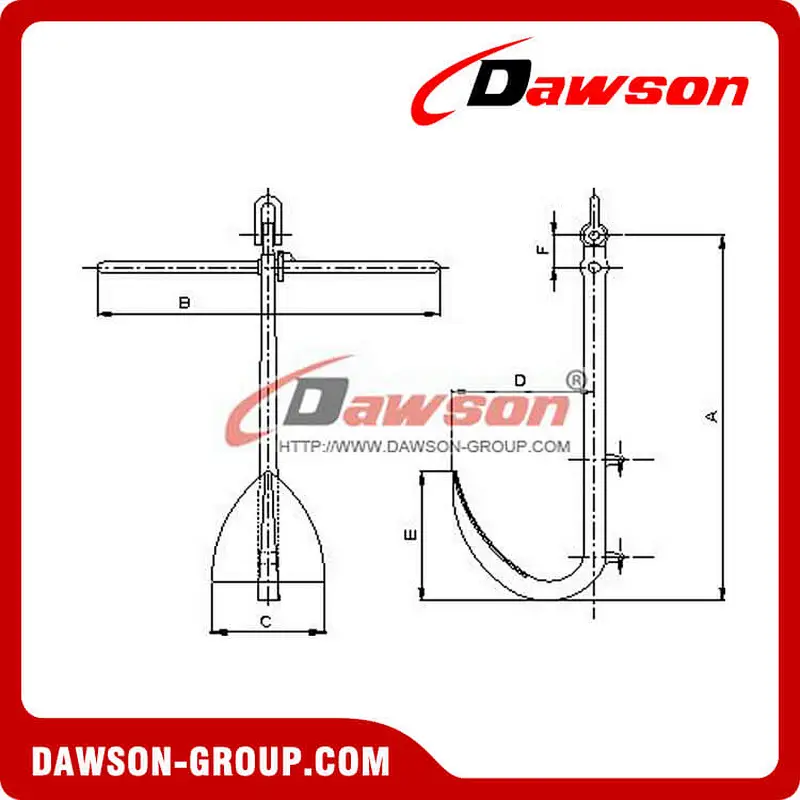

| Nominal Weight (kg) | Size (mm) | ||||
| A | B | C | D | E | |
| 75 | 1310 | 1100 | 360 | 455 | 465 |
| 100 | 1445 | 1200 | 400 | 500 | 510 |
| 150 | 1650 | 1380 | 455 | 575 | 585 |
| 200 | 1820 | 1520 | 505 | 630 | 645 |
| 300 | 2080 | 1740 | 575 | 725 | 735 |
| 400 | 2290 | 1915 | 635 | 800 | 810 |
| 500 | 2470 | 2065 | 680 | 855 | 875 |
| 600 | 2620 | 2190 | 725 | 910 | 930 |
| 800 | 2890 | 2415 | 800 | 1000 | 1020 |
| 1000 | 3110 | 2600 | 860 | 1080 | 1100 |
| 1250 | 3350 | 2800 | 925 | 1165 | 1185 |
| 1500 | 3560 | 2980 | 985 | 1235 | 1260 |
| 1750 | 3750 | 3135 | 1035 | 1300 | 1325 |
| 2000 | 3920 | 3275 | 1085 | 1360 | 1385 |
| 3000 | 4485 | 3750 | 1240 | 1555 | 1585 |
| 4000 | 4940 | 4125 | 1360 | 1710 | 1745 |
| 5000 | 5320 | 4440 | 1472 | 1845 | 1880 |
| 6000 | 5650 | 4720 | 1560 | 1960 | 1995 |
| 7000 | 5950 | 4970 | 1645 | 2065 | 2100 |
| 8000 | 6220 | 5200 | 1720 | 2155 | 2200 |
| 9000 | 6468 | 5400 | 1790 | 2240 | 2288 |
| 10000 | 6700 | 5600 | 1852 | 2320 | 2154 |
| 12000 | 7115 | 5950 | 1968 | 2465 | 2516 |
| 15000 | 7670 | 6410 | 2120 | 2657 | 2710 |
| 18000 | 8148 | 6810 | 2253 | 2823 | 2882 |
| 20000 | 8400 | 7020 | 2320 | 2910 | 2970 |
| 22000 | 8710 | 7275 | 2410 | 3020 | 3074 |
| 25000 | 9080 | 7890 | 2510 | 3146 | 3212 |

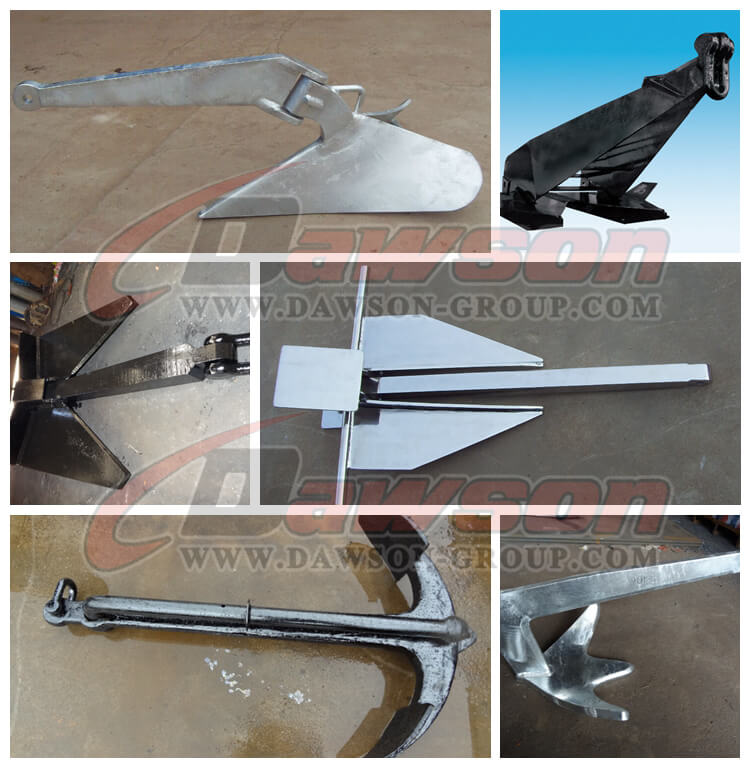

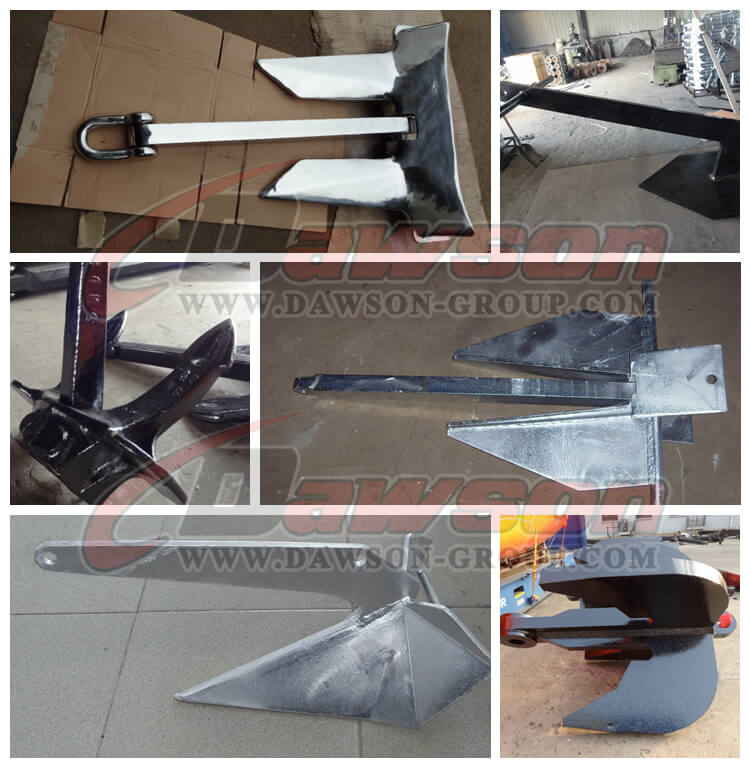

Other related products:
