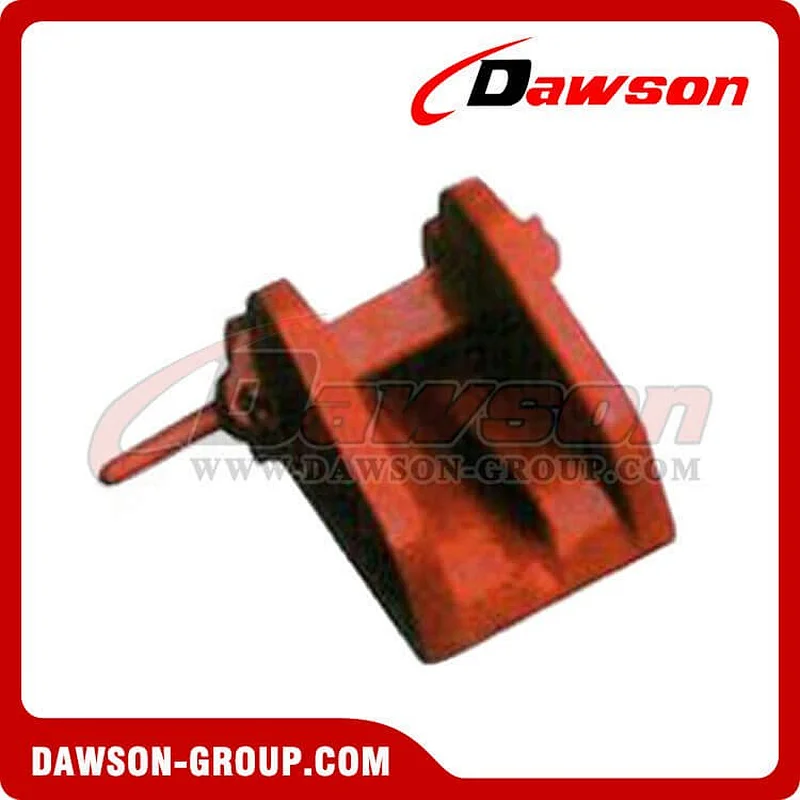

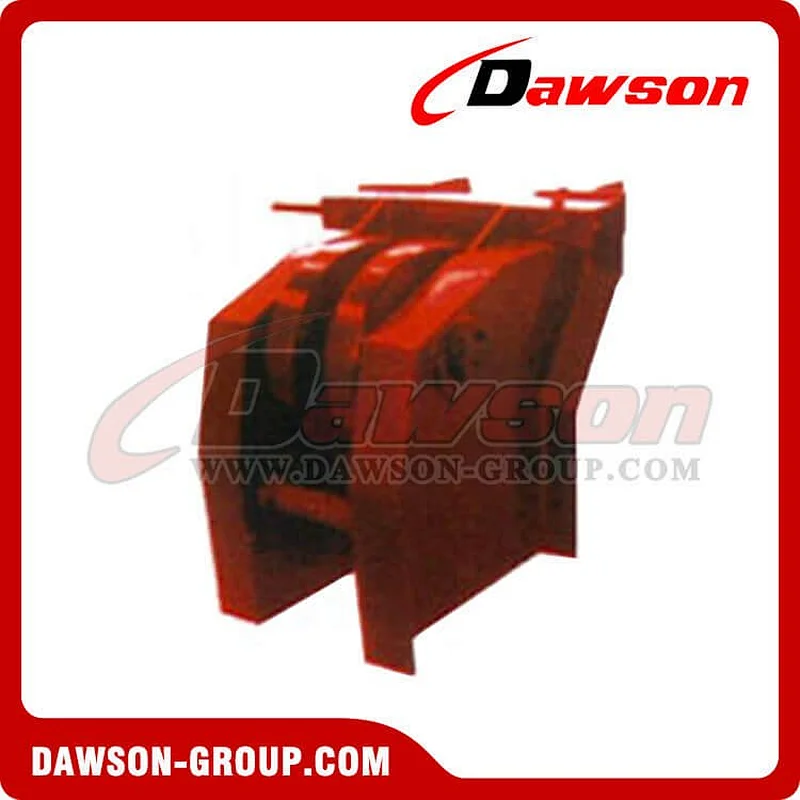

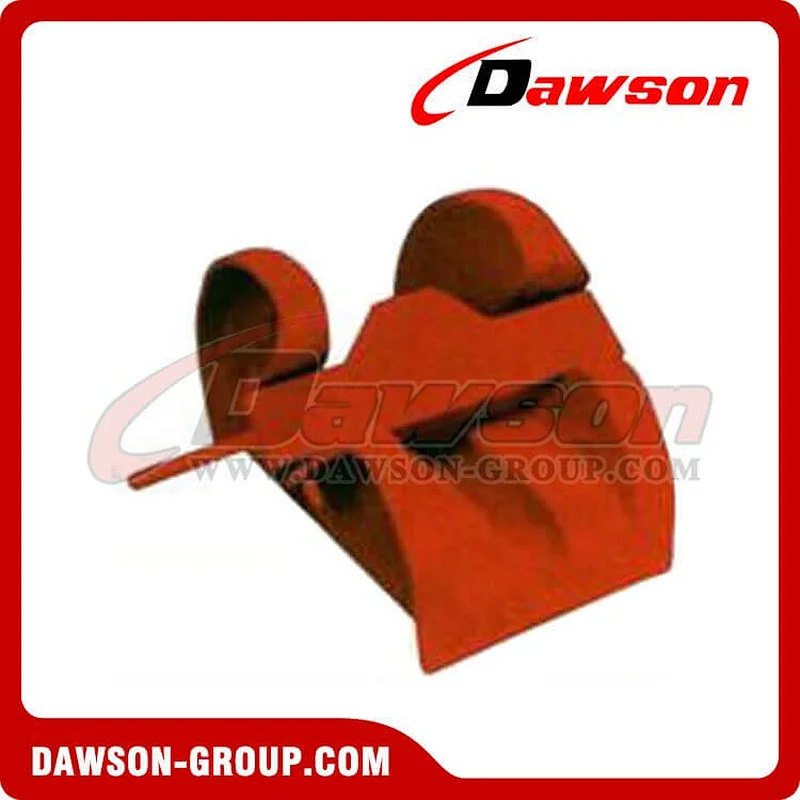

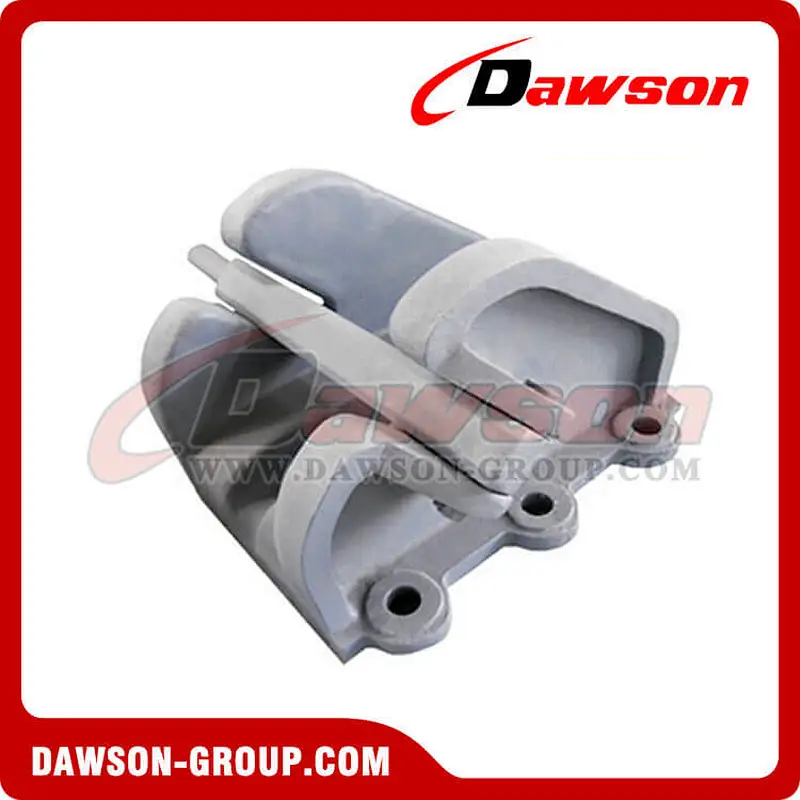

Bar type chain stopper
We supply JIS F2015 cast steel bar type chain stopper, JIS F2023 small size bar type chain stopper, JIS F2033 rollered bar type chain stopper for Grade 3 chain cable and other bar types chain stoppers. The bar can effectively clamp the anchor chain cable when drop anchor and help avoid the chain slip out.
Bar type chain stopper is a common chain stopper used when ship mooring. We supply all types of chain stoppers for Grade 1,2,3 anchor chain cables:
1. Bolt mounting bar type chain stopper JIS F2002
2. Cast steel bar type chain stopper JIS F2015~1987
3. Cast steel pawl type chain stopper for Grade 2, 3 chains JIS F2016~87
4. Small size cast steel bar type chain stopper JIS F2023~1976
5. Cast steel pawl type chain stopper for Grade 3 chains JIS F2031
6. Rollered bar type chain stopper JIS F2033~1980
7. Cast lever chain stopper CB*286~84
8. Marine roller lever chain stopper GB/T 3844~2000
9. Screw type chain stopper GB/T 178~96
10. Adjustable chain cable stopper CB/T 3822~99
11. OCIMF type chain cable stopper
Reason for choosing us:
1. Seven~Year Golden Seller of Mooring Equipment;
2. High Quality;
3. Competitive Price;
4. Excellent One~stop Service;
5. Short Delivery;
6. Customized Service is Available;
7. Supply CCS,ABS,DNV,LR,NK Certificate etc.
If you’re interested in our products, please feel free to contact us. We’re looking forward to your enquiry.

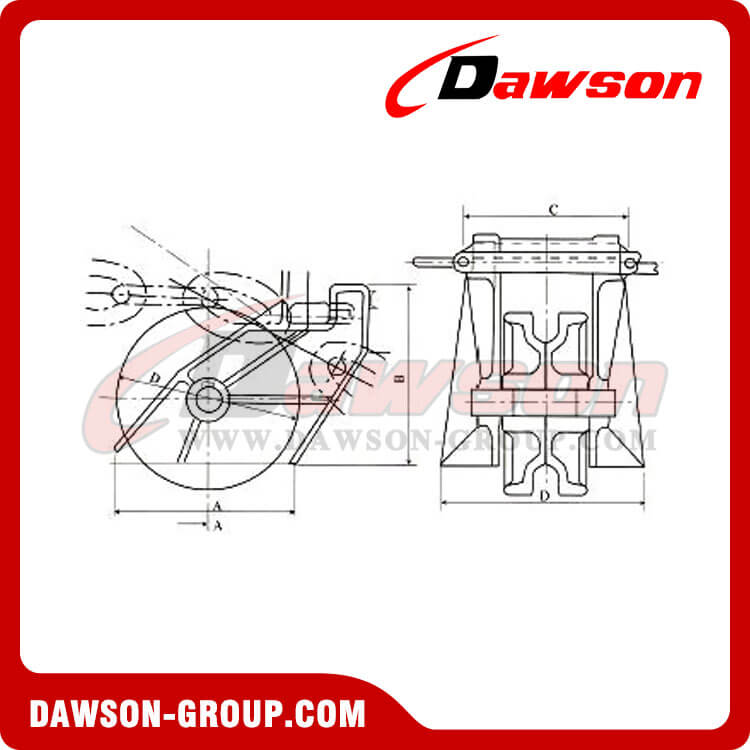

| Nominal No. | Nominal Diameter of Anchor Chain | Size(mm) | Weight(kg) | |||
| A | B | C | D | |||
| 40 | 38~40 | 378 | 540 | 390 | 336 | 111 |
| 44 | 42~44 | 412 | 590 | 424 | 366 | 139 |
| 48 | 46~48 | 450 | 640 | 460 | 397 | 176 |
| 52 | 50~52 | 4+1 | 695 | 494 | 428 | 216 |
| 56 | 54~56 | 528 | 745 | 530 | 457 | 261 |
| 60 | 55~60 | 465 | 795 | 564 | 488 | 319 |
| 64 | 62~64 | 600 | 850 | 600 | 517 | 380 |
| 68 | 66~68 | 635 | 900 | 636 | 547 | 452 |
| 73 | 70~73 | 675 | 960 | 678 | 582 | 561 |
| 78 | 76~78 | 715 | 1020 | 720 | 617 | 682 |
| Note: size 62mm to 78mm counter weight shall be equipped; The bar can be opened in right or left hand side. | ||||||
Unit:mm

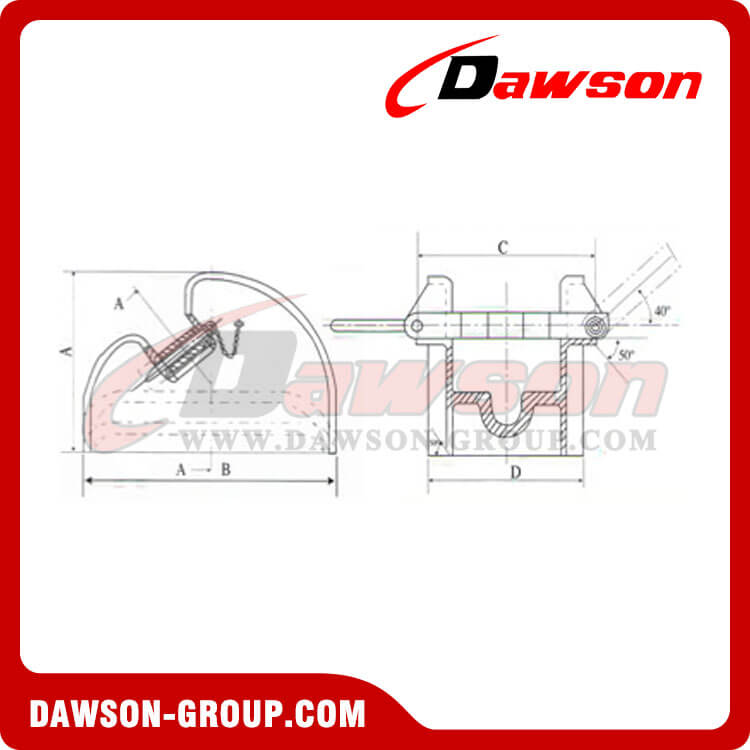

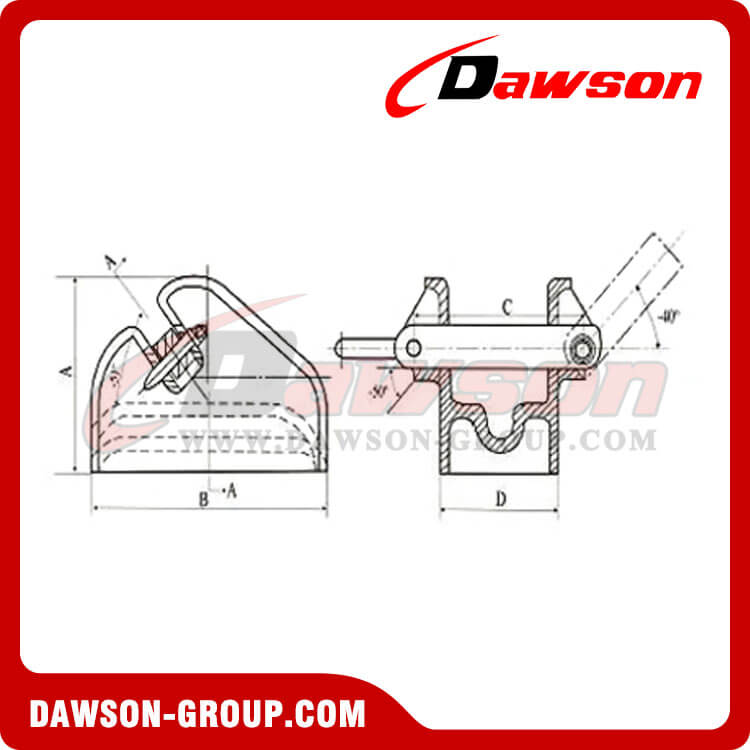

| Number | 19 | 22 | 25 | 28 | 32 | 36 |
| Diameter of apply anchor chain | 17~19 | 20~22 | 23~25 | 26~28 | 30~32 | 34~36 |
| A | 190 | 216 | 241 | 270 | 305 | 342 |
| B | 270 | 310 | 345 | 385 | 435 | 190 |
| C | 200 | 226 | 256 | 280 | 320 | 254 |
| D | 134 | 153 | 175 | 193 | 220 | 246 |
| Weight(kg) | 17 | 24 | 33 | 44 | 68 | 92 |
| 70~73 | 76~78 | 81~84 | 87~90 | 92~95 | 97~102 | 105~107 | 111~114 | 117~122 | 127~132 | |
| A | 730 | 780 | 840 | 900 | 950 | 1020 | 1070 | 1140 | 1220 | 1320 |
| B | 715 | 760 | 820 | 890 | 945 | 1005 | 1070 | 1140 | 1220 | 1315 |
| C | 700 | 730 | 780 | 840 | 880 | 940 | 990 | 1040 | 1140 | 1170 |
| D | 730 | 780 | 840 | 900 | 950 | 1020 | 1070 | 1140 | 1220 | 1320 |
| Weight(kg) | 1000 | 1180 | 1470 | 1780 | 2110 | 2380 | 2900 | 3440 | 4100 | 5080 |
