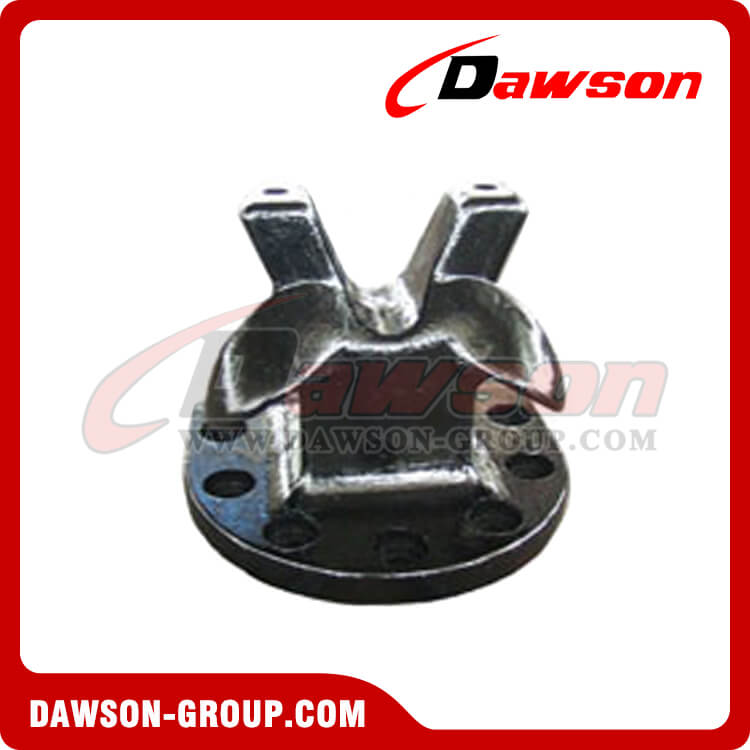

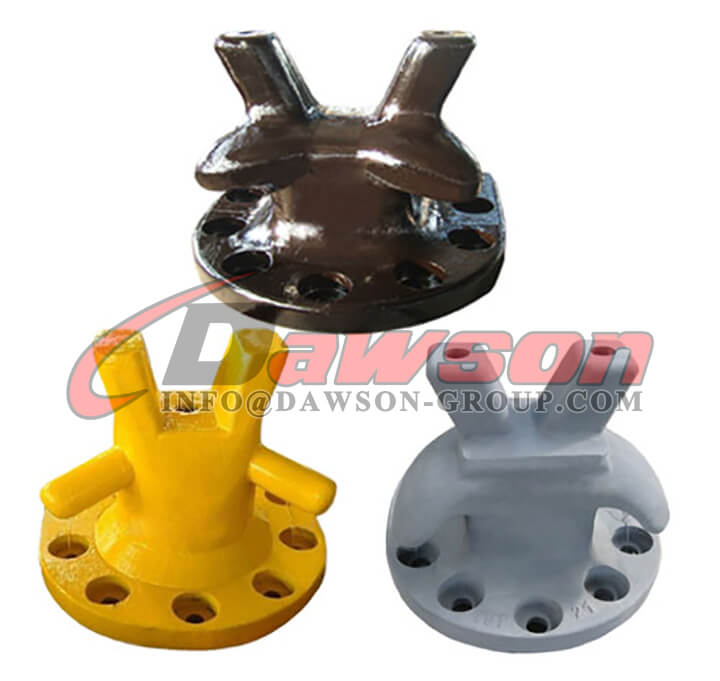

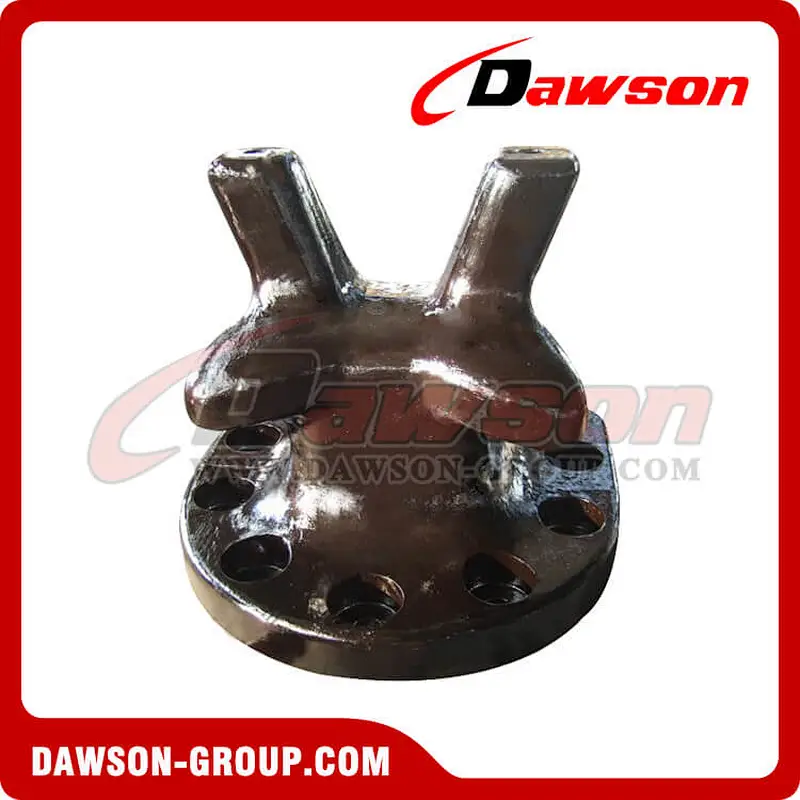

Cast Iron Dock Bollard
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Marine bollards are mainly made of iron, steel, ductile iron or stainless steel. It uses the technics of precision cast. For the material of iron, we suggest our customer to choose the ductile iron for it has higher strength, better toughness and ductility than common casting iron. It also has good wear resistance and vibration absorbtion. Our bollards are produced strictly complying with industrial standard. They have high stability and do not have any defects. All the bollards get the approval of ISO9001 and CCS certificate. For more detail information, please feel free to contact us.
| Marine Bollard |
| We supply all kinds of Marine Bollards.We can also produce customized products according to your drawing. |
| Marine bollard |
| Marine bollards |
| Double bitt |
| Single bitt |
| Y type dock bollard |
| Double cruciform bollards cross bitt |
| Ship bollards |
| Single cruciform JIS2804 Cross bitt |
| J type dock bollards |
| T type dock bollard |
| T type dock bollards |
| R type dock bollard |
| Staghorn type bollard S type |
| VIS1 Double Bollards |
| BSMA12 Double bollards |
| NS2584 Double bollards |
| Welded Inclined Bollard(DH type) |
| U.S.Navy Type Double Bollard |
| Kindey Type Bollard |
| R CVI Type Bollard |
| Horn Type Bollard |
| Tee Head Type Single Dock Bollard |
| Jis F2804 Cross Bitt Bollard |
| Welded Inclined Bollard(SH Type) |
| DIN82607 Double bollard |
| Jis F2001 Double Bollard |
| DIN82607 Double bollard |
| Jis F2001 Double Bollard |

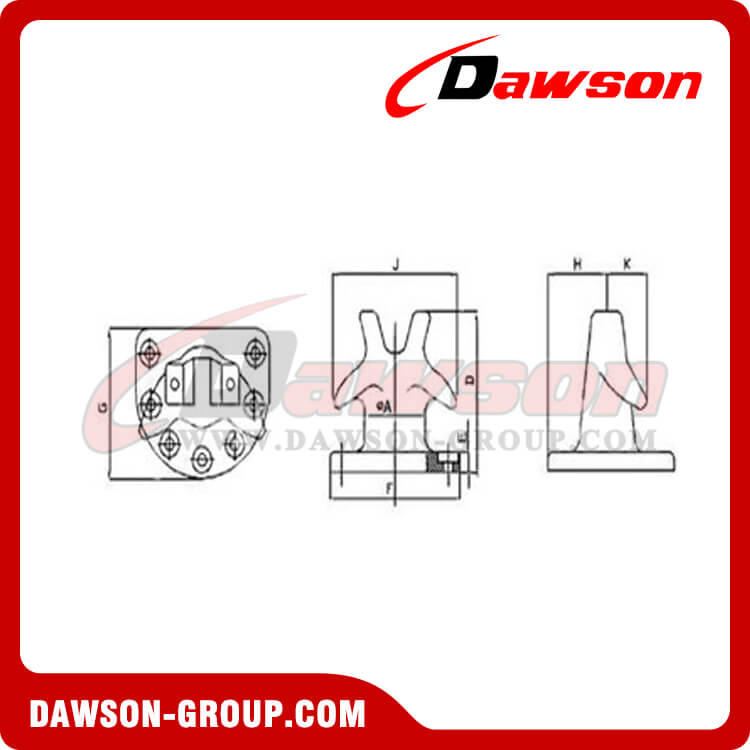

| Capacity (tonnes) | A | D | E | F | G | H | J | K | Bolt No. |
| 10 | 166 | 352 | 55 | 350 | 305 | 102 | 382 | 115 | 5 |
| 15 | 178 | 400 | 65 | 400 | 350 | 130 | 420 | 127 | 5 |
| 20 | 203 | 467 | 70 | 48 | 405 | 165 | 410 | 165 | 5 |
| 30 | 254 | 530 | 75 | 610 | 570 | 265 | 505 | 185 | 5 |
| 40 | 300 | 617 | 75 | 610 | 610 | 305 | 560 | 210 | 5 |
| 50 | 300 | 598 | 85 | 762 | 60 | 280 | 560 | 230 | 5 |
| 60 | 300 | 604 | 70 | 762 | 660 | 280 | 560 | 230 | 6 |
| 75 | 355 | 742 | 95 | 850 | 725 | 305 | 760 | 240 | 7 |
| 100 | 360 | 774 | 115 | 965 | 840 | 356 | 760 | 240 | 7 |
| 150 | 430 | 850 | 115 | 1015 | 915 | 380 | 840 | 280 | 7 |
