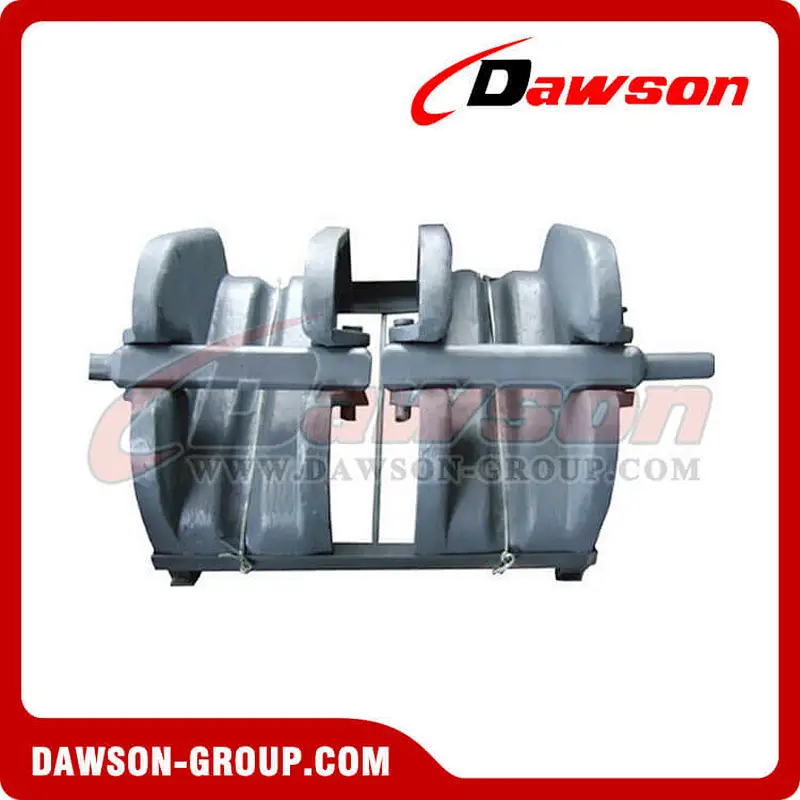

Cast lever Chain Stopper
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
1. Standard: CB*286~1984;
2. Applicable to Grade 1, 2,3 anchor chain;
3. Nominal diameter 12.5 to 68mm;
4. Cast Steel Material;
5. Polished, galvanized or bitumen painted surface;
6. Withstand 80% of chain cable’s breaking load;
7. Standard Packing or according to customer’s requirement;
8. Competitive price, short delivery, excellent service;
9. Certificate: CCS,ABS,BV,LR,NK etc.
10. Can be customized according to customer’s requirements

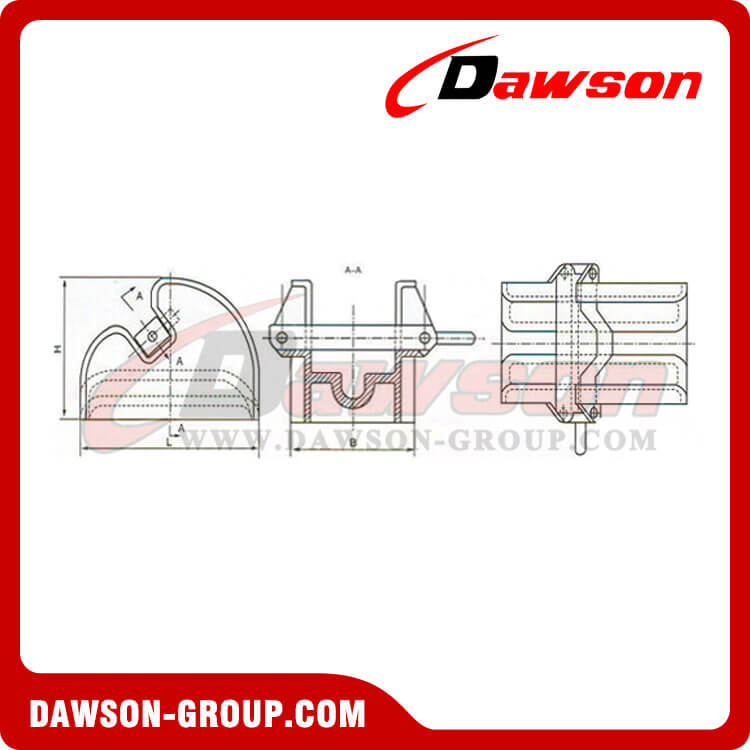

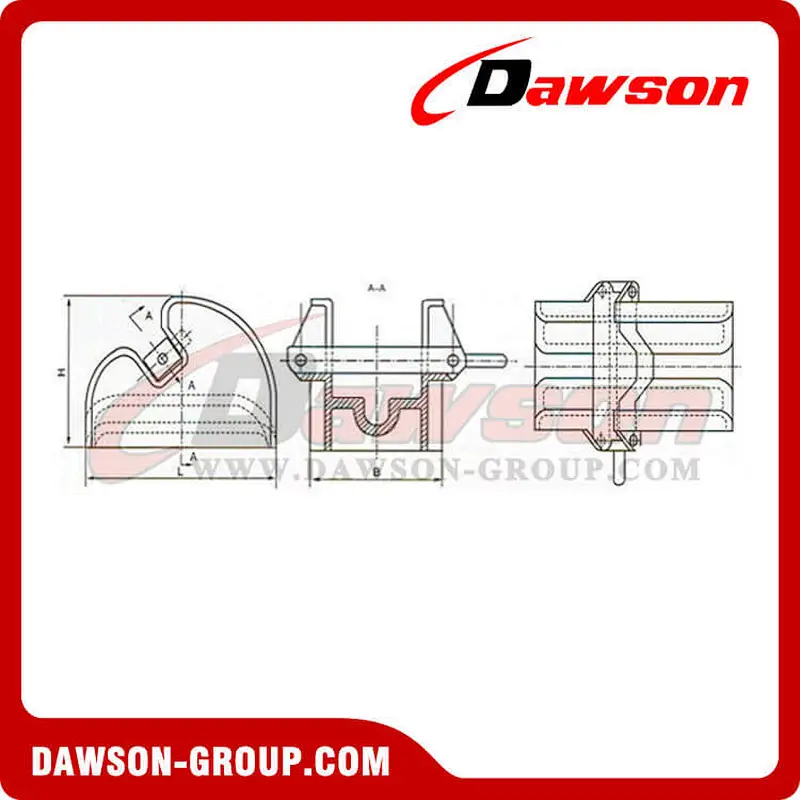

| Anchor chain diameter(mm) | B | H | L | Welding foot | Weight(kg) |
| 12.5~14 | 142 | 162 | 235 | 5 | 20 |
| 16~17.5 | 170 | 190 | 270 | 6 | 25 |
| 19~20.5 | 193 | 216 | 320 | 6 | 30 |
| 22~24 | 219 | 241 | 345 | 7 | 37 |
| 26~28 | 241 | 270 | 385 | 7 | 46 |
| 30~32 | 274 | 305 | 435 | 9 | 56 |
| 34~36 | 304 | 342 | 490 | 9 | 69 |
| 38~40 | 336 | 378 | 540 | 10 | 85 |
| 42~44 | 366 | 512 | 590 | 10 | 108 |
| 46~48 | 397 | 450 | 640 | 12 | 139 |
| 50~52 | 428 | 491 | 695 | 12 | 173 |
| 54~56 | 457 | 528 | 745 | 13 | 210 |
| 58~60 | 488 | 564 | 795 | 13 | 255 |
| 62~64 | 517 | 600 | 850 | 14 | 305 |
| 66~68 | 547 | 635 | 900 | 14 | 363 |
Mark example：Cast lever chain stopper 22~24 CB*286~84
