CB *286-84 Bar Type Chain Stopper
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

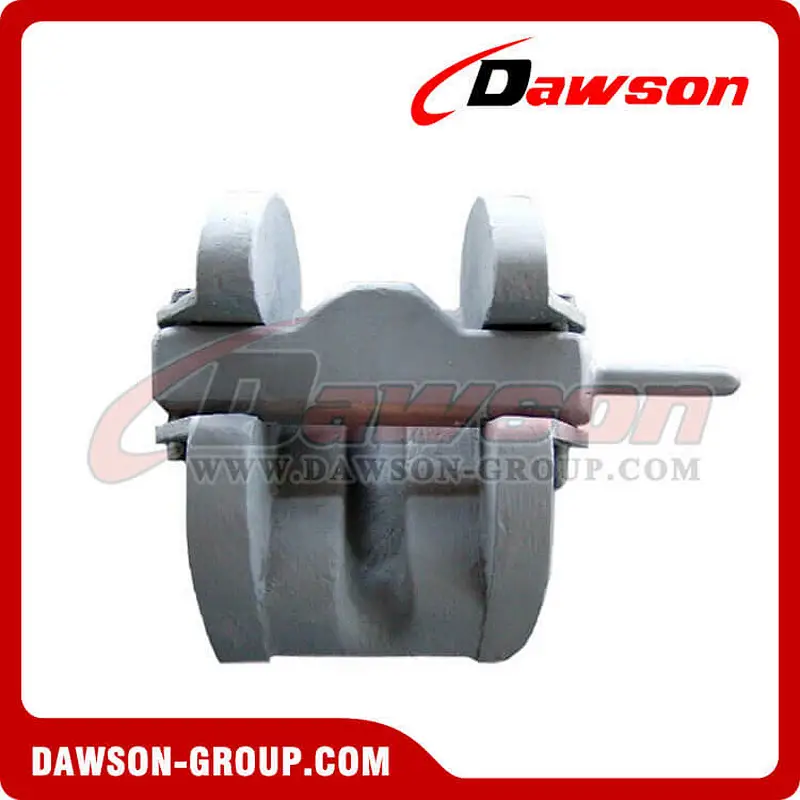

CB*286-84 bar type chain stopper is cast steel lever chain stopper that is commonly used to control the movements of anchor chain and reduce the load of windlass. It is applicable to one-stage, two-stage and three-stage anchor chain whose diameter ranges from 12.5mm to 68mm. This cast lever chain stopper is strictly produced according to the shipbuilding standard CB*286-84. It meets the regulatory requirements of CCS,GL,LR,DNV or other classification societies.
Features of CB *286-84 Bar Type Chain Stopper
1. Model Type: cast lever chain stopper;
2. Shipbuilding Standard: CB*286-84;
3. Material: cast steel (ZG25 II)
4. Nominal Anchor Chain Diameter: 12.5~68mm;
5. Nominal Weight: 20~363kg
6. Color: red,black,grey or any others for customer’s choice;
7. No cracks, air hole, scar or any defects to influence chain stopper’s strength;
8. Lubricated friction surface and bitumen paint;
9. Qualified quality certificate and the certificates of ABS,CCS,BV,LR,NK etc.;
10. Can be designed according to customers’ requirements.

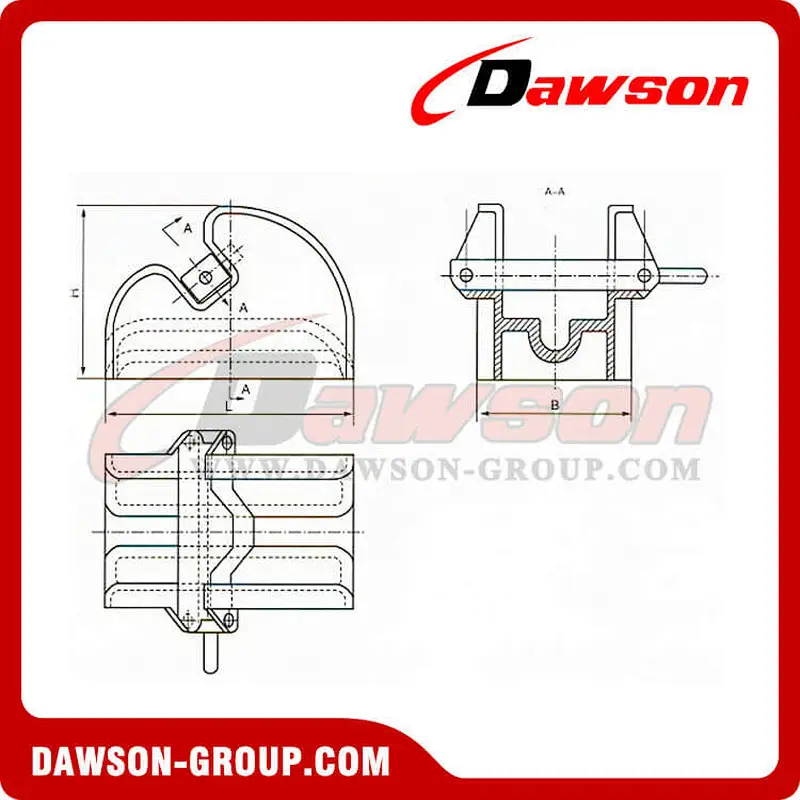

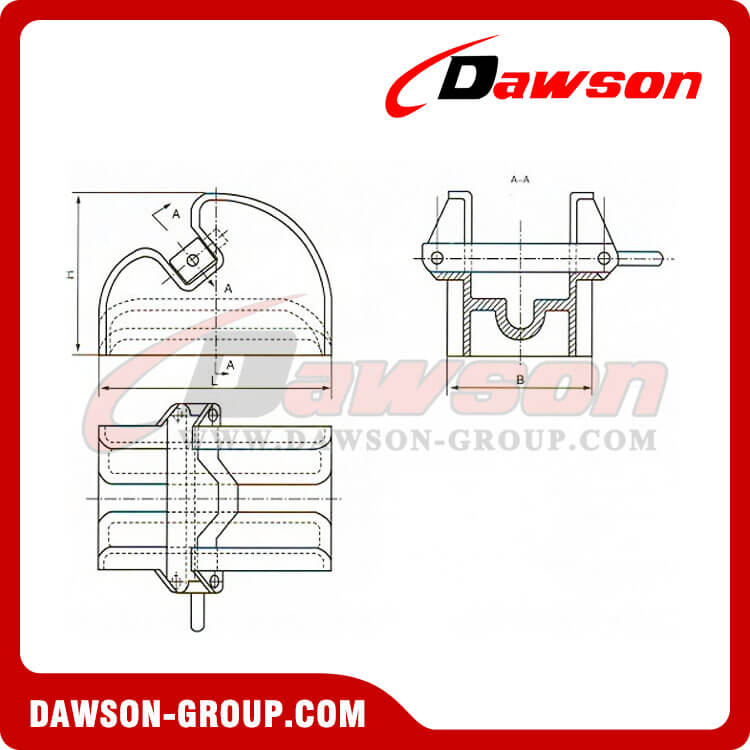

| Anchor Chain Diameter(mm) | B | H | L | Welding Foot | Weight(kg) |
| 12.5-14 | 142 | 162 | 235 | 5 | 20 |
| 16-17.5 | 170 | 190 | 270 | 6 | 25 |
| 19-20.5 | 193 | 216 | 320 | 6 | 30 |
| 22-24 | 219 | 241 | 345 | 7 | 37 |
| 26-28 | 241 | 270 | 385 | 7 | 46 |
| 30-32 | 274 | 305 | 435 | 9 | 56 |
| 34-36 | 304 | 342 | 490 | 9 | 69 |
| 38-40 | 336 | 378 | 540 | 10 | 85 |
| 42-44 | 366 | 412 | 590 | 10 | 108 |
| 46-48 | 397 | 450 | 640 | 12 | 139 |
| 50-52 | 428 | 491 | 695 | 12 | 173 |
| 54-56 | 457 | 528 | 745 | 13 | 210 |
| 58-60 | 488 | 564 | 795 | 13 | 255 |
| 62-64 | 517 | 600 | 850 | 14 | 305 |
| 66-68 | 547 | 635 | 900 | 14 | 363 |
Identification Example:
Chain stopper for Ø40 anchor chain:
Chain Stopper 38~40 CB*286-84
