CB 3062-79 Four Roller Fairlead Type BB

Model NO.: CB 3062-79 Four Roller Fairlead Type BB

Quantity:

Product Description

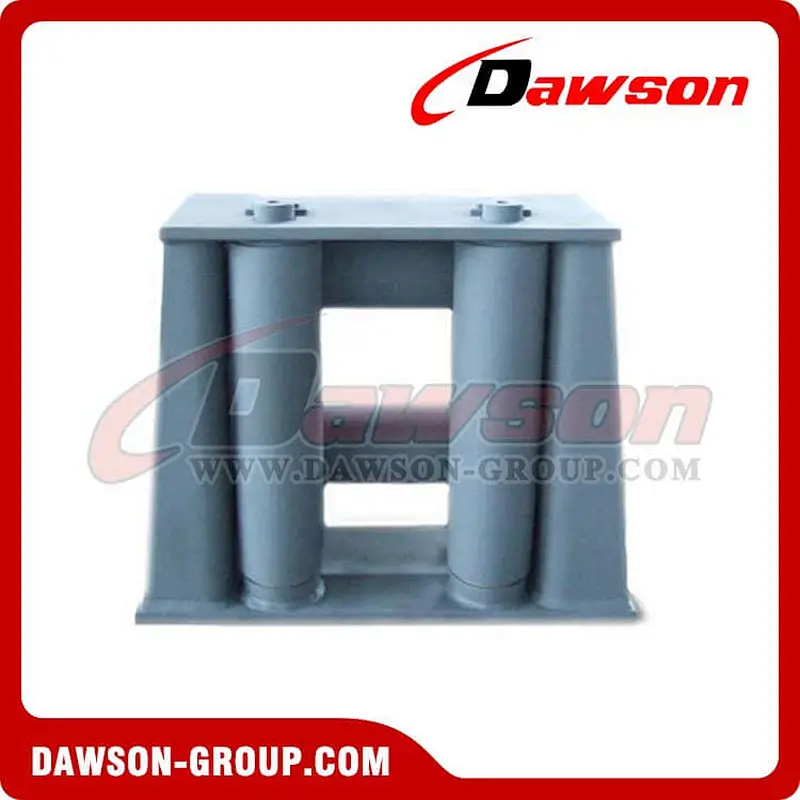

CB 3062-79 Four Roller Fairlead Type BB

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

Fairlead with Horizontal Rollers
Fairlead with horizontal rollers, consisting of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal roller fairlead, is usually located in the deck end. Horizontal roller fairlead can greatly reduce the abrasion of mooring ropes for the rollers fixed around the fairlead.

CB 3062-79 Horizontal Roller Fairlead
CB*3062-79 fairlead with horizontal rollers has 6 types: CB*3060-79 type A, BA, BB, C, D, E. The total number of rollers ranges from 3 to 9. Horizontal roller fairlead is strictly produced according to the standard CB*3062-79. The surface of the rollers do not have any defects which affect its performance and intensity such as cracks, blisters. All the fairleads get the certificate of quality. If you’re interested in our fairleads, please feel free to contact us.

Specification of CB*3062-79 Fairlead Type BB :
Model Type: CB*3062-79 Four Roller Fairlead Type BB
Material: Cast Steel
Standard: CB*3062-79
Roller No.: 4 Rollers
Steel Cable Diameters: 19.5mm~68.0mm
Nylon Rope Diameters: 36mm~100mm
Weight: 155kg~3352kg
Certificate: CCS, ABS, BV, LR, NK, RINA

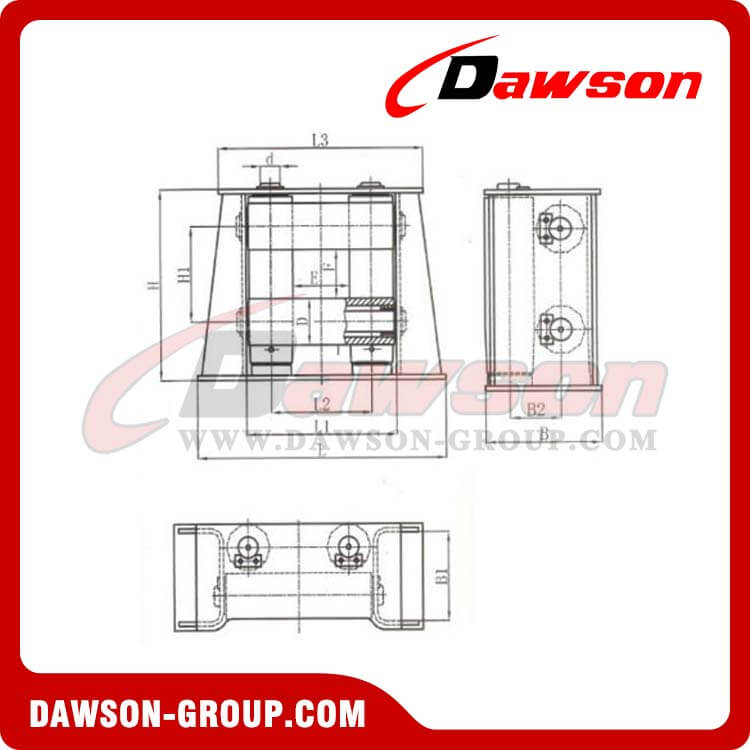

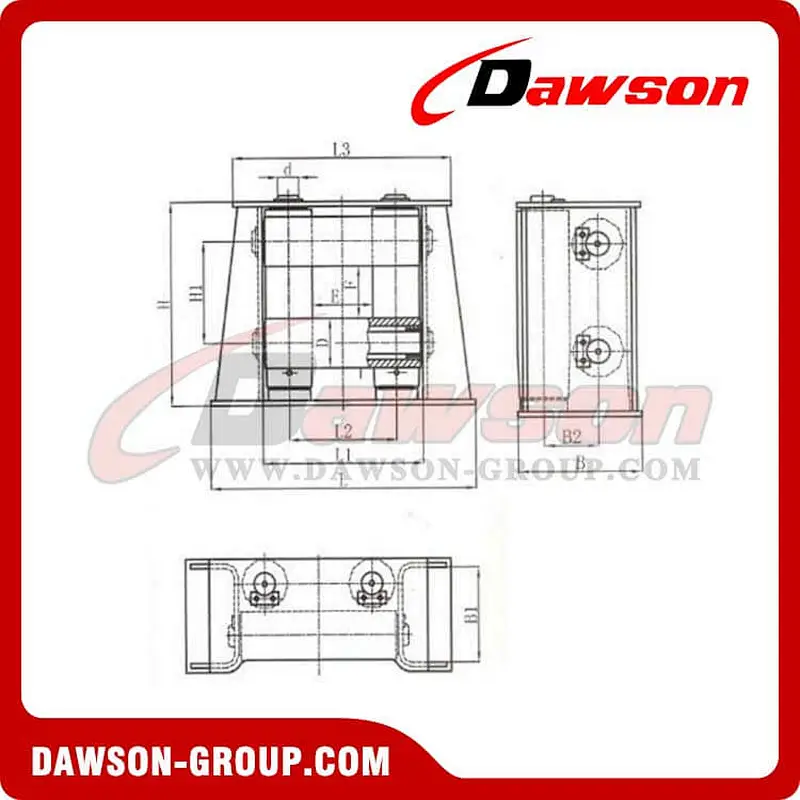

Steel Rope Dia.	Nylon Rope Dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight(kg)
19.5	36	200	150	100	40-0.5	644	416	300	544	238	194	108	508	250	155
22.5	40	200	150	120	50-0.5	728	456	320	608	280	232	128	552	270	239
26.0	45	200	180	130	55-0.5	776	480	330	646	304	250	138	606	310	306
32.0	70	220	180	150	65-0.5	880	540	370	730	346	288	158	670	330	450
34.5	80	240	200	160	70-0.5	940	580	400	780	370	308	168	710	360	576
37.5	85	240	200	180	80-0.5	1030	620	420	850	417	345	190	770	380	756
43.0	95	260	210	200	90-0.5	1136	686	460	936	459	385	210	820	410	987
52.0	100	260	220	230	100-0.5	1256	746	490	1026	521	445	240	910	450	1370
60.5	_	300	240	260	120-0.5	1430	850	560	1170	590	500	270	1000	500	2008
68.0	_	320	250	320	150-0.5	1690	990	640	1370	714	620	330	1130	570	3352
