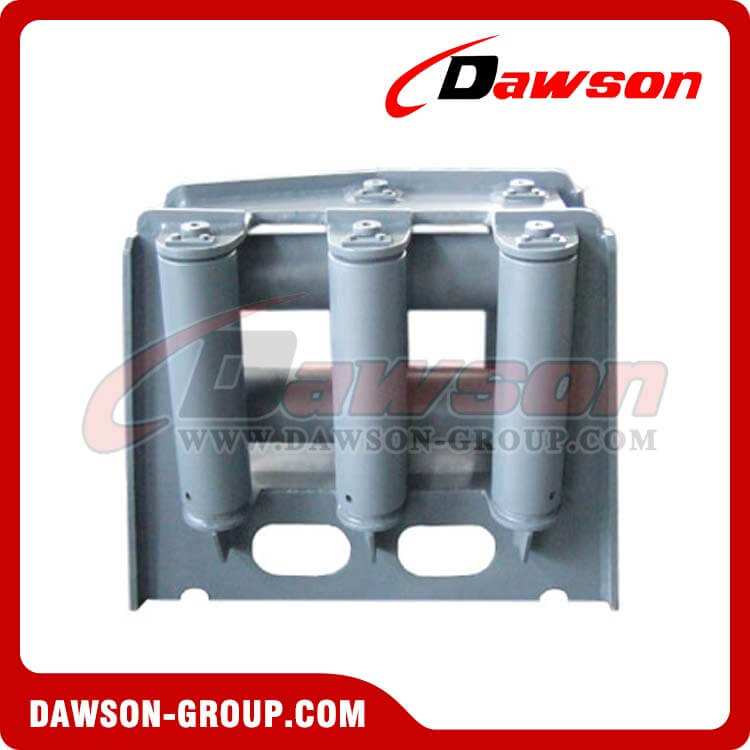

Fairlead with horizontal rollers
Fairlead with horizontal rollers, consisting of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal roller fairlead, is usually located in the deck end. Horizontal roller fairlead can greatly reduce the abrasion of mooring ropes for the rollers fixed around the fairlead.
CB 3062-79 Horizontal Roller Fairlead
CB*3062-79 fairlead with horizontal rollers has 6 types: CB*3060-79 type A, BA, BB, C, D, E. The total number of rollers ranges from 3 to 9. Horizontal roller fairlead is strictly produced according to the standard CB*3062-79. The surface of the rollers do not have any defects which affect its performance and intensity such as cracks, blisters. All the fairleads get the certificate of quality. If you’re interested in our fairleads, please feel free to contact us.
Specification of CB*3062-79 fairlead type E:
Model Type: CB*3062-79 nine roller fairlead type E
Material: Cast Steel/ Cast Iron
Standard: CB*3062-79
Roller No.: 9 Rollers
Steel cable diameters:19.5mm~68.0mm
Nylon rope diameters:36mm~100mm
Weight:302kg~6432kg
Certificate: CCS,ABS,BV,LR,NK,RINA

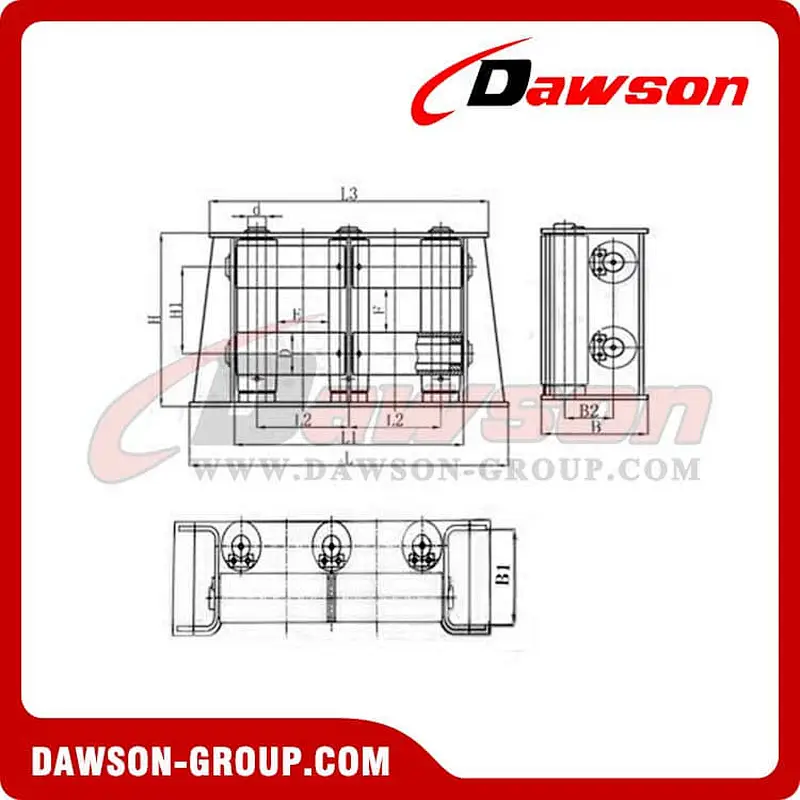

Unit:mm
| Steel rope dia. | Nylon rope dia. | E | F | D | d | L | L1 | L2 | L3 | B | B1 | B2 | H | Hi | Weight (kg) |
| 19.5 | 36 | 200 | 150 | 100 | 40-0.5 | 944 | 716 | 300 | 844 | 324 | 194 | 108 | 508 | 250 | 302 |
| 22.5 | 40 | 200 | 150 | 120 | 50-.05 | 1048 | 776 | 320 | 928 | 384 | 232 | 128 | 552 | 270 | 464 |
| 26.0 | 45 | 200 | 180 | 130 | 55-0.5 | 1106 | 810 | 330 | 976 | 415 | 250 | 138 | 606 | 310 | 596 |
| 32.0 | 70 | 220 | 180 | 150 | 65-0.5 | 1250 | 910 | 370 | 1100 | 475 | 288 | 158 | 670 | 330 | 883 |
| 34.5 | 80 | 240 | 200 | 160 | 70-0.5 | 1314 | 980 | 400 | 1180 | 507 | 308 | 168 | 710 | 360 | 1048 |
| 37.5 | 85 | 240 | 200 | 180 | 80-0.5 | 1450 | 1040 | 420 | 1270 | 571 | 345 | 190 | 770 | 380 | 1229 |
| 43.0 | 95 | 360 | 210 | 200 | 90-0.5 | 1596 | 1146 | 460 | 1396 | 632 | 445 | 210 | 920 | 410 | 1911 |
| 52.0 | 100 | 260 | 220 | 230 | 100-0.5 | 1746 | 1236 | 490 | 1516 | 723 | 500 | 240 | 910 | 450 | 2675 |
| 60.5 | - | 300 | 240 | 260 | 120-0.5 | 1990 | 1410 | 560 | 1730 | 814 | 620 | 270 | 1000 | 500 | 3887 |
| 68.0 | - | 320 | 250 | 320 | 150-0.5 | 2330 | 1630 | 640 | 2010 | 997 | 330 | 1130 | 570 | 6432 |
