CB 58-83 Guide Roller
CB*58-83 fairlead roller is applicable to guiding mooring rope’s direction. Its roller diameter varies from 100mm to 450mm. The material of CB58-83 roller can be steel or iron. Steel wire, hemp wire and synthetic fiber wire are suitable for CB*58-83 standard fairlead roller. Among these three types of wire, the steel wire has the largest breaking load value.
CB*58-83 roller can be combined to be used in groups. JIS F 2014-1987 is composed of serveral CB*58-83 guide rollers with stand. We can provide various types of fairlead rollers. If you’re interested in our guide rollers, please feel free to contact us.
Specification:
Model Type: CB*58-83 Guide Roller
Material: Cast Steel/Cast Iron
Roller Diameter: 100mm~450mm
Weight: 9.4kg~462.0kg
Standard:CB*58-83
Certificate: CCS,ABS,LR,BV,NK,RINA

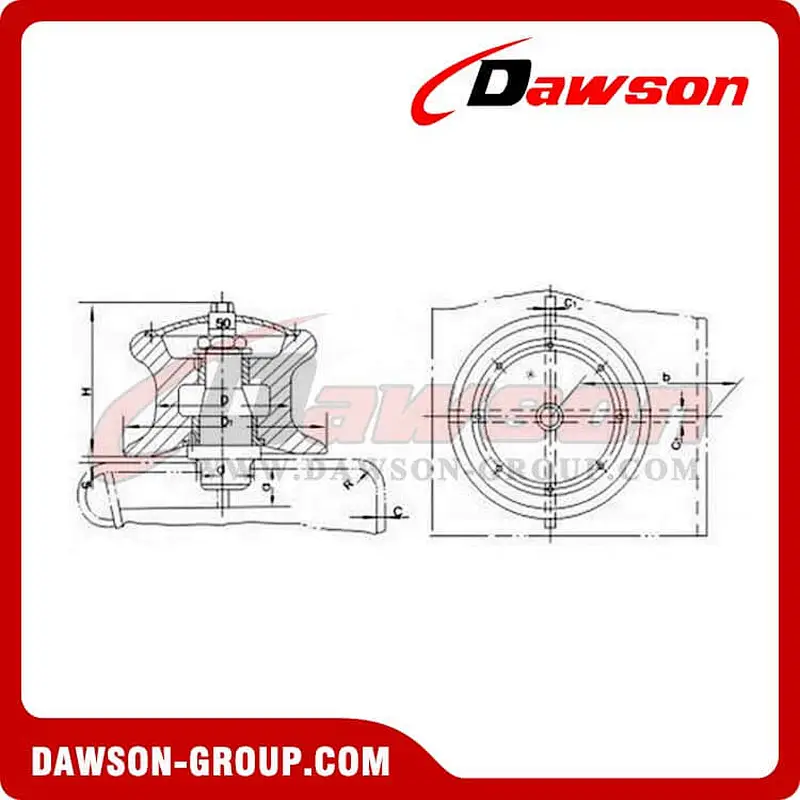

| Diameter of Roller D | Max. Dimeter of Applicable Cable | Base Size | Dimensions | Weight(kg) | ||||||||||||
| Steel(GB1102) Stress Length 1520N/mm2 | Hemp Rope | Synthetic Fiber Rope | a | b | c | c1 | d | R | D1 | H | S | Cast Iron(HT) | Cast Steel(ZG) | |||
| 6×24 | 6×30 | 6×37 | ||||||||||||||
| 100 | 11 | 11 | 11 | 40 | 28 | 60 | 125 | 8 | 6 | 48 | 30 | 160 | 128 | 3 | 9.4 | 9.9 |
| 150 | 17 | 17.5 | 15 | 45 | 32 | 75 | 190 | 12 | 8 | 71 | 40 | 240 | 211 | 3 | 32.1 | 33.8 |
| 200 | 22.5 | 21.5 | 19.5 | 55 | 40 | 85 | 230 | 14 | 10 | 95 | 40 | 310 | 251 | 3 | 64.6 | 68.0 |
| 250 | 24 | 26 | 24 | 65 | 45 | 100 | 265 | 14 | 10 | 107 | 40 | 380 | 298 | 4 | 108 | 114.0 |
| 300 | 30 | 32.5 | 28 | 70 | 50 | 100 | 320 | 16 | 14 | 127 | 60 | 440 | 321 | 4 | 159 | 168.0 |
| 350 | 37.5 | 39 | 34.5 | 75 | 55 | 100 | 350 | 18 | 14 | 144 | 60 | 500 | 346 | 4 | 235 | 248.0 |
| 400 | 41 | 39 | 39 | 85 | 65 | 100 | 380 | 20 | 16 | 161 | 60 | 560 | 371 | 5 | 336 | 355.0 |
| 450 | 44.5 | 47.5 | 43 | - | 80 | 100 | 410 | 20 | 16 | 180 | 60 | 620 | 394 | 5 | 413 | 462.0 |

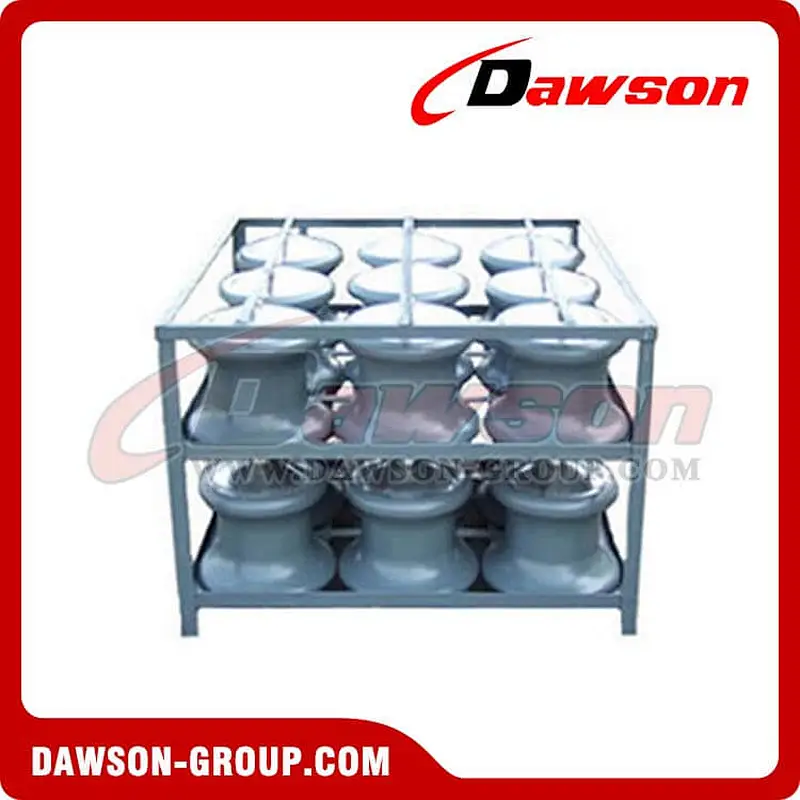

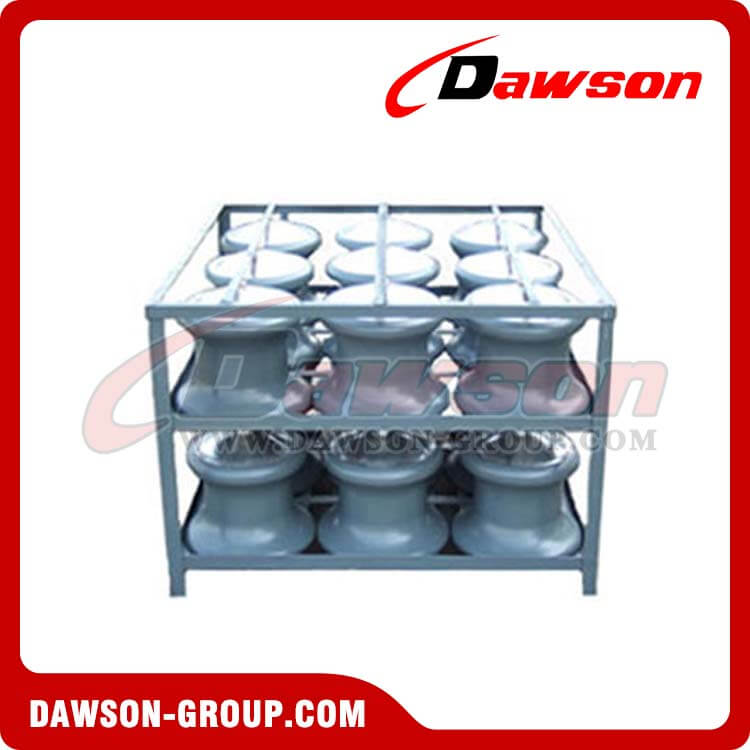

Factory & Package Show:
