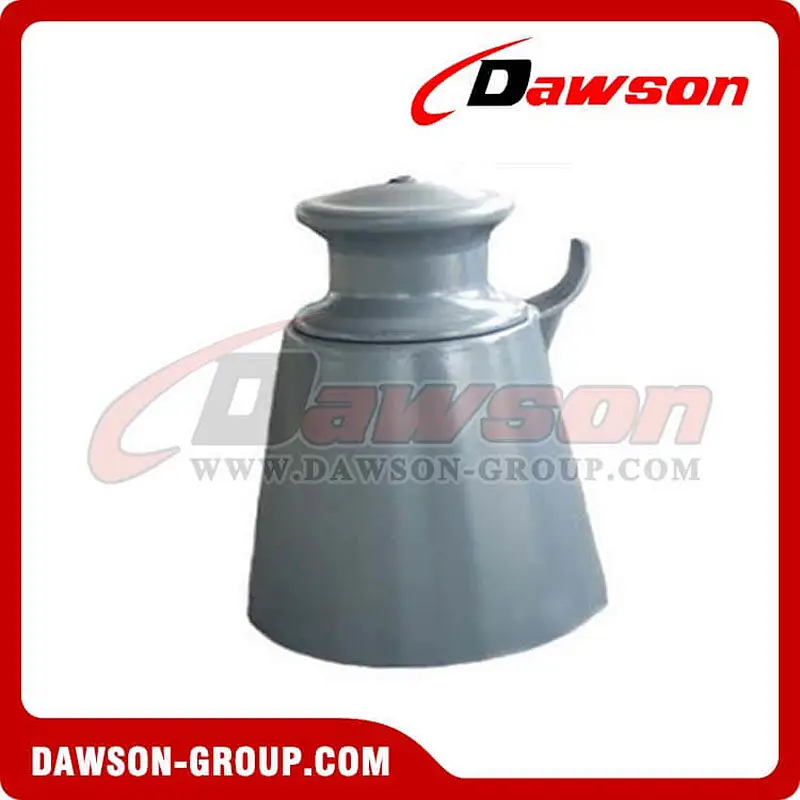

CB436-2000 Cleat Fairlead with Single Roller Type A
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
B*436-2000 cleat fairlead with single roller has two types: type A and type B. CB*436-2000 type A adopts the CB*58-83 fairlead roller. CB*436-2000 type B adopts GB/T10105-88 marine roller. CB*436-2000 fairlead is strictly produced in line with the quality standard. Its weld and surface is smooth and uniform. The fairlead roller is flexible to turn. The surface of roller is painted asphalt. All our fairleads get the certificate of quality. If you’re interested in our fairlead, please feel free to contact us.
Specification:
Model Type: CB436-2000 Cleat Fairlead Type A
Material: Cast Iron/ Cast Steel
Standard: CB436-2000,CB*58-83(roller standard)
Roller No.: Single Roller
Roller Diameters: 100mm~450mm
Roller Weight:9.9kg~452kg
Base Weight: 63.9kg~454.4kg
Certificate: CCS, ABS, BV, LR, NK, RINA

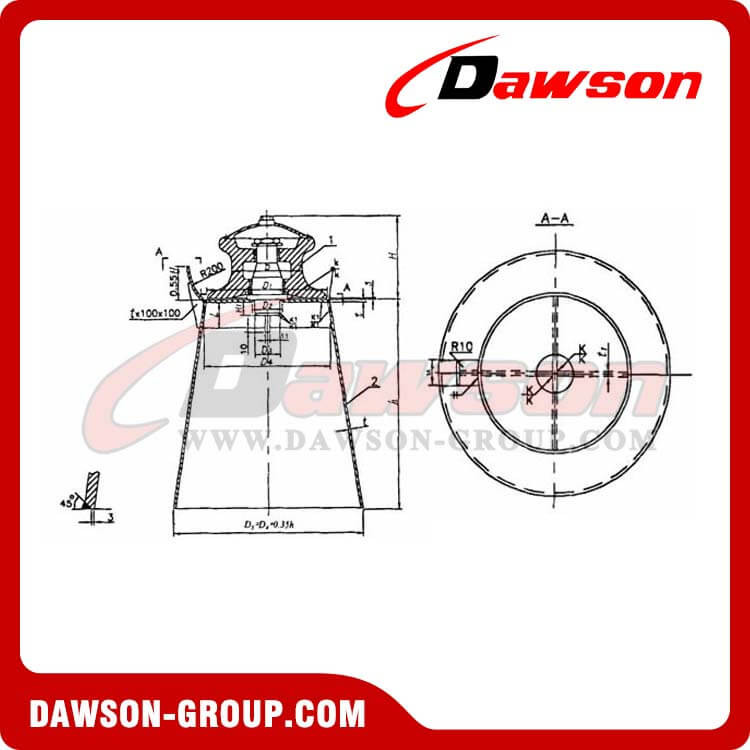

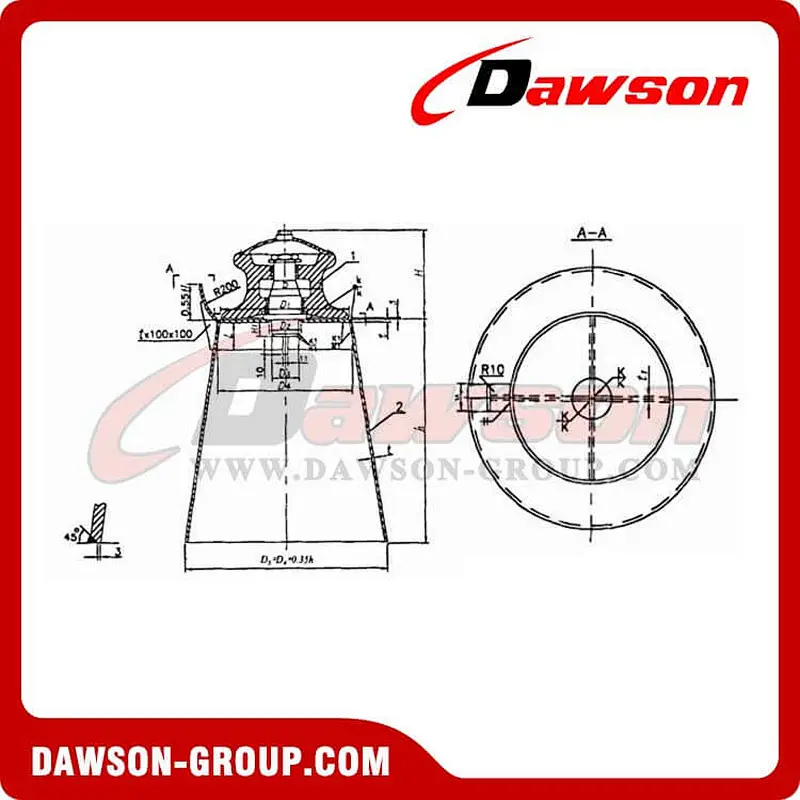

| Roller Dia. D | Max. Dia. Of Applicable Wires(For Reference) | Dimensions(mm) | Weight kg | ||||||||||||||
| Synthetic Fiber Rope | Hemp Rope | Steel Wire(GB/T 8918) Tensile Strength 1570MPa | a | D1 | D2 | D3 | D4 | H | H1 | L | S | t | t1 | Fairlead Roller | Pedestal | ||
| 6×24 | 6×37 | ||||||||||||||||
| 100 | 28 | 40 | 11 | 11 | 60 | 160 | 48 | 40 | 176 | 128 | 35 | 60 | 3 | 8 | 6 | 9.9 | 63.9 |
| 150 | 32 | 45 | 16~18 | 14~16 | 60 | 240 | 71 | 60 | 264 | 211 | 40 | 75 | 3 | 12 | 8 | 33.8 | 129 |
| 200 | 40 | 55 | 22 | 20 | 60 | 310 | 95 | 80 | 338 | 251 | 50 | 85 | 3 | 14 | 10 | 68 | 178 |
| 250 | 45 | 65 | 24 | 24 | 80 | 380 | 107 | 90 | 408 | 298 | 60 | 100 | 4 | 14 | 10 | 114 | 207 |
| 300 | 50 | 70 | 30 | 28 | 80 | 440 | 127 | 110 | 474 | 321 | 60 | 100 | 4 | 16 | 14 | 168 | 265.4 |
| 350 | 55 | 75 | 38 | 34 | 80 | 500 | 144 | 125 | 536 | 346 | 65 | 100 | 4 | 18 | 14 | 248 | 332 |
| 400 | 65 | 85 | 40~42 | 38~40 | 100 | 560 | 161 | 140 | 600 | 371 | 70 | 120 | 5 | 20 | 16 | 355 | 401.3 |
| 450 | 80 | - | 44 | 42~44 | 100 | 620 | 180 | 155 | 660 | 394 | 90 | 120 | 5 | 20 | 16 | 452 | 445.4 |
| Note: the pedestal weight means the weight when the base height is h=1000mm. | |||||||||||||||||
Product Show:

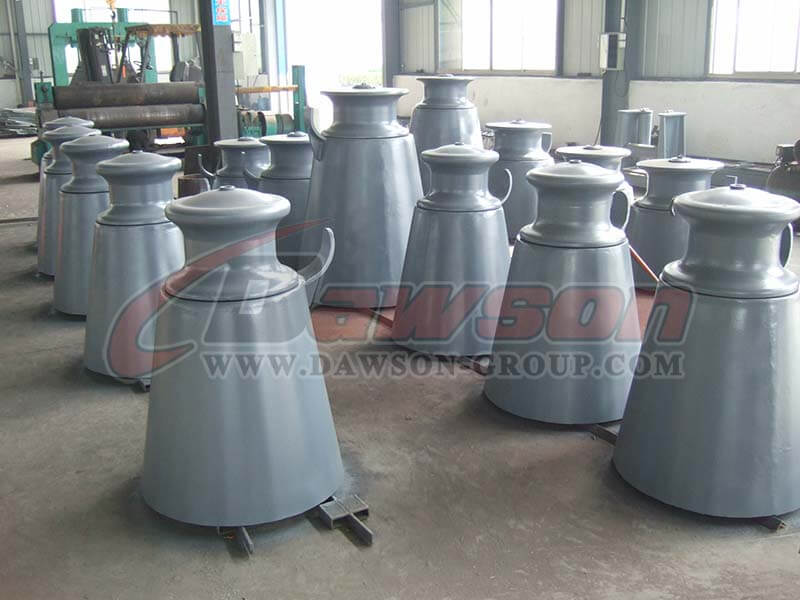

Factory & Package Show:
