CB/T 38~1999 double roller chock
Marine chocks have multiple forms such as closed chock, open chock, no~roller chock, roller chock. It is mainly divided into two categories: no~roller chock and roller chock.Generally, marine chock is made by casting with integral and modular forms. Marine cast chocks are normally mounted on the gunwale of the bow and poop. Roller chock can reduce the friction to mooring rope.

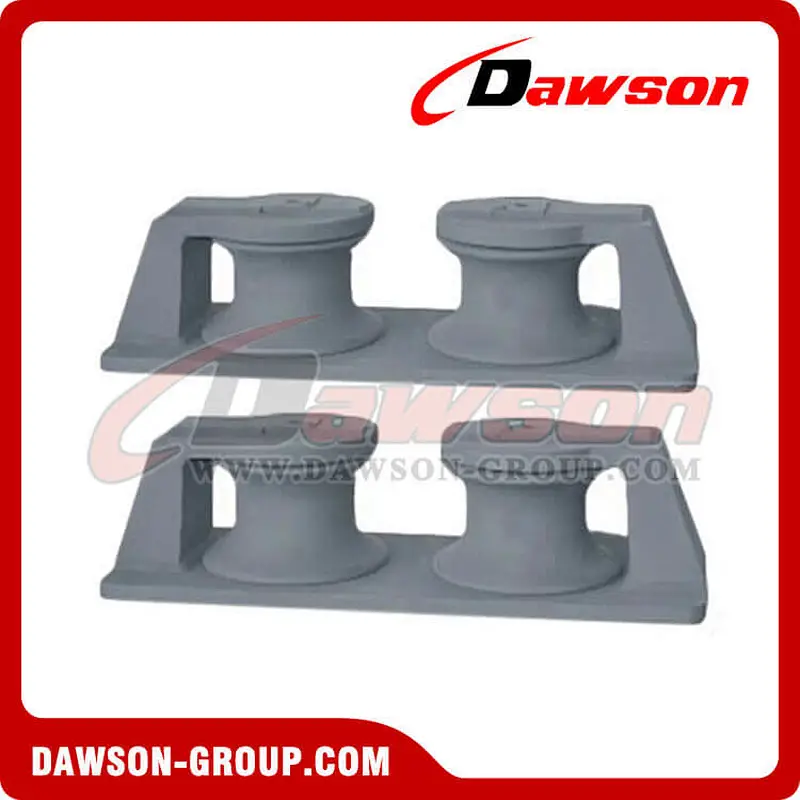

CB/T 38~1999 Double Roller Chock is marine cast steel roller chock. It has two rollers and is made strictly following the shipping standard CB/T 38~1999. It gets the approval of China Classification Society, American Bureau of Shipping etc.If you’re interested in our chocks, please feel free to contact us.
Specification :
Model Type: CB T38~1999 Double Roller Chock
Material: Steel
Technology: Casting
Standard: CB/T 38~1999
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

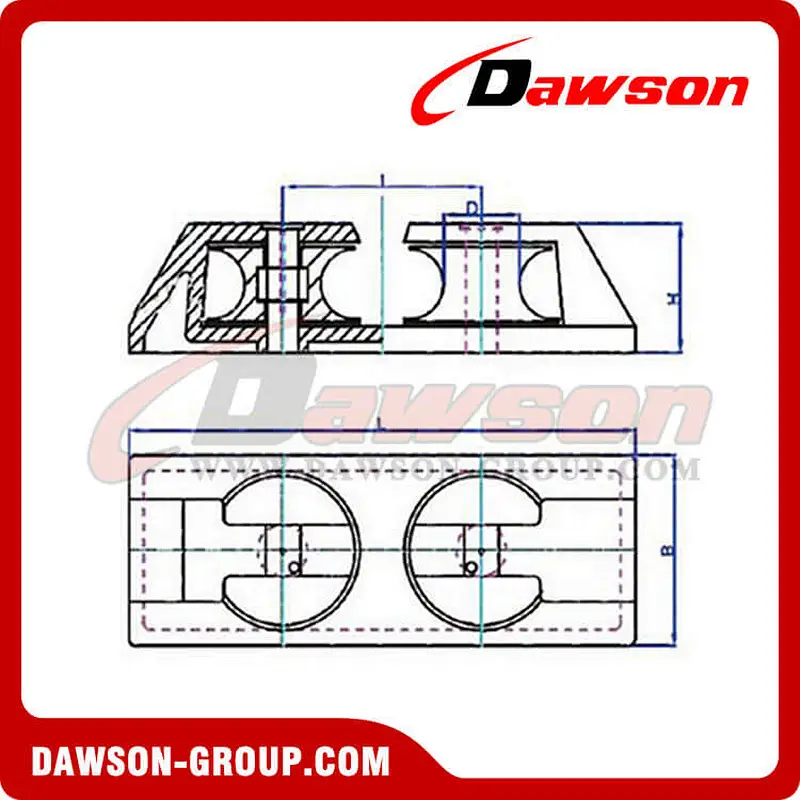

Unit:mm
| Diameter | Break load (kn) | Rope Max diameter | L | B | H | I | D | Weight(kg) | ||
| Wire rope | pp~rope | |||||||||
| 6x24 | 6x37 | |||||||||
| 75 | 23.3 | 7.4 | ~ | 12 | 400 | 150 | 116 | 150 | 75 | 18 |
| 100 | 52.5 | 11 | ~ | 18 | 530 | 200 | 147 | 200 | 100 | 41 |
| 125 | 93.4 | 15 | ~ | 24 | 650 | 250 | 173 | 250 | 125 | 76 |
| 150 | 145.8 | 18.5 | ~ | 30 | 780 | 300 | 201 | 300 | 150 | 132 |
| 200 | 246.6 | 24 | ~ | 40 | 1100 | 370 | 251 | 400 | 200 | 264 |
| 250 | 373.6 | 30 | ~ | 48 | 1240 | 470 | 300 | 500 | 250 | 498 |
| 300 | 472.7 | 33.5 | ~ | 56 | 1480 | 550 | 353 | 600 | 300 | 798 |
| 350 | 583.5 | 37.5 | ~ | 64 | 1690 | 640 | 386 | 690 | 350 | 1134 |
