CBT3822~99 adjustable chain stopper

Model NO.: adjustable roller chain stopper

Quantity:

Product Description

CB/T3822~99 Adjustable Chain Stopper
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

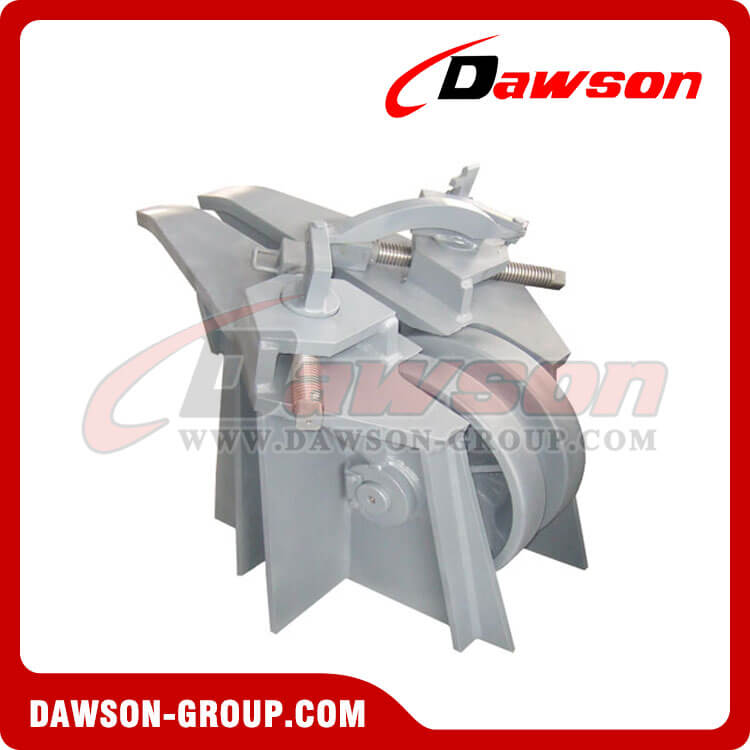

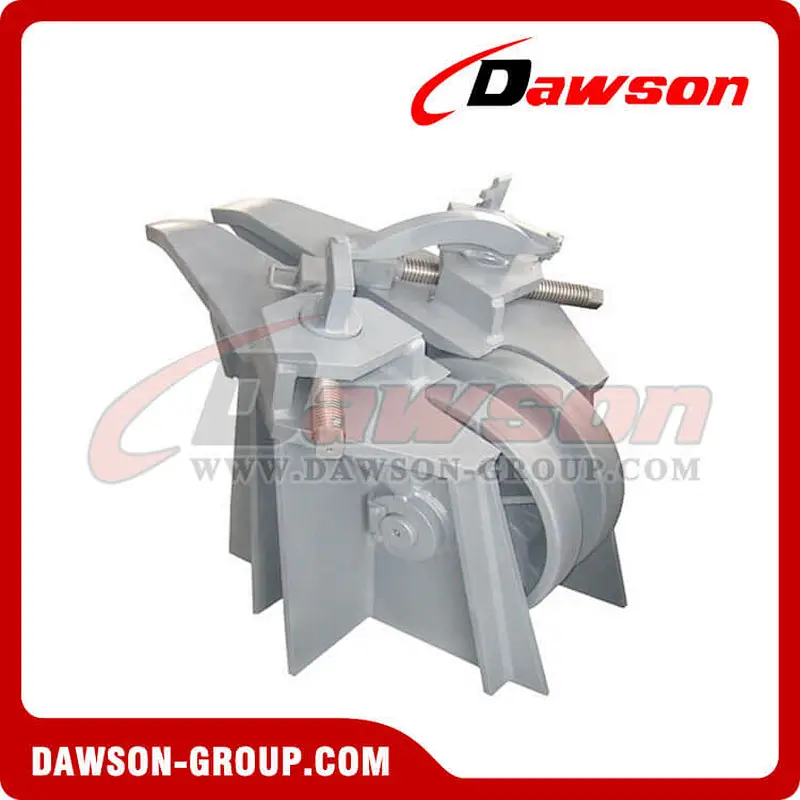

CB/T3822~99 adjustable chain stopper
CB/T3822~99 adjustable chain stopper is a newly developed and produced chain stopper. Its main feature is that the top block is adjustable. The gap between anchor and the top blocks is eliminated by tightening the screw. Adjustable chain stopper has simply structure, easy operation. It greatly simplifies the work of installation and commissioning. We can supply other types of chain stopper and mooring products. For more information, please feel free to contact us.
Features of CB/T3822~99 Adjustable Chain Stopper
1. Model Type: adjustable roller chain stopper;
2. Standard: CB/T 3822~1999 type B;
3. Material: cast steel;
4. Applicable to Chain Diameter 22 to 137mm;
5. Weight: 72 to 13746kg;
6. Smooth surface, no any defects to influence the strength of chain stopper;
7. Flexible rotation, anti~rust paint;
8. high quality, stable performance;
9. Competitive price, prompt delivery, excellent service;
10. Certificate: CCS,ABS,BV,LR,NK etc.;
11. Customized service is available;

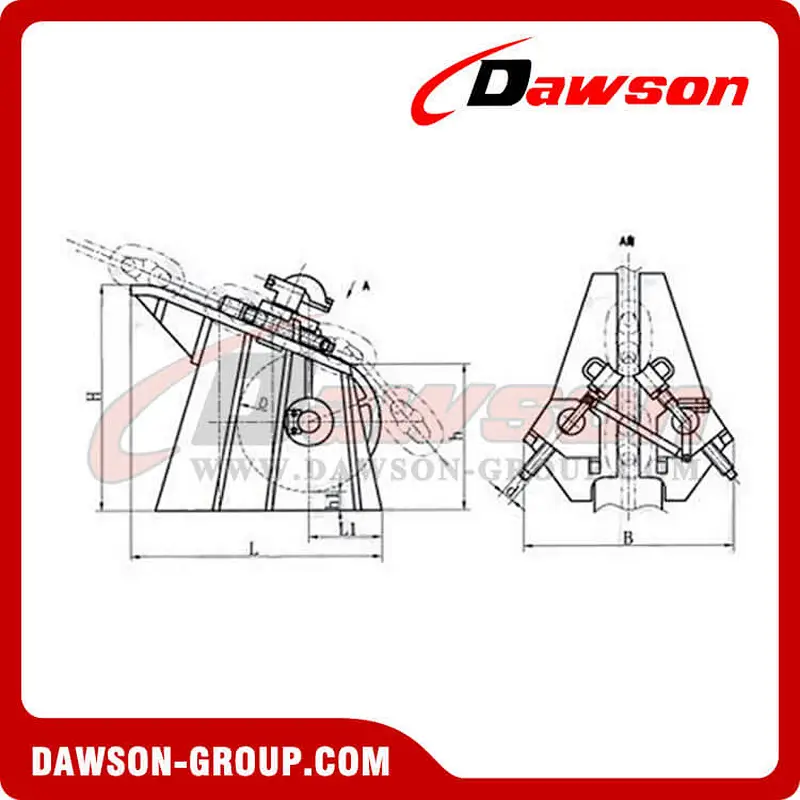

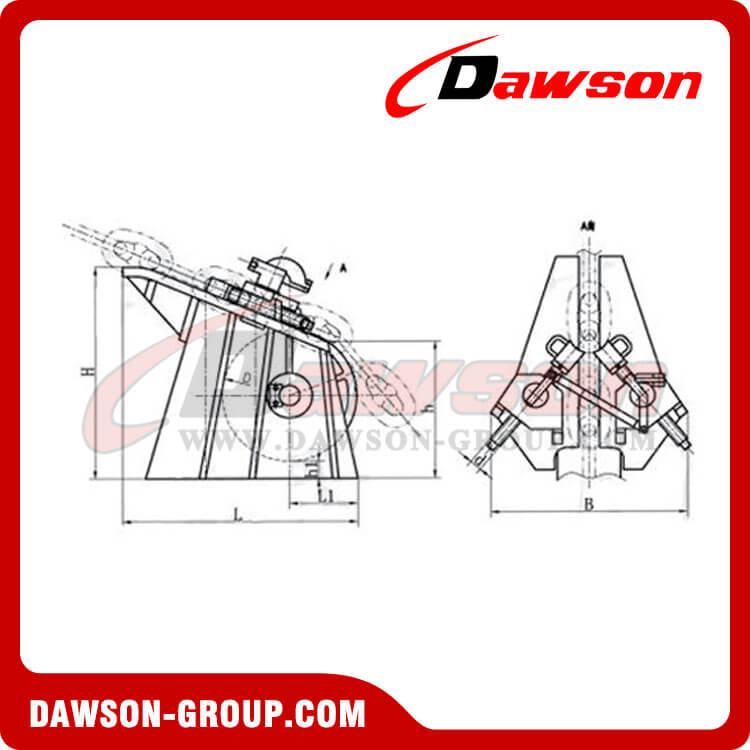

Nominal size	Anchor chain diameter	B	H	h	h1	L	L1	D	Screw d	Weight (kg)
24	22~24	383	427	278	35	458	133	264	Tr24x5	72
28	26~28	449	498	322	41	438	156	308	Tr28x5	118
32	30~32	515	569	368	47	616	179	352	Tr32x6	175
36	34~36	580	641	415	53	694	201	396	Tr36x6	249
40	38~40	644	712	164	59	770	224	440	Tr40x7	342
44	42~44	708	783	507	66	848	246	484	Tr44x7	455
48	46~48	773	854	553	71	925	268	428	Tr48x8	591
52	50~52	837	925	599	76	1002	291	472	Tr52x8	753
56	54~56	902	996	644	82	1079	313	616	Tr55x8	939
60	58~60	966	1067	691	88	1156	335	660	Tr60x9	1154
64	62~64	1031	1139	737	95	1233	358	704	Tr65x10	1401
68	66~68	1095	1210	783	100	1310	380	748	Tr70x10	1681
73	70~73	1172	1298	840	107	1406	408	803	Tr75x10	2079
78	76~78	1256	1388	898	115	1502	436	858	Tr80x10	2537
84	81~84	1353	1494	967	123	1618	469	924	Tr85x12	3169
90	87~90	1449	1601	1036	132	1734	503	990	Tr90x12	3897
95	92~95	1530	1690	1094	140	1830	531	1045	Tr95x12	4583
102	100~102	1642	1815	1175	150	1965	570	1122	Tr100x12	5673
107	105~107	1723	1903	1232	127	2031	598	1177	Tr110x12	6849
114	111~114	1836	2028	1312	168	2196	637	1254	Tr120x14	7821
120	117~120	1932	2136	1382	175	2312	670	1320	Tr120x14	923
127	122~127	2045	2260	1463	188	2446	710	1397	Tr130x14	10950
137	130~137	2206	2438	1578	201	2639	765	1507	Tr140x14	13746
