Cleat Fairlead With Single Roller
Features of CB*436-2000 Cleat Fairlead with Single Roller
1. Adopt GB/T10105-88 marine roller;
2. Produced strictly following the standard CB*436-2000
3. Nominal roller diameter 150mm to 450mm;
4. Applicable to three types of ropes: steel wire, hemp wire, synthetic carbon fiber rope;
5. Made of high quality steel;
6. Clean and smooth surface without cracks or other defects;
7. Anti-rust and abrasion resistant;
8. Get approved by CCS, ABS etc.;
Produced according to customers’ special design;

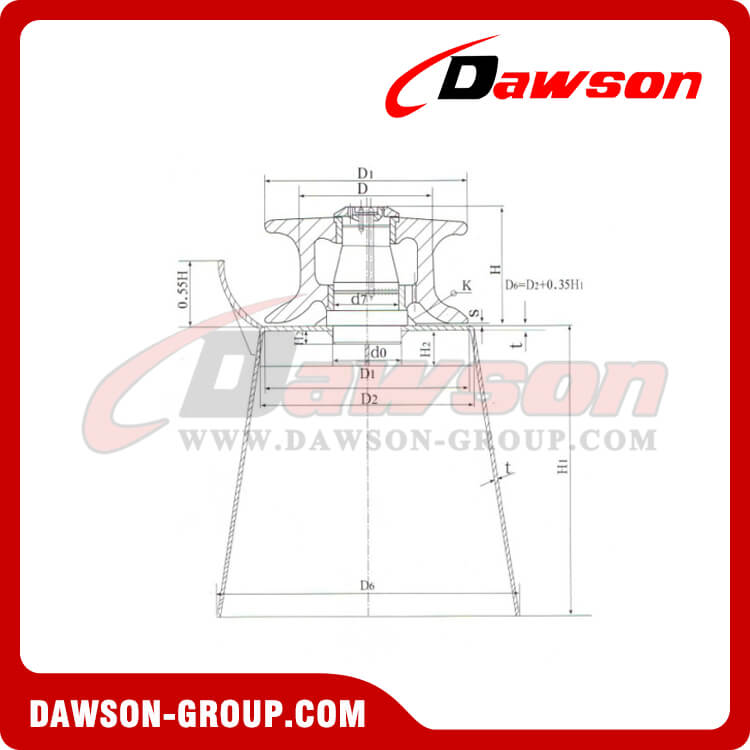

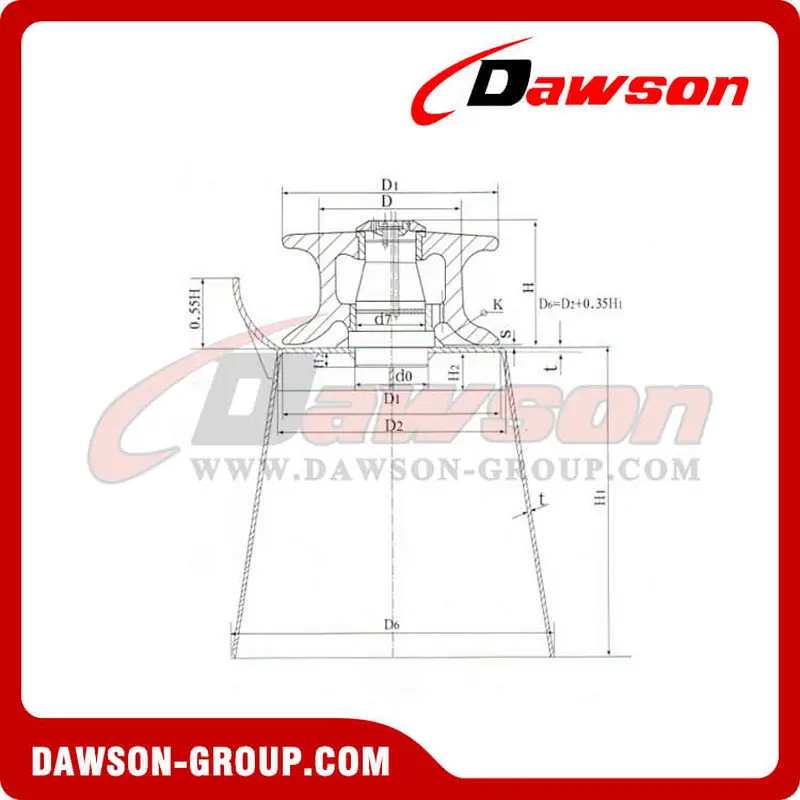

| D (mm) | Max Cable Diameter (mm) | Dimensions (mm) | Roller Weight (kg) | Basement Weight (kg) H1=100 | ||||||||||||||
| Cable Tensile Strength 1550N/mm2 | Hemp Rope | Synthetic Fiber Rope | D0 | D1 | D2 | D7 | H | H1 | H2 | H3 | S | t | K | |||||
| 6×24 | 6×30 | 6×37 | ||||||||||||||||
| 150 | 17 | 17.5 | 15 | 45 | 32 | 90 | 240 | 270 | 79 | 154 | As Required | 40 | 75 | 5 | 12 | 9 | 24.8 | 129 |
| 200 | 22.5 | 21.5 | 19.5 | 55 | 40 | 115 | 310 | 340 | 99 | 186 | 50 | 85 | 5 | 14 | 10 | 49.3 | 178 | |
| 250 | 24 | 26 | 24 | 65 | 45 | 135 | 380 | 410 | 119 | 230 | 60 | 100 | 6 | 14 | 10 | 92 | 207 | |
| 300 | 30 | 32.5 | 28 | 70 | 50 | 155 | 440 | 470 | 129 | 255 | 60 | 100 | 7 | 16 | 12 | 127 | 265 | |
| 350 | 37.5 | 39 | 34.5 | 75 | 55 | 175 | 500 | 530 | 149 | 271 | 65 | 100 | 7 | 18 | 13 | 168 | 332 | |
| 400 | 41 | 39 | 39 | 85 | 65 | 185 | 560 | 590 | 159 | 307 | 70 | 100 | 7 | 20 | 14 | 252.5 | 401 | |
| 450 | 44.5 | - | 43 | - | 80 | 210 | 630 | 670 | 179 | 316 | 80 | 120 | 7 | 20 | 14 | 310 | 452 | |
Package & Factory & Package Show:

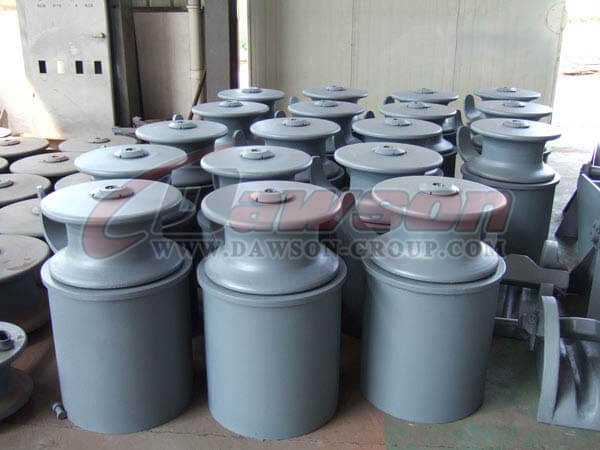

Factory Show & Package:
