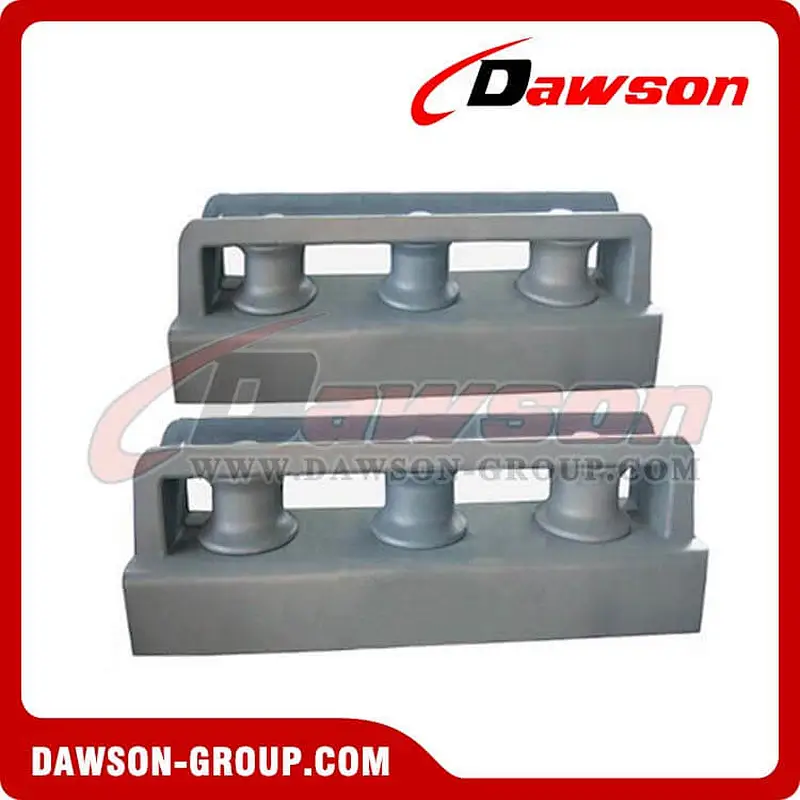

Closed Type Three-Roller Fairlead
Roller fairlead is usually located in the sides of a ship which consists of a number of rollers.It is used to guide ropes of marine ships. Roller fairlead can be divided into open type and closed type roller fairlead. JIS F 2014-1987 roller fairlead has the following types:open type fairleads with two rollers or three rollers; closed type fairleads with two rollers or three rollers. Each type is composed of rollers and a stand. If you’re interested in our guide rollers, please feel free to contact us.
Specification:
Model Type: Closed Type Three-Roller Fairlead
Material: Cast Steel/ Cast Iron
Standard: CB*58-83, JIS F 2014-1987
Roller No.: 3 Rollers
Nominal Diameters:150mm~450mm
Certificate: CCS,ABS,BV,LR,NK,RINA

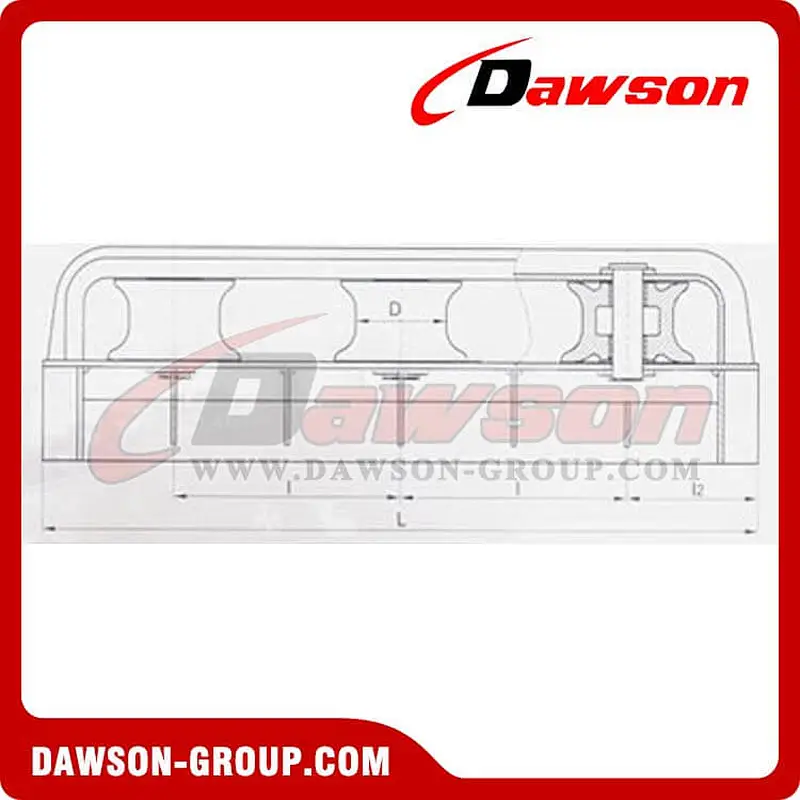

| Nominal Dia. | D | L | I | I2 |
| 150 | 150 | 1440 | 420 | 300 |
| 200 | 200 | 1720 | 530 | 330 |
| 250 | 250 | 2070 | 640 | 395 |
| 300 | 300 | 2360 | 750 | 430 |
| 350 | 350 | 2750 | 860 | 515 |
| 400 | 400 | 3070 | 970 | 565 |
| 450 | 450 | 3440 | 1080 | 640 |
