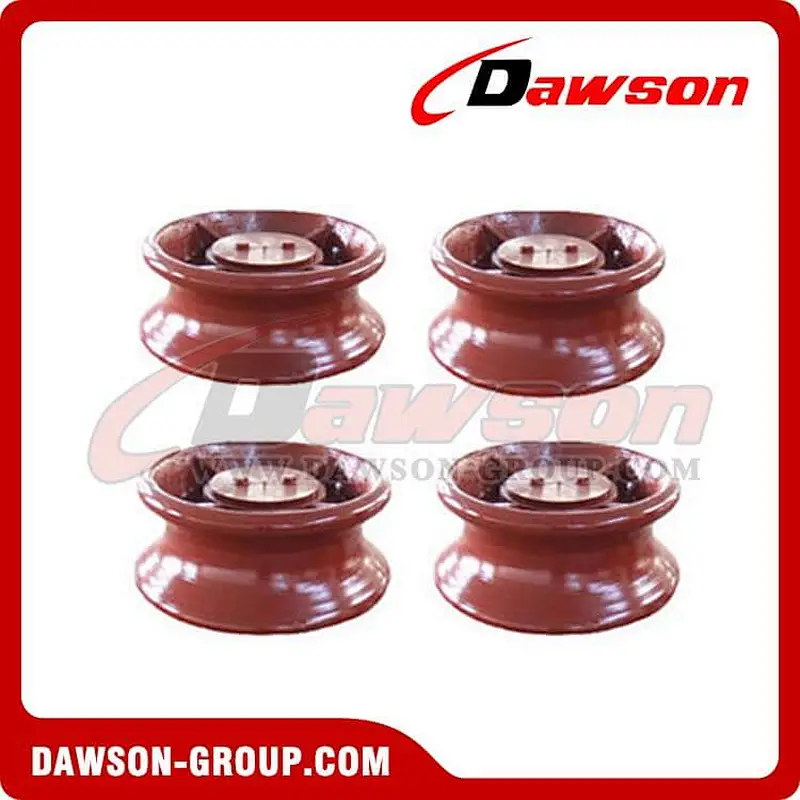

DIN 81906 Warping Roller
DIN 81906-1999 warping roller is one kind of important marine deck fitting device. It is installed on the deck and guide the wire towards a certain position. DIN81906 warping roller has 8 types. Its maximum towing load is from 10KN to 320KN. DIN81906 warping roller can be used with pedestal. DIN81907 cleat single roller fairlead consists of a DIN81906 warping roller and cylindrical or conical pedestal. All our rollers and fairleads have excellent quality. If you’re interested in our products, please feel free to contact us.
Specification:
Model Type: DIN81906 Warping Roller Type 1,2,3,5,8,12,20,32
Material: Cast Steel
Max. Towing Load(KN): 10,20,32,50,80,125,200,320
Weight: 12kg~625kg
Standard: DIN 81906-1999
Certificate: CCS,ABS,BV,LR,NK,RINA etc.

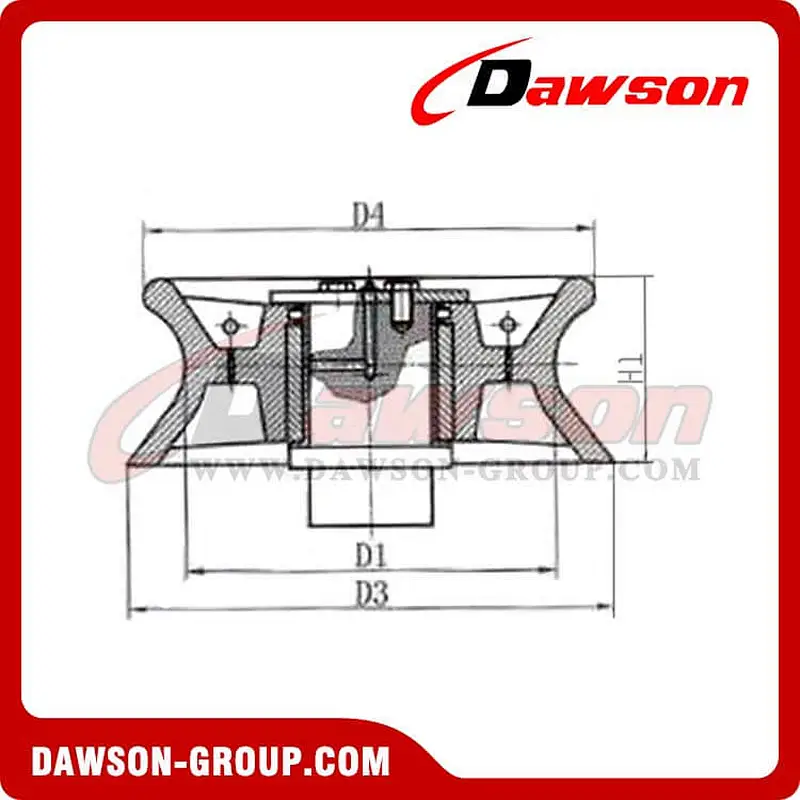

| Type | Rated Towing Pull(kn) | Breaking Strain of Rope(kn) | Weight(kg) | D1 | D3 | D4 | H1 |
| 1 | 10 | 90 | 14 | 160 | 210 | 195 | 80 |
| 2 | 20 | 150 | 20 | 200 | 265 | 245 | 102 |
| 3 | 30 | 220 | 33 | 250 | 330 | 300 | 126 |
| 5 | 50 | 350 | 72 | 320 | 420 | 390 | 160 |
| 8 | 80 | 500 | 140 | 400 | 530 | 490 | 208 |
| 12 | 120 | 800 | 240 | 450 | 610 | 560 | 256 |
| 20 | 200 | 1150 | 320 | 500 | 640 | 620 | 278 |
| 32 | 320 | 1750 | 580 | 560 | 780 | 740 | 348 |
