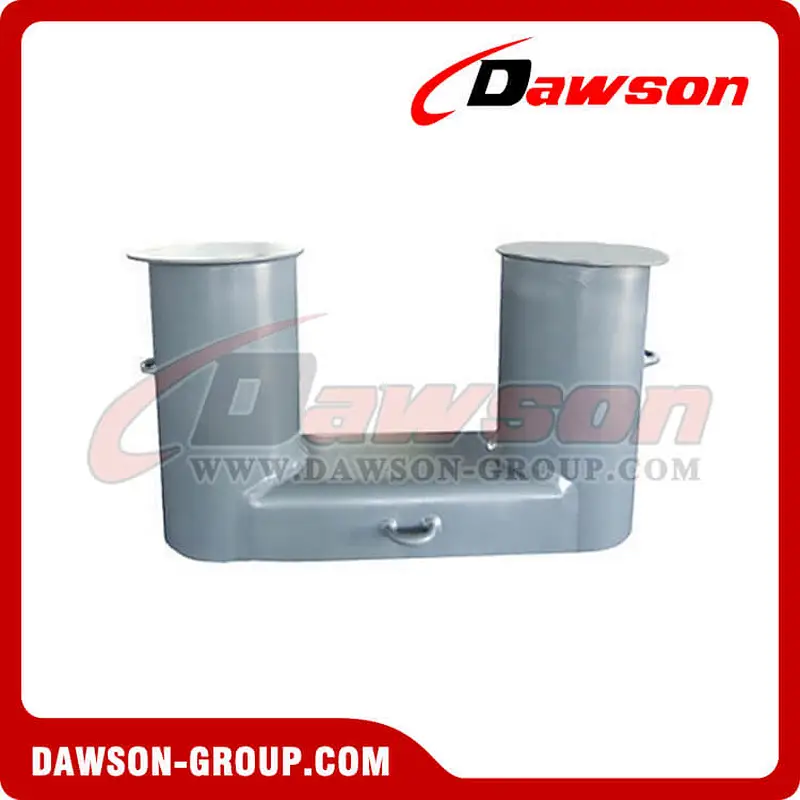

DIN82607 Mooring Bollard
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
DIN 82607-1995 mooring bollard is a double bitt type bollard. It is used for port mooring of the vessel. DIN82607 has six standard types for customer’s choice: 1”, 2”, 3”, 5”, 8”, 12”, 20”, 32”. We can also supply the customized bollards according to customer’s drawings. We supply other types of marine bollards as well: cross bollard (single cross and double cross), single bitt bollard, double bitt bollard, welded inclined bollard, CVI-Bollard, horn type bollard, kidney type bollard, T-head bollard and so on. If you’re interested in our products, please feel free to contact us.
Features of DIN82607 Mooring Bollard
1. Mooring Double/Twin Bollard;
2. Type: 1”,2”,3”,5”,8”,12”,20”,32”;
3. Max. Towing Load: 10,20,32,50,80,120,200,320;
4. Weight: 21 to 770kg;
5. Industrial Standard: DIN82607-1995;
6. Material: cast steel;
7. Finish:2 coats epoxy-zinc primer ;
8. 1 year warranty;
9. Get approval of CCS,ABS,BV etc.
10. Can be customized according to customer’s drawing

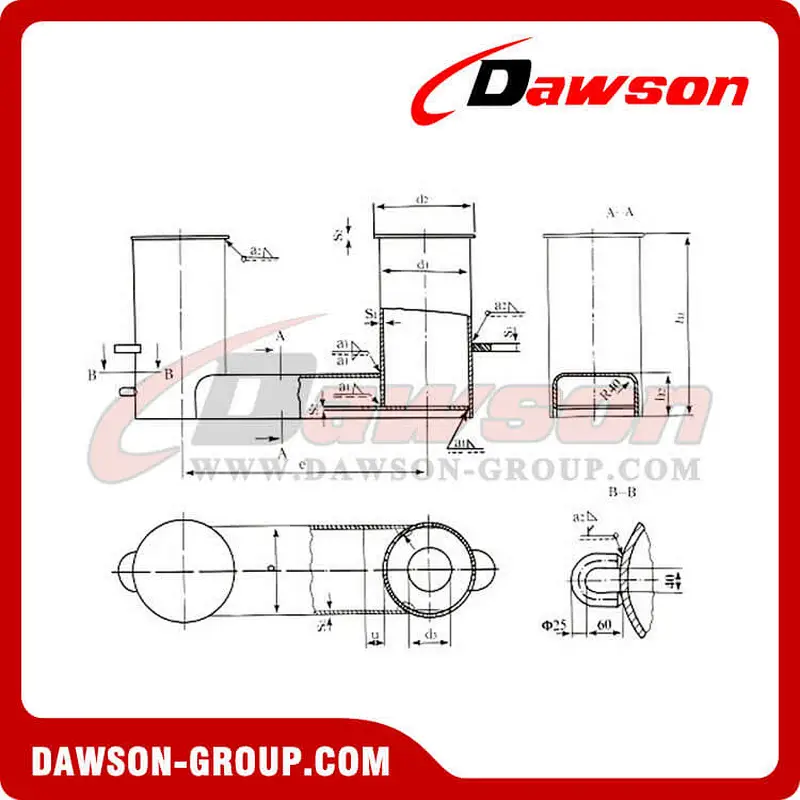

Type | Max. Towing Load | d1 ×s1 | b | d2 | d3 | e±10 | h1 | h2 | s2 | s3 | u | Weight(kg) ≈ | ||
a1 | a2 | |||||||||||||
1 | 10 | 139.7×6.3 | 130 | 160 | - | 430 | 370 | 105 | 5 | 18 | - | 3.5 | 4 | 21 |
2 | 20 | 219.1×8 | 180 | 240 | - | 570 | 475 | 115 | 6 | - | 53 | |||
3 | 32 | 273×10 | 250 | 300 | - | 700 | 570 | 150 | 8 | 25 | - | 4 | 102 | |
5 | 50 | 323.9×10 | 300 | 355 | 150 | 880 | 670 | 175 | 70 | 146 | ||||
8 | 80 | 355.6×14.2 | 330 | 390 | 170 | 1050 | 70 | 195 | 10 | 80 | 5 | 255 | ||
12 | 120 | 457×16 | 420 | 490 | 210 | 1200 | 860 | 230 | 16 | 35 | 90 | 6 | 456 | |
20 | 200 | 508×17.5 | 470 | 545 | 235 | 1350 | 970 | 270 | 100 | 7 | 616 | |||
32 | 320 | 559×20 | 530 | 600 | 255 | 1400 | 1000 | 110 | 770 | |||||

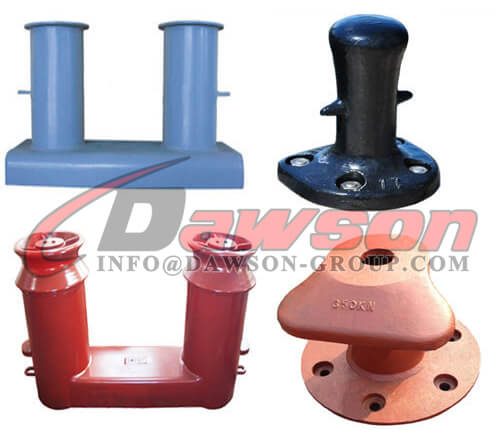

Other related products show:
