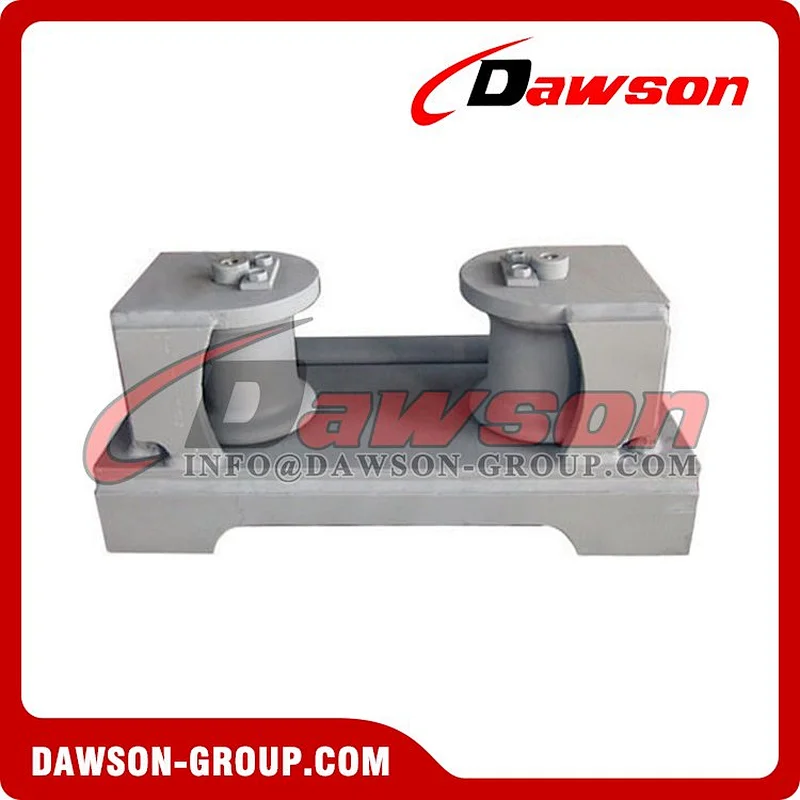

Double Cast Roller Chock
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

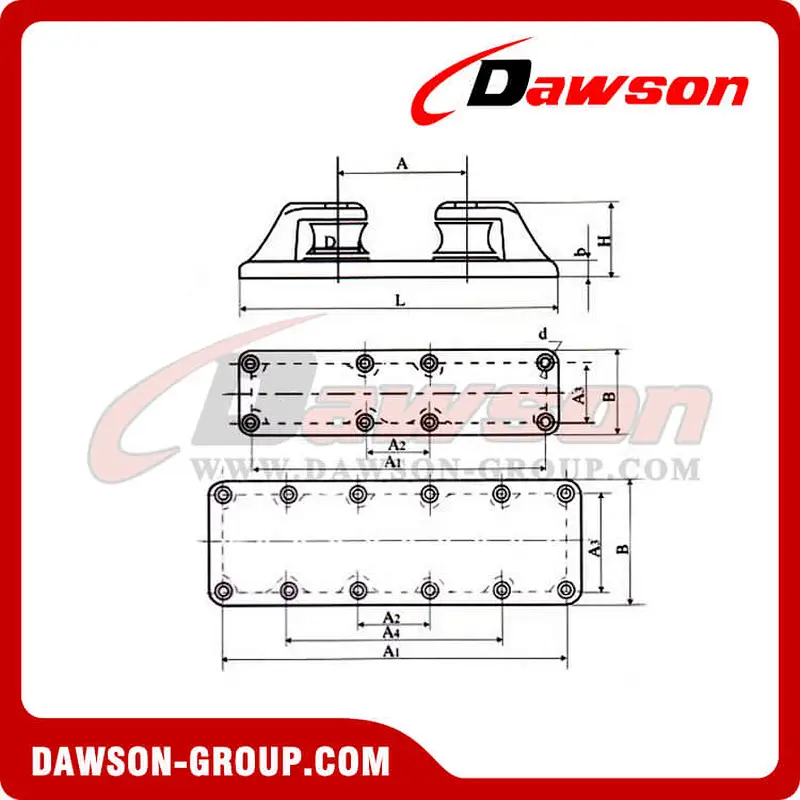

| B (mm) | H(mm) | h(mm) | R (mm) | A (mm) | A1 (mm) | A2 (mm) | A3 (mm) | A4 (mm) | D (mm) | Screw Numbers | Weight (kg) | |||||||
| Cast Iron | Cast Steel | Cast Iron | Cast Steel | Cast Iron | Cast Steel | |||||||||||||
| 15.5 | 125 | 75 | 640 | 175 | 168 | 158 | 40 | 30 | 30 | 240 | 580 | 110 | 115 | - | 17 | 8 | 50 | 44 |
| 19.5 | 175 | 100 | 800 | 210 | 190 | 180 | 45 | 35 | 35 | 300 | 730 | 120 | 140 | - | 21 | 8 | 86 | 82 |
| 22.5 | 200 | 125 | 940 | 245 | 217 | 207 | 50 | 40 | 40 | 360 | 860 | 140 | 165 | - | 25 | 8 | 141 | 133 |
| 26.0 | 225 | 150 | 1100 | 280 | 250 | 235 | 55 | 40 | 45 | 420 | 1010 | 170 | 190 | - | 30 | 8 | 222 | 215 |
| 30.5 | 250 | 170 | 1200 | 310 | 273 | 260 | 58 | 45 | 45 | 460 | 1110 | 230 | 220 | - | 33 | 8 | 300 | 274 |
| 33.5 | 275 | 185 | 1300 | 340 | 285 | 270 | 60 | 45 | 50 | 500 | 1200 | 240 | 240 | - | 33 | 8 | 374 | 329 |
| 37.5 | 300 | 200 | 1400 | 360 | 295 | 280 | 65 | 50 | 50 | 530 | 1300 | 260 | 260 | 800 | 33 | 12 | 444 | 417 |
| 43.5 | 325 | 230 | 1580 | 400 | 320 | 305 | 65 | 50 | 50 | 590 | 1480 | 280 | 300 | 900 | 33 | 12 | 589 | 547 |
| 48.5 | 350 | 250 | 1700 | 42 | 340 | 340 | 70 | 55 | 55 | 640 | 1590 | 300 | 310 | 980 | 39 | 12 | 721 | 687 |

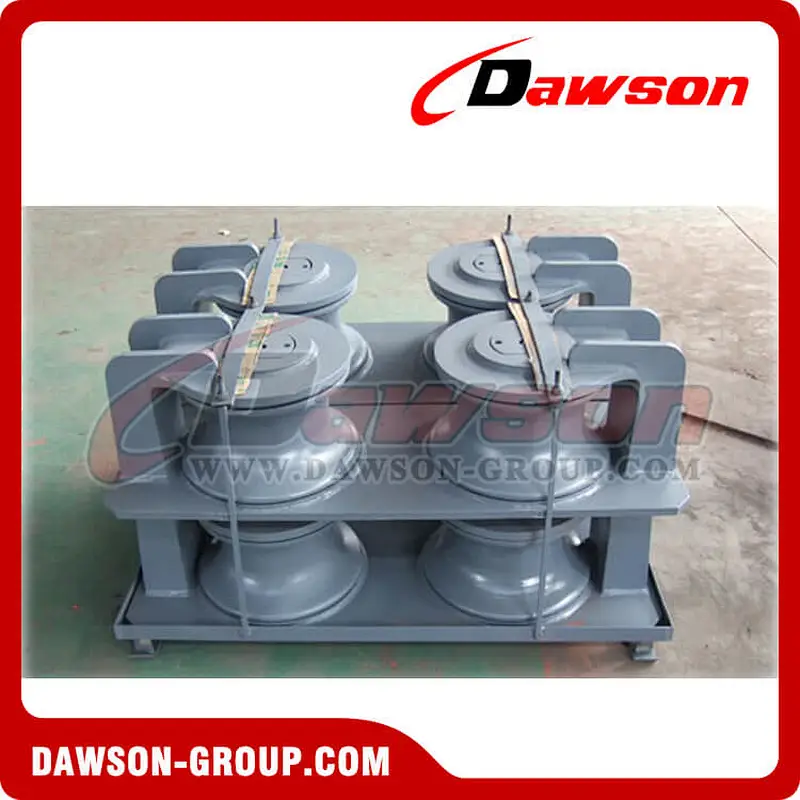

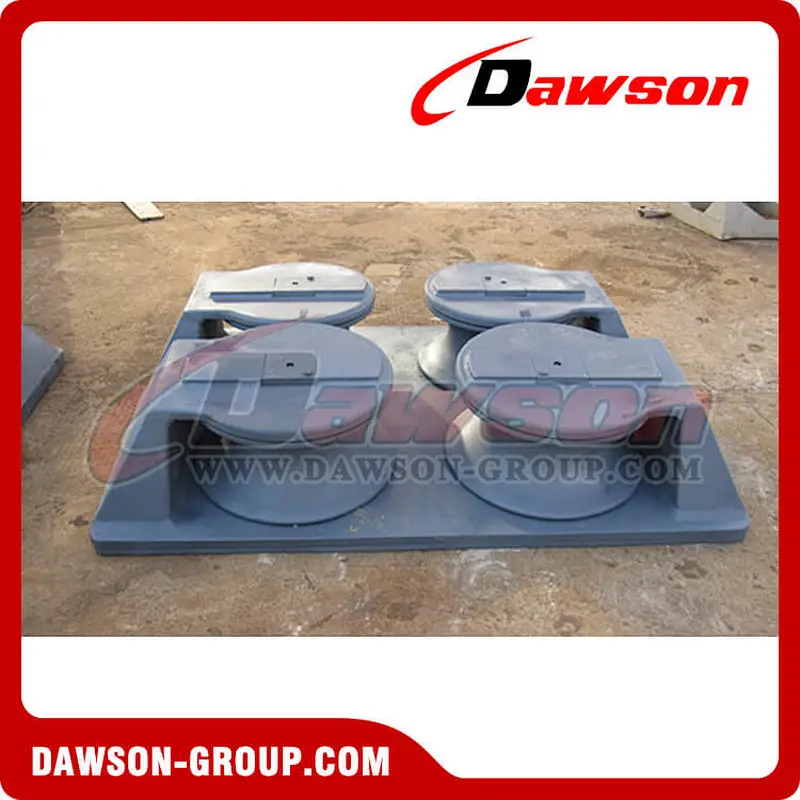

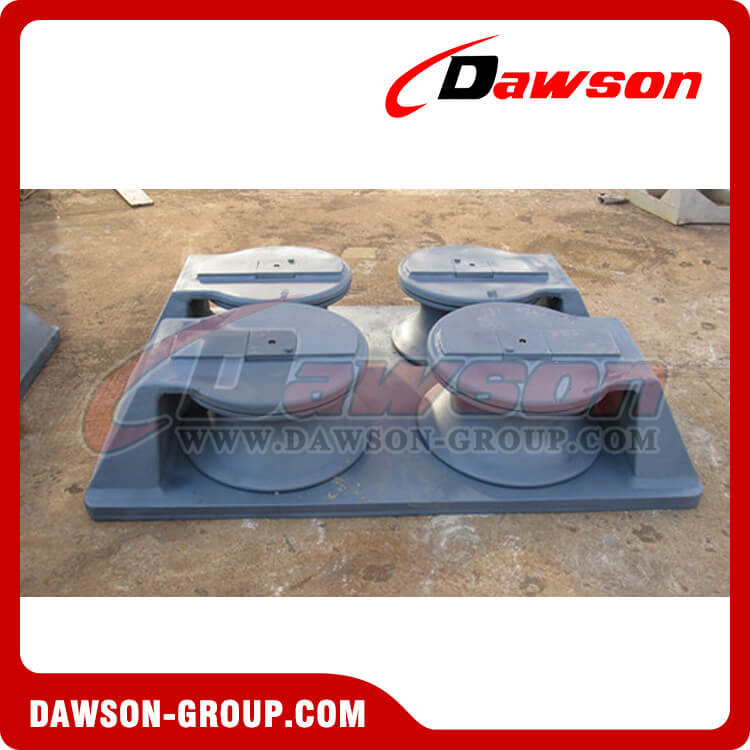

Factory & Package Show:
