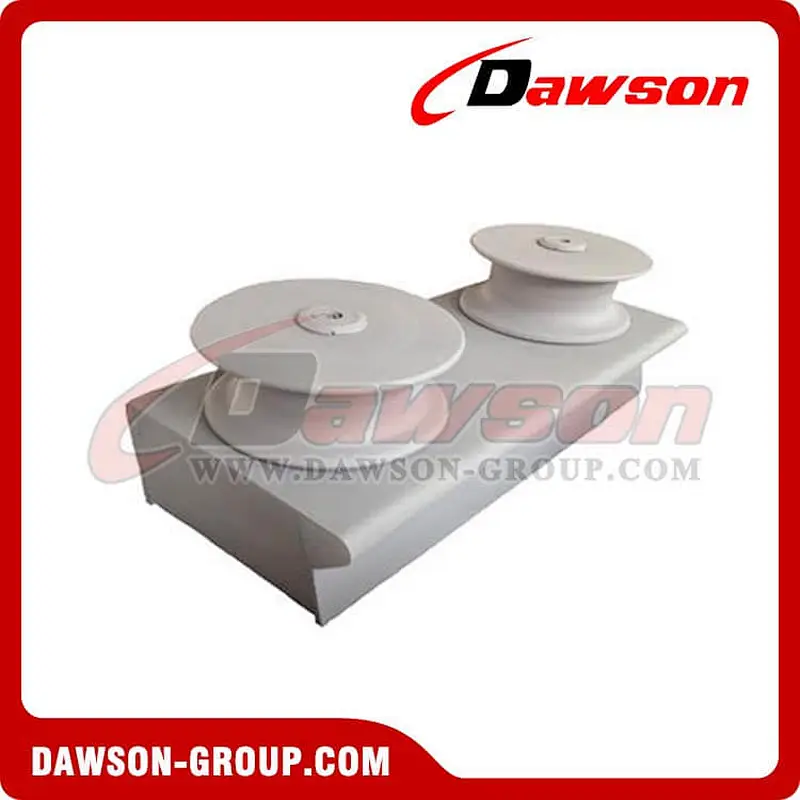

Double Fairlead Roller
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Fairlead Roller
Fairlead roller, used to guide mooring ropes, has open type fairlead roller, closed type fairlead roller, single roller, double fairlead roller, three fairlead roller and so on. Each type has its special function. The material of roller can be steel or iron. And the number of rollers is changeable. All depends on customer’s special requirements. If you’re interested in our fairlead roller, please feel free to contact us.
Specification:
Model Type: Double Fairlead Roller
Material: Cast Steel/ Cast Iron
Standard: GB/T10105-88/CB*58-83, JIS F 2014-1987
Roller No.: 2 Rollers
Diameters: Depends on Customer’s requirements
Certificate: CCS,ABS,BV,LR,NK,RINA

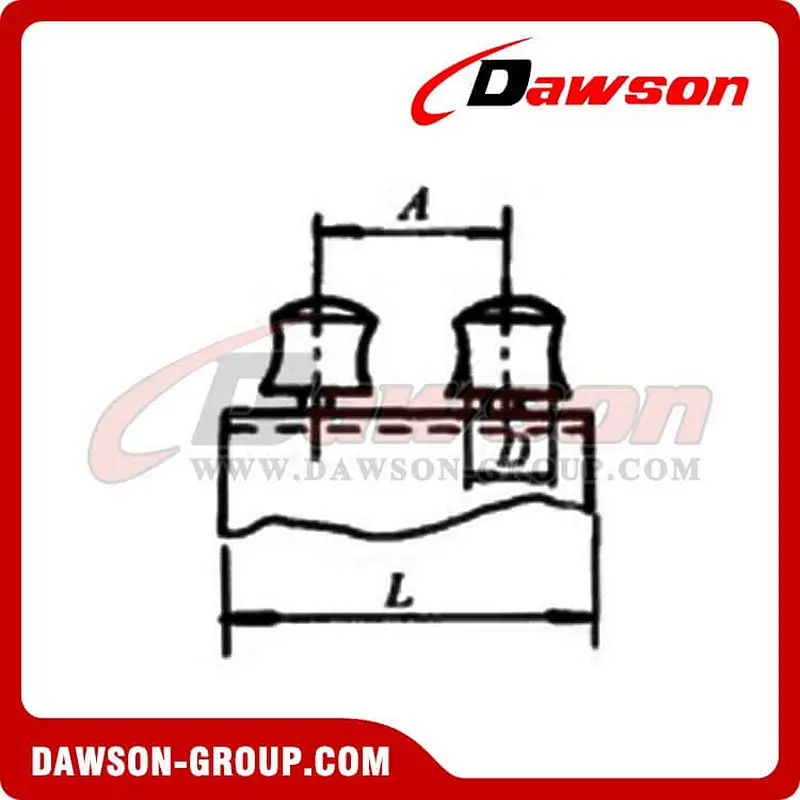

Unit:mm
| Wire Rope | Hemp Rope | Synthetic Fiber Rope | D | A | L | ||
| 6×24 | 6×30 | 6×37 | |||||
| 11 | 11 | 11 | 40 | 28 | 100 | 290 | 530 |
| 17 | 17.5 | 15 | 45 | 32 | 150 | 420 | 740 |
| 22.5 | 21.5 | 19.5 | 55 | 40 | 200 | 530 | 930 |
| 24 | 26 | 24 | 65 | 45 | 250 | 640 | 1100 |
| 30 | 32.5 | 28 | 70 | 50 | 300 | 750 | 1270 |
| 37.5 | 39 | 34.5 | 75 | 55 | 350 | 860 | 1440 |
| 41 | 39 | 39 | 85 | 65 | 400 | 970 | 1610 |
| 44.5 | 47.5 | 43 | 85 | 80 | 450 | 1080 | 1800 |
