G80 / Grade 80 Swivel Selflock Hook for Lifting Chain Slings
DS010 G80 U.S Type Swivel Self-Locking Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel -Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish:Powder plastified
Color code:Red RAL3020 / Yellow RAL1003
Position lock lath is Self-Locking when hook is loaded

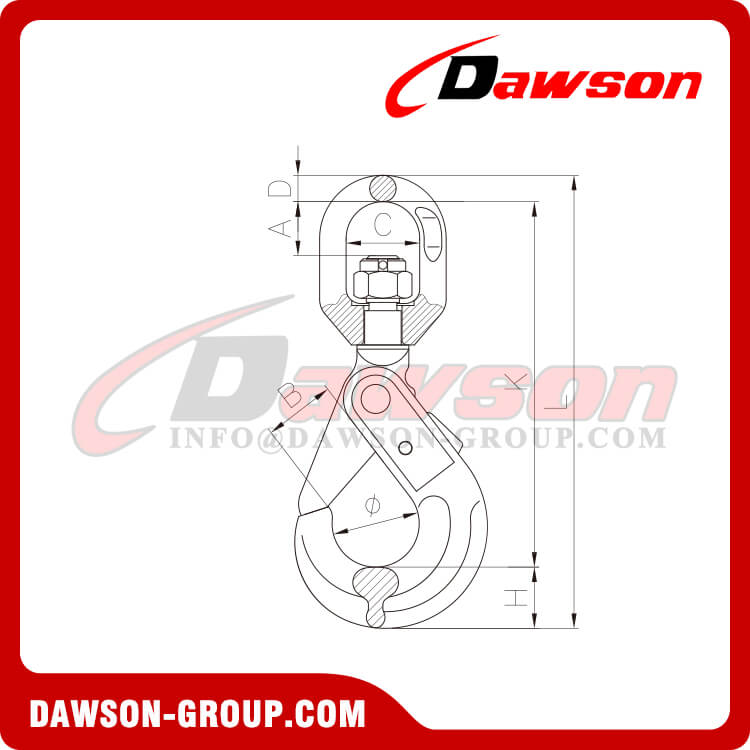

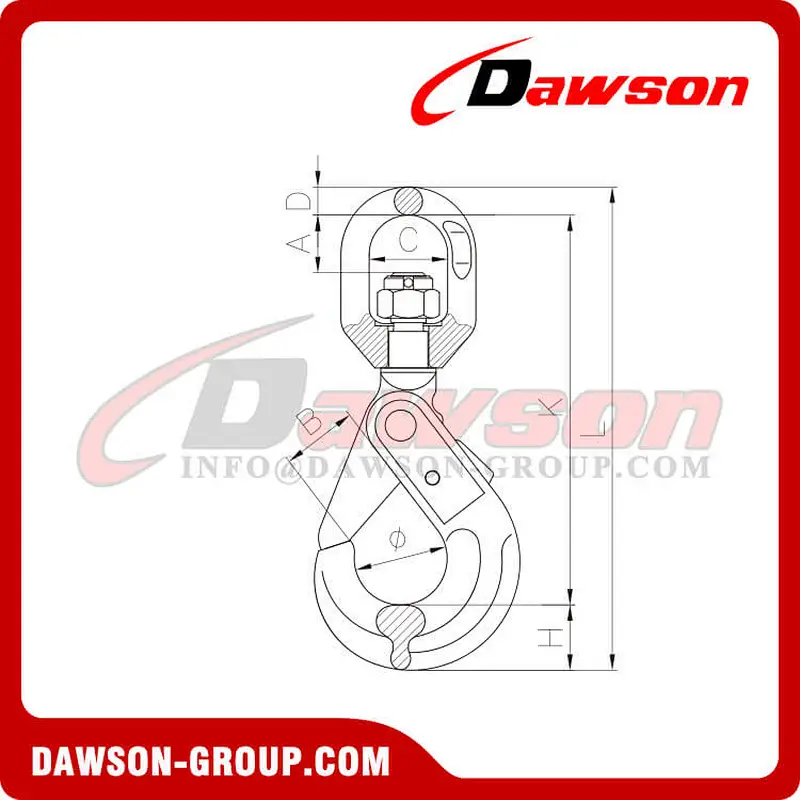

| ITEM NO | WEIGHT/KG | WLL/T | B.L/T | A±0.5 | B±1.5 | C±2 | D±1 | H±1 | K±2 | L±3 | Φ±2 |
| 8-DS010-7/8 | 1.2 | 2 | 8 | 28 | 35 | 36 | 13 | 29 | 116 | 163 | 42 |
| 8-DS010-10 | 2 | 3.2 | 12.8 | 35.5 | 42 | 42 | 15.5 | 31 | 218 | 265 | 55 |
| 8-DS010-13 | 4.5 | 5.4 | 21.6 | 41 | 55 | 50 | 17 | 41 | 261 | 319 | 65 |
| 8-DS010-16 | 7.36 | 8.2 | 32.8 | 50 | 66 | 70 | 21.5 | 52 | 326 | 399 | 76 |
Welcome to buy the newest and cheap DAWSON G80 / Grade 80 U.S Type Swivel Self-Locking Hook from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
G80 SELFLOCK HOOK
Supply only on special request. Not for recommendation.
For further information,please contact us. Email:info@dawson-group.com
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
