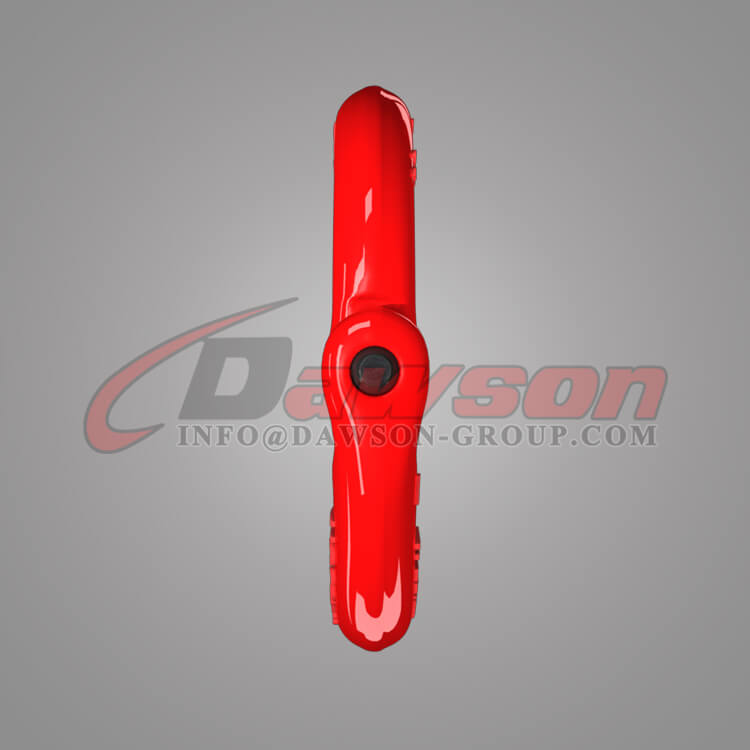

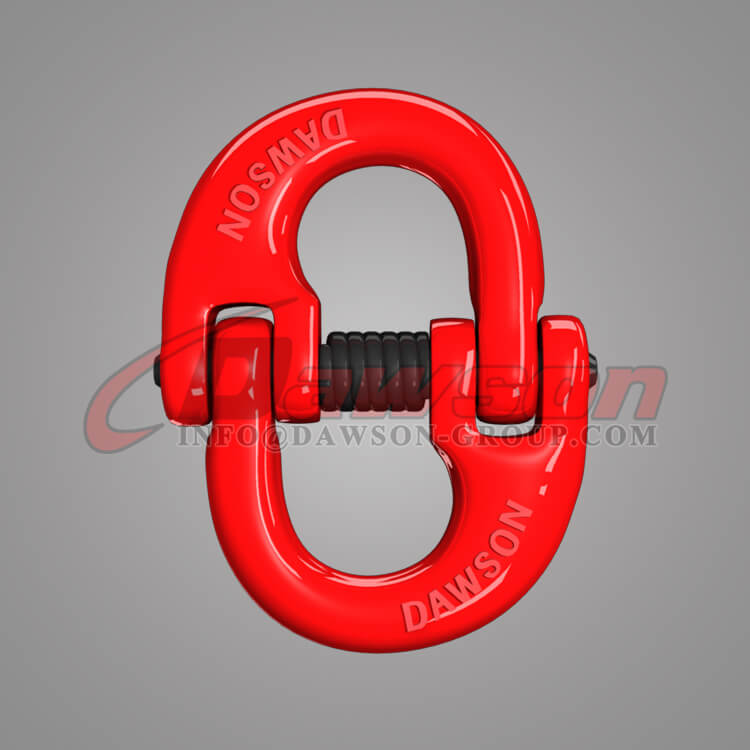

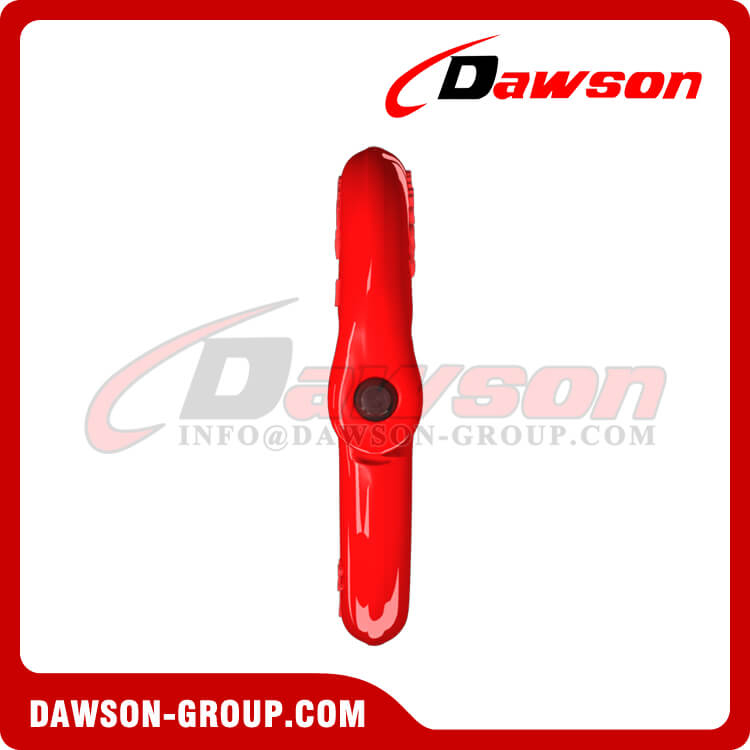

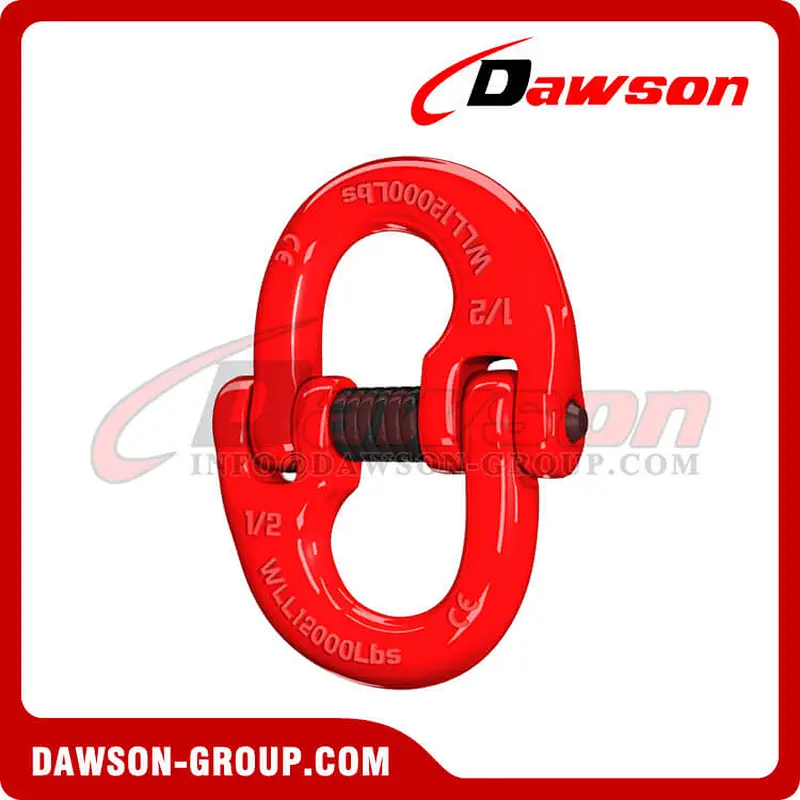

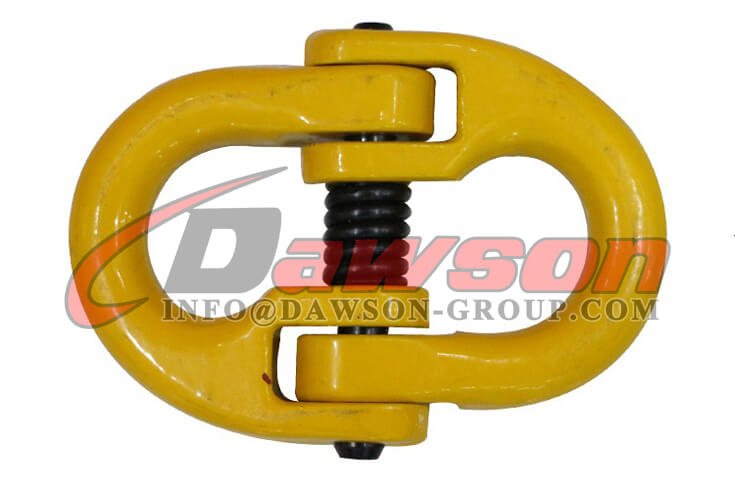

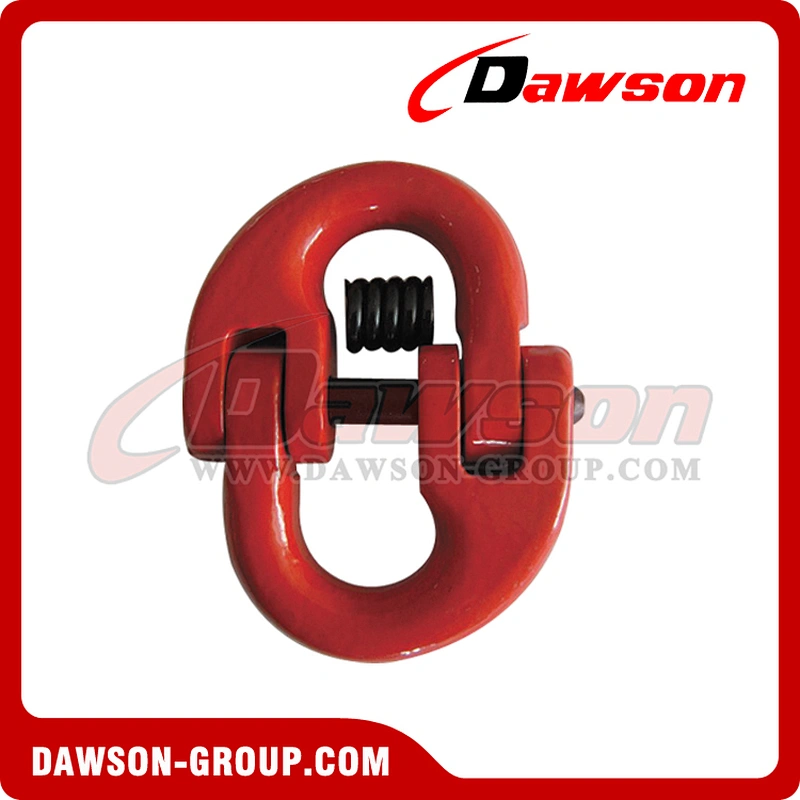

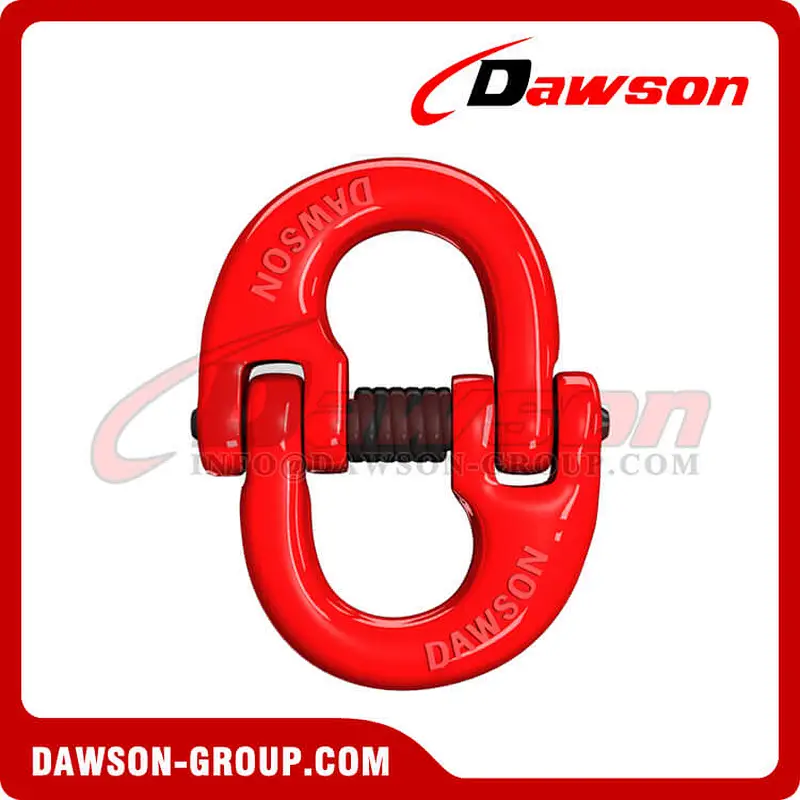

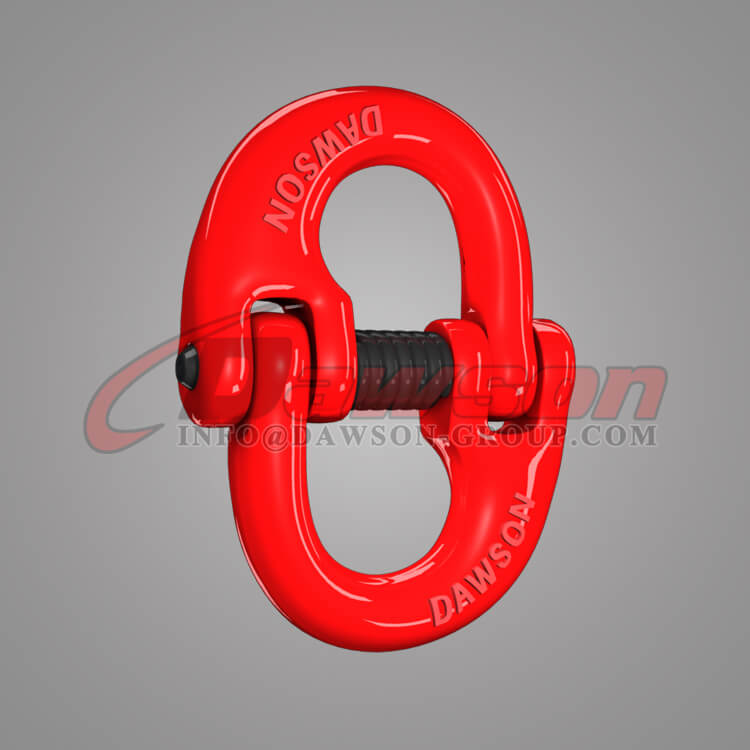

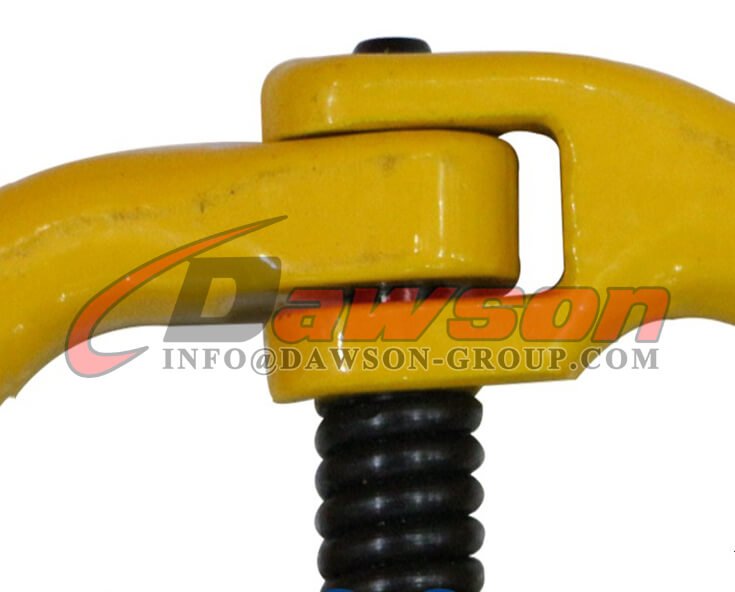

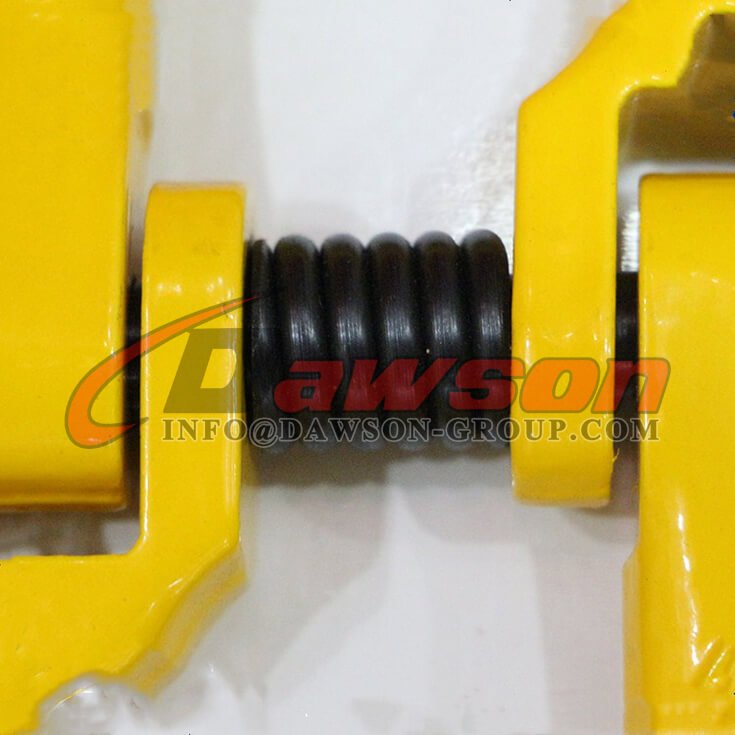

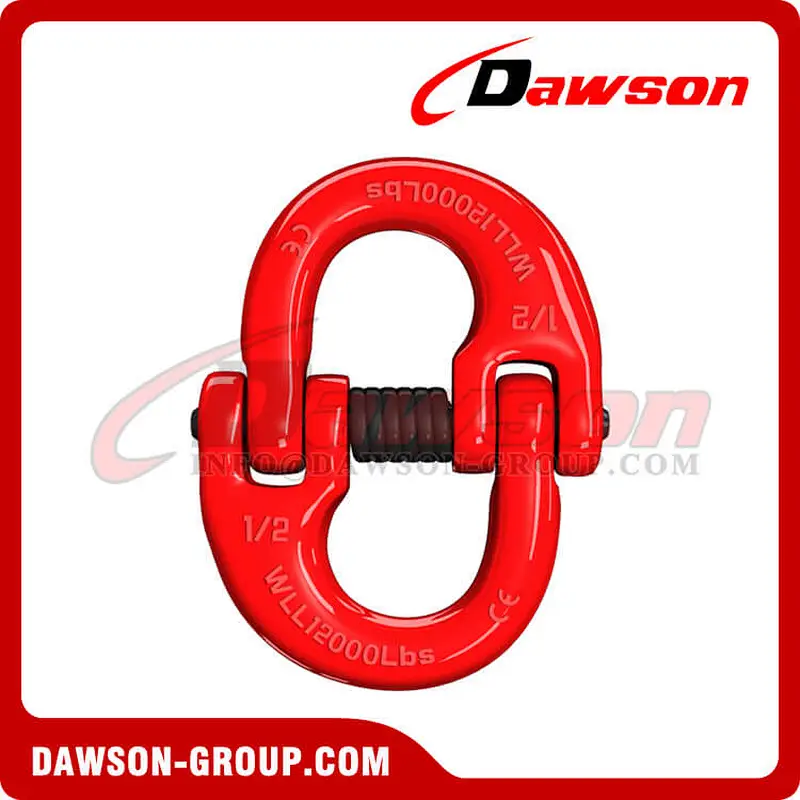

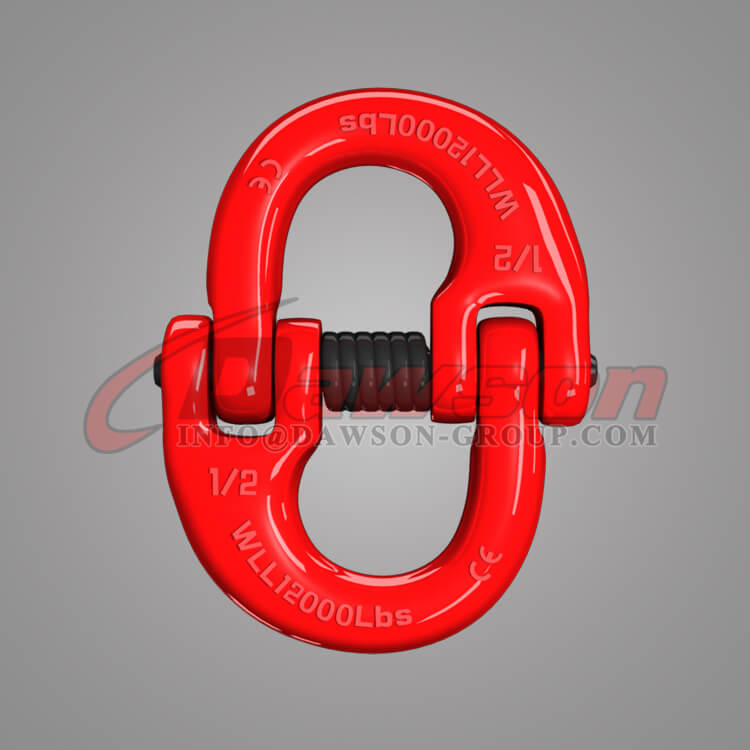

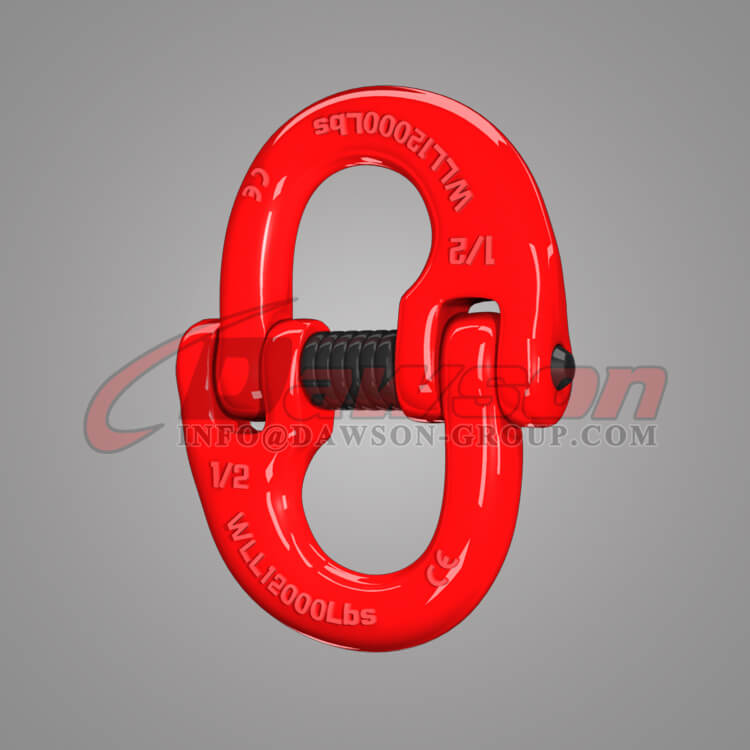

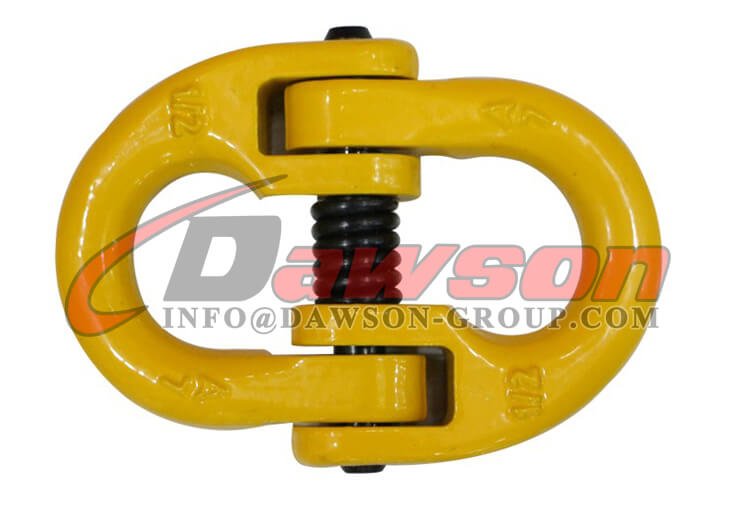

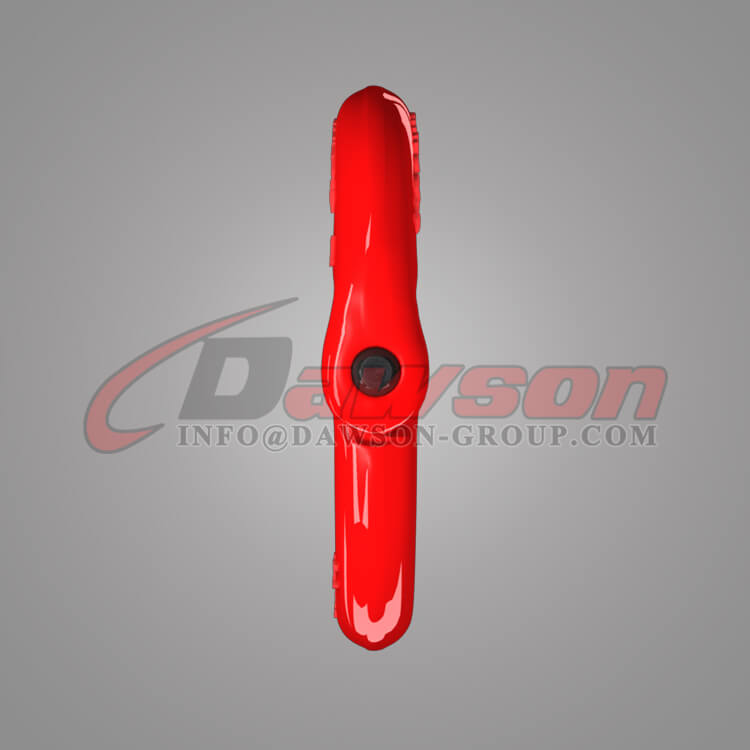

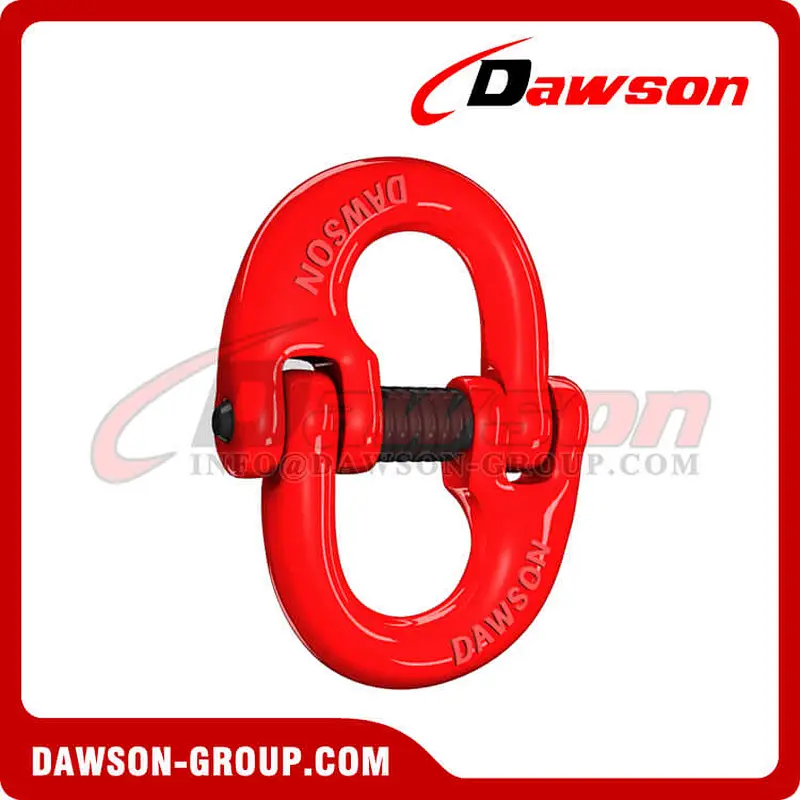

G80 / Grade A337 80 US. Type Connecting Link for Crane Lifting Chain Slings, G80 A337 Alloy Connecting Link
- Chain Slings Components Assembly
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
All load pin are 100% individually inspected and tested.

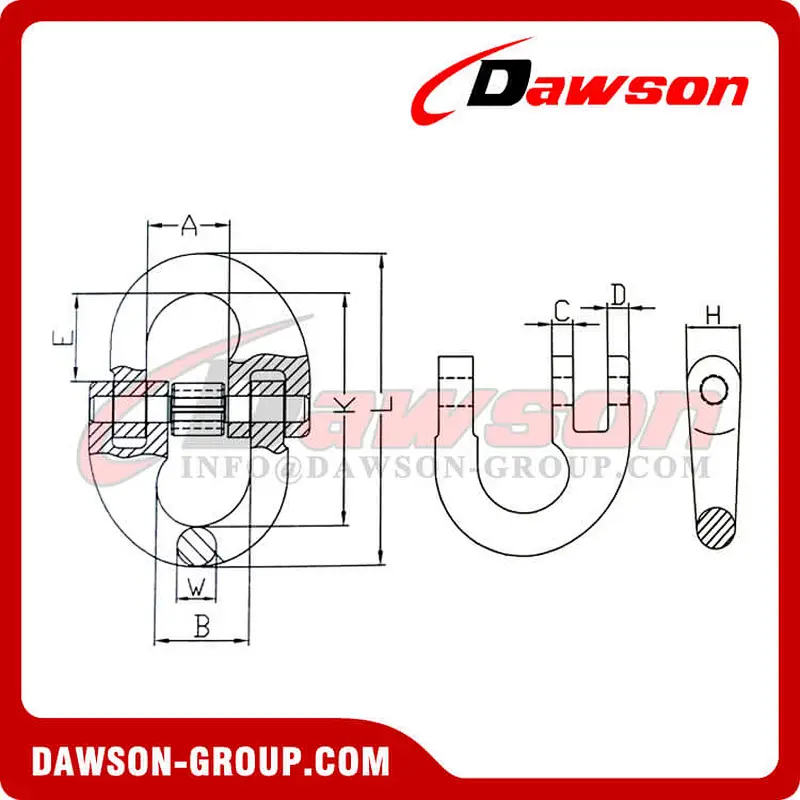

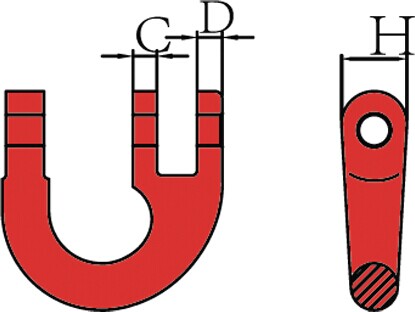

| Item No. | Weight/kg | WLL/T | B.L/T | A+1.5 | B+1.5 | L±2.5 | K±2 | W±1 | H±1 | C±0.2 | D±0.3 | E±1.5 |
| 8-DS076-1/4 | 0.13 | 1.5 | 6 | 16.5 | 18 | 67 | 51 | 8 | 13 | 4 | 4 | 18.5 |
| 8-DS076-9/32 | 0.15 | 1.6 | 6.4 | 18 | 18 | 64 | 48.6 | 8 | 13 | 4 | 5.1 | 17.6 |
| 8-DS076-5/16 | 0.15 | 2 | 8 | 17.7 | 21.8 | 78.5 | 58.5 | 9.8 | 14.5 | 6.5 | 6.6 | 21.5 |
| 8-DS076-3/8 | 0.33 | 3.2 | 12.8 | 22 | 24 | 87.6 | 63.6 | 12 | 17 | 6.2 | 8.1 | 21.5 |
| 8-DS076-1/2 | 0.76 | 5.4 | 21.6 | 28.5 | 35 | 115.5 | 85.5 | 15 | 21.6 | 7.8 | 7.8 | 28 |
| 8-DS076-5/8 | 1.3 | 8.2 | 32.8 | 33 | 40.5 | 143 | 106 | 18.5 | 26 | 9.5 | 10 | 36 |
| 8-DS076-3/4 | 2.27 | 12.8 | 51.2 | 41 | 47 | 162 | 116 | 23 | 32 | 12 | 13 | 39 |
| 8-DS076-7/8 | 3.4 | 15.5 | 62 | 50.5 | 54.5 | 188.5 | 136.5 | 26 | 38 | 13 | 15.5 | 47.5 |

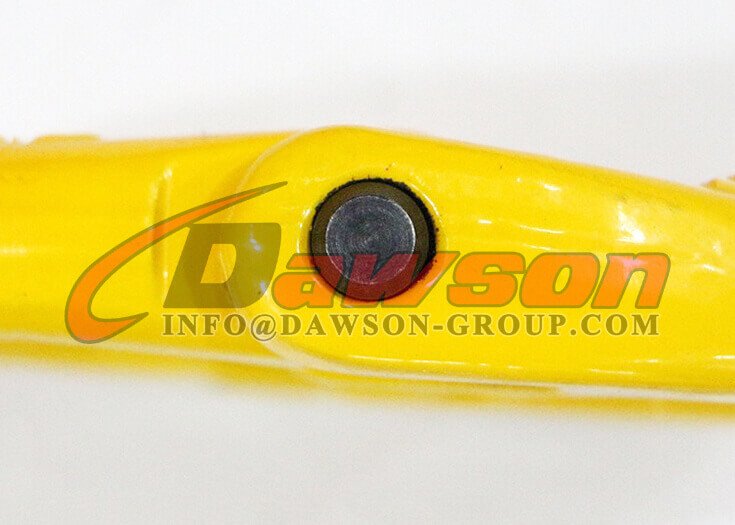

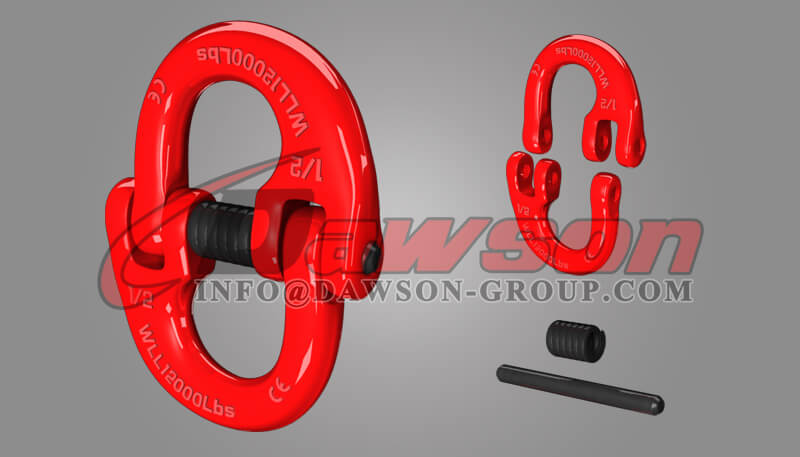

SP-DS076 SPRING + LOAD PIN
REGULAR MARK OF G80 components from DAWSON
For example G80 EYE SELFLOCK HOOK 10-8
Welcome to buy the newest and cheap DAWSON g80 A337 U.S. type connecting links from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G80 Connecting Links
Supply only on special request. Not for recommendation.
For further information, please contact us. Email: info@dawson-group.com
DS152 |
|
|
|
|
|
|
|
|
|
Products Show:
Hot Tags:Hammerlock Connecting Link, Chain Connecting Link A337 Supplier China, Connecting Link A337 Factory China, Alloy Steel Connecting Link A337 Manufacturer, Forged Connecting Link A-337 Exporter China, Alloy Steel Connecting Link, Customized A-337 G80 Connecting Link, Low Price Grade 80 Connecting Link, Cheap Price Alloy Steel Chain Connector, Forged Steel Connecting Link in Stock, G80 Hammer Lock for Chain Slings, Grade 80 Chain Connector Exporter, Connecting Link Buy Discount, U.S. Type Connecting Link, Forged Alloy Connecting Link Dawson Brand, G80 Hammer Lock for Lifting Chains, US Type Chain Connector for G80 Chains, Connecting Link OEM
Other related products:

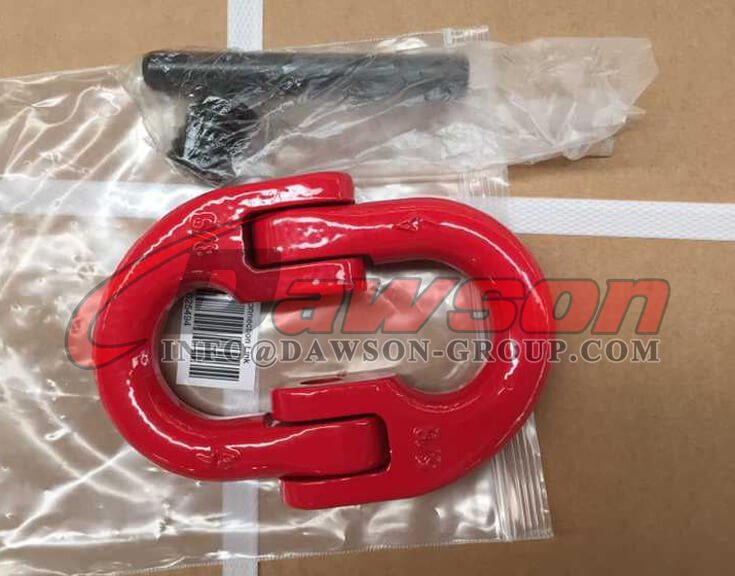

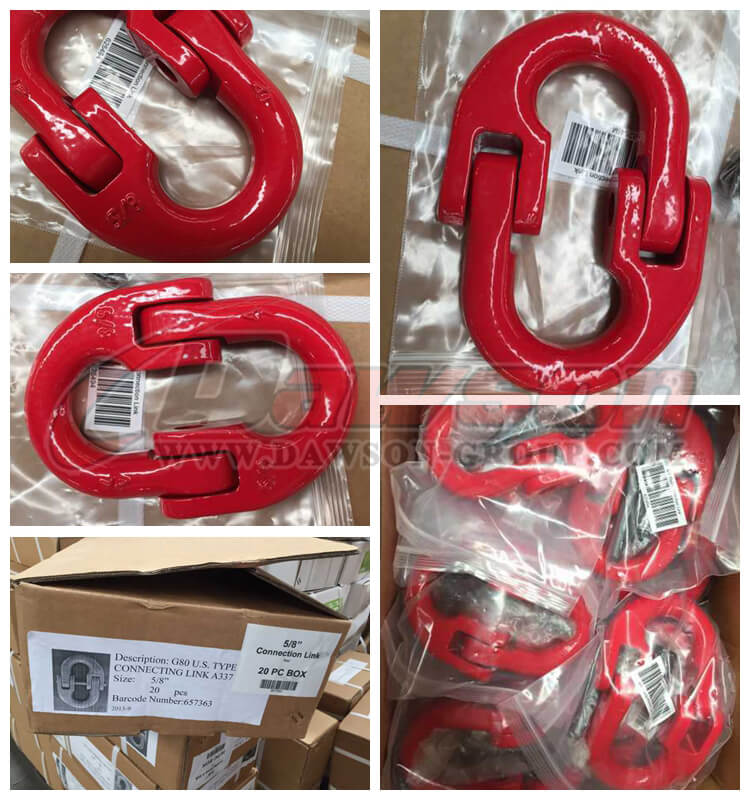

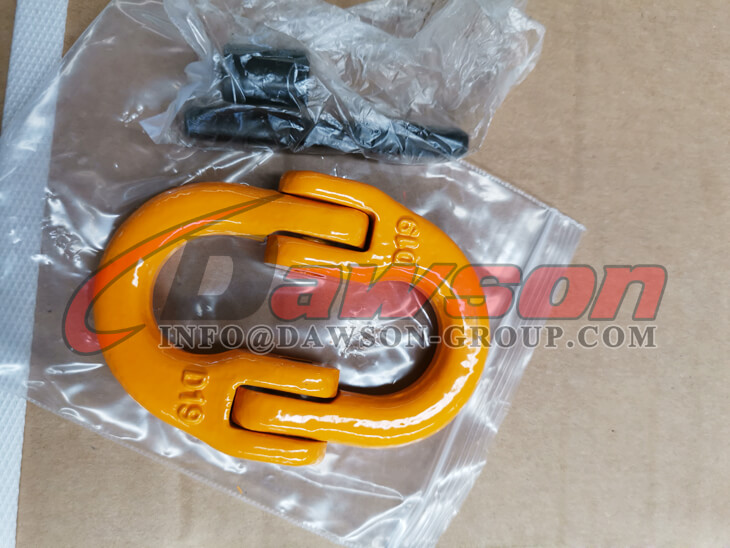

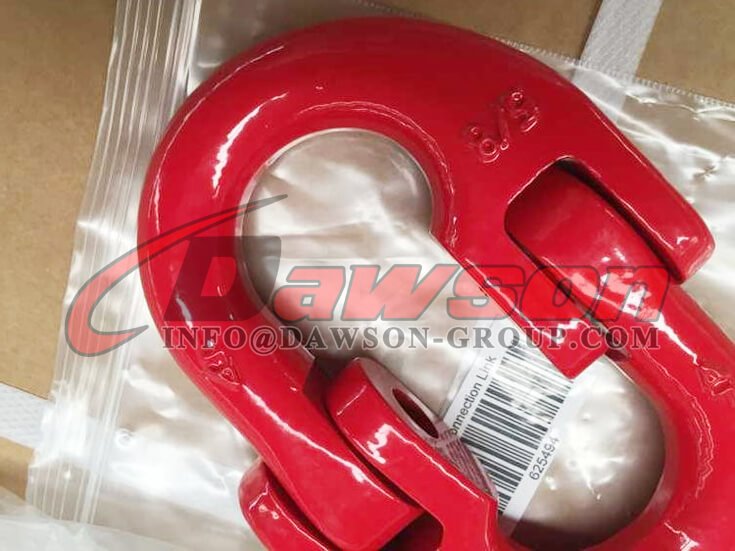

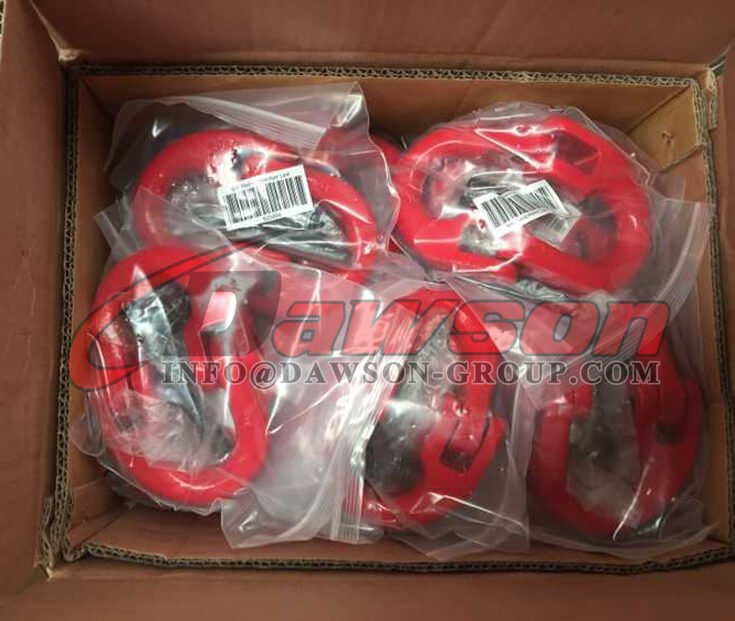

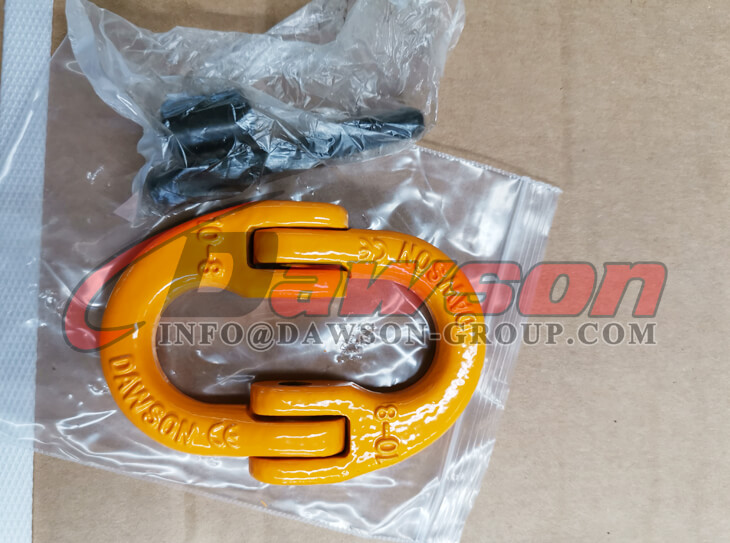

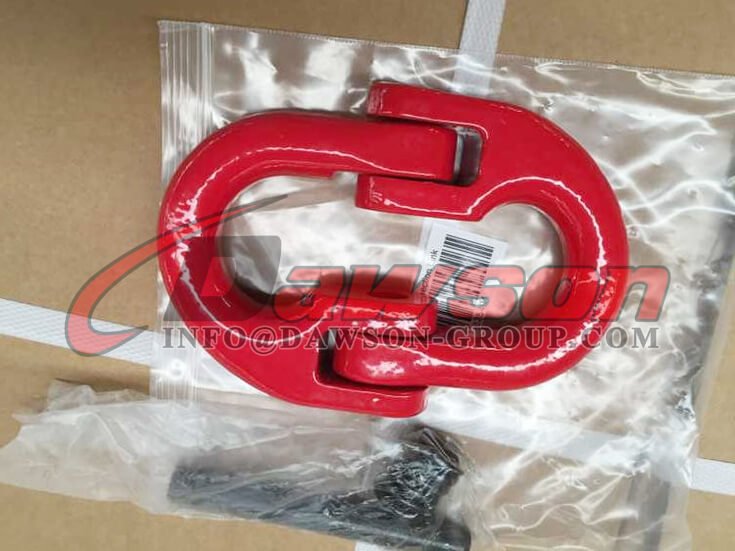

Package of G80 US Type Connecting Link:
Factory & Package Show:

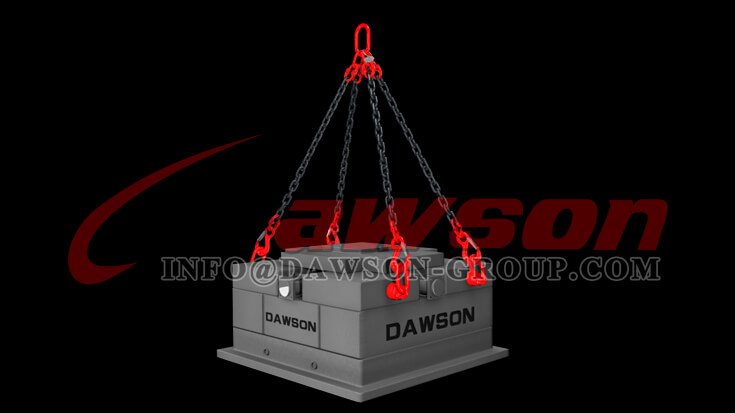

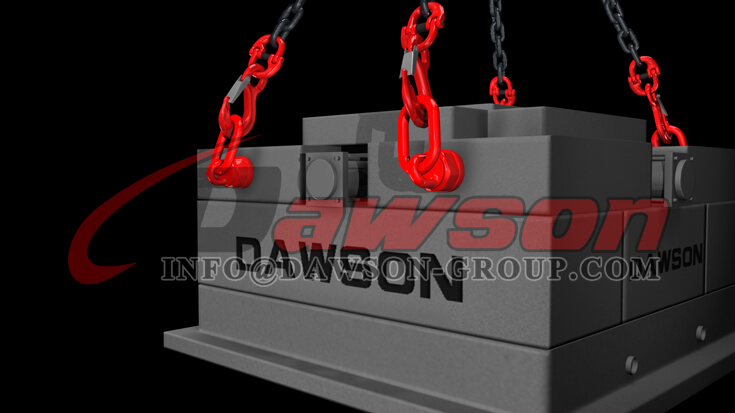

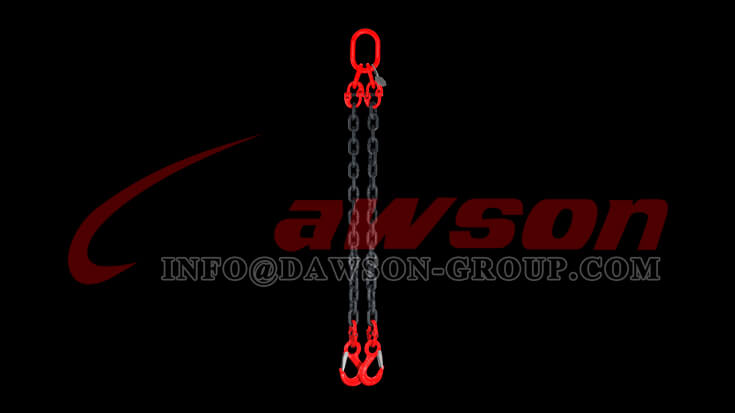

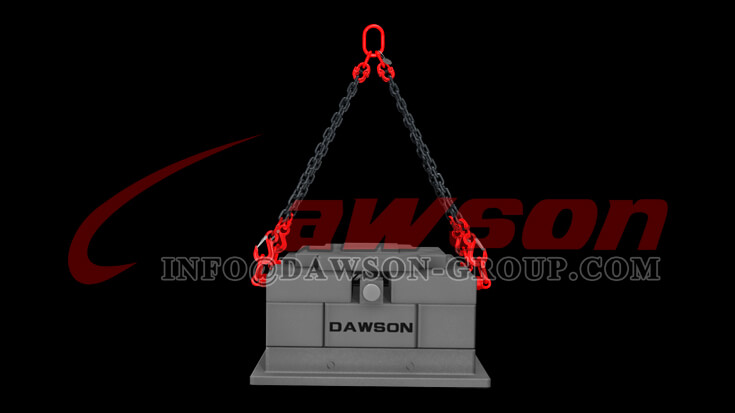

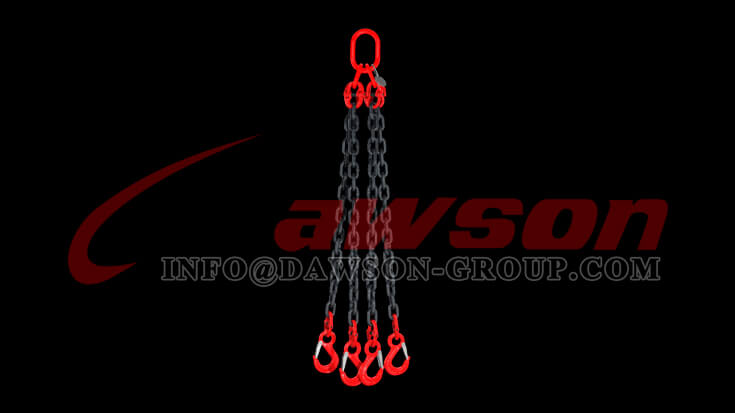

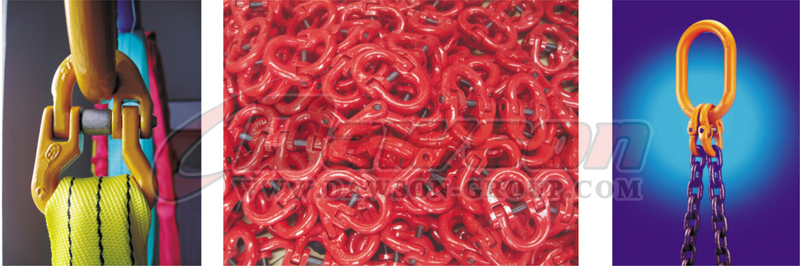

Application of Connecting Links:
