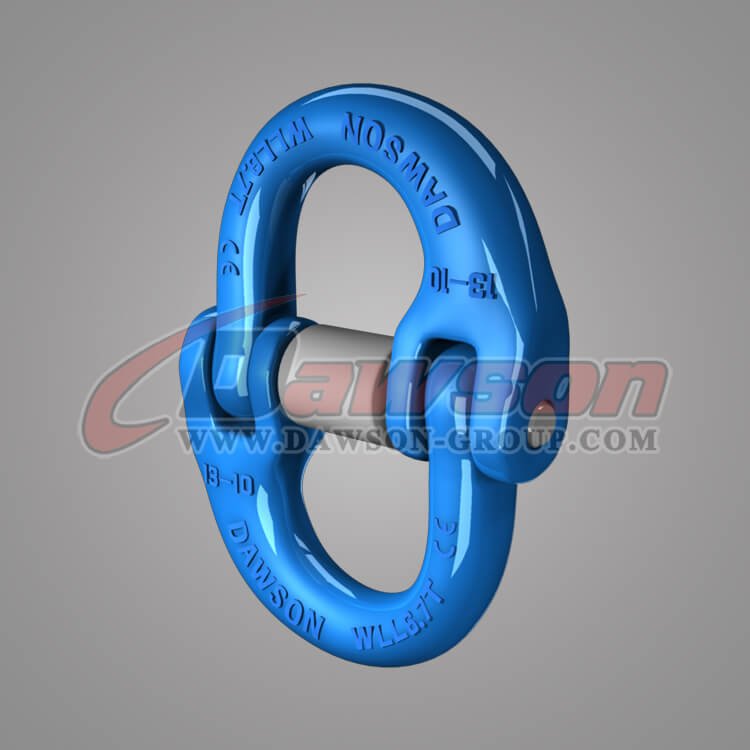

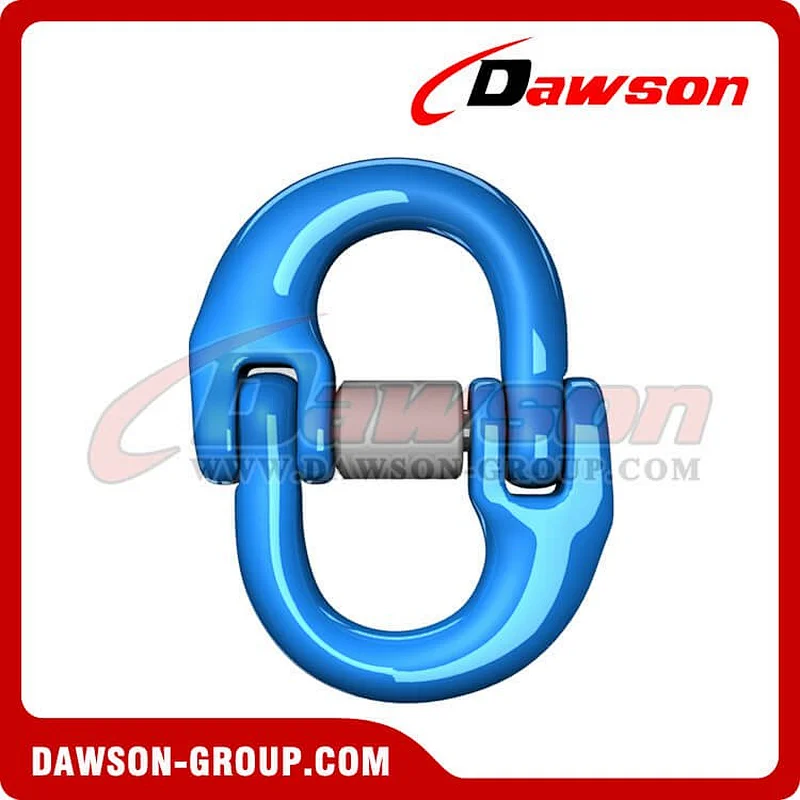

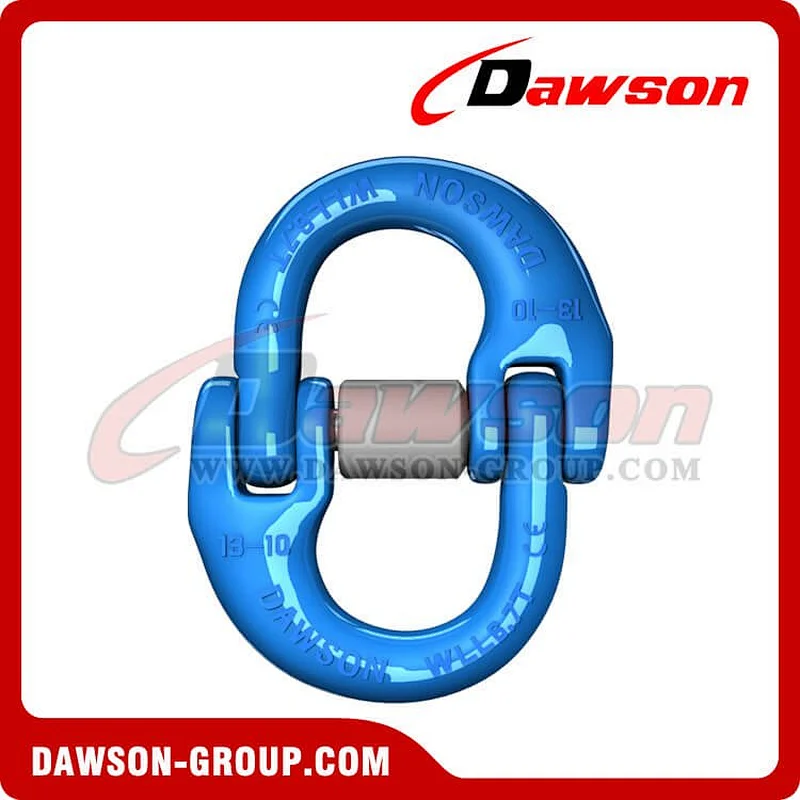

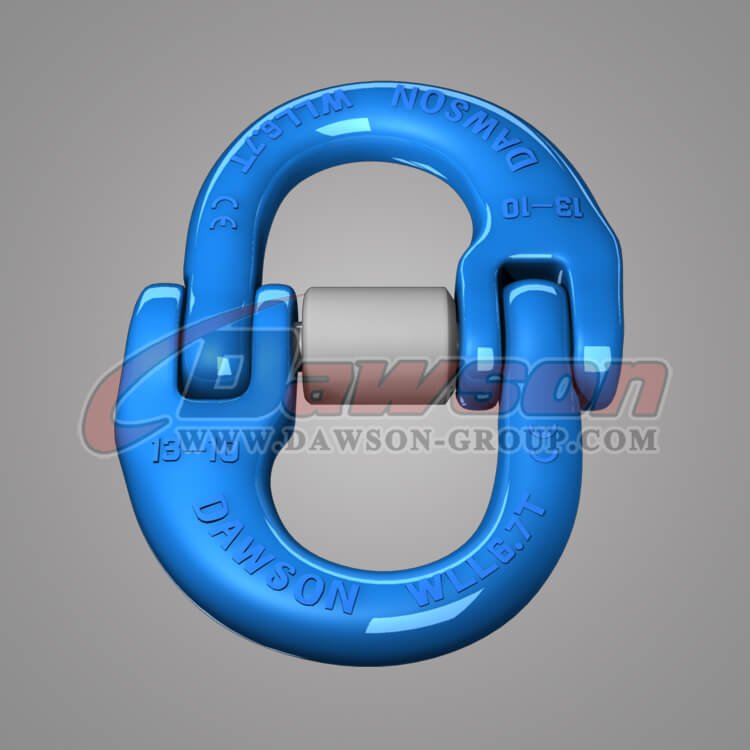

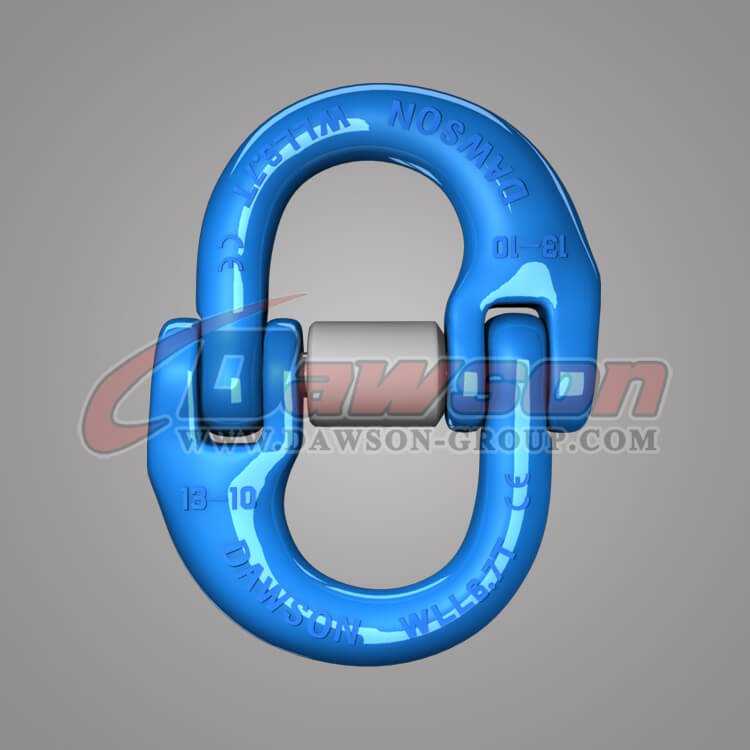

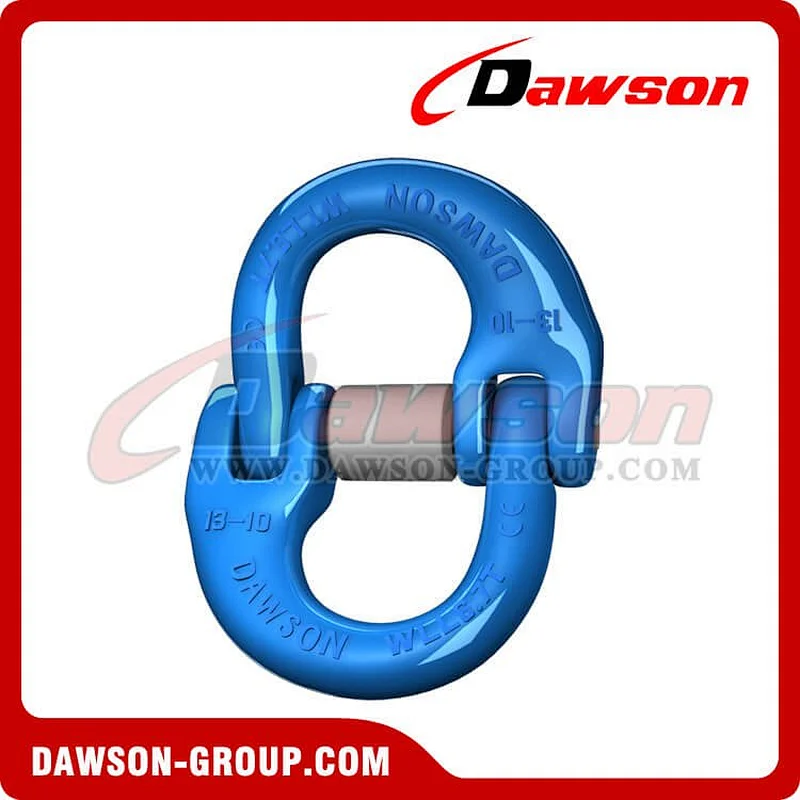

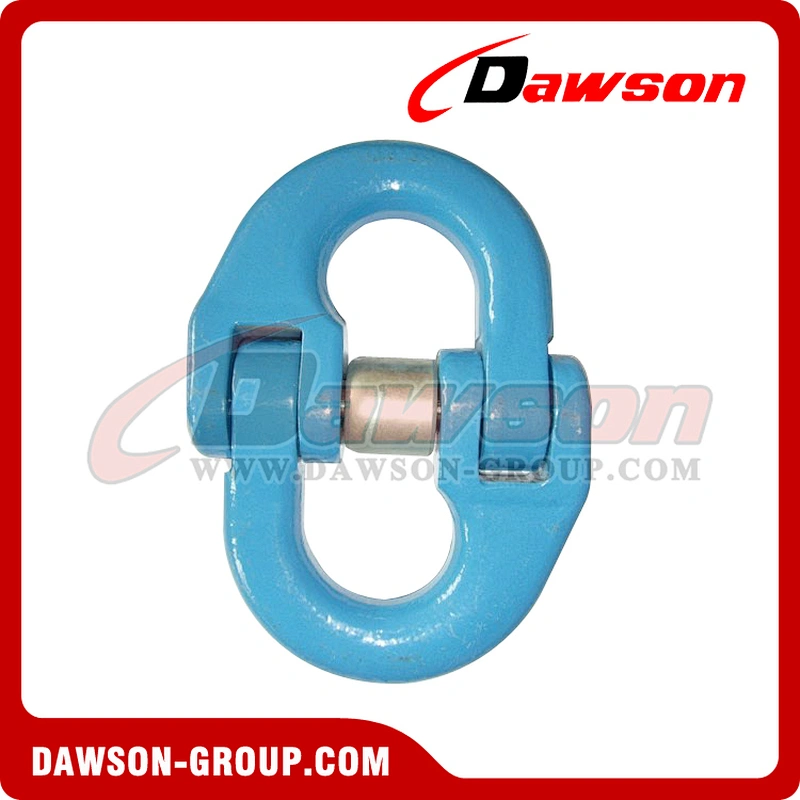

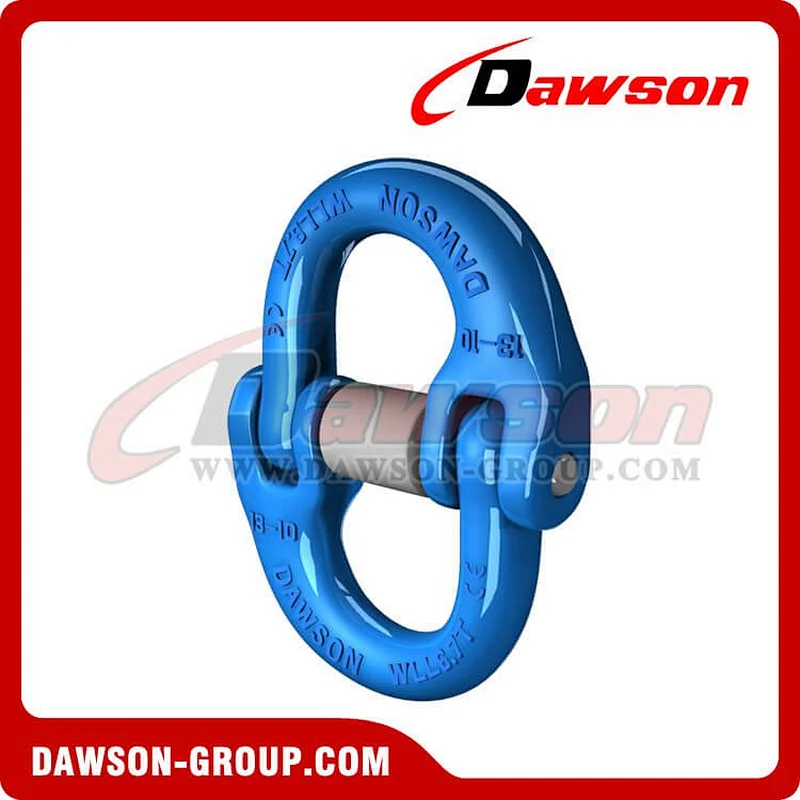

G100 / Grade 100 European Type Connecting Link for Lifting Chain Slings,
G100 / Grade 100 European Type Connecting Link, G100 Chain Connector, Alloy Steel Connecting Link for Lifting Crane Chain Slings
- Chain Slings Components Assembly DS1001 G100 Connecting Link
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel-Quenched and Temered.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
Suitable for use with G100 chain.
The performance is increased by 25% compared with G80 products.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: plastic spraying
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.

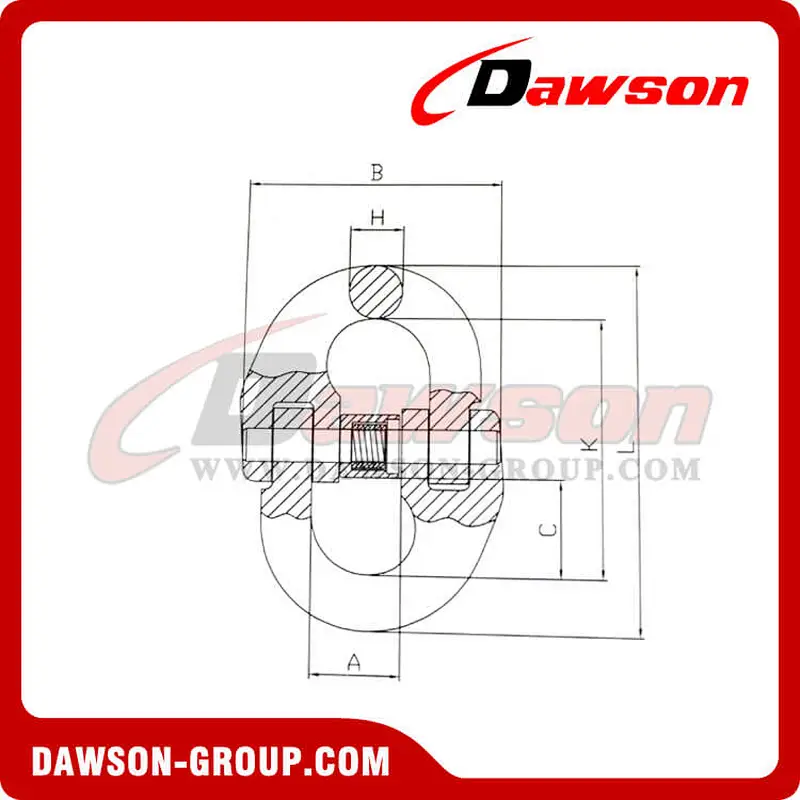

| Item No. | Weight/kg | WLL/T | B.L/T | H±1 | A±1.5 | B±1.5 | C±1.5 | K±2 | L±3 |
| 10-DS1001-06 | 0.11 | 1.4 | 5.6 | 7 | 14 | 40 | 16.5 | 44.5 | 62.1 |
| 10-DS1001-07 | 0.17 | 1.9 | 7.6 | 8.2 | 18.5 | 56 | 22.5 | 60 | 80 |
| 10-DS1001-7/8 | 0.16 | 2.5 | 10 | 8.5 | 18.5 | 54.2 | 22 | 59.7 | 81.7 |
| 10-DS1001-08 | 0.18 | 2.5 | 10 | 10 | 18.5 | 53 | 25 | 63.1 | 84.1 |
| 10-DS1001-10 | 0.34 | 4 | 16 | 12.6 | 23 | 64 | 27.8 | 71.6 | 96.8 |
| 10-DS1001-13 | 0.68 | 6.7 | 26.8 | 16.5 | 28 | 81 | 36.9 | 93.4 | 126.4 |
| 10-DS1001-16 | 1.22 | 10 | 40 | 20 | 33.5 | 103 | 40.2 | 105 | 145 |
| 10-DS1001-20 | 2.13 | 16 | 64 | 25 | 42 | 119.5 | 47.5 | 125 | 175 |
| 10-DS1001-22 | 3 | 19 | 76 | 27 | 48 | 142 | 53 | 139 | 193 |
| 10-DS1001-26 | 5.2 | 26.5 | 106 | 32 | 61 | 169 | 63 | 164 | 229 |
| 10-DS1001-32 | 9.55 | 39.3 | 157.2 | 40 | 80 | 218 | 78 | 199 | 279 |
SP-DS1001-SPARE PART FOR DS1001
 | Item No. | Size | Item No. | Size |
| SP-DS1001-6 | 6-10 | SP-DS1001-20 | 20-10 | |
| SP-DS1001-8 | 8-10 | SP-DS1001-22 | 22-10 | |
| SP-DS1001-10 | 10-10 | SP-DS1001-26 | 26-10 | |
| SP-DS1001-13 | 13-10 | SP-DS1001-32 | 32-10 | |
| SP-DS1001-16 | 16-10 |

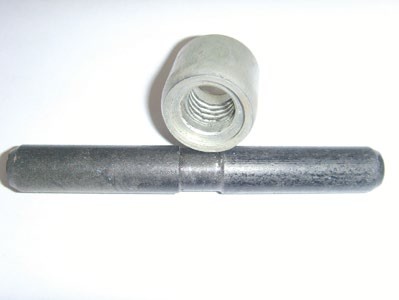

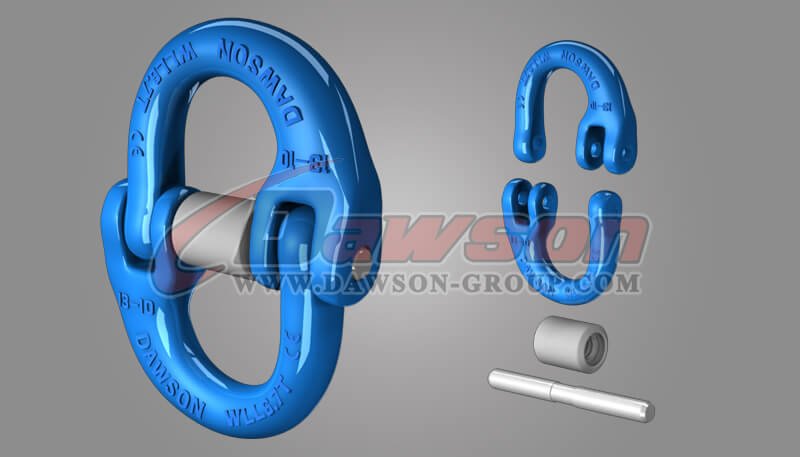

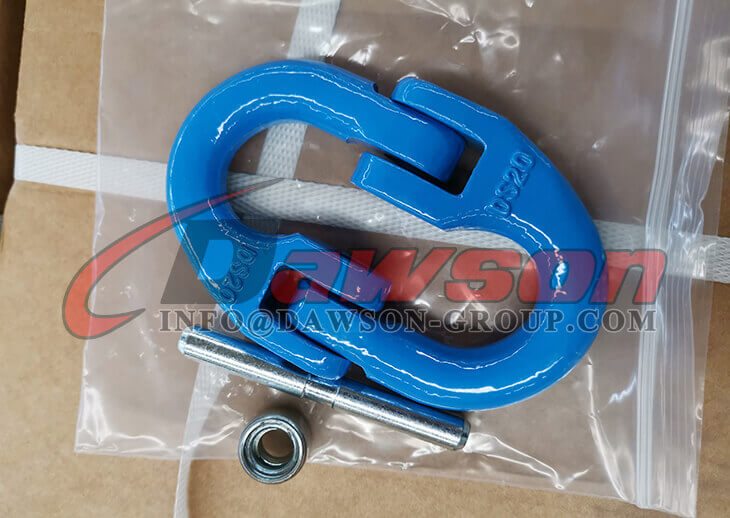

1 SET = GALVANIZED SLEEVE + BLACK PIN
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON g100 European type connecting link forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |  DS1019 |  DS1028 |
Products Show:
Hot Tags:Hammerlock Connecting Link, Chain Connecting Link Supplier China, Connecting Link Factory China, Connecting Link Manufacturer China, Connecting Link Exporter China, Alloy Steel Connecting Link, Customized G100 Connecting Link, Low Price Grade 100 Connecting Link, Connecting Link in Stock, Connecting Link Buy Discount, Connecting Link Dawson Brand, Chain Hardware, G100 Rigging Hardware, Grade 100 Chain Hardware, Connecting Link OEM

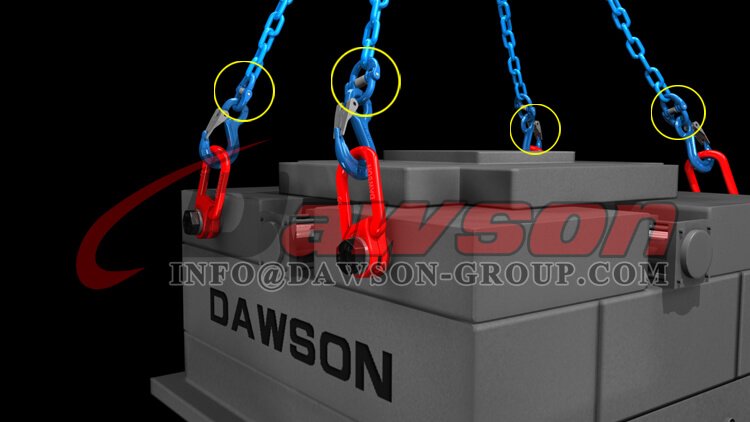

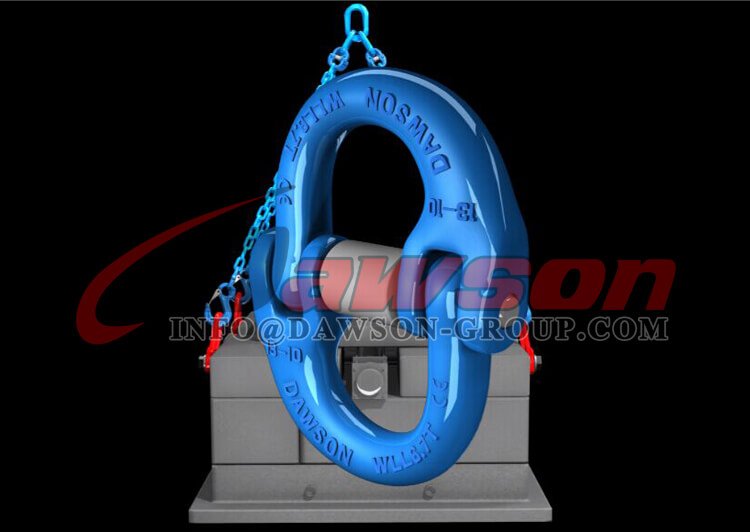

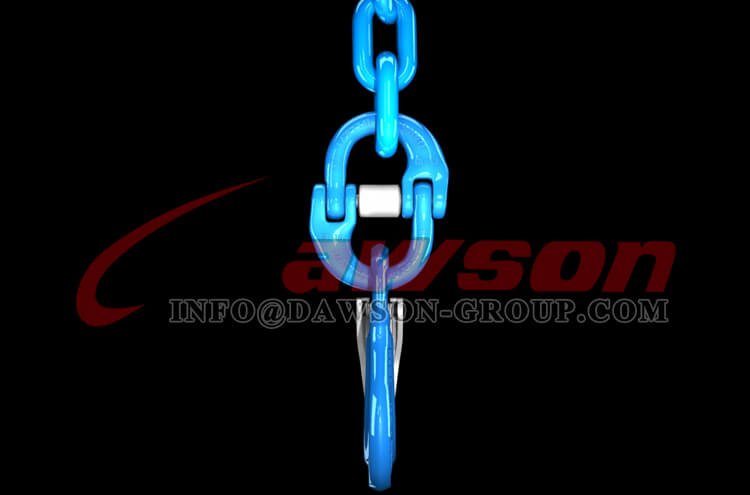

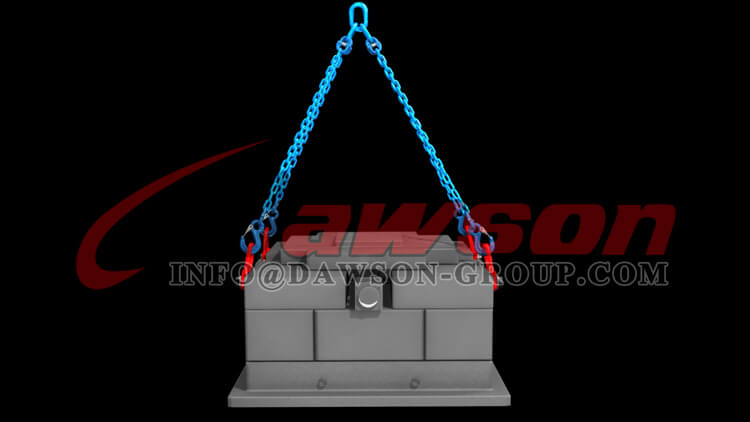

Application of Grade 100 European Type Chain Connecting Link:
G100 Products Catalogues Download:

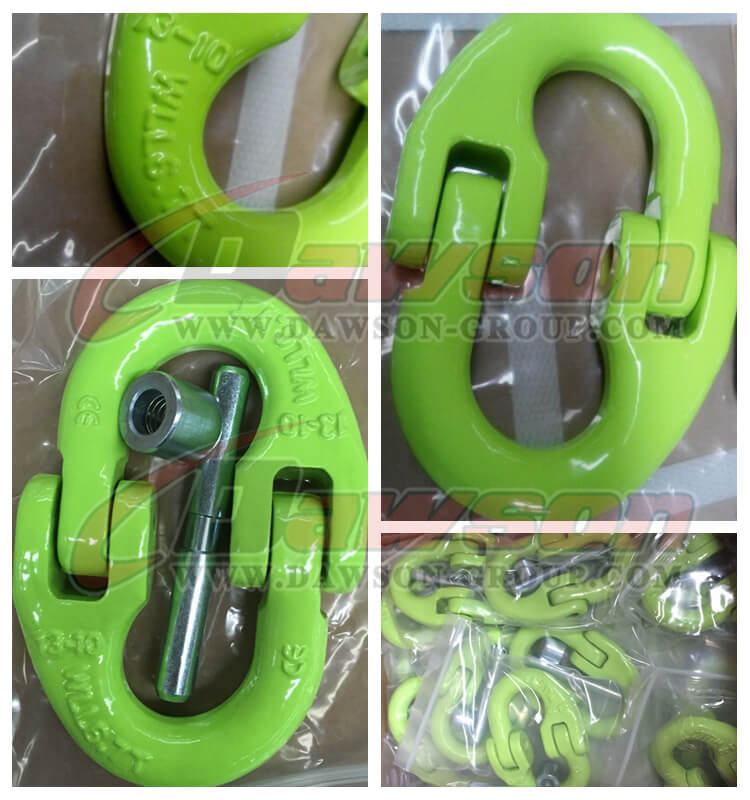

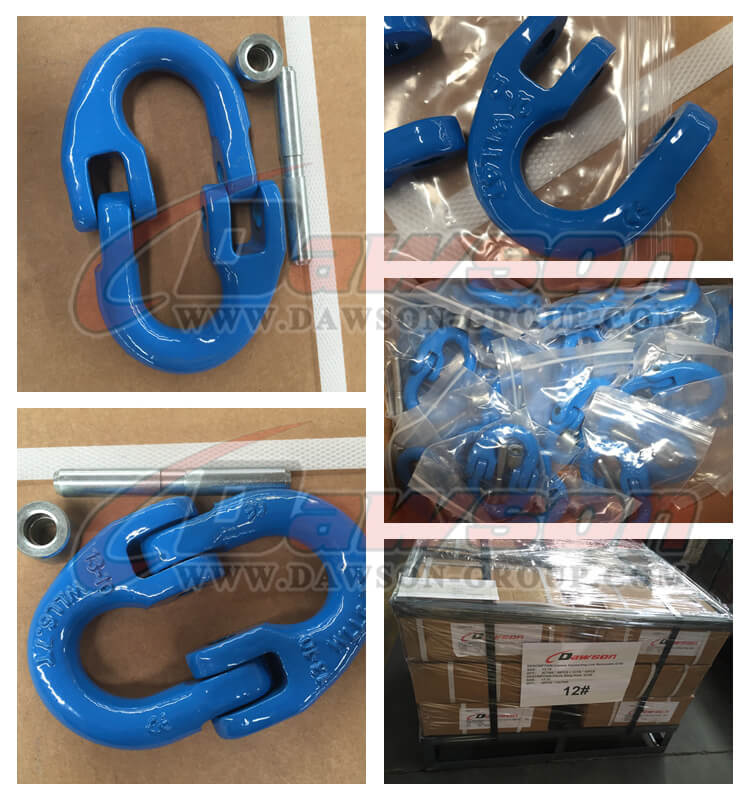

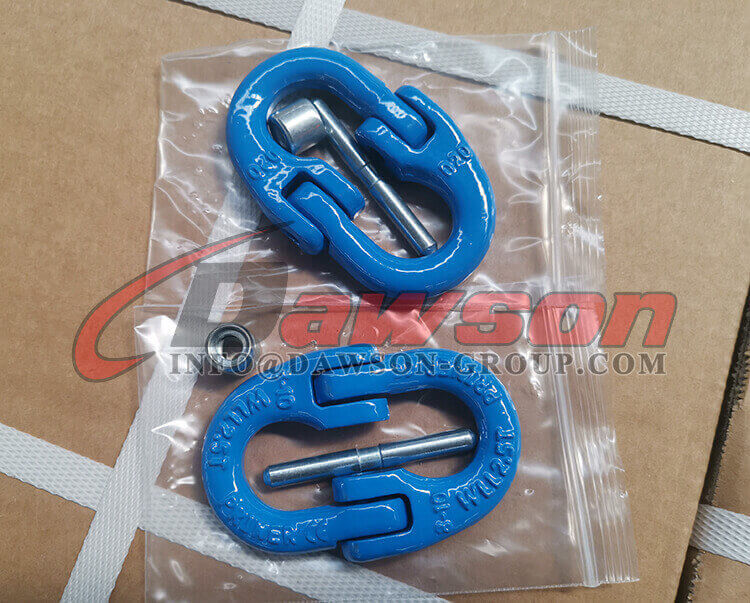

Factory & Package Show:
