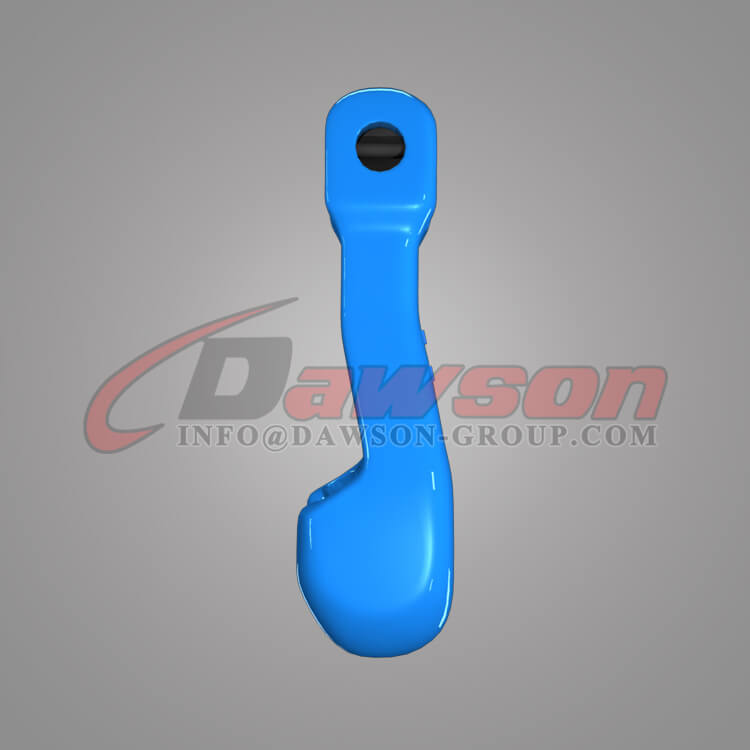

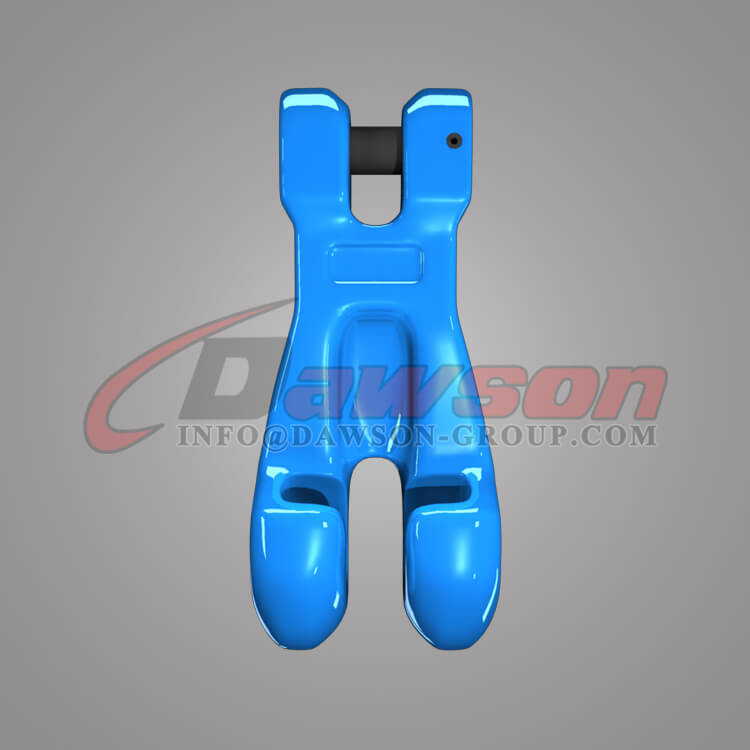

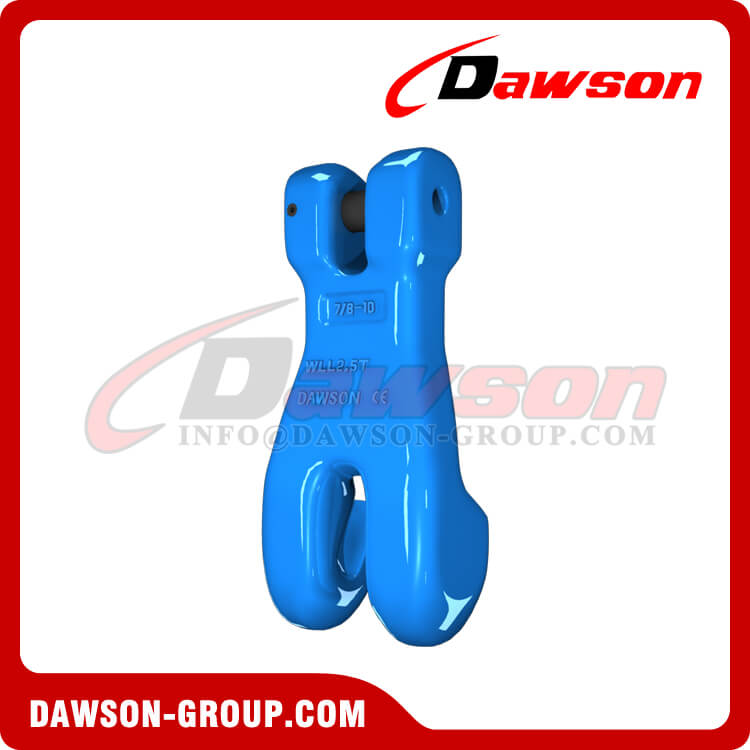

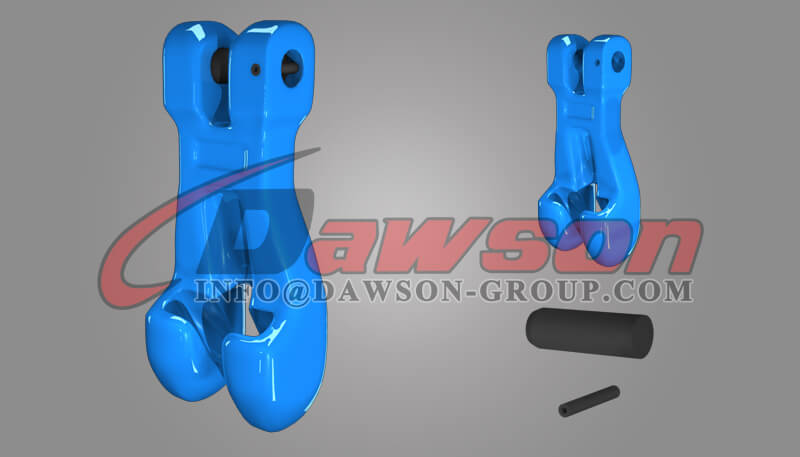

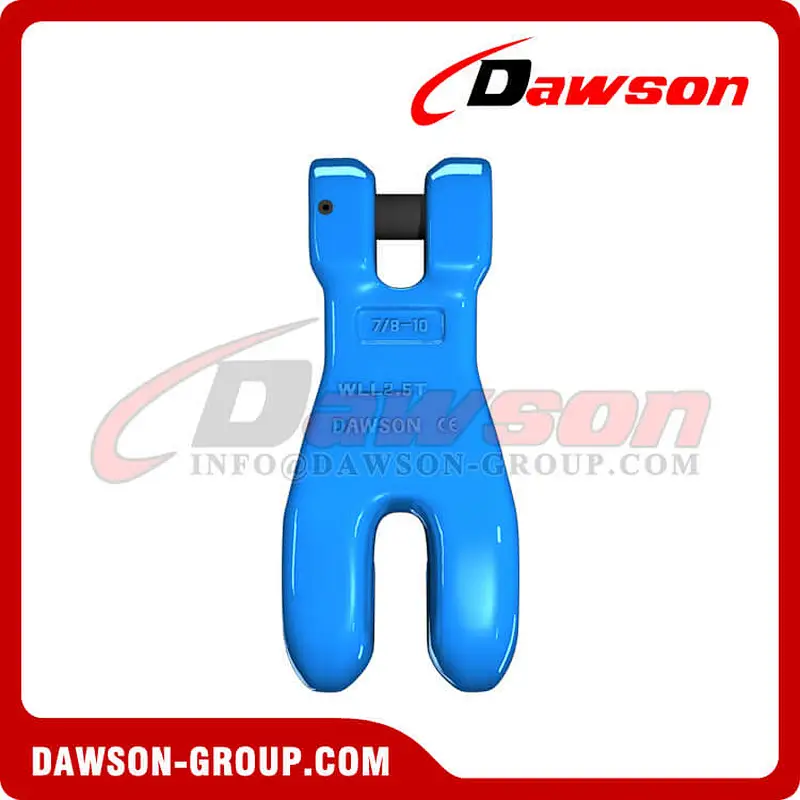

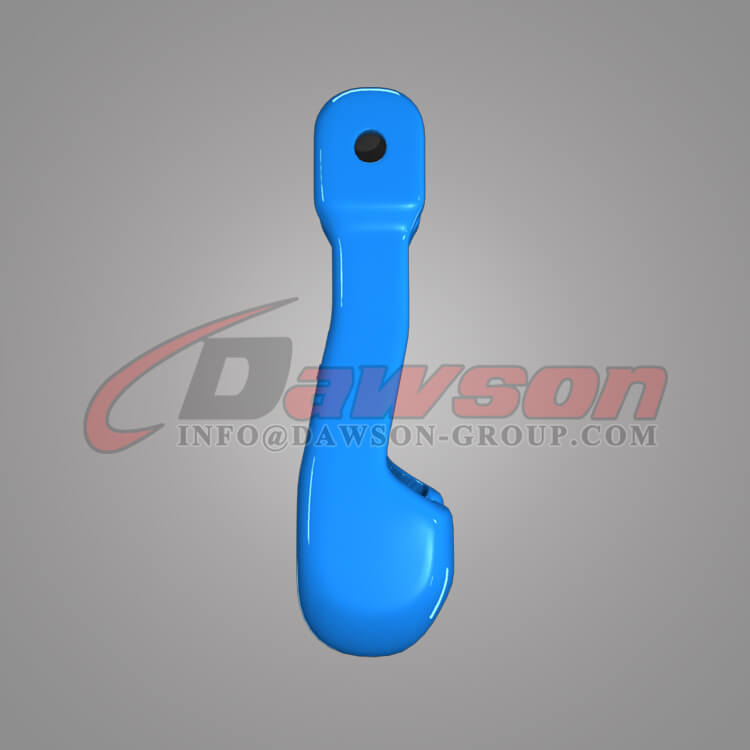

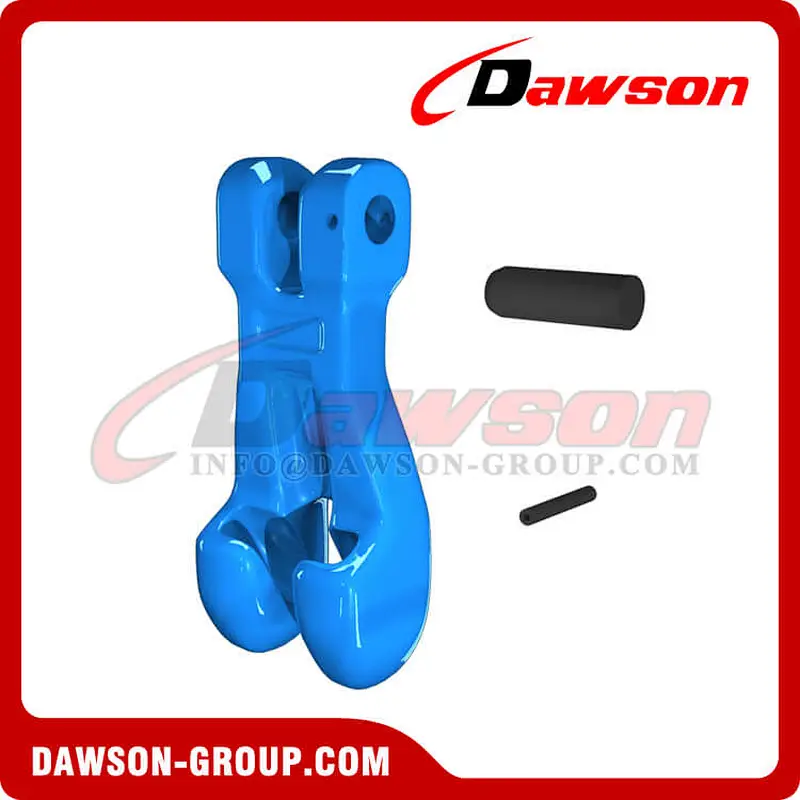

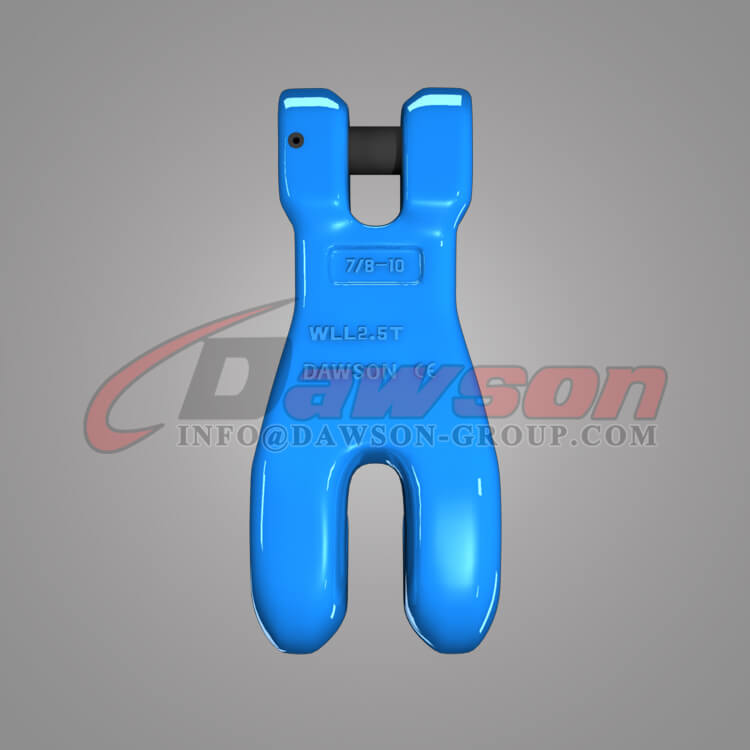

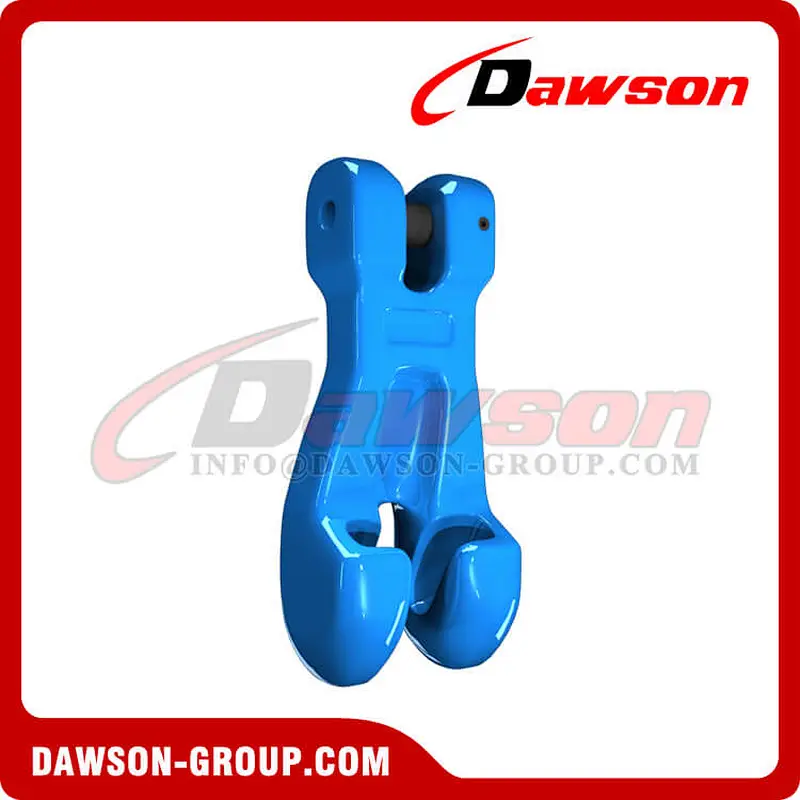

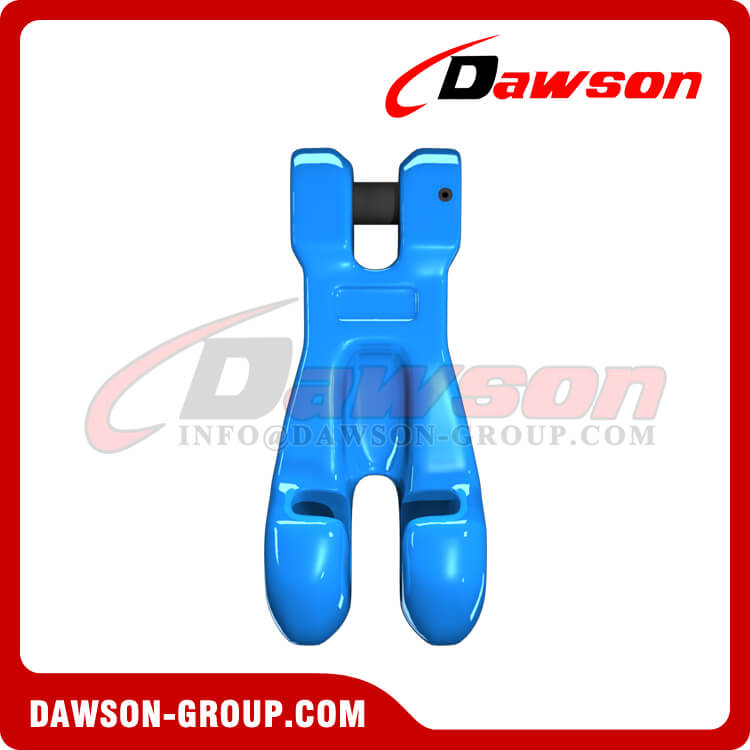

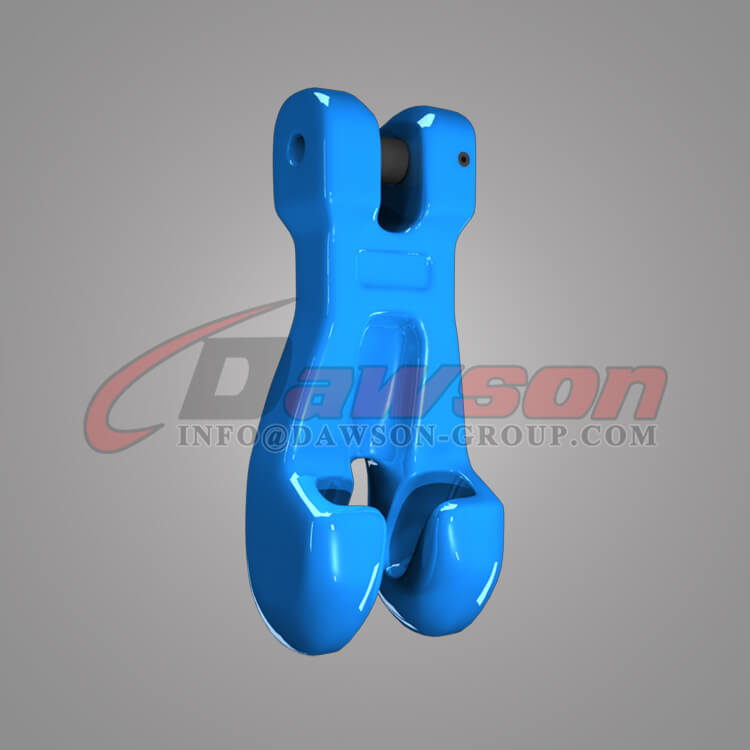

DS1049 G100 / Grade 100 Clevis Shortening Chain Clutch for Adjust Chain Length
G100 Clevis Chain Clutch, Grade 100 Rigging Hardware
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.

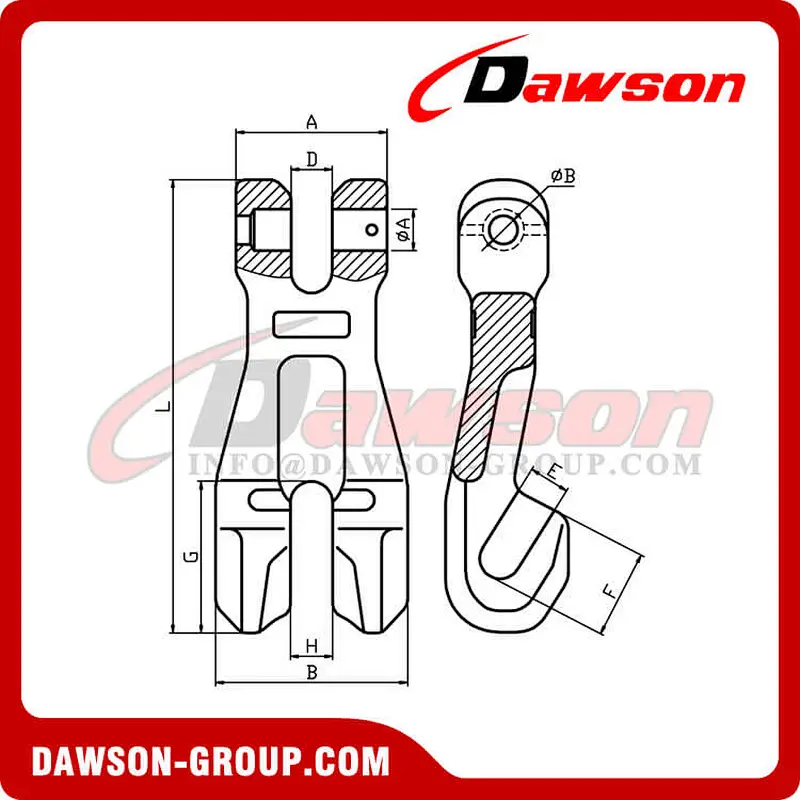

| Item No. | Weight/KG | WLL/T | B.L/T | A±1 | B±2 | D±1 | E±0.5 | F±0.5 | G±0.5 | ΦA±0.3 | ΦB±0.3 | H±1 | L±2 |
| 10-DS1049-06 | 0.17 | 1.4 | 5.6 | 30 | 33 | 7.5 | 8 | 12 | 23 | 7.8 | 5 | 7.5 | 73.5 |
| 10-DS1049-7/8 | 0.37 | 2.5 | 10 | 36 | 45 | 9.5 | 10.5 | 17 | 31 | 9.2 | 6 | 9.5 | 100.7 |
| 10-DS1049-10 | 0.97 | 4 | 16 | 48 | 55 | 13 | 12.4 | 28 | 39.5 | 13.2 | 9 | 13 | 138 |
| 10-DS1049-13 | 2.01 | 6.7 | 26.8 | 59 | 75 | 16.5 | 16 | 34.5 | 49 | 16.2 | 11.2 | 16.5 | 177 |
| 10-DS1049-16 | 3.32 | 10 | 40 | 73 | 93 | 21 | 19.5 | 40 | 61 | 20 | 14 | 21 | 220 |
| 10-DS1049-18/20 | 6.2 | 16 | 64 | 81 | 102 | 23.5 | 23 | 46 | 73 | 24.3 | 18 | 23.5 | 238 |
| 10-DS1049-22 | 8.5 | 19 | 76 | 98 | 118 | 25.5 | 26 | 57.5 | 80 | 28.1 | 16 | 25.5 | 295 |
Clevis Shortening Chain Clutches provide the flexibility to shorten a chain sling. Designed for easy attachment directly to the chain, they provide no reduction of the working load limit.
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON G100 / Grade 100 Clevis Shortening Chain Clutch for Adjust Chain Length from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |  DS1019 |  DS1028 |
Products Show:
Hot Tags: Clevis Chain Clutch, G100 Clevis Chain Clutch China, Grade 100 Clevis Chain Clutch Factory, Forged Steel Clevis Chain Clutch Supplier, Alloy Steel Clevis Chain Clutch Manufacturer, Low Price Clevis Chain Clutch, Clevis Chain Clutch for Adjust Chain Length, Cheap Price Clevis Chain Clutch, Buy Discount Clevis Chain Clutch, Bulk Clevis Chain Clutch, Clevis Chain Clutch in Stock, Wholesale Clevis Chain Clutch, Hot Sale Clevis Chain Clutch, Customized Clevis Chain Clutch, Clevis Chain Clutch OEM, Clevis Chain Clutch Free Sample, Dawson Clevis Chain Clutch with Safety Pin, G100 Chain Clutch with Safety Pin, Grade 100 Chain Clutch for Adjust Chain Length
Other Related Products:

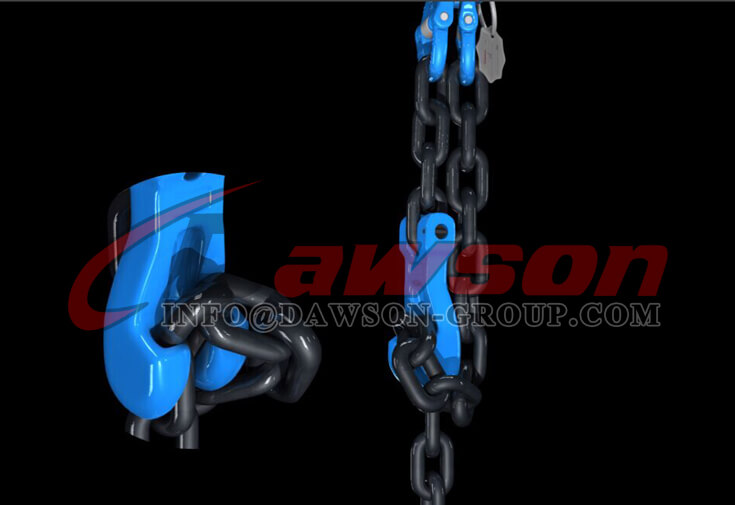

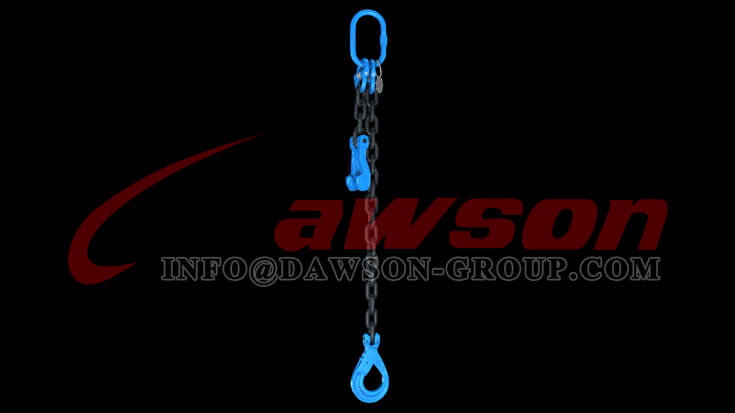

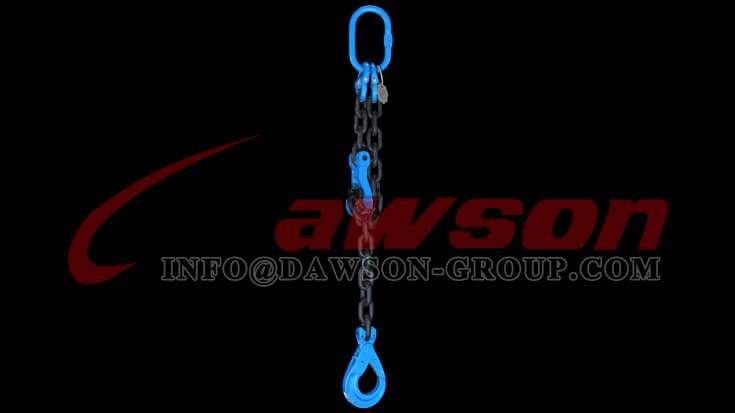

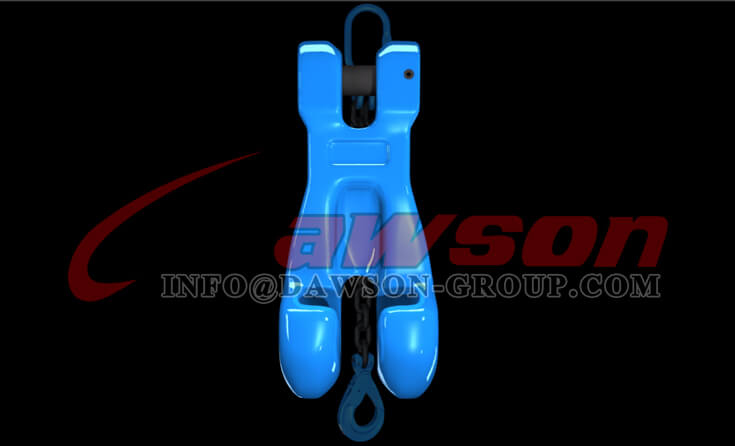

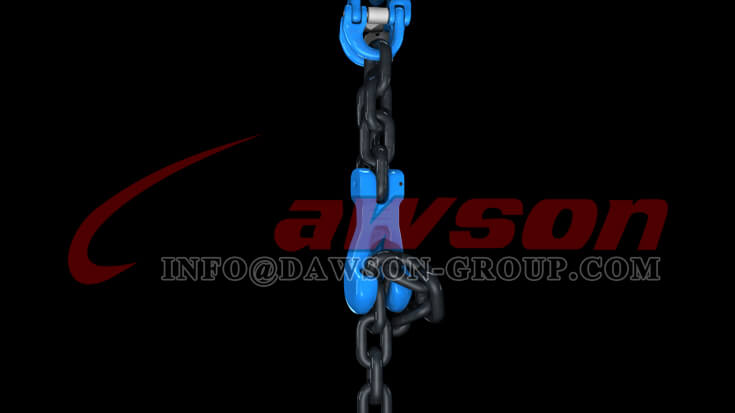

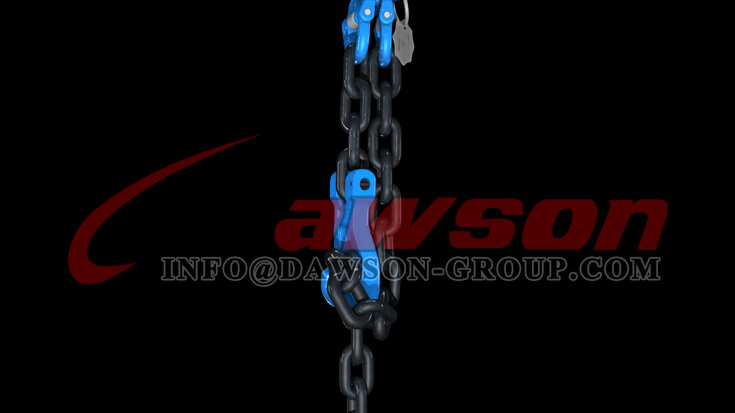

Application of G100 / Grade 100 Clevis Shortening Chain Clutch for Adjust Chain Length:
G100 Products Catalogues Download:
Package & Factory Show:
