Grade 80 / G80 Alloy Ring For Wire Rope Webbing Slings

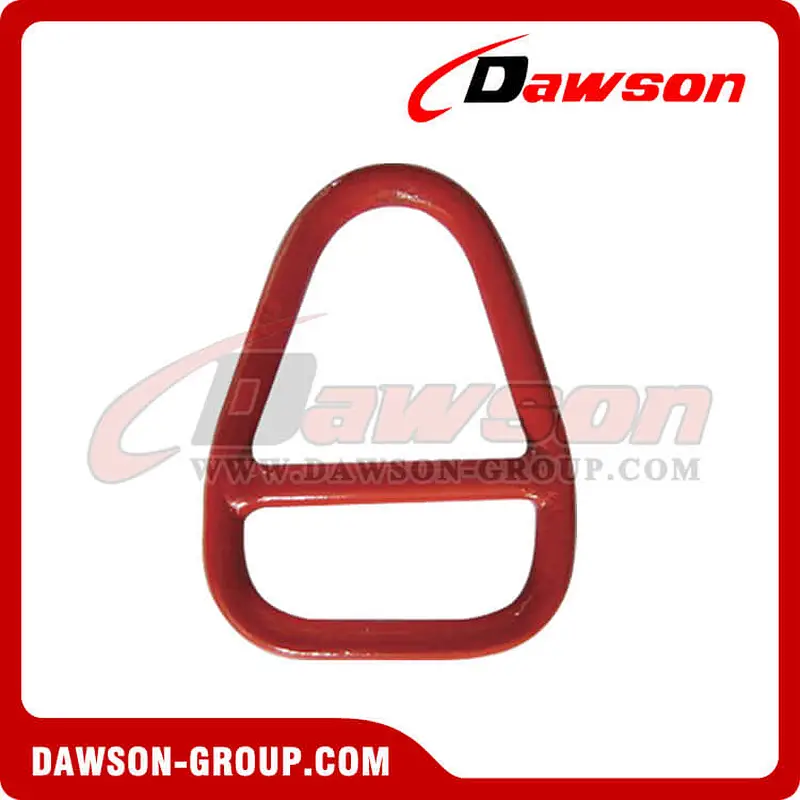

DS137 G80 Alloy Triangle Ring For Web Sling
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel-Quenched and Tempered.
Breaking test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.

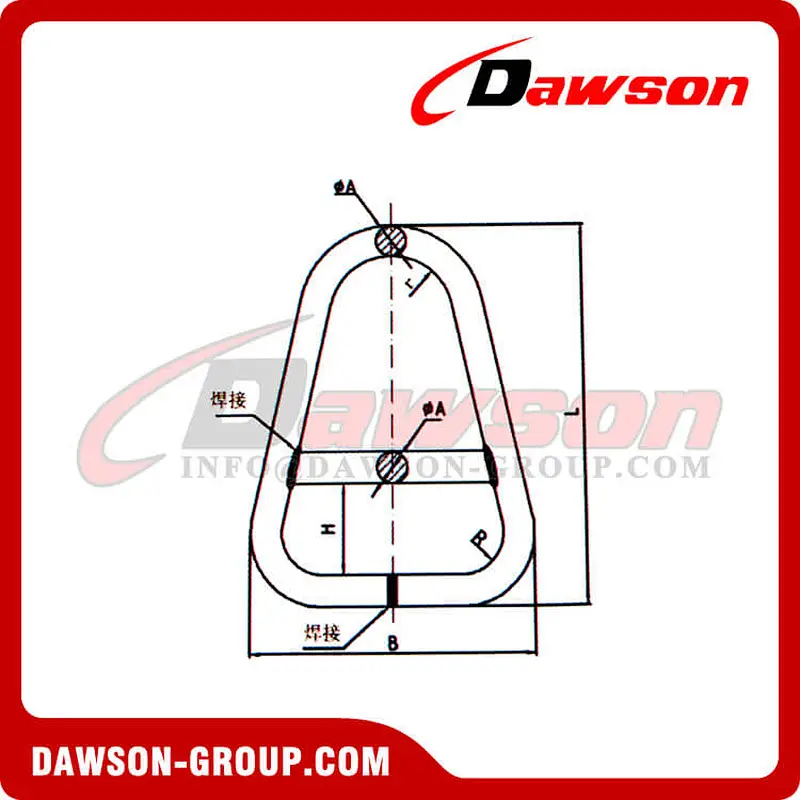

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A | B | H | L | r | R |
| 8-DS137-2T | 0.95 | 2 | 8 | 16±0.5 | 145±5 | 46±3 | 195±5 | 30 | 20 |
| 8-DS137-3T | 2 | 3 | 12 | 20±1 | 199±5 | 57±3 | 250±6 | 35 | 25 |
| 8-DS137-4T | 2.6 | 4 | 16 | 22±1 | 243±5 | 56±3 | 260±6 | 40 | 25 |
| 8-DS137-6T | 6 | 6 | 24 | 28±1 | 340±6 | 78±3 | 340±6 | 45 | 30 |
Ultimate load is 4 times the Working Load Limit.
For further information, please contact us. Email: info@dawson-group.com

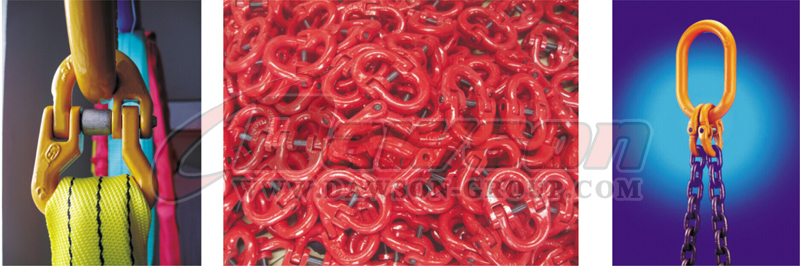

Application of Connecting Links:
