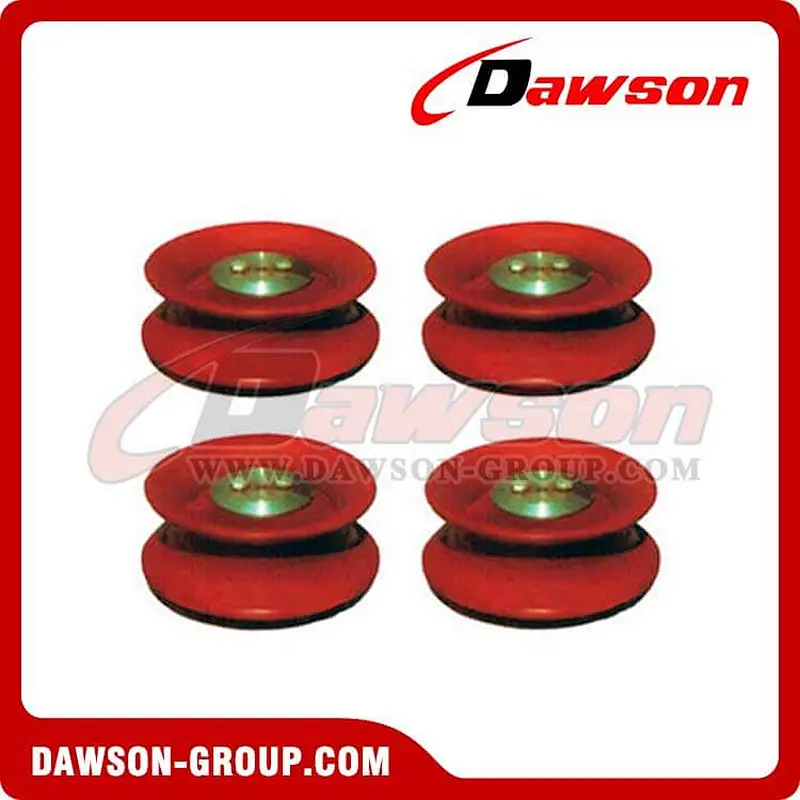

Fairlead Roller Type A
Fairlead roller is applicable to ship mooring, helping change the direction of mooring ropes. Marine rollers can work separately or together. According to different marine ship producing standard, fairlead roller has different types: GB/T10105-88 marine roller, CB*58-83 fairlead roller,JIS F2014-1987 fairlead roller and DIN81906-1999 roller etc. Different types have different function and specification. We can provide the standard marine rollers and the customized one for your special requirements. If you’re interested in our fairlead roller, please feel free to contact us.
Specification:
Model Type: Fairlead Roller Type A
Material: Cast Steel/Iron
Nominal Diameter:150mm~500mm
Certificate: CCS,ABS,BV,LR,NK.RINA

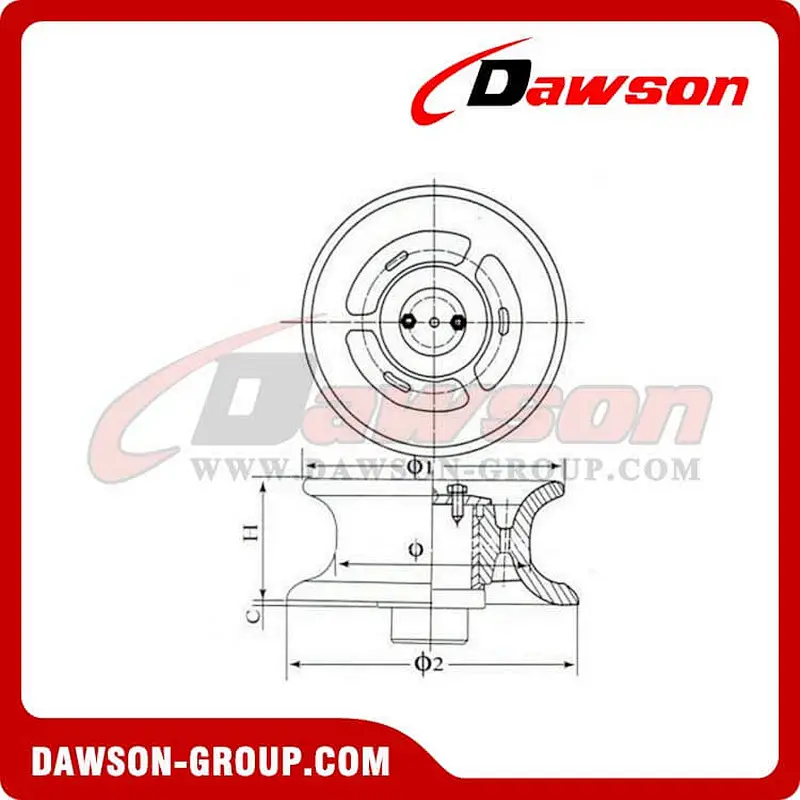

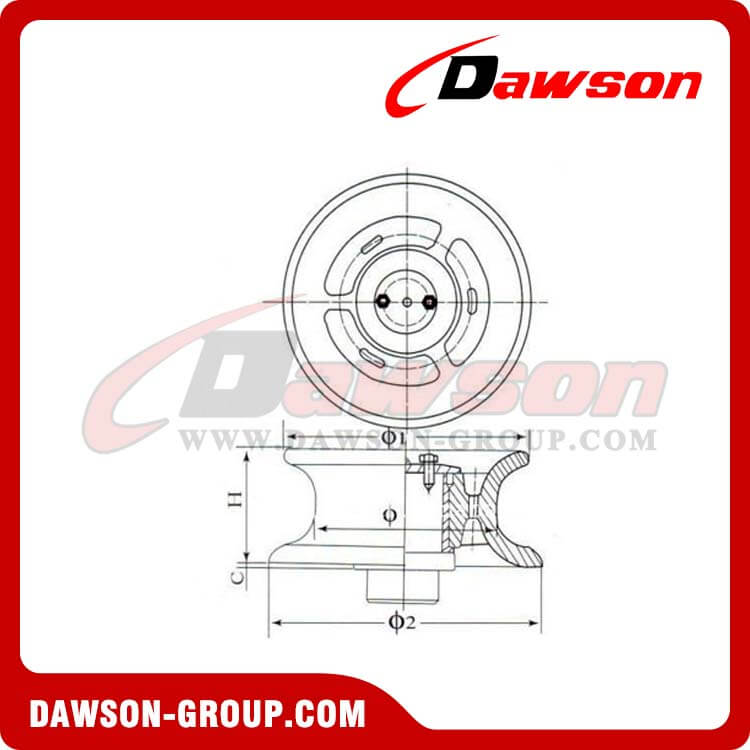

| Nominal Size | Φ | Φ1 | Φ2 | H | c |
| 150 | 150 | 216 | 240 | 137 | 5 |
| 200 | 200 | 280 | 310 | 157 | 5 |
| 250 | 250 | 350 | 380 | 177 | 6 |
| 300 | 300 | 400 | 440 | 197 | 7 |
| 350 | 350 | 460 | 500 | 217 | 7 |
| 400 | 400 | 520 | 560 | 237 | 7 |
| 450 | 450 | 590 | 630 | 257 | 7 |
| 500 | 500 | 660 | 700 | 277 | 7 |

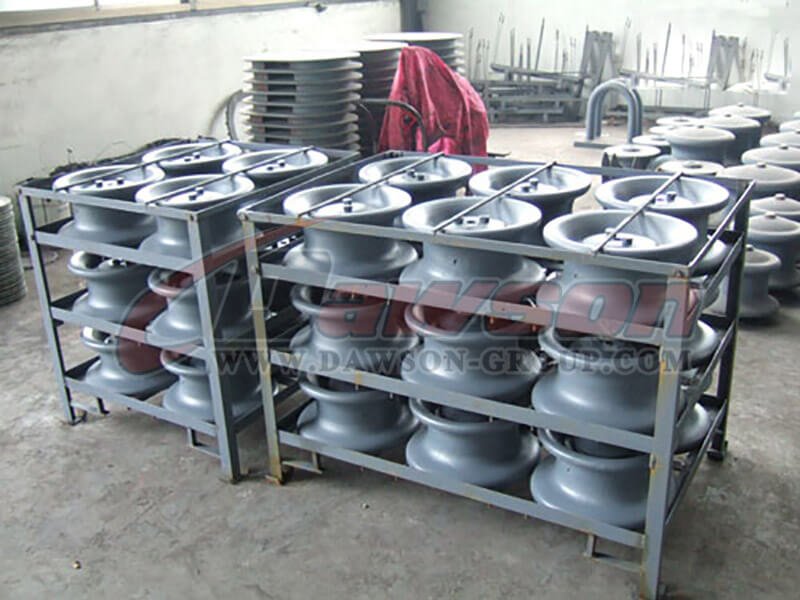

Product & Factory & Package Show:
Factory Show & Package:
