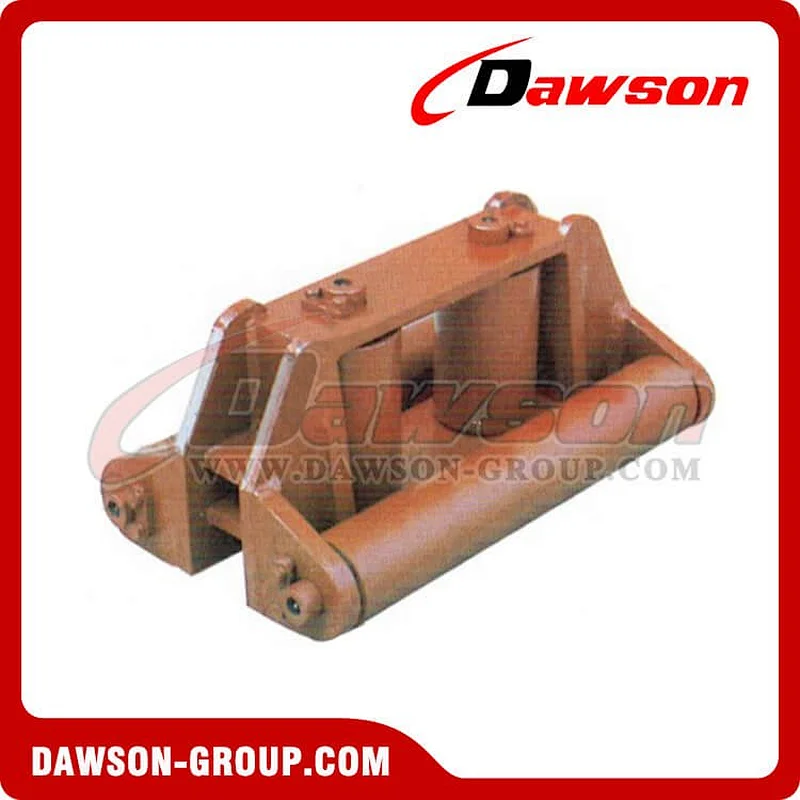

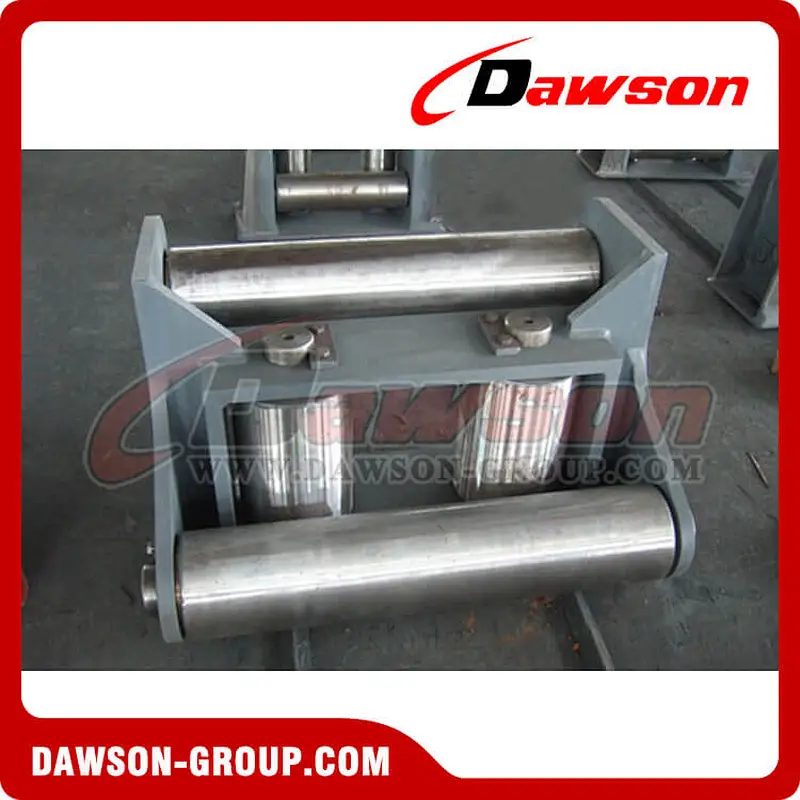

Features of CB3015-83 Engineering Vessel Fairlead
1. Widely applicable to dredgers, crane ships, piling boats and other engineering vessels;
2. Roller diameters vary from 100mm to 300mm;
3. Body, vertical and horizontal rollers casted steel;
4. Clean and smooth surface without any defects;
5. Flexible to swivel;
6. Painted asphalt and lubricating oil;
7. Third party quality certification;
8. Produce according to customers’ special requirements

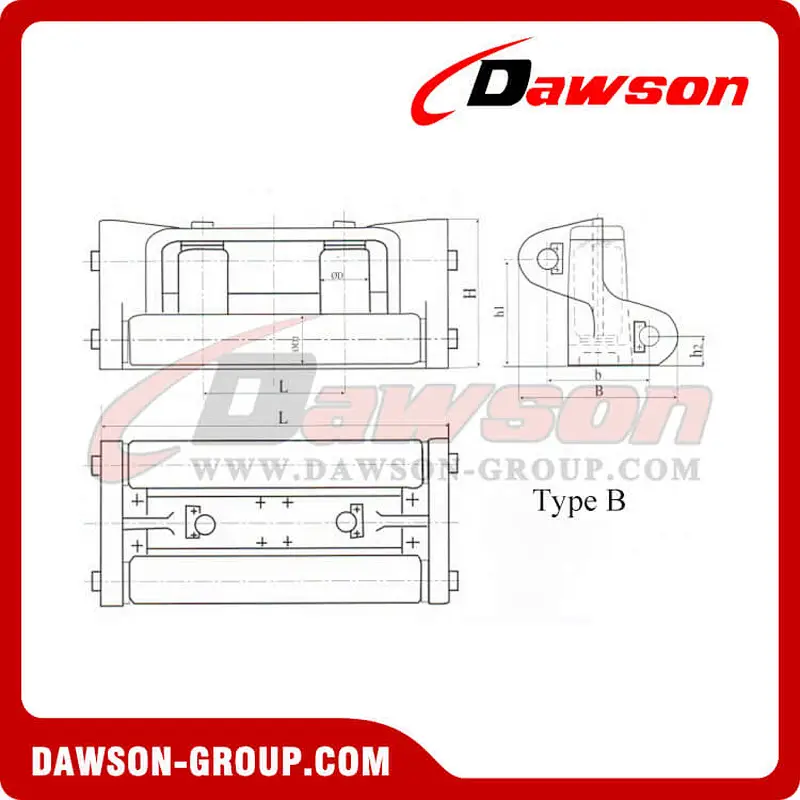

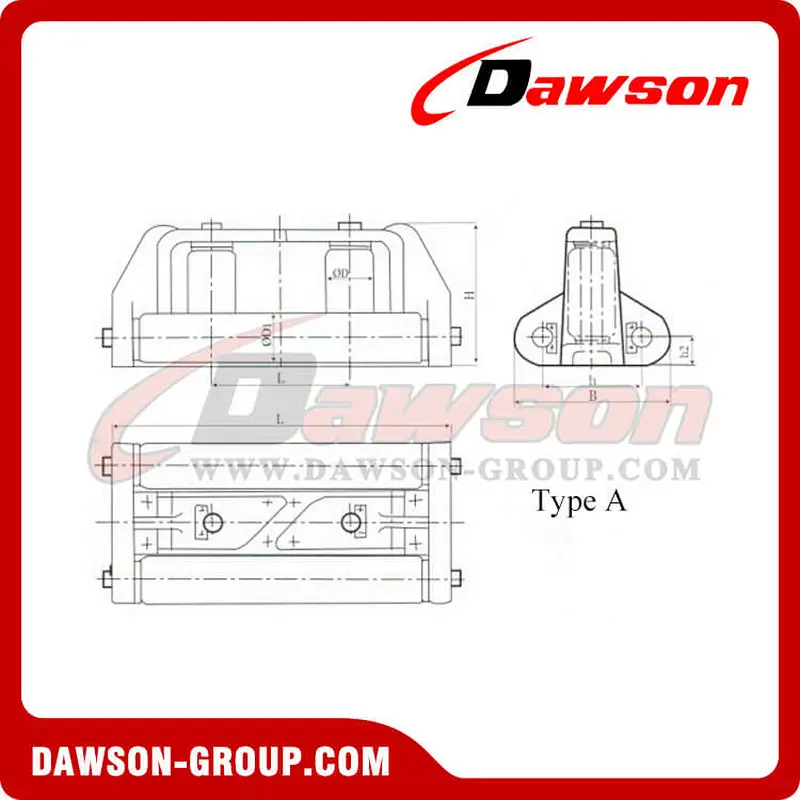

| D | D1 | Φ | L | B | H | b | h1 | h2 | l | d | |
| A type | B type | ||||||||||
| 100 | 85 | 19.5 | 540 | 340 | 240 | 240 | 250 | 220 | 50 | 200 | 22 |
| 150 | 120 | 26 | 760 | 460 | 340 | 340 | 340 | 320 | 65 | 290 | 26 |
| 200 | 150 | 37.5 | 980 | 580 | 430 | 440 | 430 | 410 | 80 | 380 | 32 |
| 250 | 200 | 48.5 | 1220 | 740 | 520 | 550 | 540 | 500 | 110 | 480 | 39 |
| 300 | 250 | 56 | 1460 | 900 | 620 | 675 | 650 | 590 | 135 | 580 | 39 |
