Features of Swivel Anchor Fairlead
1. Used to guide ropes of various vessels;
2. Multiple sheaves (depends on customers’ need)
3. Having a breaking strength of wire with 90°warp
on the sheave and ±90°rotation of swivel head
4. Long using life for the sealed grease lubricated tapered roller bearings
5. Removable guide roller
6. Fairlead with a welded base
7. Made of Cast steel
8. Get approvals of CCS,ABS, BV etc.
9. Can produce according to customers’ drawings

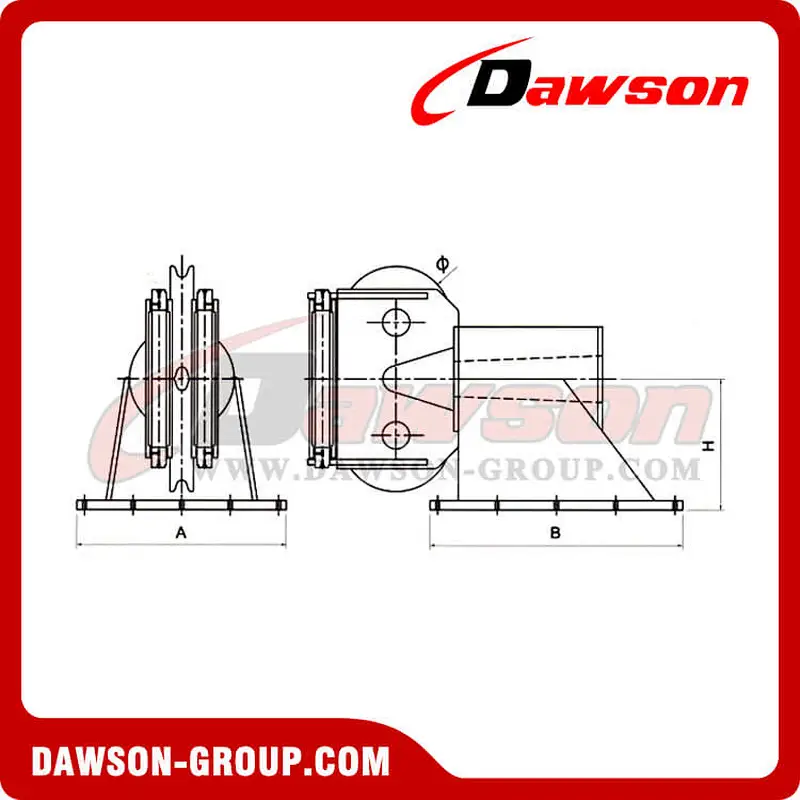

| MAX WIRE DIA (mm) | A (mm) | B (mm) | H (mm) | Φ (mm) |
| 20 | 400 | 425 | 350 | 250 |
| 25 | 400 | 425 | 360 | 250 |
| 32 | 600 | 600 | 376 | 320 |
| 38 | 760 | 760 | 489 | 400 |
| 44 | 880 | 880 | 580 | 500 |
| 52 | 1120 | 1250 | 700 | 600 |
| 60 | 1120 | 1350 | 720 | 620 |
| 68 | 1210 | 1450 | 780 | 680 |
| 76 | 1250 | 1500 | 870 | 780 |
