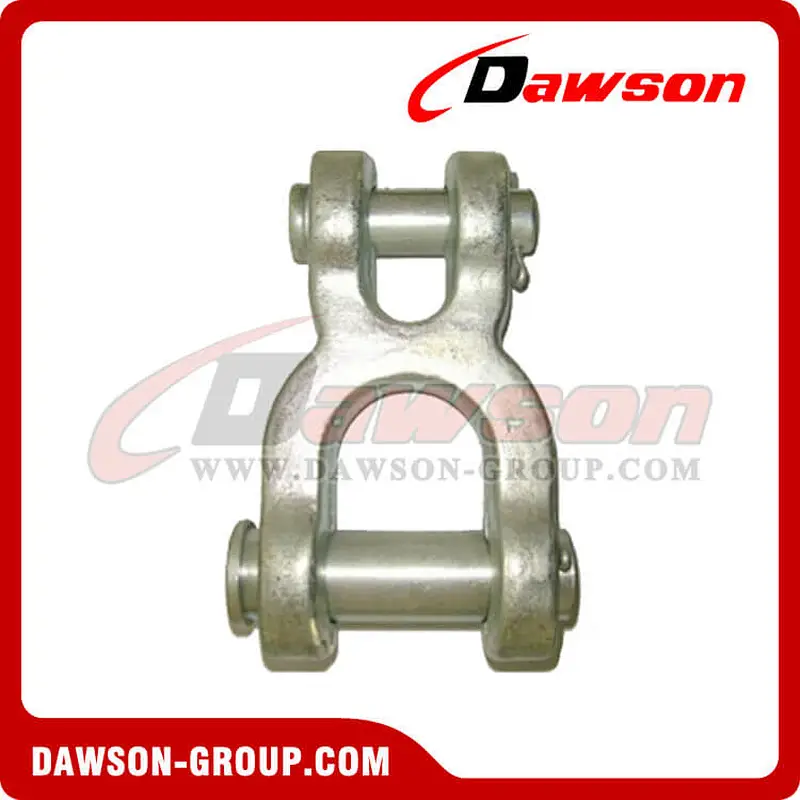

DS356 Alloy Steel Forged Double Clevis Link
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Grade 70,only for lashing and pulling.Never to be used for lifting.
Forged alloy steel - Quenched and Tempered.
Suitable for G70 transport chain.
Regular mark:1/4 G70

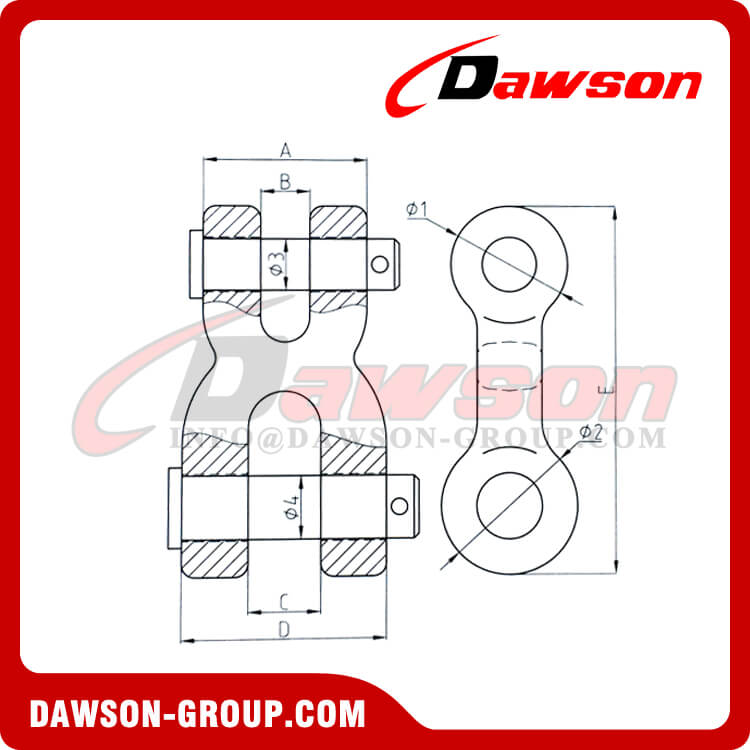

| ITEM NO. | WEIGHT/kg | WLL(T) | B.L/T | A±1.5 | B±1 | C±1 | D±1.5 | E±2 | Φ1 | Φ2 | Φ3 | Φ4 |
| DS356-1/4 | 0.17 | 1.18 | 4.72 | 32 | 13.2 | 19.5 | 37.5 | 72.5 | 20.6 | 25.4 | 7.6 | 12.5 |
| DS356-5/16-3/8 | 0.41 | 2.45 | 9.8 | 39.5 | 14.7 | 26 | 52.5 | 90.7 | 25.4 | 30.2 | 10.8 | 15.8 |
| DS356-3/8 | 0.38 | 1 | 4 | 39.5 | 11 | 19 | 47.5 | 90 | 26 | 31 | 11 | 13 |
| DS356-7/16 | 0.57 | 3.17 | 12.7 | 44 | 18 | 29 | 57.5 | 104 | 30 | 33 | 13.8 | 17.3 |
| DS356-1/2 | 0.71 | 4.17 | 16.7 | 51 | 21 | 32.3 | 63.5 | 116 | 33 | 37 | 15.8 | 18.8 |
| DS356-5/8 | 1.3 | 7.94 | 31.8 | 56.8 | 20 | 41.4 | 81 | 144 | 41 | 47 | 18.8 | 25.5 |
Ultimate load is 4 times the Working load limit

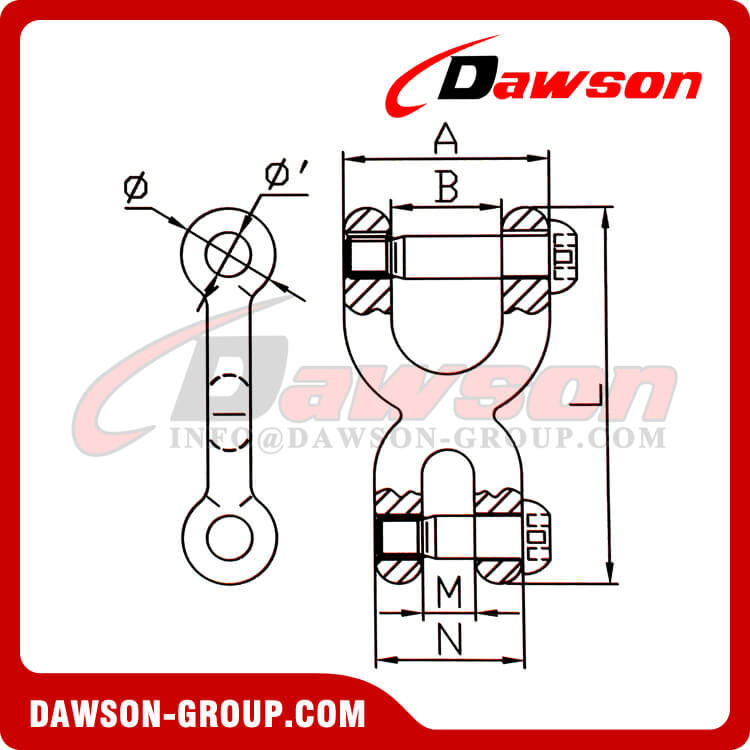

DS401 Screw Pin Double Clevis Link
This is for your reference only.
| ITEM N0. | WEIGHT/kg | A±1 | B±0.5 | M±0.5 | N±1 | L±1.5 | Φ±0.5 | Φ’±0.5 |
| DS401 | 0.19 | 45.5 | 24.5 | 11.5 | 32.5 | 84.5 | 20.8 | 10.6 |
Technical Information
DAWSON chain and fittings are NOT SUITABLE FOR INDUSTRIAL LIFTING PURPOSES.
Note: Dimensions and masses subject to commercial tolerances and design changes without notice.
Welcome to buy the newest and competitive price DAWSON Alloy Steel Forged Double Clevis Link from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk forged double clevis link, low price alloy steel double clevis link, high quality forged alloy steel double clevis link, wholesale double clevis link, hot sale G70 double clevis link, customized grade 70 twin clevis link, buy discount double clevis link, cheap price clevis link, clevis link China supplier, double clevis link China manufacturer, double clevis link China factory, double clevis link China exporter, clevis link in stock, clevis link free sample, clevis link dawson brands, double clevis link OEM
Other related products:

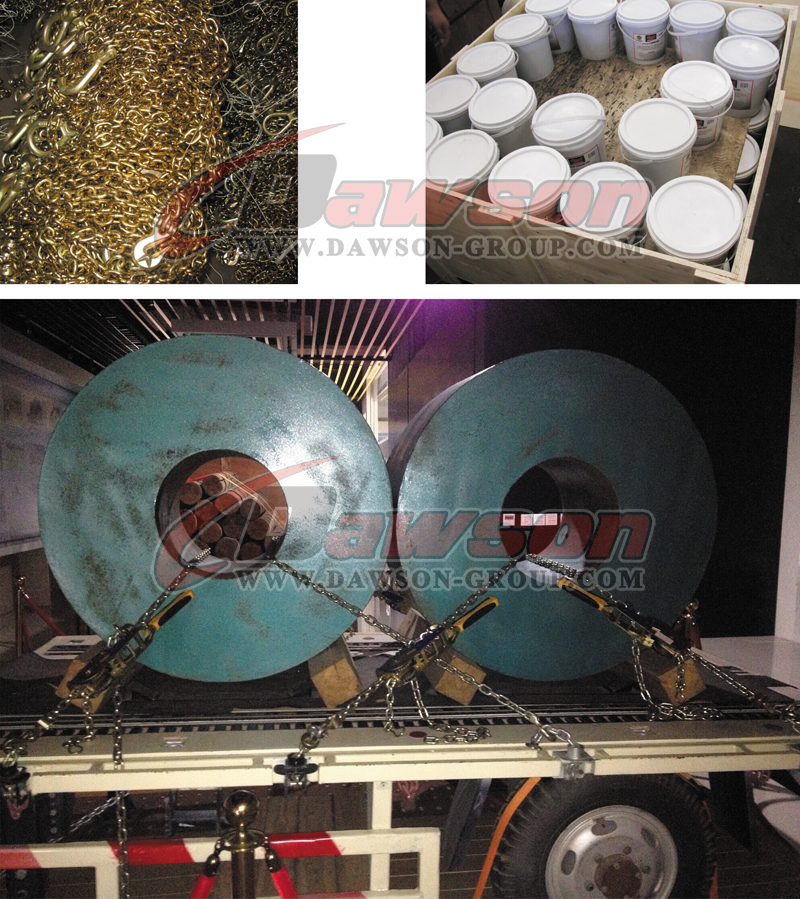

Application of G70 Chain & Fittings:

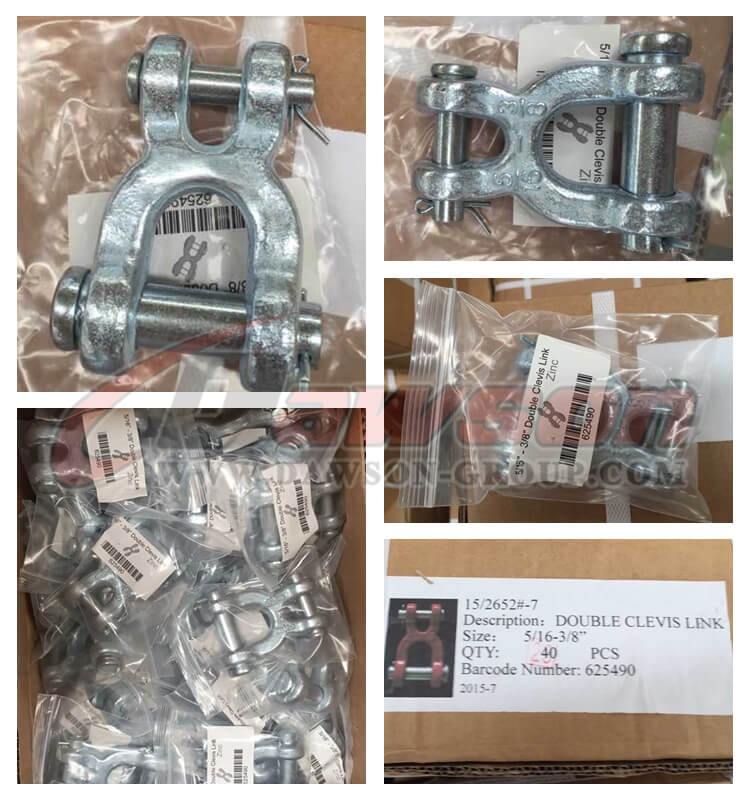

Factory & Package Show:
