GB T10105-88 Marine Roller

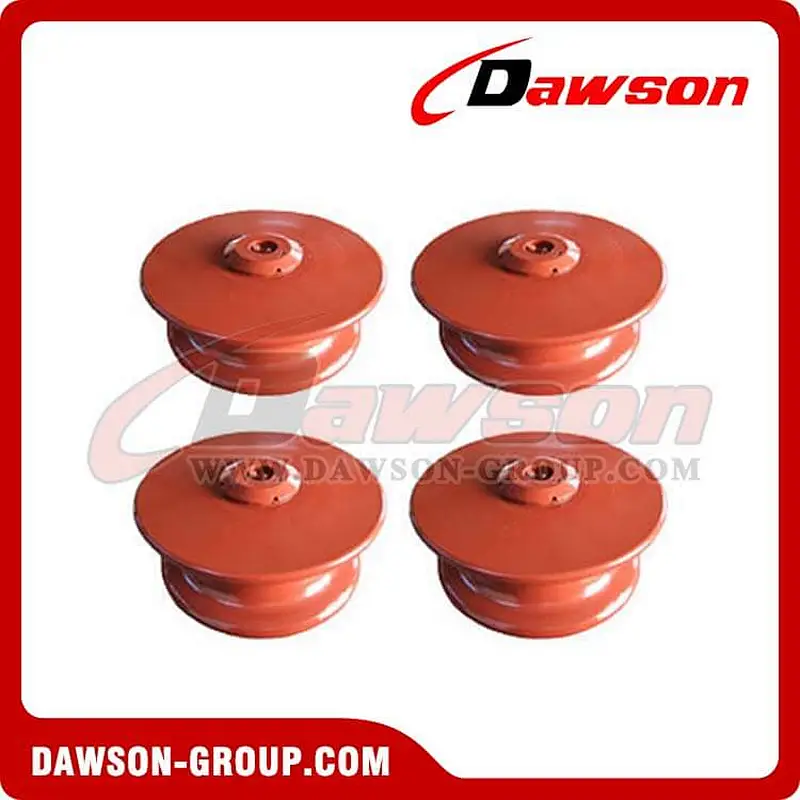

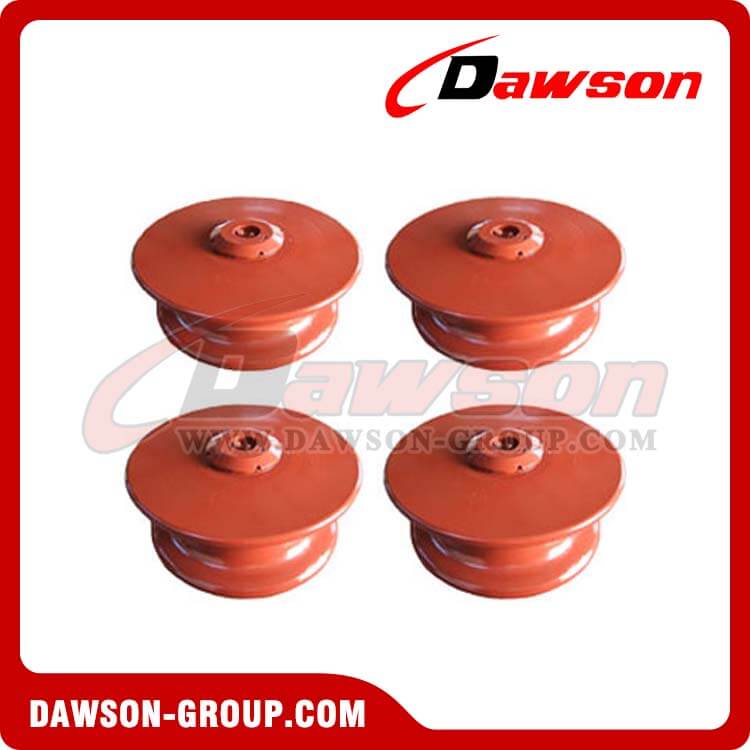

Marine roller is an important ship mooring device that can change the direction of mooring ropes. It guides the mooring ropes to a certain place. GB/T10105-88 marine roller for fairlead can be casted steel or iron. Its color can be grey, black, red or any one as customer require. Our marine rollers get approved by professional quality inspection center. If you’re interested in our marine rollers, please feel free to contact us.
Specification:
Model Type:GB T10105-88 Marine Roller
Material:Cast Steel/Iron
Roller Diameter:150mm~450mm
Weight:24.8kg~310.0kg
Standard:GB/T10105-88
Certificate:CCS,ABS,LR,BV,NK,RINA

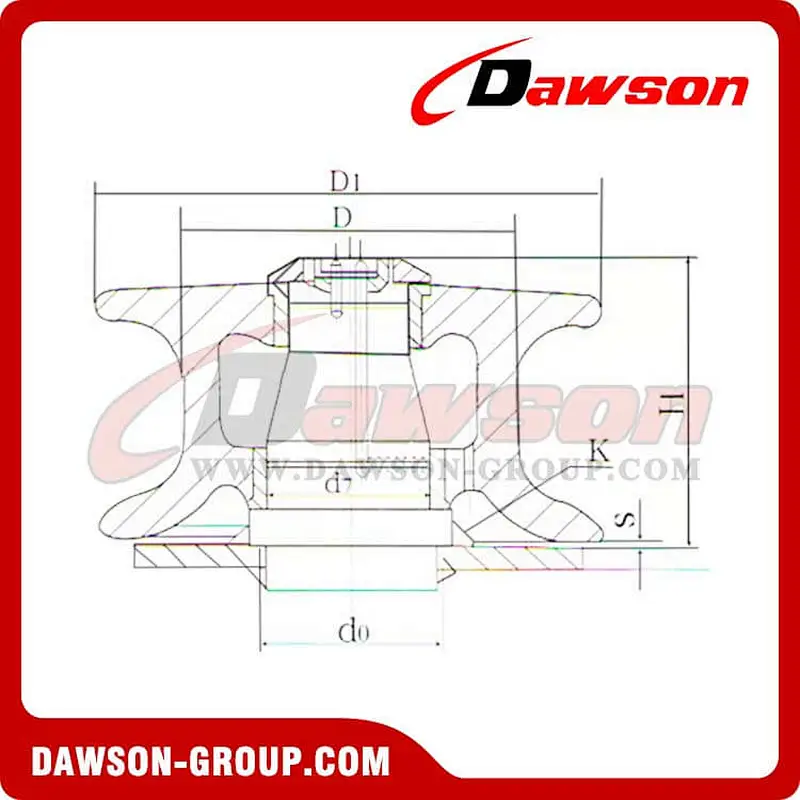

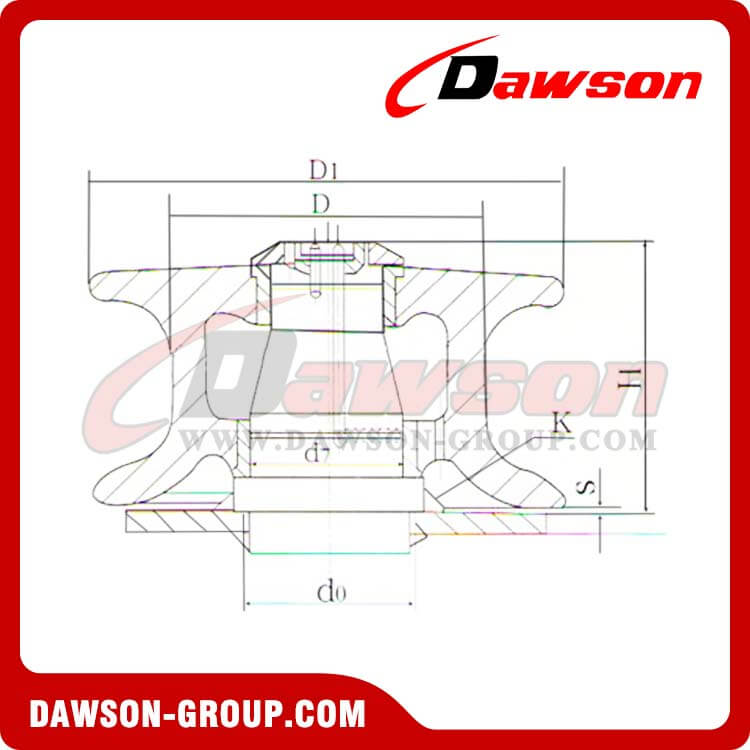

| Diameter of Roller(D) | Max. Diameter of Applicable Rope | Size | Weight(kg) | |||||||||
| Synthetic Fiber Rope | Hemp Rope | Steel(GB1102) Rope Stress Length 1550N/mm2 | D1 | d0 | d7 | H | s | t | k | |||
| 6×24 | 6×37 | |||||||||||
| 150 | 32 | 45 | 17.0 | 15.0 | 240 | 90 | 79 | 154 | 5 | 12 | 9 | 24.8 |
| 200 | 40 | 55 | 22.5 | 19.5 | 310 | 115 | 99 | 186 | 5 | 14 | 10 | 49.3 |
| 250 | 45 | 65 | 24.0 | 24.0 | 380 | 135 | 119 | 230 | 6 | 14 | 10 | 92.0 |
| 300 | 50 | 70 | 30.0 | 28.0 | 440 | 155 | 129 | 255 | 7 | 16 | 12 | 127.0 |
| 350 | 55 | 75 | 37.5 | 34.5 | 500 | 175 | 149 | 271 | 7 | 18 | 13 | 168.0 |
| 400 | 65 | 85 | 41.0 | 39.0 | 560 | 185 | 159 | 307 | 7 | 20 | 14 | 252.5 |
| 450 | 80 | - | 44.5 | 43 | 630 | 210 | 178 | 316 | 7 | 20 | 14 | 310.0 |
