GB T290-95 Marine Chain Wheel

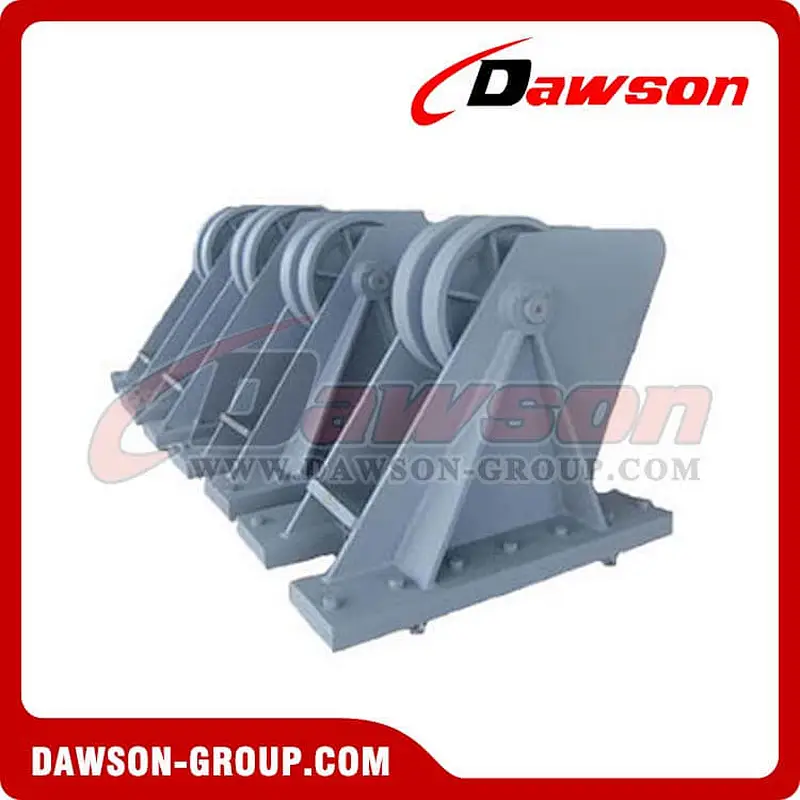

Marine chain wheel, installed between hawse pipe and chain stopper, is a kind of marine chain roller which is used to avoid the friction between anchor chain and hawse pipe. CB/T 290-95 chain wheel for hawse pipe is mainly made of casting steel and carbon fiber steel. Its surface is clean and smooth. There is no any defects such as airhole, crack which may affect chain wheel’s strength. The roller is flexible to turn. It is anti-rust as well. Our marine chain wheels are approved by quality inspection center. If you’re interested in our products, please feel free to contact us.
Specification:
Model Type:CB T290-95 Marine Chain Wheel
Usage: applicable to medium and small size ships
Material: Cast Steel
Standard:GB/T 290-1995
Nominal Diameter:14mm~68mm
Weight:12.7kg~832.3kg
Certificate: CCS,ABS,BV,NK,LR,RINA

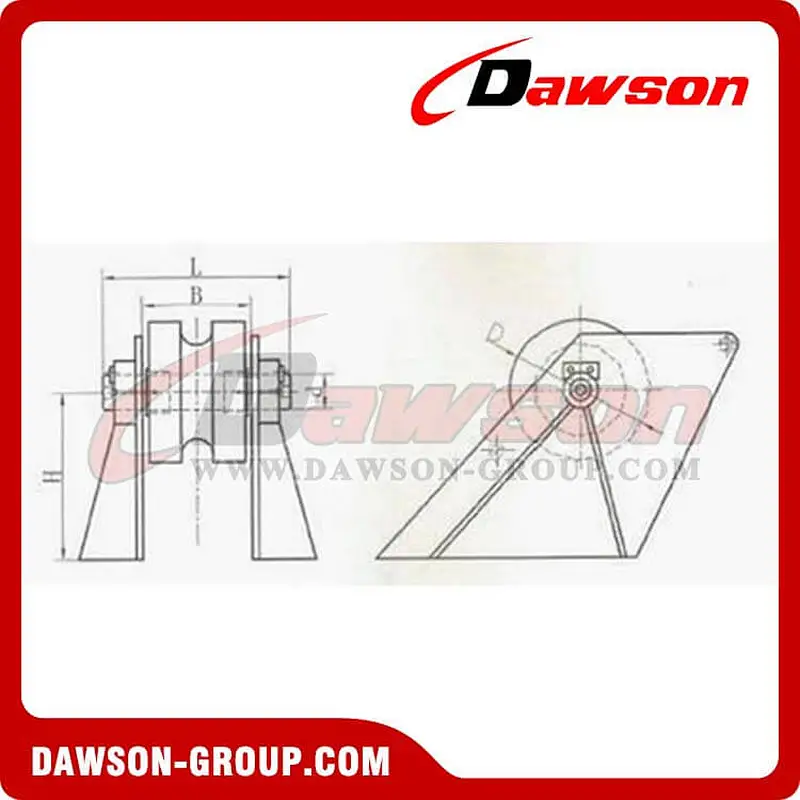

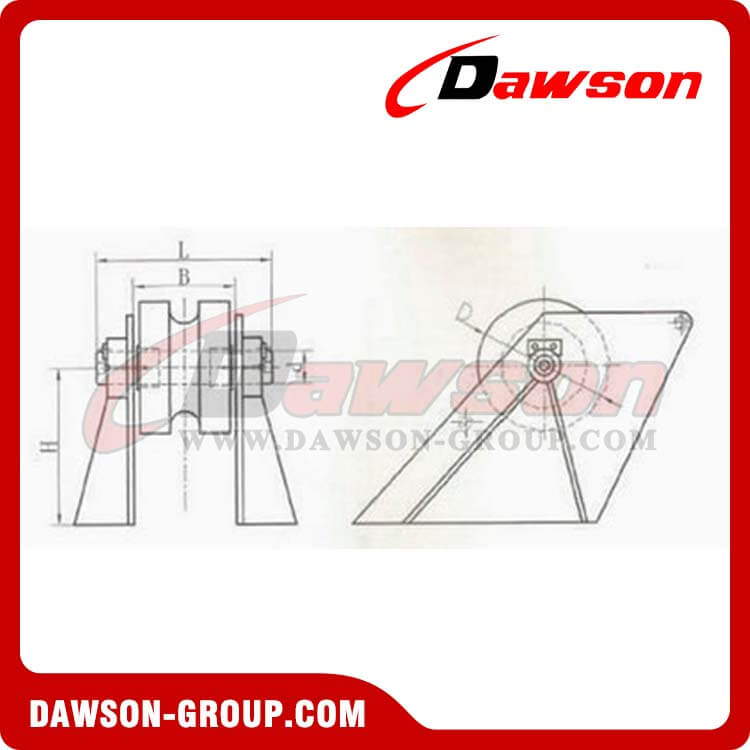

Unit:mm
| Type | Dia. Of Anchor Chain | D | d | L | B | H | Weight(kg) |
| 14 | 12.5~14 | 154 | 26 | 164 | 94 | 150 | 12.7 |
| 17.5 | 16~17.5 | 192 | 32 | 186 | 108 | 170 | 21.0 |
| 20.5 | 19~20.5 | 226 | 38 | 208 | 122 | 210 | 32.6 |
| 24 | 22~24 | 264 | 42 | 236 | 142 | 240 | 50.0 |
| 28 | 26~28 | 308 | 48 | 262 | 160 | 280 | 74.0 |
| 32 | 30~32 | 352 | 54 | 292 | 178 | 310 | 104.9 |
| 36 | 34~38 | 396 | 58 | 319 | 201 | 360 | 144.4 |
| 40 | 38~40 | 440 | 64 | 349 | 219 | 390 | 189.8 |
| 44 | 42~44 | 484 | 70 | 377 | 239 | 430 | 239.9 |
| 48 | 46~48 | 528 | 74 | 405 | 259 | 470 | 305.5 |
| 52 | 50~52 | 572 | 78 | 430 | 280 | 510 | 370.3 |
| 56 | 54~56 | 616 | 82 | 466 | 302 | 540 | 453.6 |
| 60 | 58~60 | 660 | 88 | 492 | 320 | 580 | 572.3 |
| 64 | 62~64 | 704 | 94 | 526 | 342 | 620 | 687.5 |
| 68 | 66~68 | 748 | 98 | 552 | 360 | 660 | 832.3 |
