High Quality Drop Forged Ratchet Type Load Binder, Loadbinders
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

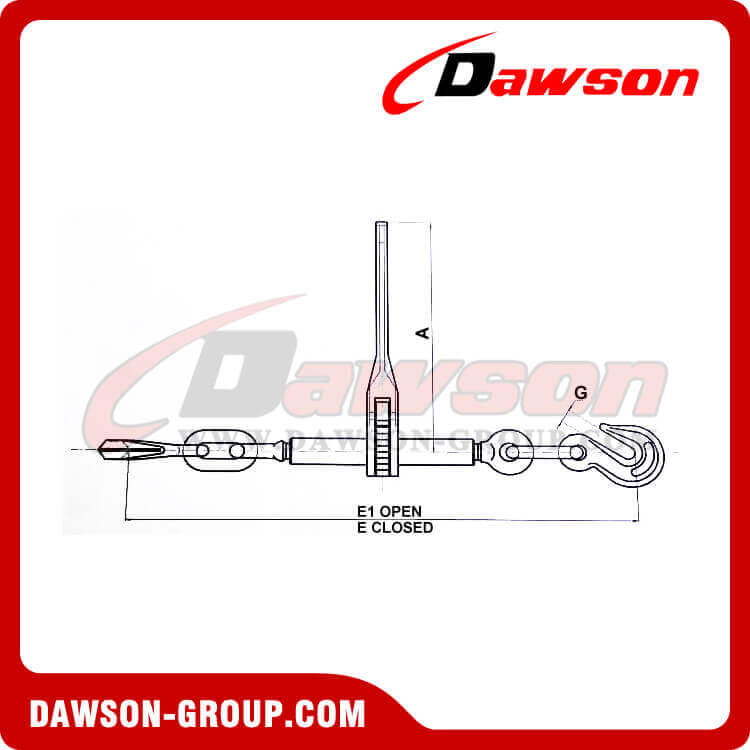

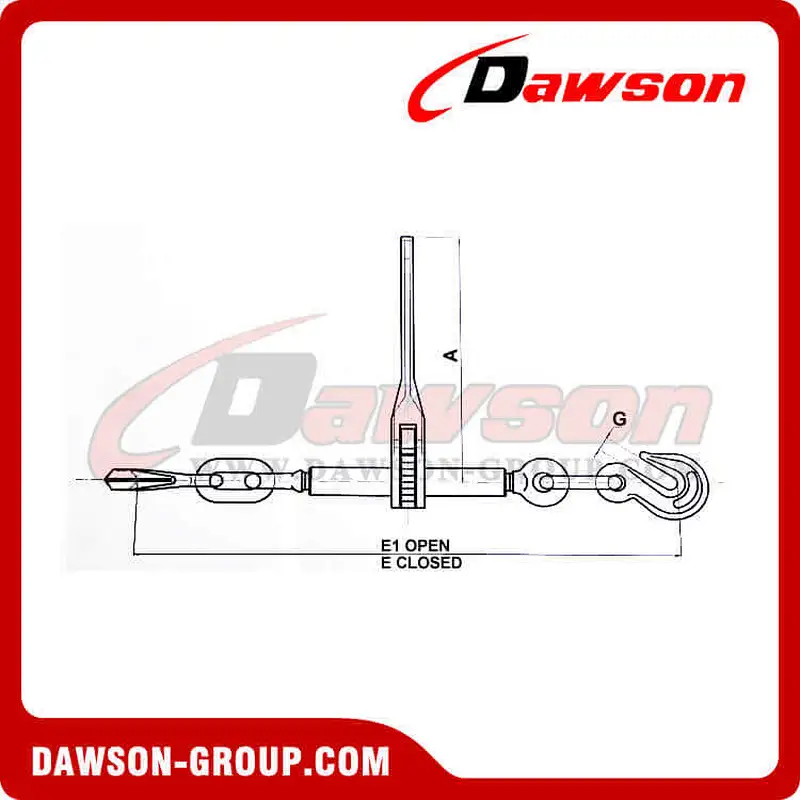

| Size | WLL(LBS) | MBS(LBS) | A | G | E1 | E |
| 1/4-5/16 | 2600 | 9200 | 213 | 9.7 | 523 | 404 |
| 1/4-5/16 | 3150 | 12600 | 213 | 9.7 | 523 | 404 |
| 5/16-3/8 | 5400 | 18900 | 354 | 12.4 | 750 | 555 |
| 5/16-3/8 | 6600 | 26400 | 354 | 12.4 | 750 | 555 |
| 5/16-3/8 | 7100 | 27850 | 354 | 12.4 | 750 | 555 |
| 5/16-3/8 | 8800 | 26400 | 354 | 12.4 | 750 | 555 |
| 3/8-1/2 | 9200 | 32200 | 354 | 16.1 | 785 | 575 |
| 3/8-1/2 | 12000 | 36000 | 354 | 15.7 | 788 | 580 |
| 3/8-1/2 | 15000 | 45000 | 354 | 14.4 | 860 | 666 |
| 1/2-5/8 | 13000 | 45500 | 354 | 18.9 | 845 | 666 |
| 1/2-5/8 | 16000 | 48000 | 354 | 18.9 | 845 | 666 |
Welcome to buy the newest and competitive price DAWSON High Quality Drop Forged Ratchet Type Load Binder, Loadbinders from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

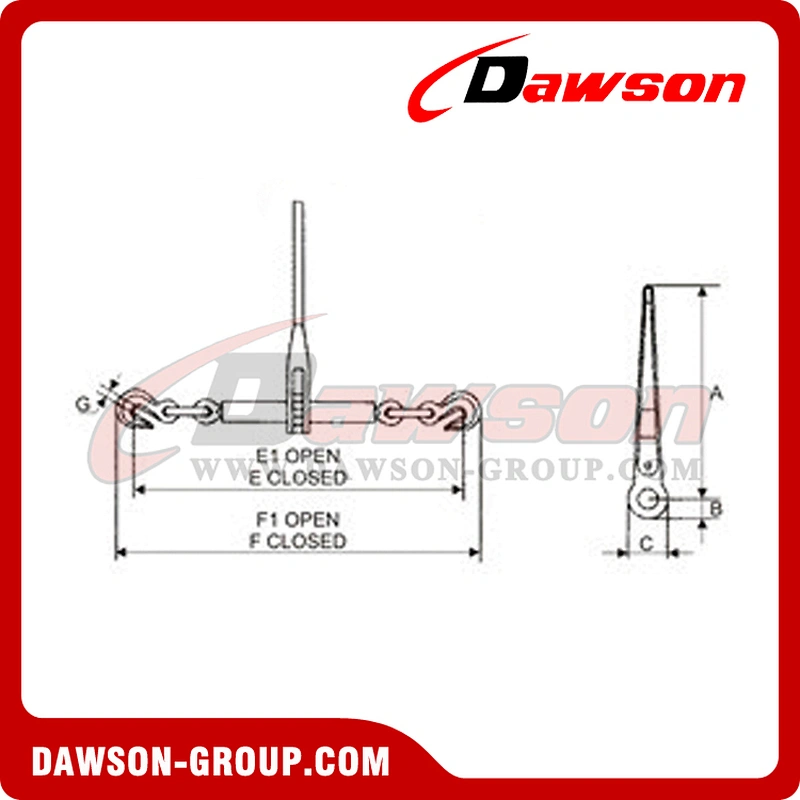

| Item | DSRLBH08 | DSRLBH10 | DSRLBH13 | DSRLBH16 | |
| Min.-Max. Chain Size | Inch | 1/4-5/16 | 5/16-3/8 | 3/8-1/2 | 1/2-5/8 |
| Working Load Limit | lbs | 2600 | 5400 | 9200 | 13000 |
| Proof Load | lbs | 5200 | 10800 | 18400 | 26000 |
| Minimum Ultimate Load | lbs | 9200 | 19000 | 33000 | 46000 |
| Weight/Each | lbs | 3.52 | 10.50 | 12.90 | 14.38 |
| Handle Length | Inch | 7.16 | 13.42 | 13.92 | 13.92 |
| Dimensions(Inch) | A | 7.16 | 13.92 | 13.92 | 13.92 |
| B | 0.89 | 1.30 | 1.30 | 1.30 | |
| C | 1.77 | 2.60 | 2.60 | 2.60 | |
| E | 16.22 | 22.64 | 24.13 | 26.45 | |
| E1 | 21.26 | 30.64 | 32.13 | 34.45 | |
| F | 17.79 | 25.24 | 27.04 | 30.07 | |
| F1 | 22.83 | 33.24 | 35.04 | 38.07 | |
| G | 0.35 | 0.51 | 0.59 | 0.74 | |
- Safety, reliable design for easy operation.
- No requirement for locking of handle than lever type load binders.
- High quality drop forged construction.
- Heat treated for extra strength.
- Short reach hooks provide optimum take-up.
- Each binder individually proof tested.
Size: 1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8 inches.
Finish: Painted.
Fitting for chain
Dawson has the load binders you need to tie down heavy cargo
From chain binders and ratchet binders to binder chains, you will find them here
Snap binders
Chain binders
Ratchet binders
Lever binders
Grade binders
Ancra binders
Cargo binders
Coil binders
Easy chain binders
Flatbed binders
Grab hook binders
Grade 7 binders
Grade 70 binders
High test binders
Load binders
Ratchet load binders
Snap binders
Tie down binders
Transport binders
Walking Load binder
Truck binders
Working load binders
The chain binders for trucking offered at DAWSON meet DOT and CVSA specifications. Versatile and adjustable, these load binders offer heavy-duty security when transporting a heavy load.
Ratchet style and lever style chain binders can be used interchangeably and the selection of either style depends primarily on driver preference. Consider the “weakest link” effect to maximize your tie down working load limit. Choose a WLL (Working Load Limit) equal-to or greater-than the chain you will use it with. For example, if you have a 3/8"chain rated at 6,600 pounds WLL and select a binder rated at 5,400 pounds, your chain will be effectively de-rated to 5,400 pounds (the weakest component). This may or may not be important depending on the load you are hauling.
Ratchet binders offer effortless tightening and easier fine adjustment without the snap-back or recoil effect of a snap binder.
Lever binders, also called snap binders, have less moving parts and are quicker to install. Recoil-less and EZ-Over styles are available to minimize snap-back effect associated with this binder type. Every recoilless lever chain binder has an anti-kickback handle that allows for quick and easy use. Because of its improved design, this lever chain binder can be easily handled by one person safely. Our recoilless lever chain binders also make use of a swiveling hook that can rotate 360 degrees for easier handling.
Trust the experienced professionals at DAWSON for all of your chain binder and ratchet binder needs. We have all of the sizes that will meet your specific requirements. We can also answer any questions you may have about the wide variety of binders and their uses. Email us or give us a call today.
Binders are ideal load control devices for a variety of trucks, trailers, campers and cargo ships. Heavy-duty binders are used to fasten heavy equipment and other specialized heavy cargo that needs to be tied down securely. There are many kinds of binders to choose from and it essential that you choose the right load binder for the job at hand.
Other Products:
Supply only on special request.Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
|
|
|
Hot Tags: bulk load binder, low price walking load binder, high quality ratchet load binder, wholesale lever load binder, buy discount Indirect load binder, hot sale load binder for lashing, customized chain binder China supplier, cheap price snap binder, truck binder China manufacturer, forged load binder China factory, load binder China exporter, load binder in stock, load binder free sample, load binder dawson brands, load binder OEM
Other related products:

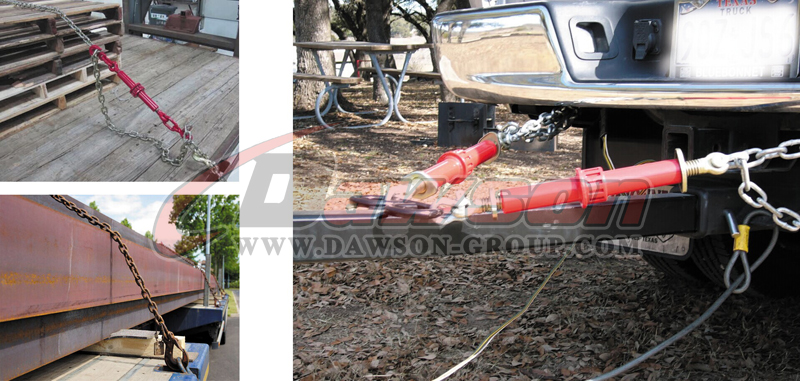

Application of Ratchet Type Load Binder:

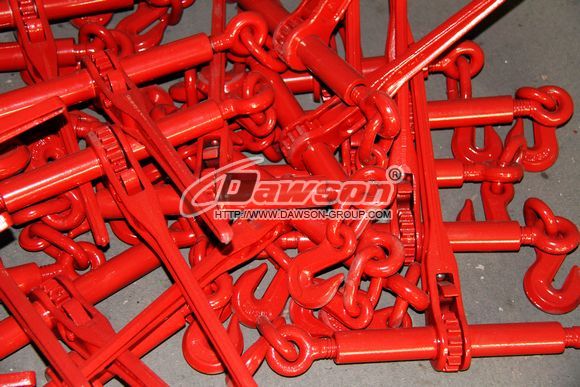

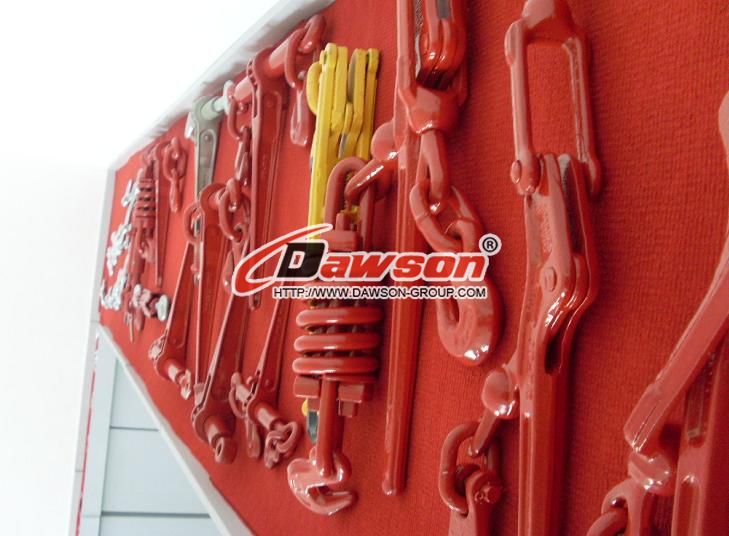

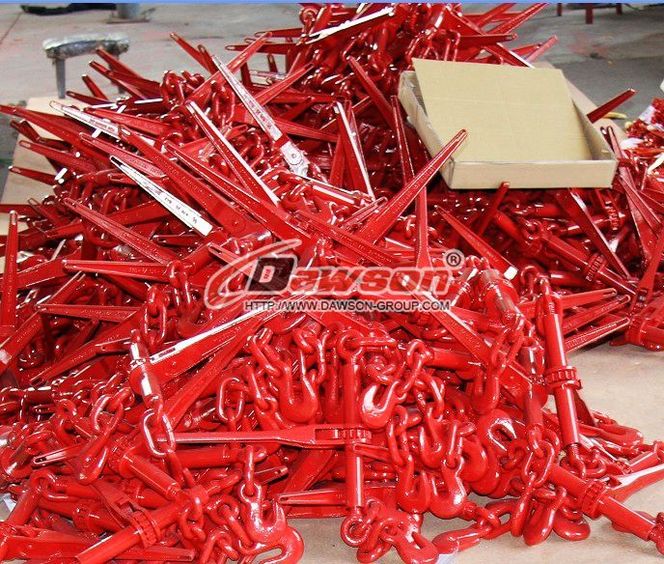

Factory & Package Show:
