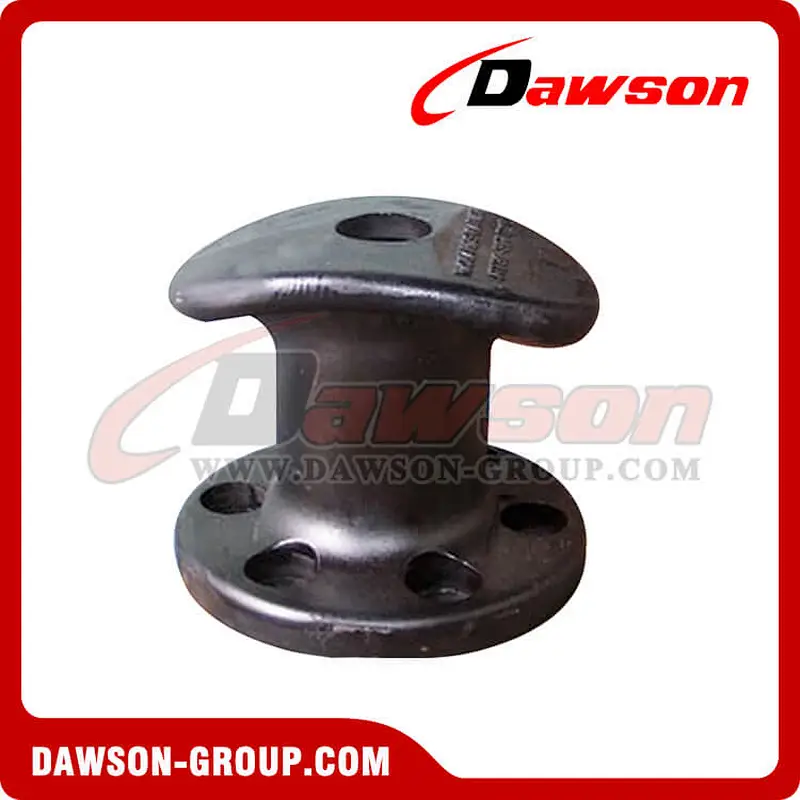

J type Dock Bollards
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Features of J type dock bollards
1. Material: cast steel;
2. Working time: 15 to 20 years;
3. Surface: smooth, polished and galvanized;
4. Bolts quantity: 4,6;
5. Capacity: 10 to 50 tonnes;
6. Color: black, red, grey etc. as customer ’ s request;
7. 1 year quality warranty;
8. Certificate: CCS,ABS,BV,LR etc.;
9. Custom made according to customer ’ s drawing
| J Type Dock Bollard | ||||||||||

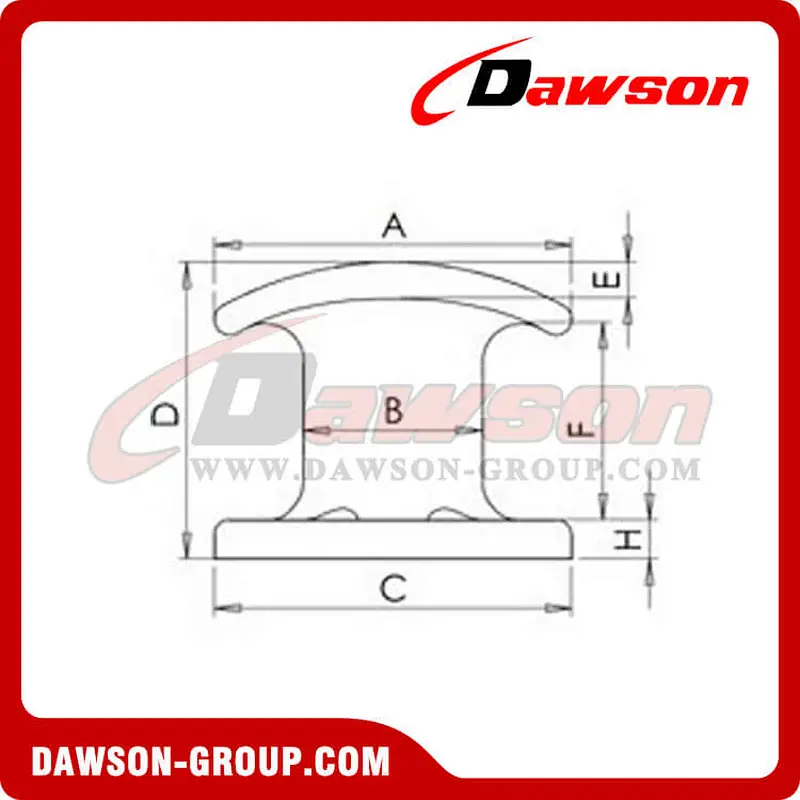

| Product No. | Bolts Qty | Capacity (Tonnes) | Dimensions(mm) | |||||||
| A | B | C | D | E | F | G | H | |||
| J-001 | 4 | 10 | 180 | 120 | 240 | 190 | 25 | 140 | 180 | 25 |
| J-002 | 4 | 15 | 215 | 150 | 290 | 220 | 25 | 160 | 220 | 35 |
| J-003 | 4 | 20 | 280 | 200 | 360 | 260 | 25 | 200 | 280 | 35 |
| J-004 | 4 | 15 | 290 | 150 | 290 | 220 | 25 | 160 | 220 | 35 |
| J-005 | 6 | 50 | 460 | 230 | 460 | 380 | 40 | 244 | 340 | 50 |
| Single Bitt Bollard | ||||||||||
| Product No. | Bolts Qty | Capacity (Tonnes) | Dimensions(mm) | |||||||
| A | B | C | D | E | F | G | H | |||
| J-001 | 4 | 10 | 180 | 120 | 240 | 190 | 25 | 140 | 180 | 25 |
| J-002 | 4 | 15 | 215 | 150 | 290 | 220 | 25 | 160 | 220 | 35 |
| J-003 | 4 | 20 | 280 | 200 | 360 | 260 | 25 | 200 | 280 | 35 |
| J-004 | 4 | 15 | 290 | 150 | 290 | 220 | 25 | 160 | 220 | 35 |
| J-005 | 6 | 50 | 460 | 230 | 460 | 380 | 40 | 244 | 340 | 50 |
