JIS 2007~1976 Mooring Chock (A)

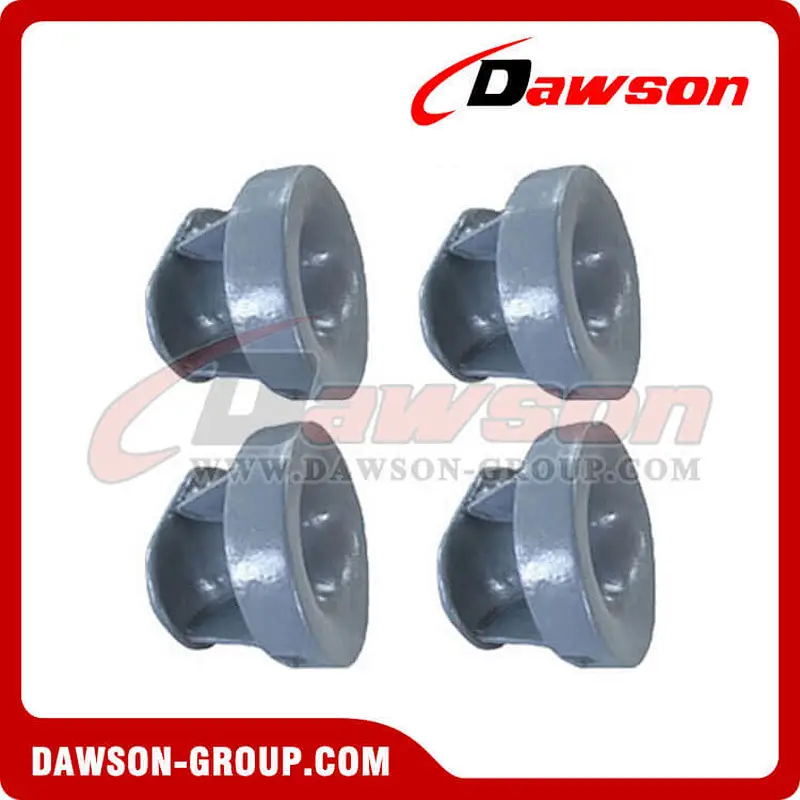

DS F 2007~1976 mooring chock is bulwark mounted chock which used to guide the mooring rope. It is casted steel.Its oval shape makes the surface more smooth and can reduce the friction of the mooring rope. The nominal size of JISF2007 mooring chock ranges from 150mm~500mm. We can also produce the customized chocks as you required. If you ’ re interested in our chocks, please feel free to contact us.
Specification :
Model Type: JIS F 2007~1976 Mooring Chock ( A)
Material: Cast Steel
Nominal Size: 150mm~500mm
Weight: 15.1kg~115kg
Welded Position: Bulwark
Standard: JIS F 2007~1976
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

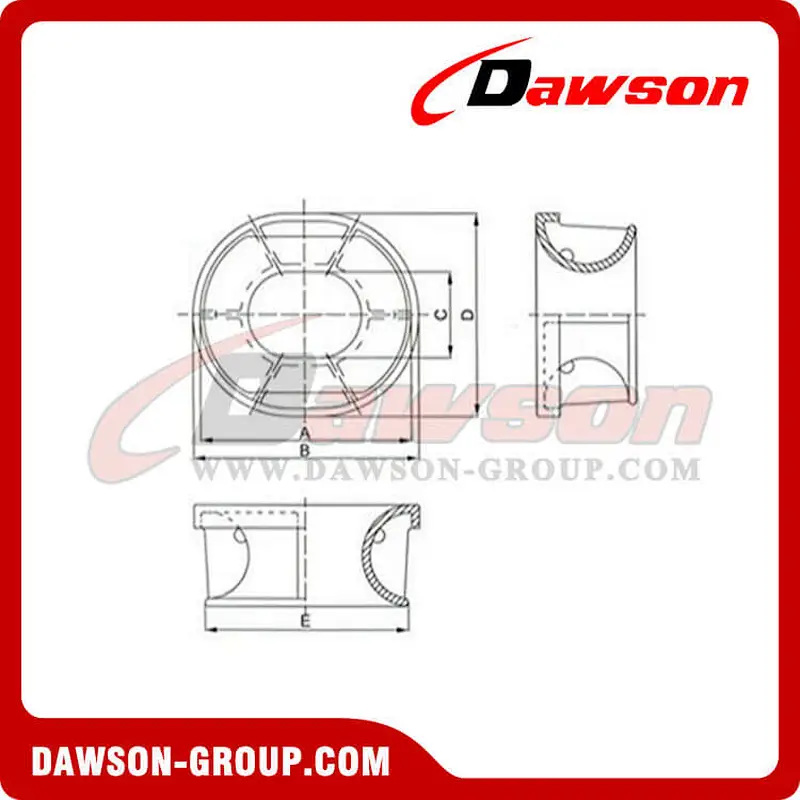

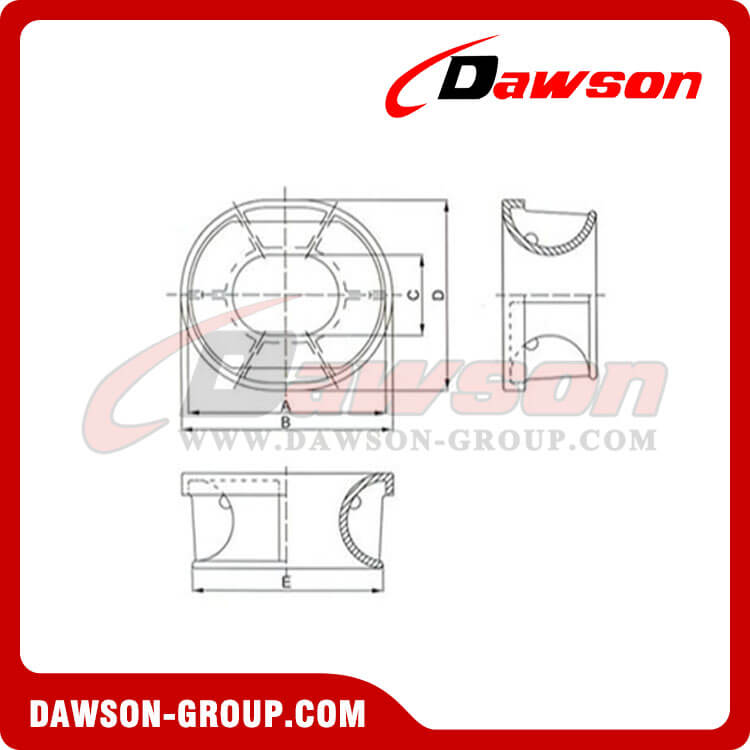

Drawing of DS F 2007~1976 Mooring Chock ( A):
| Weight(kg) | Model No. | Size(mm) | ||||
| A | B | C | D | E | ||
| 15.1 | 150 | 150 | 300 | 110 | 260 | 129 |
| 20.5 | 200 | 200 | 368 | 150 | 318 | 143 |
| 26.9 | 250 | 250 | 430 | 200 | 380 | 155 |
| 42.7 | 300 | 300 | 500 | 250 | 450 | 169 |
| 50.8 | 350 | 350 | 260 | 250 | 460 | 179 |
| 76.3 | 400 | 400 | 632 | 250 | 482 | 195 |
| 102 | 450 | 450 | 700 | 250 | 500 | 209 |
| 115 | 500 | 500 | 760 | 250 | 510 | 219 |
Factory & Package Show:
