Fairlead with Horizontal Rollers
Fairlead with horizontal rollers, consisting of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal roller fairlead, is usually located in the deck end. Horizontal roller fairlead can greatly reduce the abrasion of mooring ropes for the rollers fixed around the fairlead.

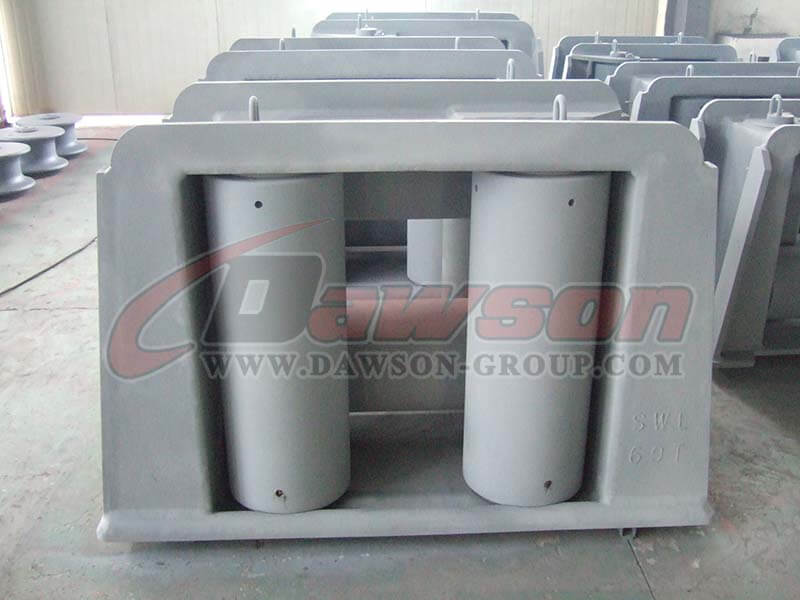

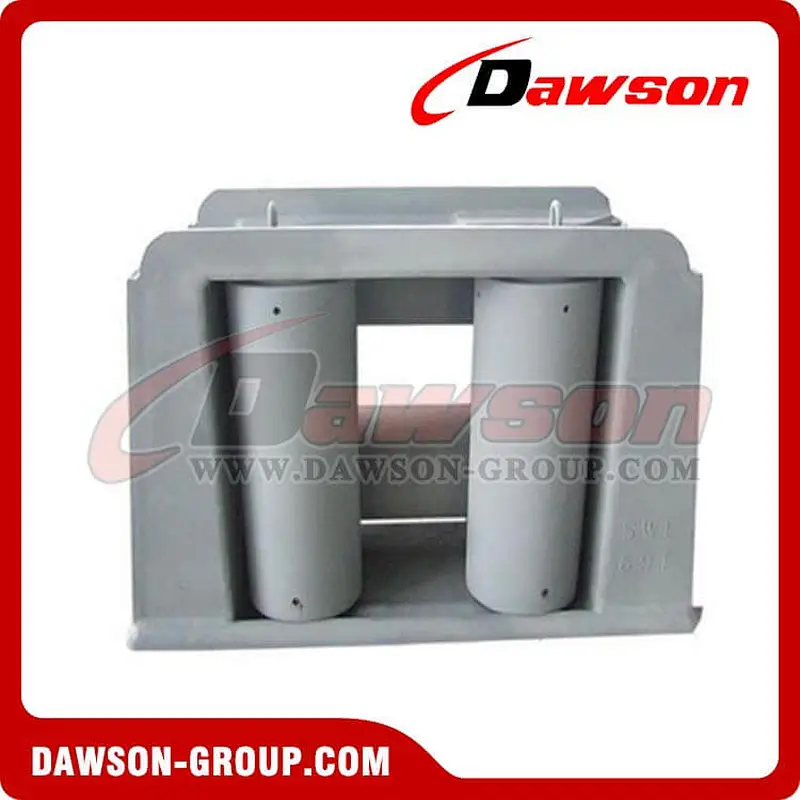

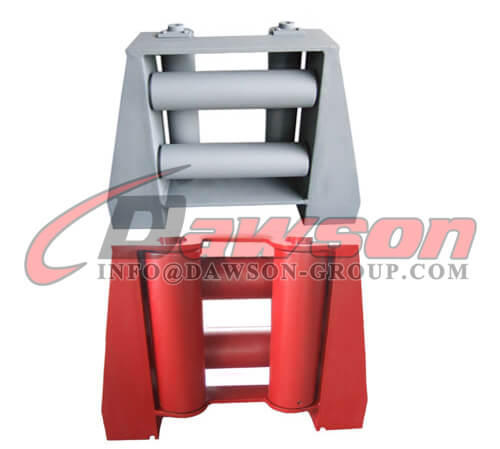

JIS F-2026 Horizontal Roller Fairlead
JIS F 2026-1980 horizontal roller fairlead is produced strictly following the Japanese standard JIS F 2026-1980. It has two types: JIS F-2026 type A(4 rollers), JIS F-2026 type BR (5 rollers). JIS F 2026-80 roller fairlead is made of stainless steel. Its surface is polished and galvanized which has high corrosion-resistance. The quality of fairleads is in line with International Organization for Standardization. If you’re interested in our mooring fairleads, please feel free to contact us.
Specification of JIS F-2026 Type A:
Model Type: JIS F-2026 Type A- 4 Rollers
Material: Cast Steel
Standard: JIS F 2026-1980
Roller No.: 4 Rollers
Nominal Diameters:140mm~315mm
Weight: 214kg~1620kg
Certificate: CCS, ABS, BV, LR, NK, RINA etc.
Unit:mm

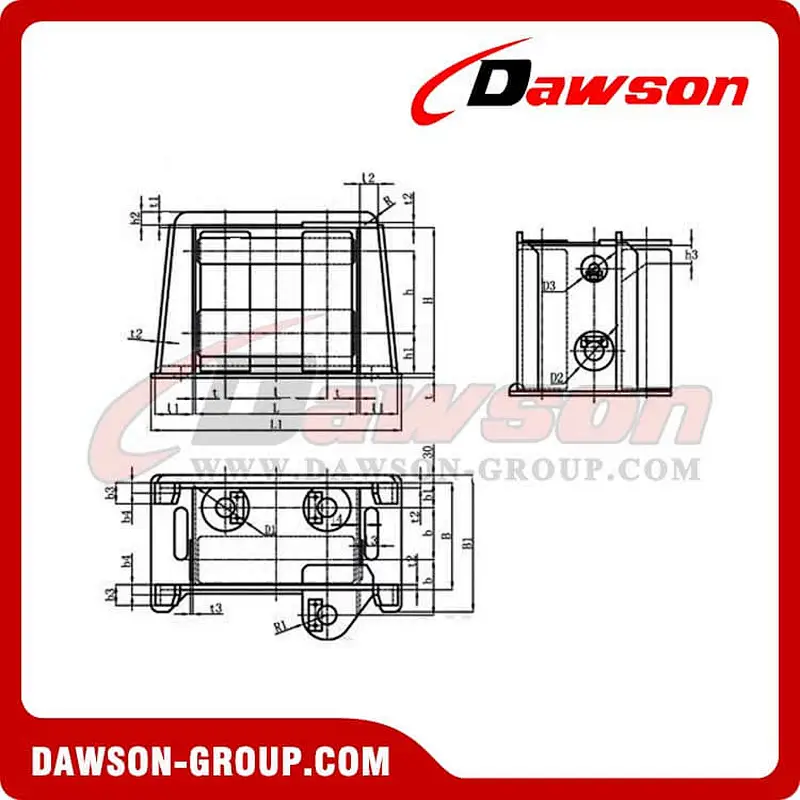

| Nominal Dia. | Frame | |||||||||||||||||||||||
| B | B1 | b | b1 | b2 | D | D1 | D2 | H | h | h1 | h2 | L | L1 | l | l1 | l2 | ||||||||
| 140 | 310 | 355 | 150 | 69 | 20 | 90 | 140 | 120 | 480 | 275 | 130 | 40 | 515 | 805 | 335 | 120 | 60 | |||||||
| 160 | 360 | 405 | 175 | 82 | 22 | 110 | 160 | 140 | 515 | 290 | 145 | 45 | 570 | 890 | 365 | 135 | 65 | |||||||
| 180 | 410 | 455 | 200 | 95 | 24 | 135 | 180 | 150 | 560 | 315 | 155 | 50 | 620 | 960 | 390 | 145 | 70 | |||||||
| 200 | 460 | 505 | 225 | 108 | 26 | 160 | 200 | 160 | 590 | 330 | 170 | 60 | 675 | 1049 | 420 | 160 | 80 | |||||||
| 250 | 565 | 610 | 280 | 133 | 30 | 200 | 250 | 200 | 715 | 415 | 195 | 75 | 825 | 1303 | 520 | 210 | 105 | |||||||
| 315 | 670 | 715 | 330 | 159 | 34 | 240 | 240 | 240 | 870 | 520 | 220 | 90 | 980 | 1562 | 620 | 260 | 130 | |||||||
| Nominal Dia. | Frame | Applicable Wire Rope Dia. | Opening Dia.(Length×Width) | Weight(kg) | ||||||||||||||||||||
| l3 | R | t | t1 | t2 | t3 | |||||||||||||||||||
| 140 | 50 | 40 | 12 | 10 | 16 | 6 | 18 | 148×195 | 214 | |||||||||||||||
| 160 | 50 | 45 | 14 | 10 | 18 | 8 | 22.4 | 150×200 | 307 | |||||||||||||||
| 180 | 50 | 50 | 16 | 10 | 20 | 10 | 25 | 150×199 | 410 | |||||||||||||||
| 200 | 50 | 60 | 18 | 12 | 22 | 10 | 28 | 152×204 | 568 | |||||||||||||||
| 250 | 60 | 75 | 20 | 14 | 26 | 12 | 35.5 | 199×253 | 1000 | |||||||||||||||
| 315 | 60 | 90 | 22 | 16 | 30 | 14 | 42.5 | 253×302 | 1620 | |||||||||||||||
