JIS F2001-1990 Bollard
Our marine bollards are strictly produced complying with the industrial standard. JIS F2001 bollard is made for ship use according to Japanese Industrial Standard. Its appearance is free from defects such as cracks, flaw detrimental to service or rust and of good finish. Its applicable ropes are wire rope, manila and sisal fiber rope, synthetic rope for your reference. For more information, please feel free to contact us.
Features of JIS F2001-1990 Bollard
1. Double bitt bollard;
2. Bollard Standard: JIS F2001-1990;
3. Steel material;
4. Finish: Epoxy coating;
5. Nominal Diameters: 100 to 800mm;
6. Weight: 18.9 to 3071 kg;
7. 1 year warranty;
8. Certificate: CCS,ABS,BV etc.;
9. Can be customized

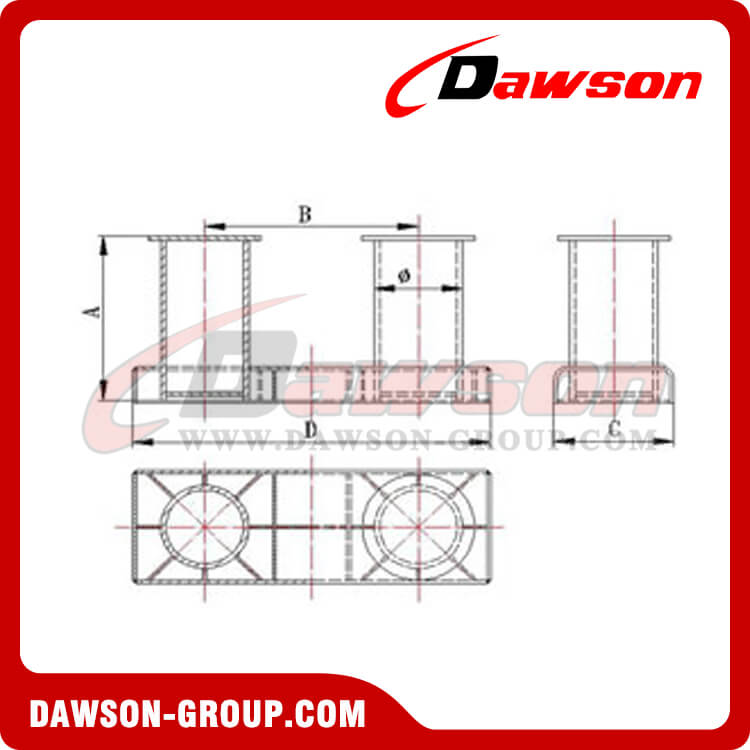

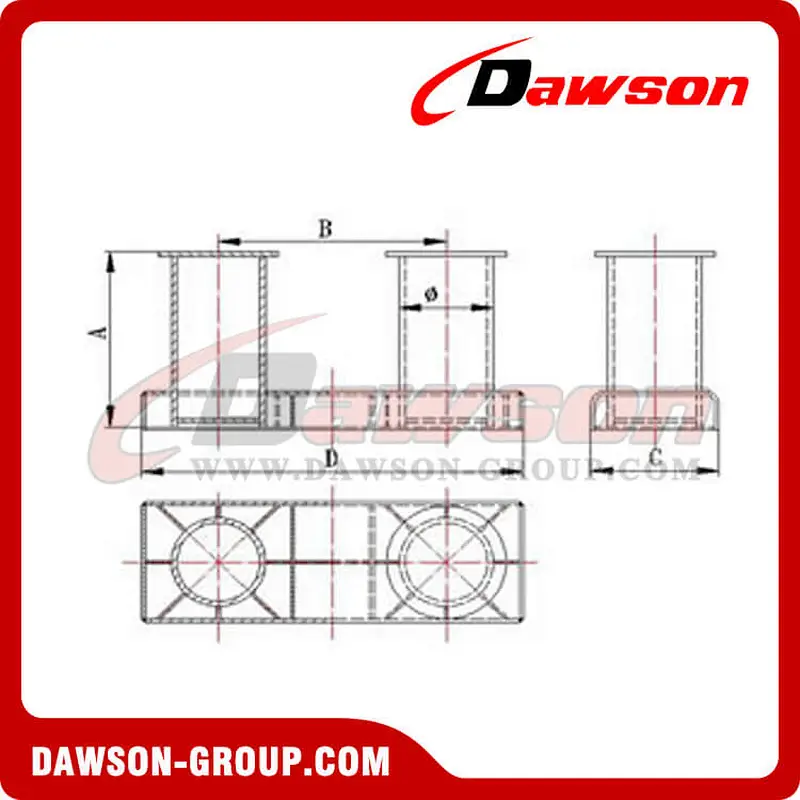

| Nominal Dia. | Weight(kg) | Size(mm) | ||||
| A | B | C | D | Φ | ||
| 100 | 18.9 | 196 | 250 | 165 | 445 | 114.3 |
| 125 | 29.4 | 246 | 315 | 195 | 540 | 139.8 |
| 160 | 44.7 | 316 | 400 | 225 | 670 | 165.2 |
| 200 | 79.5 | 378 | 500 | 290 | 860 | 216.3 |
| 250 | 139 | 470 | 630 | 360 | 1065 | 267.4 |
| 315 | 261 | 597 | 800 | 430 | 1300 | 318.5 |
| 355 | 361 | 663 | 890 | 480 | 1475 | 355.6 |
| 400 | 502 | 749 | 1000 | 550 | 1630 | 406.4 |
| 450 | 685 | 841 | 1130 | 620 | 1840 | 457.2 |
| 500 | 911 | 928 | 1250 | 690 | 2040 | 508.0 |
| 560 | 1208 | 1025 | 1380 | 750 | 2240 | 558.8 |
| 630 | 1601 | 1152 | 1570 | 820 | 2510 | 609.6 |
| 710 | 2252 | 1294 | 1750 | 960 | 2840 | 711.2 |
| 800 | 3071 | 1480 | 2000 | 1100 | 3240 | 812.8 |
