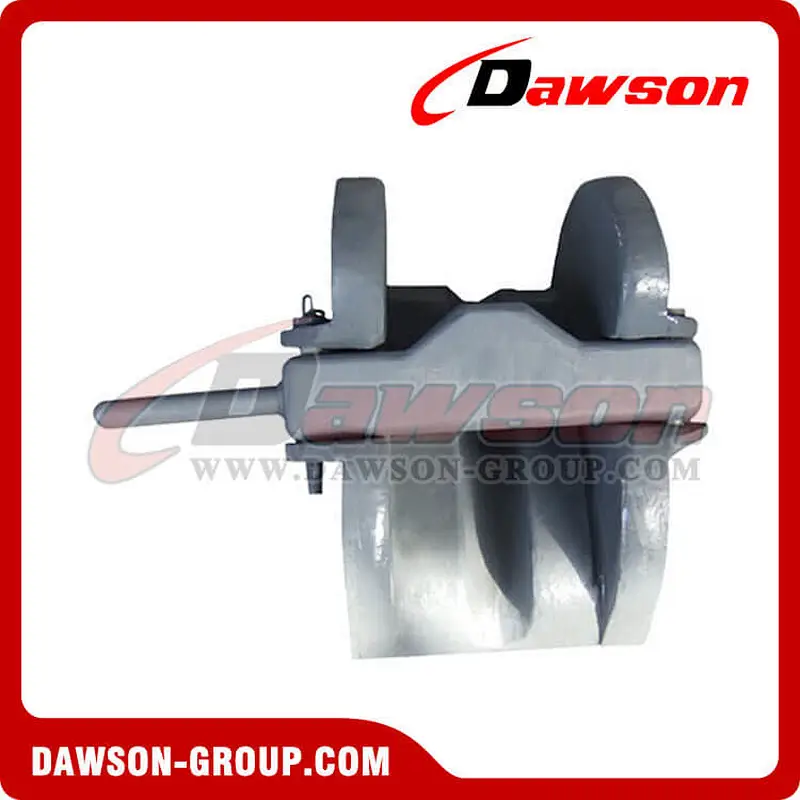

JIS f2015 cast steel chain stopper
JIS F2015~1987 bar type chain stopper is made of cast steel. It is a common and necessary device for ship mooring. Disposed between anchor windlass and hawsepipe, chain stopper can fix the anchor chain and prevent it slip out. Chain stoppers have different types: cast lever chain stopper, screw type chain stopper, bar type chain stopper, pawl type chain stopper etc. We can supply all types of chain stoppers. For more information, please feel free to contact us.
Features of JIS F2015 Cast Steel Chain Stopper
1. Model Type: bar type chain cable stopper;
3. Nominal Anchor Chain Diameter:38~78mm;
4. Nominal Weight: 111 to 682kg;
5. Finish: anti~rust paint;
6. Process: casting, forging, welding,painting
7. Withstand 80% of chain cable’s minimum breaking load;
8. Certificate: ABS,CCS,BV,LR,NK etc.
9. Customized service is available.

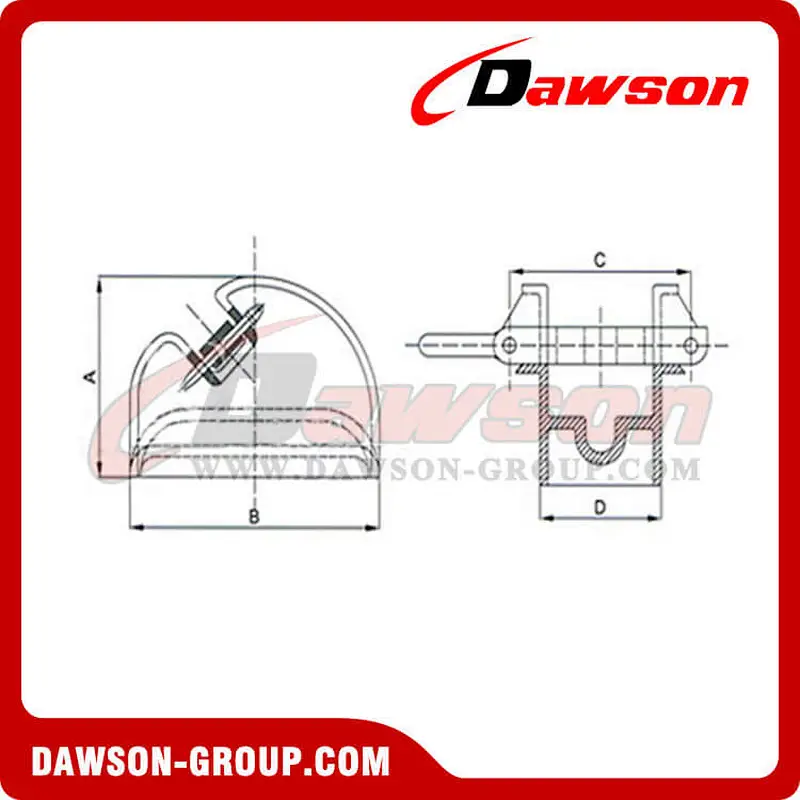

| Nominal No. | Nominal Diameter of Anchor Chain | Size(mm) | Weight(kg) | |||
| A | B | C | D | |||
| 40 | 38~40 | 378 | 540 | 390 | 336 | 111 |
| 44 | 42~44 | 412 | 590 | 424 | 366 | 139 |
| 48 | 46~48 | 450 | 640 | 460 | 397 | 176 |
| 52 | 50~52 | 4+1 | 695 | 494 | 428 | 216 |
| 56 | 54~56 | 528 | 745 | 530 | 457 | 261 |
| 60 | 55~60 | 465 | 795 | 564 | 488 | 319 |
| 64 | 62~64 | 600 | 850 | 600 | 517 | 380 |
| 68 | 66~68 | 635 | 900 | 636 | 547 | 452 |
| 73 | 70~73 | 675 | 960 | 678 | 582 | 561 |
| 78 | 76~78 | 715 | 1020 | 720 | 617 | 682 |
